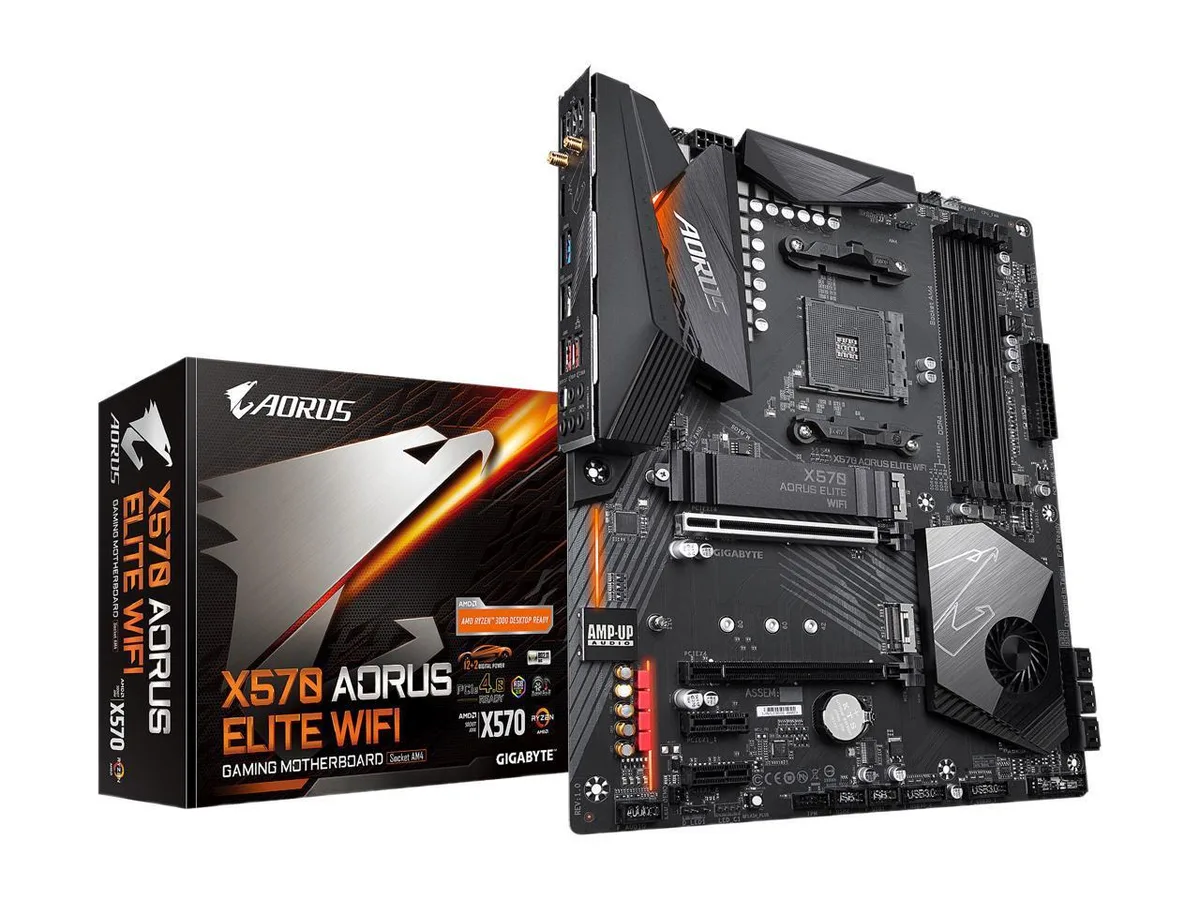

ATX motherboard in dark finish with large heatsinks and RGB lighting

GIGABYTE

GIGABYTE X570 AORUS ELITE WIFI International Version AMD motherboard

SKU CH-K3MX-YB253

ATX board with AMD X570 chipset, 12+2 phase digital VRM, dual PCIe 4.0 M.2 slots, Intel Wi-Fi and 1 GbE LAN

  • ChipsetAMD X570
  • Number of Memory Slots4x288pin (DDR4)
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • Buffer SupportedUn-buffered
  • PCI Express 3.0 x162 x PCI Express 3.0 x16
  • Supports Ryzen 5000 and Ryzen 3rd Gen CPUs
  • 12+2 phase digital VRM with DrMOS
  • Dual PCIe 4.0 M.2 slots with single thermal guard
  • Intel 802.11ac WiFi and 1Gbps LAN
  • RGB Fusion 2.0 multi-zone addressable lighting

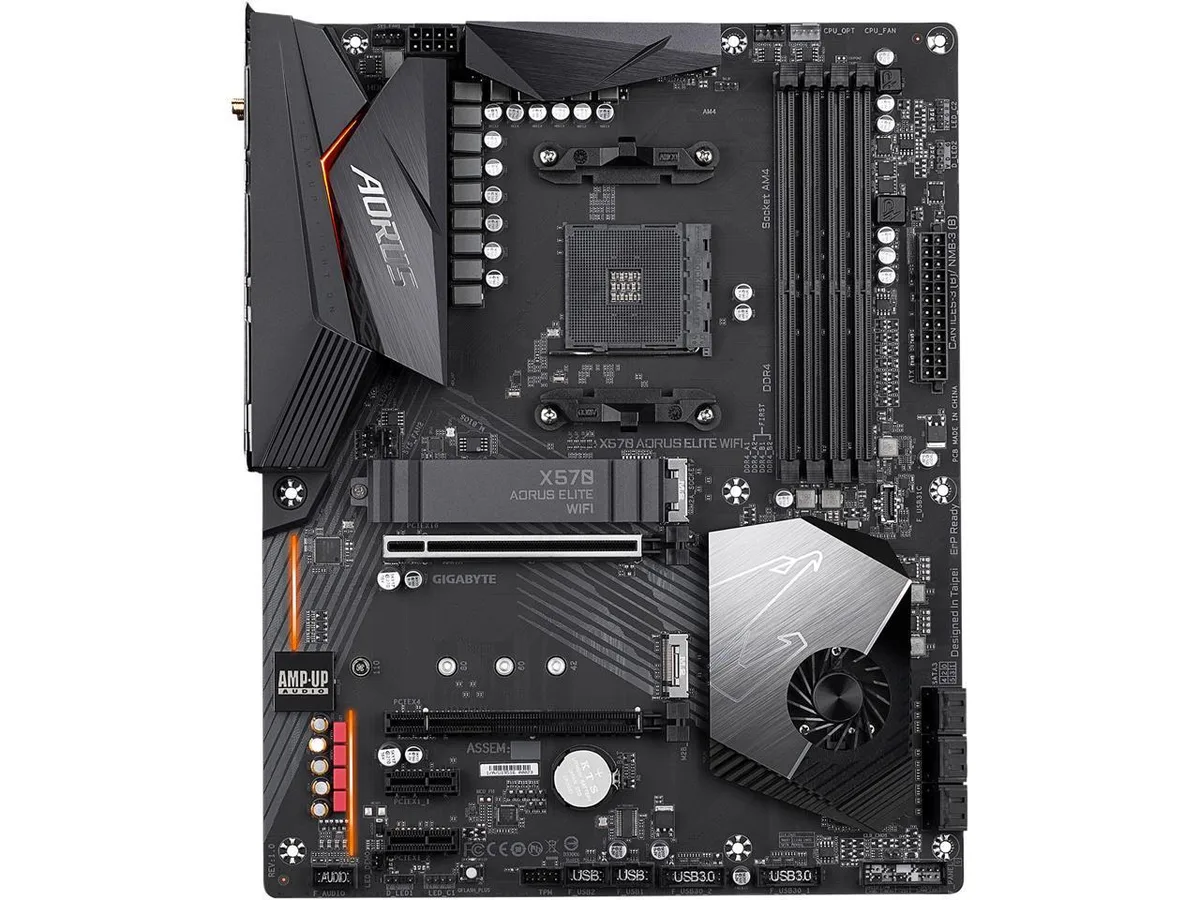

X570 chipset board for Ryzen builds

The GIGABYTE X570 AORUS ELITE WIFI uses the AMD X570 chipset on an ATX form factor. It supports Ryzen 5000 series, 3rd Gen and 2nd Gen processors on the AM4 socket. Four DDR4 slots accept up to 128GB of unbuffered memory in dual-channel mode. Integrated Intel Wi-Fi 802.11ac and Gigabit LAN provide network connectivity.

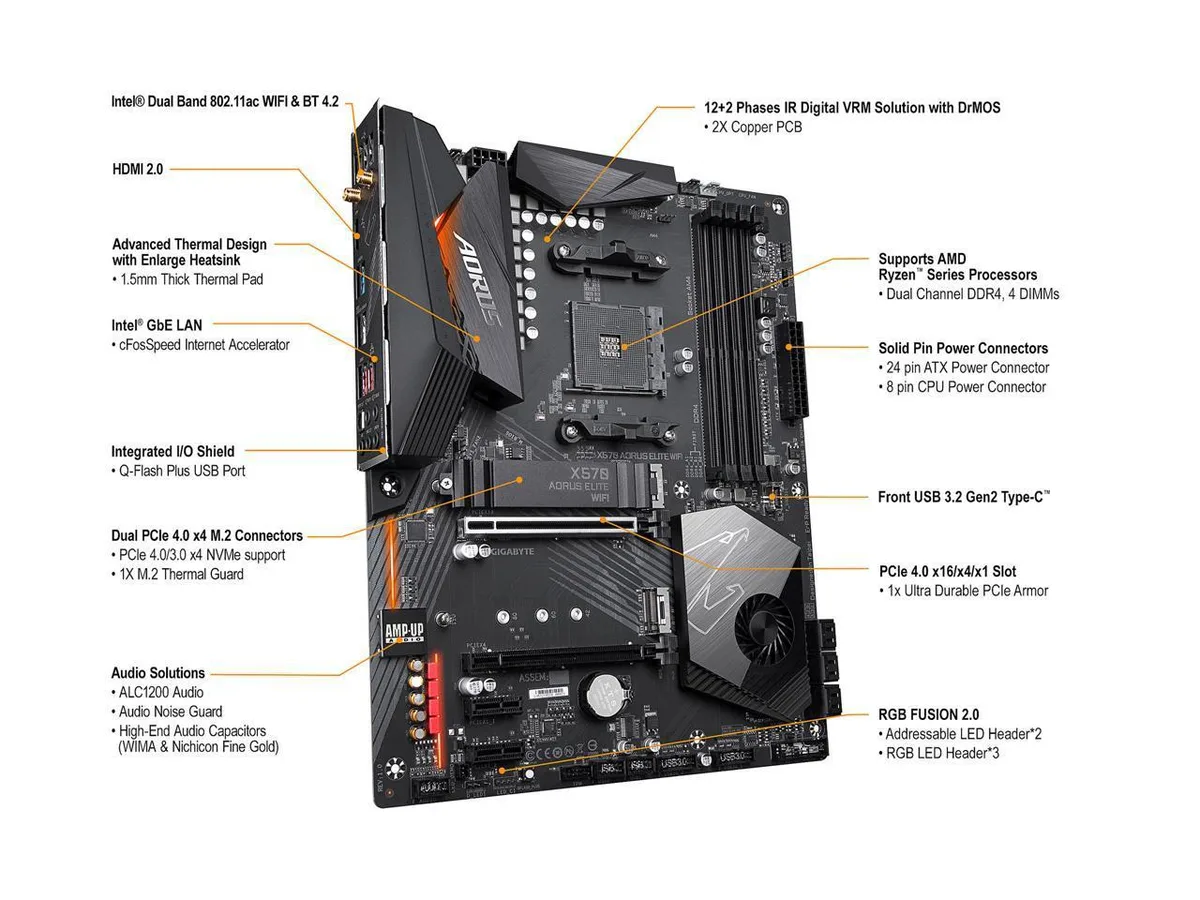

12+2 phase VRM with enlarged heatsink under load

A 12+2 phase digital VRM with DrMOS delivers power to the CPU socket. The advanced thermal design uses an enlarged heatsink to dissipate heat during sustained workloads. Dual PCIe 4.0 M.2 slots each have a single thermal guard to maintain drive temperatures. Smart Fan 5 uses multiple sensors and hybrid headers to adjust cooling based on system load.

Check AM4 cooler clearance and BIOS version

Verify that your CPU cooler fits the AM4 mounting pattern and does not obstruct the enlarged VRM heatsink. The board requires a BIOS update for Ryzen 5000 series support; Q-Flash Plus allows updating without a CPU installed. Ensure your power supply provides the 8-pin EPS connector for the digital VRM. The rear I/O shield is integrated for easier installation.

Highlights

  • Supports Ryzen 5000 and Ryzen 3rd Gen CPUs
  • 12+2 phase digital VRM with DrMOS
  • Dual PCIe 4.0 M.2 slots with single thermal guard
  • Intel 802.11ac WiFi and 1Gbps LAN
  • RGB Fusion 2.0 multi-zone addressable lighting

Specifications

BrandGIGABYTE
ChipsetAMD X570
Number of Memory Slots4x288pin (DDR4)
Maximum Memory Supported128GB
Channel SupportedDual Channel
Buffer SupportedUn-buffered
PCI Express 3.0 x162 x PCI Express 3.0 x16
PCI Express x161 x PCI Express x16
PCI Slots2 x PCI Slots
Serial ATA (SATA)6 x SATA 6Gb/s
SATA RAID0/1/10
Onboard Video ChipsetSupported only by CPU with integrated graphic
Audio ChipsetRealtek ALC1200
Audio Channels5.1 Channels
Max LAN Speed1Gbps
USB 3.06 x USB 3.0
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Windows 11Supported
Features(International Version No Warranty)

Questions about this item

How loud or hot does the 12+2 phase VRM and enlarged heatsink get under all-day load?

The board uses a 12+2 phase digital VRM with DrMOS and an enlarged heatsink designed to keep temperatures in check during sustained operation.

Which CPU, memory and cooler must I already have to use this X570 board?

You need an AM4 Ryzen processor, DDR4 DIMMs up to 128 GB across four slots, and a standard ATX cooler mounting kit.

Will my existing SATA SSDs, PCIe 3.0 graphics card and DDR4 kit work without changes?

Six SATA 6 Gb/s ports, two PCIe 3.0 x16 slots and four DDR4 slots accept current SATA drives, PCIe 3.0 GPUs and DDR4 memory directly.
