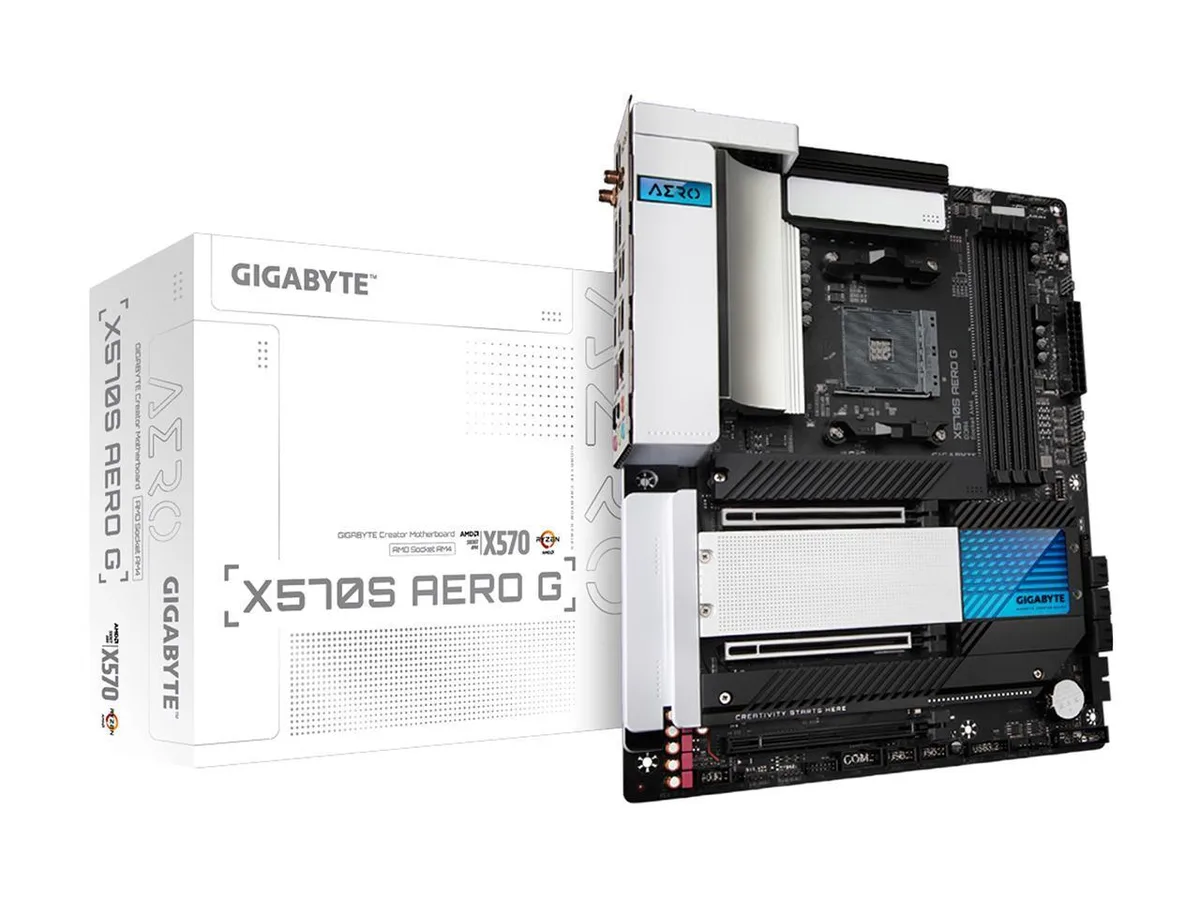

Black ATX motherboard with silver heatsinks and a rear I/O shield visible

GIGABYTE

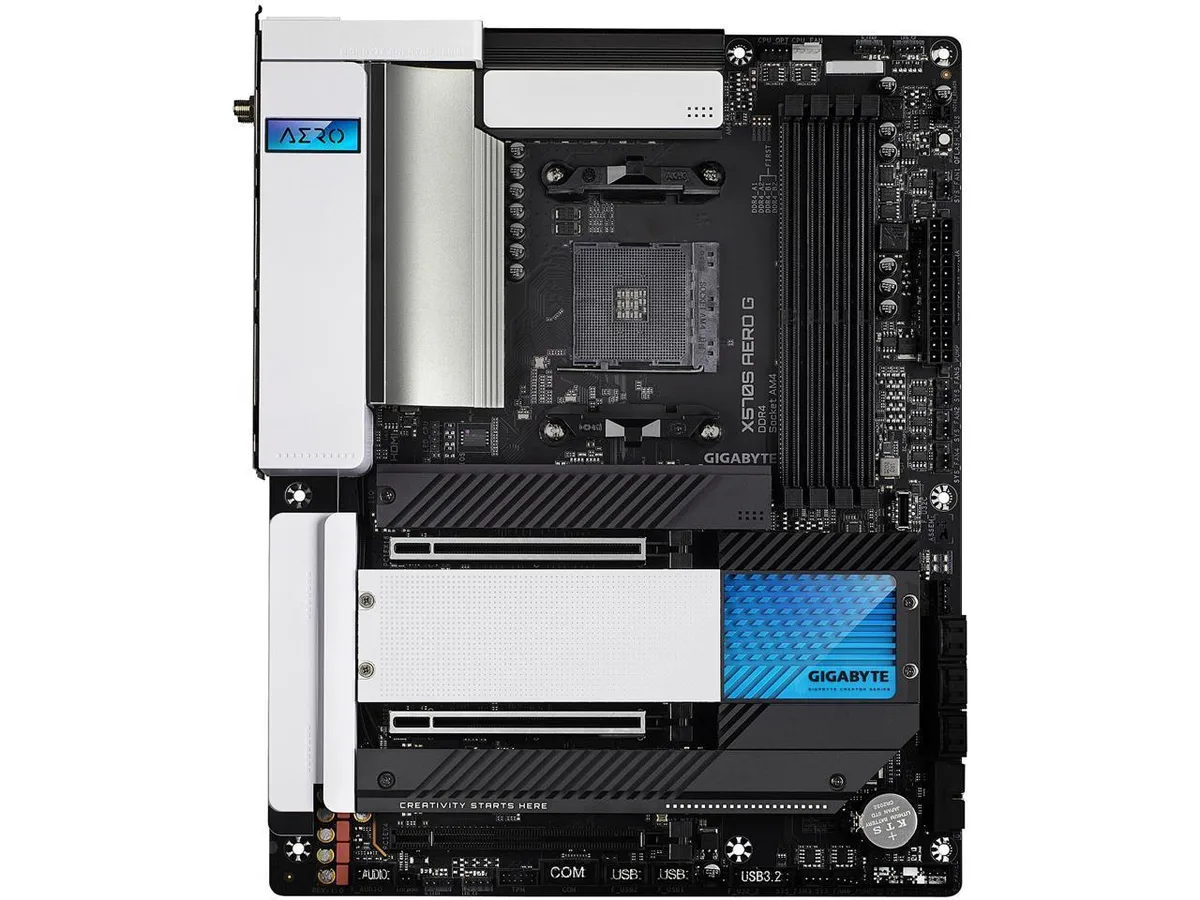

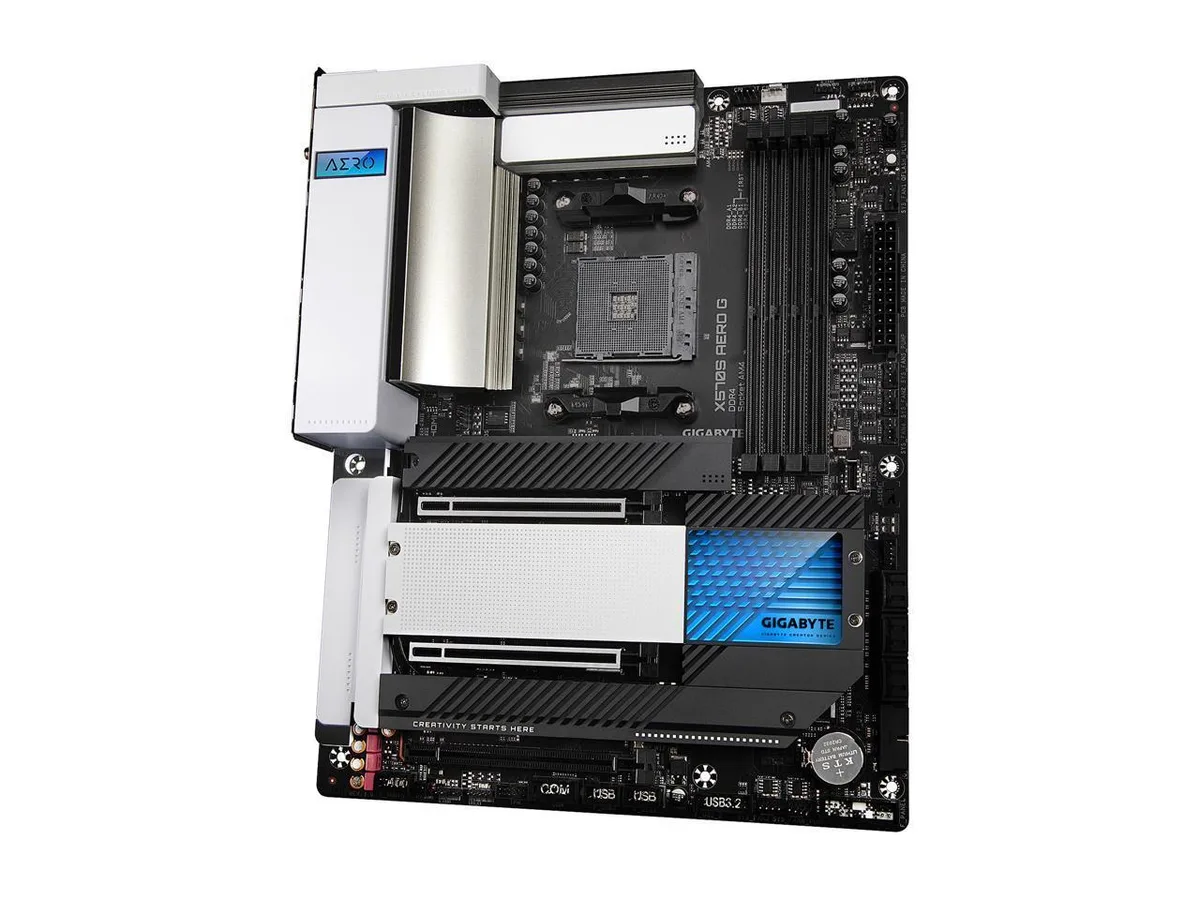

GIGABYTE X570S AERO G AMD motherboard

SKU CH-1DT7-S2BEZ

ATX board for AM4 Ryzen CPUs with DDR4 up to 3200, three PCIe 4.0 x16 slots, six SATA ports, Intel 2.5 GbE LAN and Wi-Fi 6

  • CPU Socket TypeAM4
  • CPU TypeSupports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Seri
  • ChipsetAMD X570
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 5000 Series
  • Maximum Memory Supported128GB
  • Supports AMD Ryzen 5000 Series processors for high compute performance
  • 128 GB DDR4 3200 capacity across four slots enables large workloads
  • Three PCI Express 4.0 x16 slots provide multi-GPU expandability
  • Intel 2.5 GbE LAN delivers 2.5 Gbps wired throughput
  • Realtek ALC1220-VB codec drives 7.1 channel audio output

AMD X570S ATX board for Ryzen creators

The GIGABYTE X570S AERO G uses the AMD X570 chipset and AM4 socket to support Ryzen 5000, 4000 G-Series, 3000 and 2000 series processors. Four DDR4 slots accept up to 128 GB of un-buffered memory at speeds up to 3200 MT/s. Dual-channel architecture and ECC support suit workstation workloads. Three PCI Express 4.0 x16 slots and six SATA 6Gb/s ports provide expandability for multi-GPU and storage arrays. Intel 2.5 GbE LAN and WIFI 6 handle high-throughput networking.

Straightforward ATX install with clear slot rules

Standard ATX mounting holes align with common chassis standoffs. The primary PCI Express 4.0 x16 slot connects directly to the CPU for optimum graphics performance; the PCIEX8 slot shares bandwidth with M.2 devices, so populate it only after confirming lane allocation. M.2 screw standoffs for 2242, 2280 and 22110 lengths are pre-installed. The 24-pin and 8-pin CPU power connectors sit at the board edge for easy cable routing. Rear I/O shield is integrated, removing a separate fitting step.

Verify CPU, memory and cooler clearance first

Confirm your Ryzen processor generation matches the supported memory speeds: 5000 and 4000 G-Series reach 3200 MT/s, while 3000 G-Series and 2000 series top out at 2933 MT/s. Quad-channel kits are not supported; populate slots in pairs for dual-channel operation. Large air coolers may overhang the first PCI Express slot or M.2 heatsink — check cooler dimensions against the board layout. Ensure the power supply delivers both 24-pin and 8-pin EPS connectors for full CPU power delivery.

Highlights

  • Supports AMD Ryzen 5000 Series processors for high compute performance
  • 128 GB DDR4 3200 capacity across four slots enables large workloads
  • Three PCI Express 4.0 x16 slots provide multi-GPU expandability
  • Intel 2.5 GbE LAN delivers 2.5 Gbps wired throughput
  • Realtek ALC1220-VB codec drives 7.1 channel audio output

Specifications

BrandGIGABYTE
ModelX570S AERO G
CPU Socket TypeAM4
CPU TypeSupports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors
ChipsetAMD X570
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 5000 Series Processors / AMD Ryzen 4000 G-Series Processors / AMD Ryzen 3000 Series Processors)
DDR4 2933 / 2667 / 2400 / 2133 (AMD Ryzen 3000 G-Series Processors / AMD Ryzen 2000 Series Processors / AMD Ryzen 2000 G-Series Processors)
Maximum Memory Supported128GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 4.0 x163 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
- AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
- Supporting PCIe 4.0*/3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000
SATA RAID0/1/10
Onboard Video ChipsetSupported only by CPU with integrated graphic
Audio ChipsetRealtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Audio Channels7.1 Channels
LAN ChipsetIntel 2.5GbE LAN chip
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6 AX200
WIFI a, b, g, n, ac, ax
BluetoothBluetooth 5.2
Back I/O Ports2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort In port
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB Type-C port, with USB 3.2 Gen 1 support
4 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt add-in card connector
1 x serial port header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
Windows 11Supported
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only.
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS:
1 x 256 Mbit flash
Use of licensed

Questions about this item

How can I confirm the Realtek ALC1220-VB audio is active after build?

In Windows Device Manager the codec appears under Sound, video and game controllers; the rear line-out jack will pass DSD audio when a compatible player is used.

Which accessories ship with the board and what must I source separately?

The motherboard includes the I/O shield, SATA cables and documentation; CPU, DDR4 memory, M.2 SSDs, graphics card and power supply are purchased separately.

Which M.2 form factors does the CPU-linked slot accept for a Ryzen 5000 build?

The M2A_CPU connector supports 2242, 2280 and 22110 lengths with PCIe 4.0 x4 or SATA signalling when a Ryzen 5000 series processor is installed.
