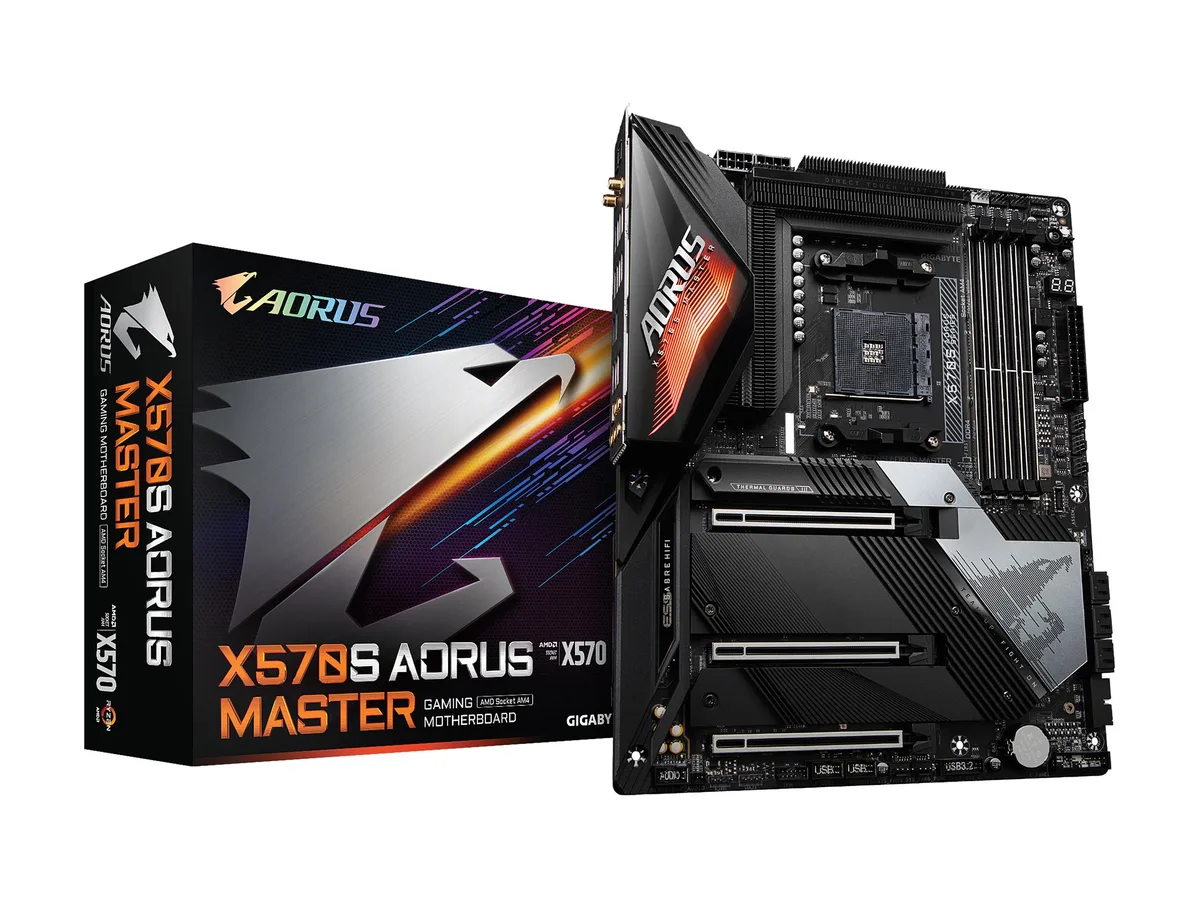

Rectangular ATX motherboard in dark grey with silver heatsinks and metal backplate

GIGABYTE

GIGABYTE X570S AORUS MASTER AMD motherboard

SKU CH-BEDY-AYFVT

AM4 board with X570 chipset, 4 DDR4 slots up to 128 GB, 14+2 phase 70 A VRM, 6 SATA ports, 2.5 GbE LAN, Intel WiFi 6E and 7.1 audio

  • CPU TypeRyzen Series
  • ChipsetAMD X570
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 5400(OC)/ 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 44
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • 14+2 phase digital VRM with 70A power stages for stable CPU delivery
  • Advanced thermal design with Fins-Array II and M.2 Thermal Guard III keeps components cool
  • Intel WiFi 6E and 2.5GbE LAN provide fast wired and wireless connectivity
  • Supports up to 128GB DDR4 across four slots with ECC capability
  • Realtek ALC1220-VB codec delivers 7.1 channel audio with front-panel DSD support

Chipset and CPU Support

The GIGABYTE X570S AORUS MASTER is an ATX motherboard built on the AMD X570 chipset for socket AM4 Ryzen processors. It supports Ryzen 5000, 4000 G-Series, 3000, 3000 G-Series, 2000 and 2000 G-Series CPUs. The board targets enthusiasts who want a fanless chipset design with a 14+2 phase digital VRM using 70A power stages.

Memory and Expansion Fit

Four 288-pin slots accept dual-channel DDR4 up to 128GB with ECC and non-ECC unbuffered modules. Overclocked speeds range from 2933 through 5400. Three PCI Express 4.0 x16 slots and two PCI Express 3.0 x16 slots provide multi-GPU and add-in card flexibility, while six SATA 6Gb/s ports handle traditional storage.

Key Connectivity Spec

A single CPU-attached M.2 socket takes 2242, 2280 and 22110 drives with SATA or PCIe 4.0 x4/x2 modes depending on the processor. Intel WiFi 6E 802.11ax and 2.5GbE LAN with cFosSpeed manage networking. Realtek ALC1220-VB drives 7.1-channel audio with front-panel DSD support.

Highlights

  • 14+2 phase digital VRM with 70A power stages for stable CPU delivery
  • Advanced thermal design with Fins-Array II and M.2 Thermal Guard III keeps components cool
  • Intel WiFi 6E and 2.5GbE LAN provide fast wired and wireless connectivity
  • Supports up to 128GB DDR4 across four slots with ECC capability
  • Realtek ALC1220-VB codec delivers 7.1 channel audio with front-panel DSD support

Specifications

BrandGIGABYTE
ModelX570S AORUS MASTER
CPU TypeRyzen Series
ChipsetAMD X570
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5400(OC)/ 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 4000 G-Series processors)
DDR4 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 3000 Series processors)
DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4
Maximum Memory Supported128GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 4.0 x163 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
PCI Express 3.0 x162 x PCI Express 3.0 x16
PCI Express x161 x PCI Express x16
PCI Slots2 x PCI Slots
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
- AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
- Supporting PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 300
SATA RAID0/1/10
Onboard Video ChipsetSupported only by CPU with integrated graphic
Audio ChipsetRealtek ALC1220-VB codec
* The front panel line out jack supports DSD audio.
Audio Channels7.1 Channels
LAN ChipsetIntel 2.5GbE LAN chip
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX210
WIFIa,b,g,n,ac,ax
BluetoothBluetooth 5.2
Back I/O Ports1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
5 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
USB 3.06 x USB 3.0
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt add-in card connector
2 x temperature sensor headers
1 x power button
1 x reset button
1 x Clear CMOS jumper
Voltage Measurement Points
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only.
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS:
1 x 256 Mbit f

Questions about this item

What comes in the box and what must be purchased separately?

The motherboard ships with I/O shield, SATA cables, M.2 screws and driver disc; CPU, DDR4 memory, cooler, graphics card, storage drives and power supply are bought separately.

Which memory speed should I pick from the supported DDR4 list?

For Ryzen 5000 series CPUs choose DDR4 3600 or 3800 for best latency; 3200 works natively without overclocking; higher OC bins such as 4400 or 5000 need manual tuning and strong cooling.

What does the 2.5 GbE LAN figure mean in daily use?

The Intel 2.5 GbE port transfers up to 2.5 gigabits per second, so large file copies over a wired network run roughly two and a half times faster than standard gigabit Ethernet.
