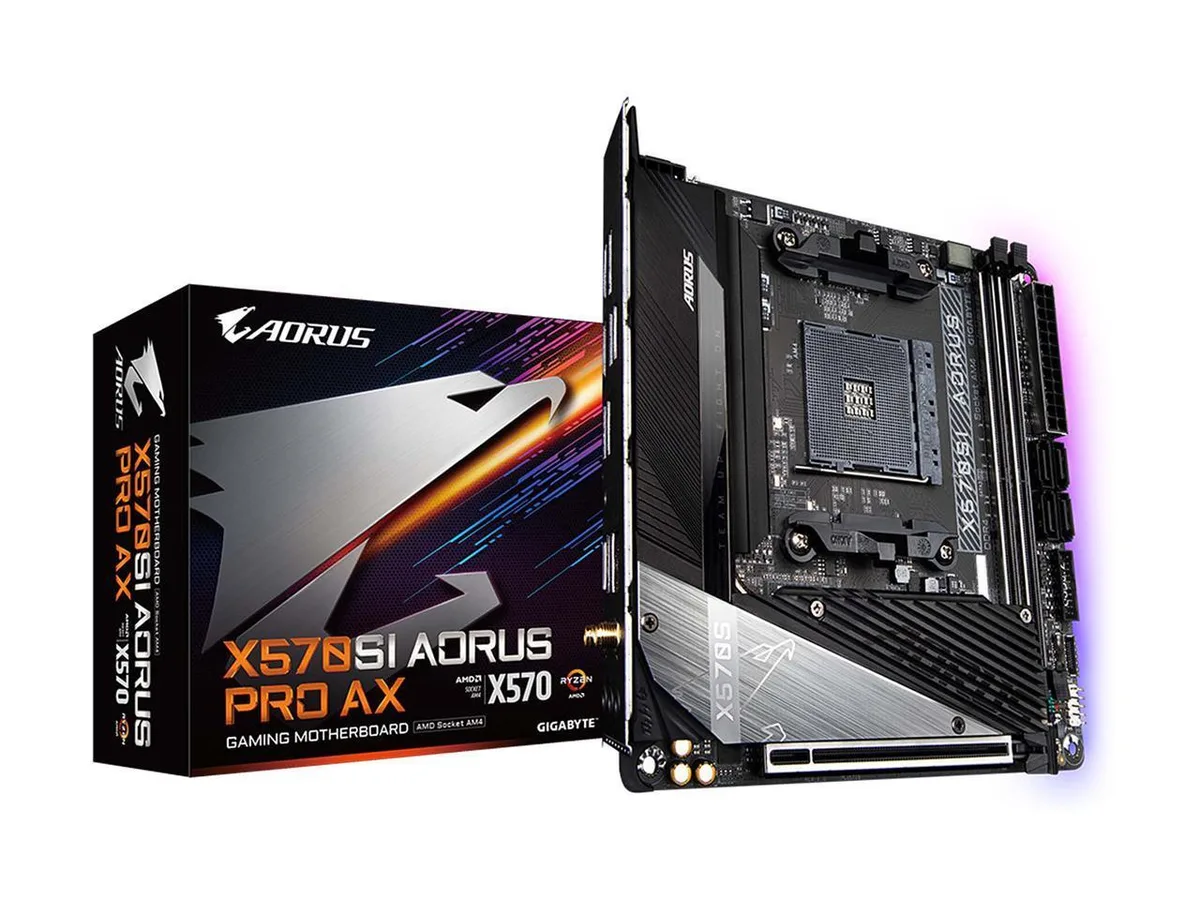

Black Mini-ITX motherboard with silver heatsinks and I/O shield

GIGABYTE

GIGABYTE X570S AORUS PRO AX AMD motherboard

SKU CH-PTPN-5YBGH

Mini-ITX AMD board with 90 A VRM, dual PCIe 4.0 M.2 slots, WiFi 6E, 2.5 GbE LAN and front USB 3.2 Type-C

  • CPU TypeRyzen 5000 Series
  • Twin 8+2 phase 90A VRM for stable CPU power
  • WiFi 6E 802.11ax and BT 5.2 built in
  • Dual NVMe PCIe 4.0/3.0 M.2 slots with heatsinks
  • Intel 2.5GbE LAN with cFosSpeed traffic shaping
  • USB 3.2 Type-C front and rear for fast connections

X570S AORUS PRO AX for compact AMD builds

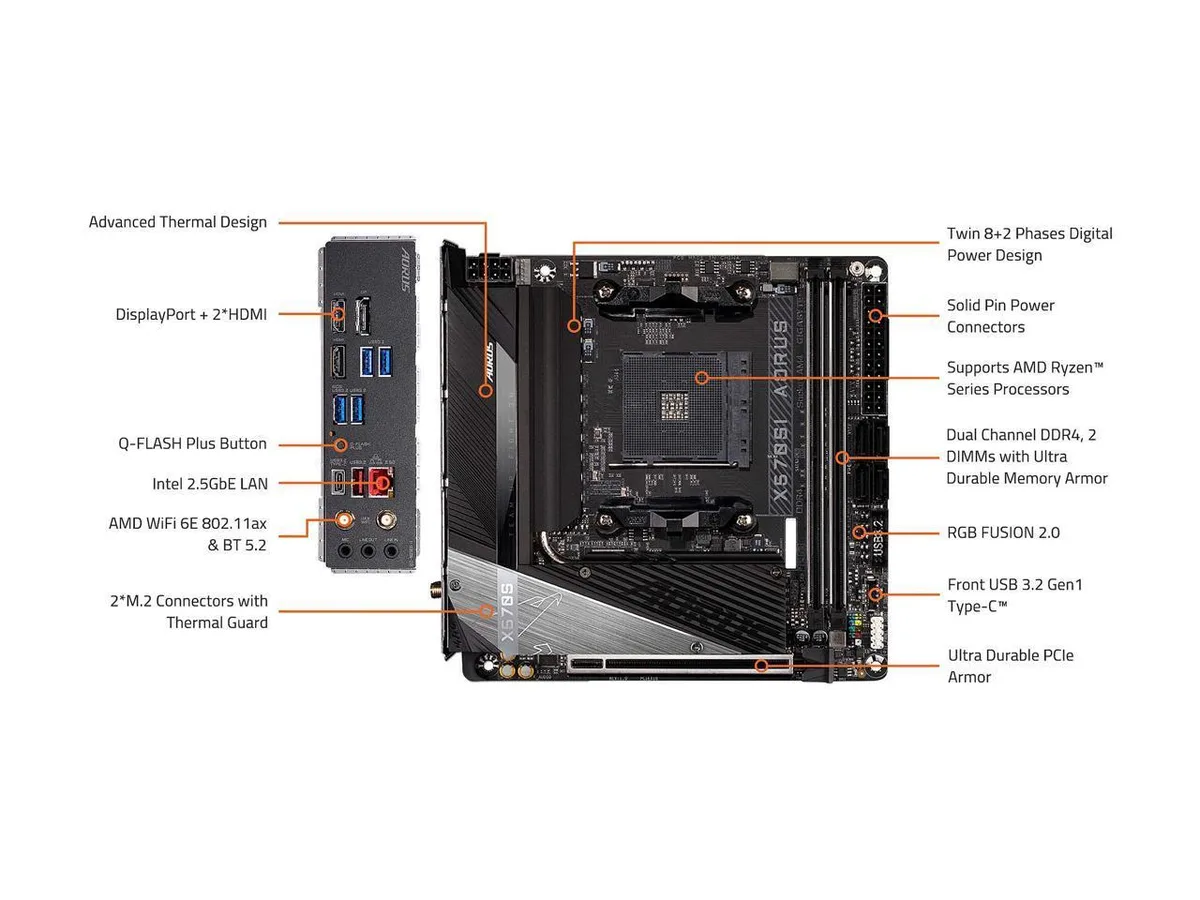

This Mini-ITX motherboard uses the AMD X570S chipset and supports Ryzen 5000 series processors. It provides dual-channel DDR4 memory across two DIMM slots and a twin 8+2 phase digital VRM with 90A smart power stages. Integrated AMD WiFi 6E and Intel 2.5GbE LAN handle wireless and wired networking.

Ideal for small-form-factor systems

Builders who need a full-feature platform in a Mini-ITX layout will appreciate the dual NVMe PCIe 4.0 M.2 slots with thermal guards and front and rear USB 3.2 Type-C ports. Users requiring more than two memory slots, additional PCIe expansion slots or legacy connectivity should consider a larger form factor.

Chipset-free cooling enables silent operation

The X570S chipset removes the need for an active chipset fan, relying on grooved multi-layer heatsinks and a heatpipe for the M.2 Thermal Guard III. This design eliminates a common noise source while maintaining thermal performance for the dual NVMe drives and VRM.

Highlights

  • Twin 8+2 phase 90A VRM for stable CPU power
  • WiFi 6E 802.11ax and BT 5.2 built in
  • Dual NVMe PCIe 4.0/3.0 M.2 slots with heatsinks
  • Intel 2.5GbE LAN with cFosSpeed traffic shaping
  • USB 3.2 Type-C front and rear for fast connections

Specifications

CPU TypeRyzen 5000 Series

Questions about this item

Will my existing DDR4 memory work with the dual-channel controller on this X570S board?

The board runs dual-channel unbuffered DDR4 across two DIMM slots, so any standard DDR4 kit you already own will fit and operate at its rated speed.

How can I confirm the 90 A smart power stages are delivering clean voltage to a Ryzen 5000 series CPU after assembly?

Enter the BIOS and check the hardware monitor; the VRM current and temperature read-outs will show the 8+2 phase digital VRM operating within spec under load.

Does the package include mounting screws for the two PCIe 4.0 M.2 slots and the WiFi 6E antenna, or must I source them separately?

The retail box supplies M.2 standoffs and screws plus the external antenna for the AMD WiFi 6E module; no extra fasteners or antennas are required.
