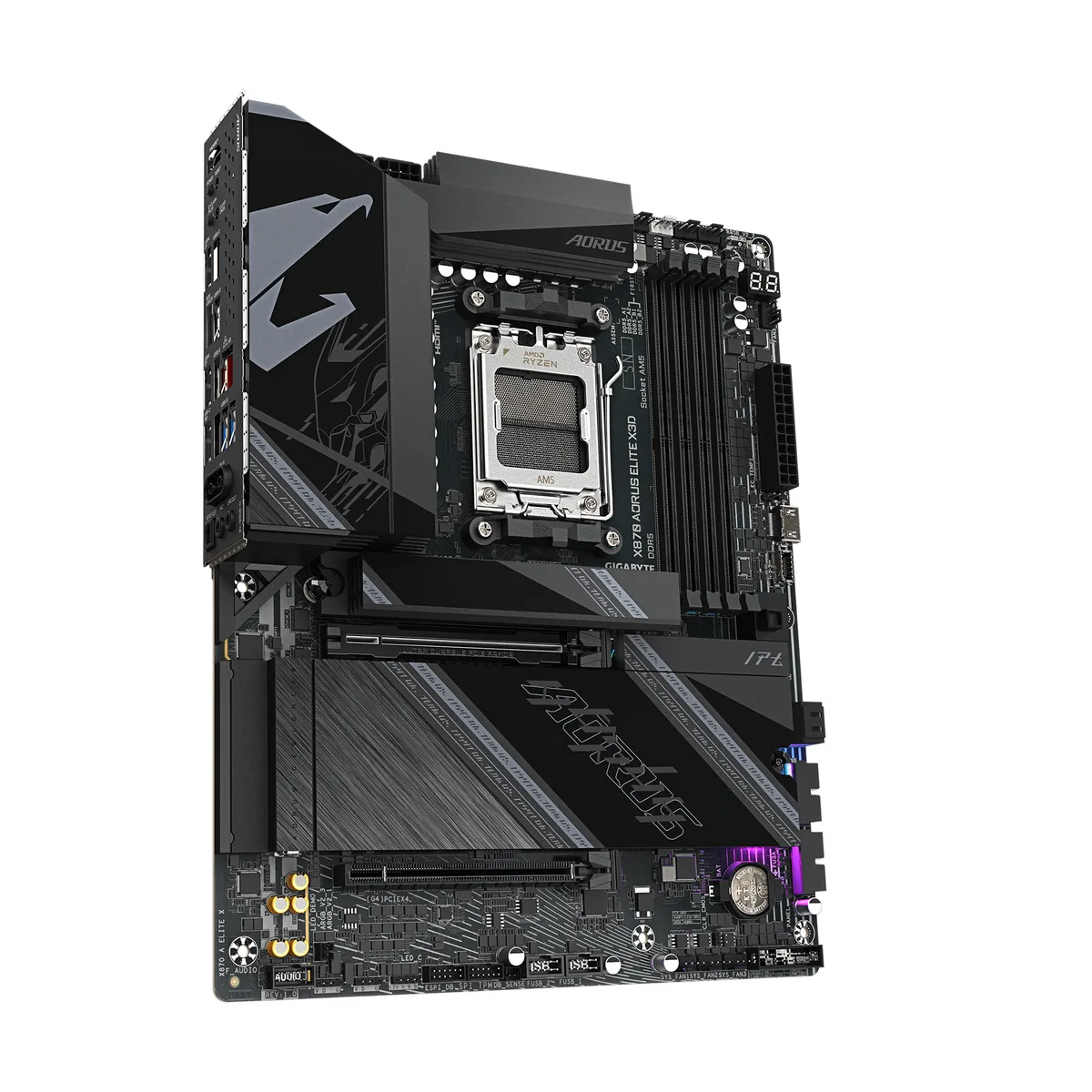

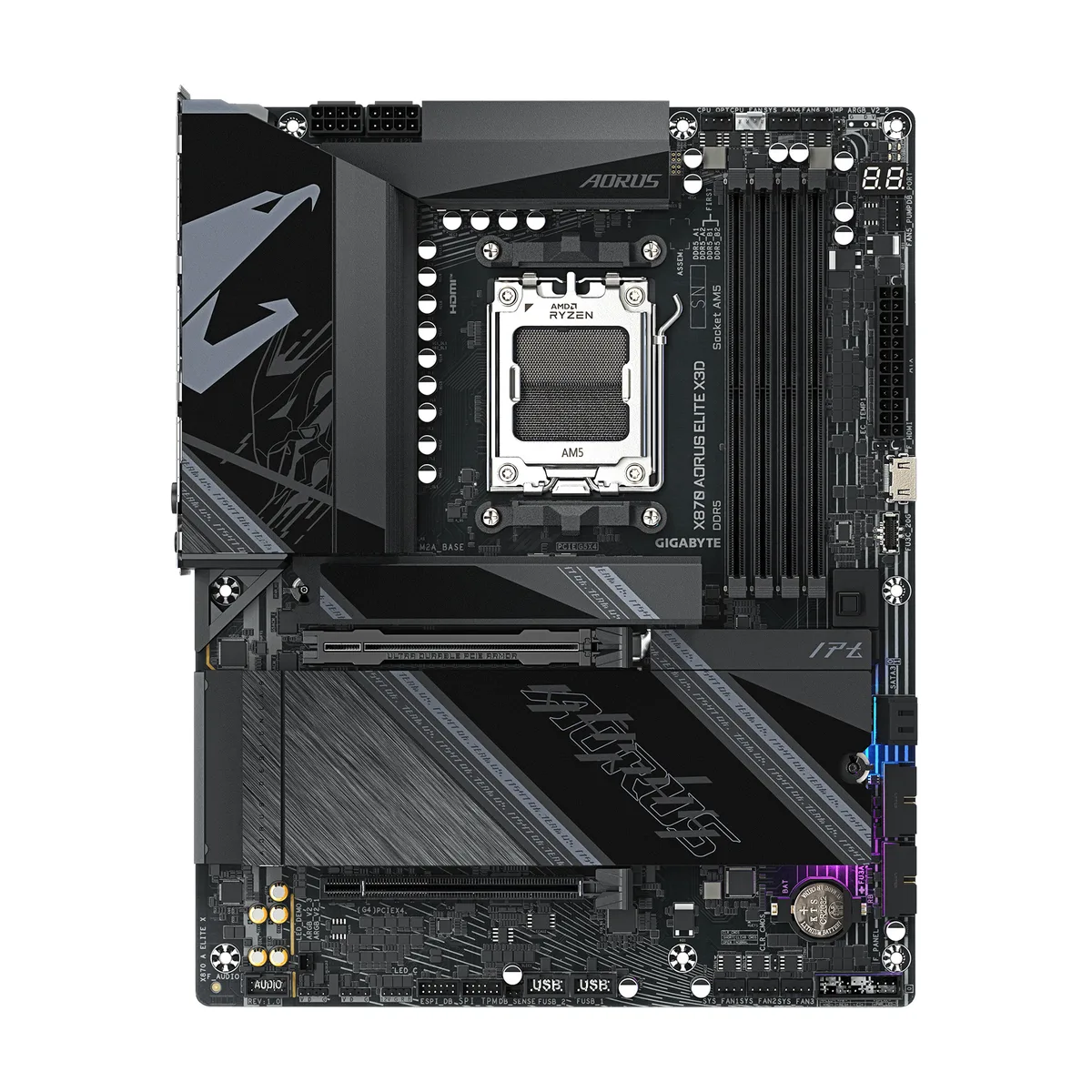

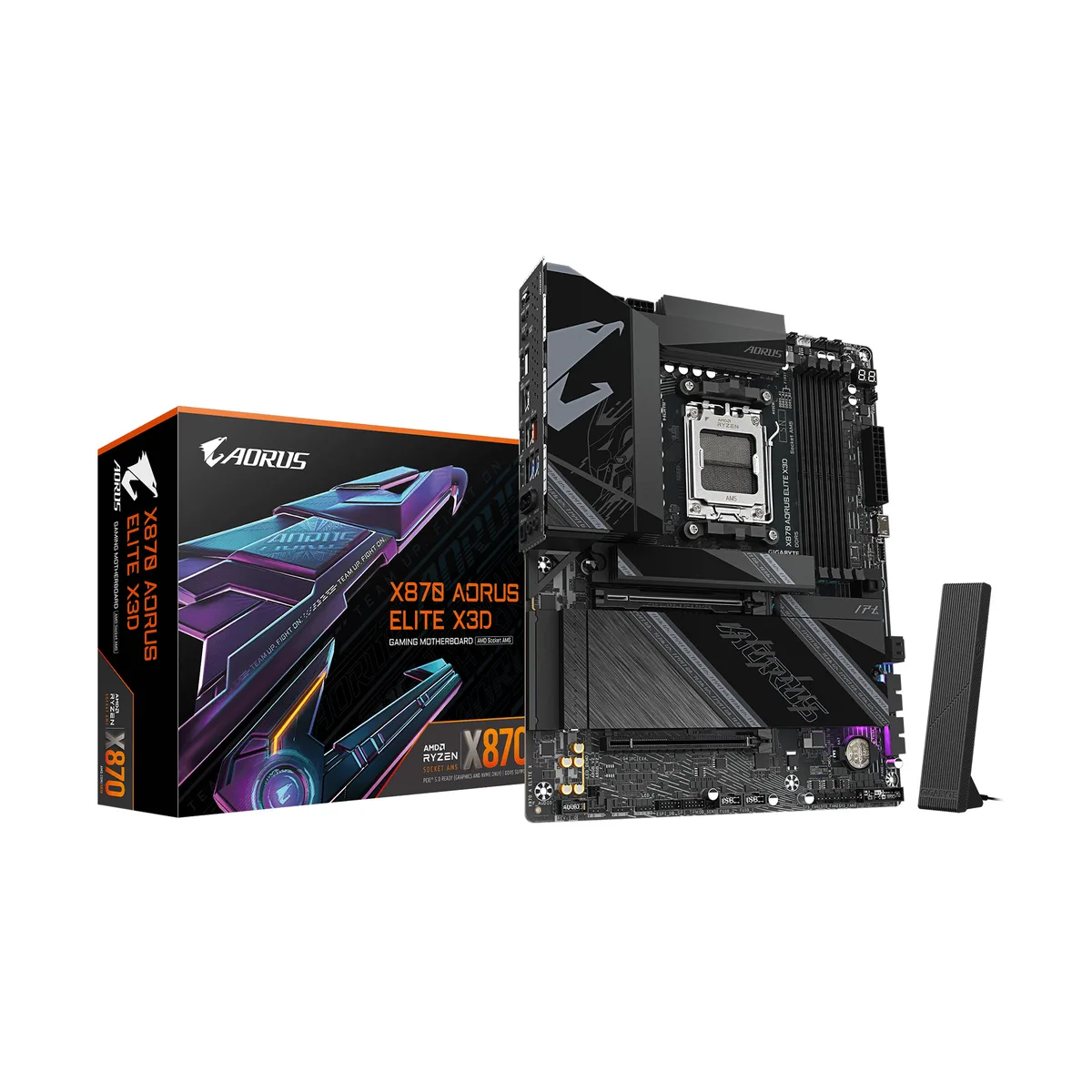

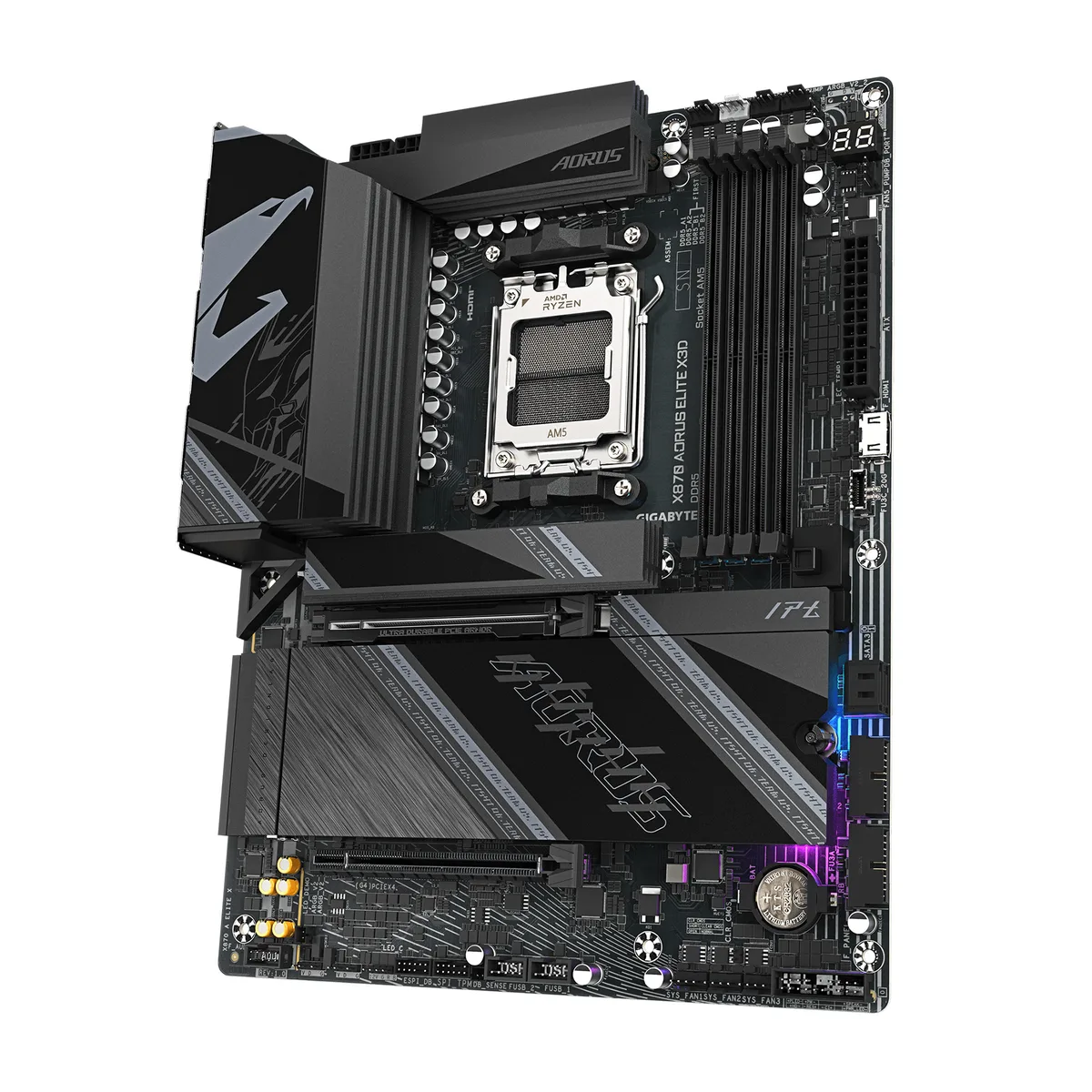

ATX motherboard with black VRM heatsinks and integrated rear I/O shield

GIGABYTE

GIGABYTE X870 AORUS ELITE X3D AMD motherboard

SKU CH-AR58-F6T8C MPN X870 AORUS ELITE X3D

AM5 board for Ryzen 9000, 8000 and 7000 CPUs with DDR5 up to 8800 MT/s, four M.2 slots, PCIe 5.0 graphics slot, USB4, WIFI7 and 5 GbE LAN

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • South BridgeAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800
  • Maximum Memory Supported256GB
  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 16+2+2 power phase design with 8-layer PCB for stable delivery
  • DDR5 memory up to 8800 MT/s via AMD EXPO profiles
  • Four M.2 slots with PCIe 5.0 and 4.0 support for fast storage
  • WIFI7 and 5 GbE LAN plus Bluetooth 5.4 for high-speed networking

AM5 Socket & X870E Chipset

This GIGABYTE AORUS board uses the AMD X870E chipset on an AM5 socket to support Ryzen 9000, 8000 and 7000 series processors. The digital twin 16+2+2 power phase design on an 8-layer PCB provides steady current delivery for high-end CPUs. DDR5 memory runs at 4800 MT/s with EXPO profile support up to 8800 MT/s.

Builders Who Want AI Tuning & DIY Ease

Enthusiasts who want one-click X3D Turbo Mode 2.0 acceleration and AI-driven memory overclocking will benefit from the integrated feature set. Four screwless M.2 slots, PCIe EZ-Latch Plus for graphics cards and a pre-fitted I/O shield speed up assembly. Users staying with older AM4 processors or needing ECC memory should choose a different platform.

X3D Turbo Mode 2.0 With AI Optimisation

The decisive specification is X3D Turbo Mode 2.0, which uses a built-in AI model and hardware circuits to adjust Ryzen X3D processor parameters in real time. GIGABYTE states this can raise gaming performance by up to 25 percent over the previous implementation. If your workload does not use an X3D CPU, this feature remains inactive.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 16+2+2 power phase design with 8-layer PCB for stable delivery
  • DDR5 memory up to 8800 MT/s via AMD EXPO profiles
  • Four M.2 slots with PCIe 5.0 and 4.0 support for fast storage
  • WIFI7 and 5 GbE LAN plus Bluetooth 5.4 for high-speed networking

Specifications

BrandGIGABYTE
SeriesAORUS
CPU Socket TypeAM5
ChipsetAMD X870E
South BridgeAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x160 x PCI Express 2.0 x16
PCI Express x163 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)4 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/10
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes

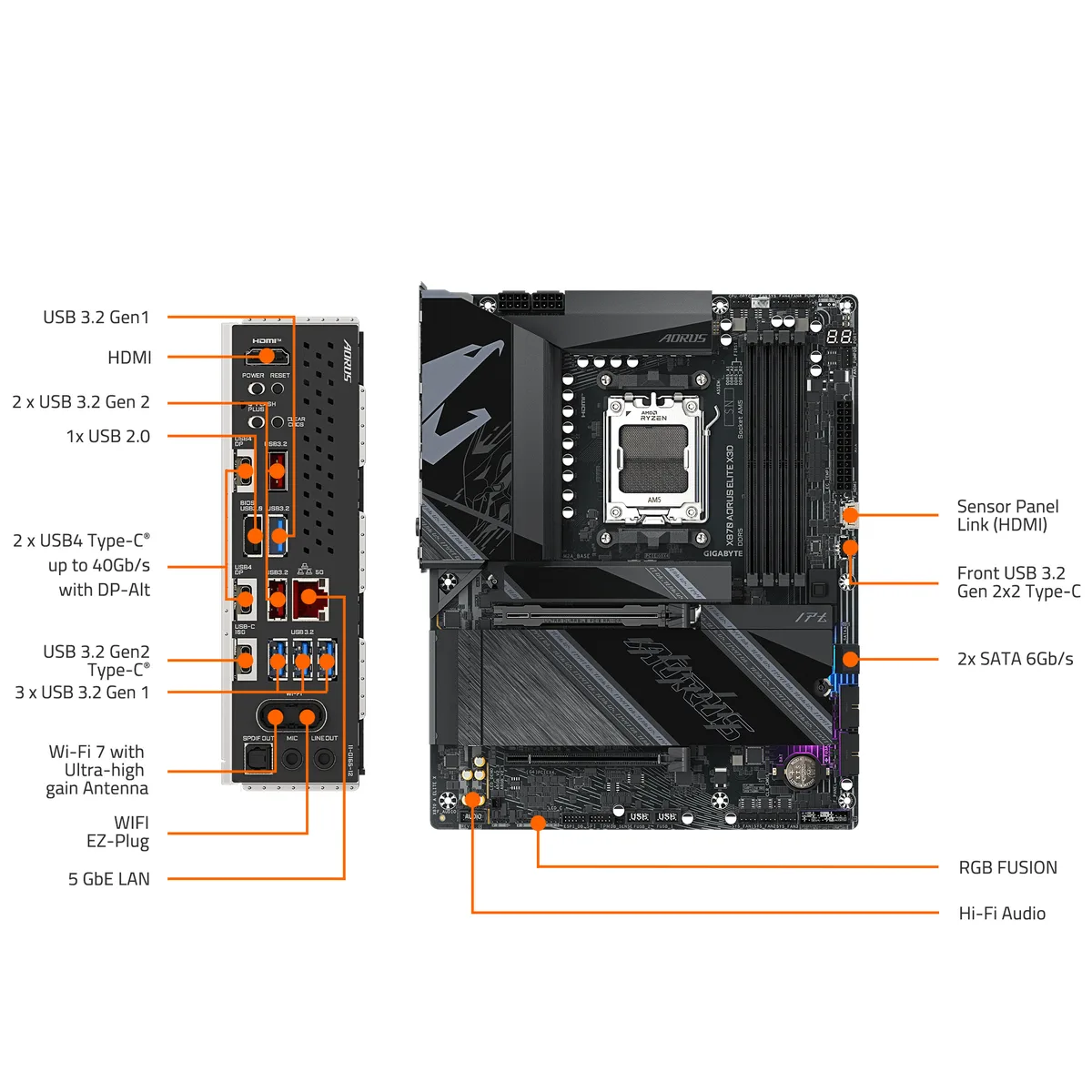

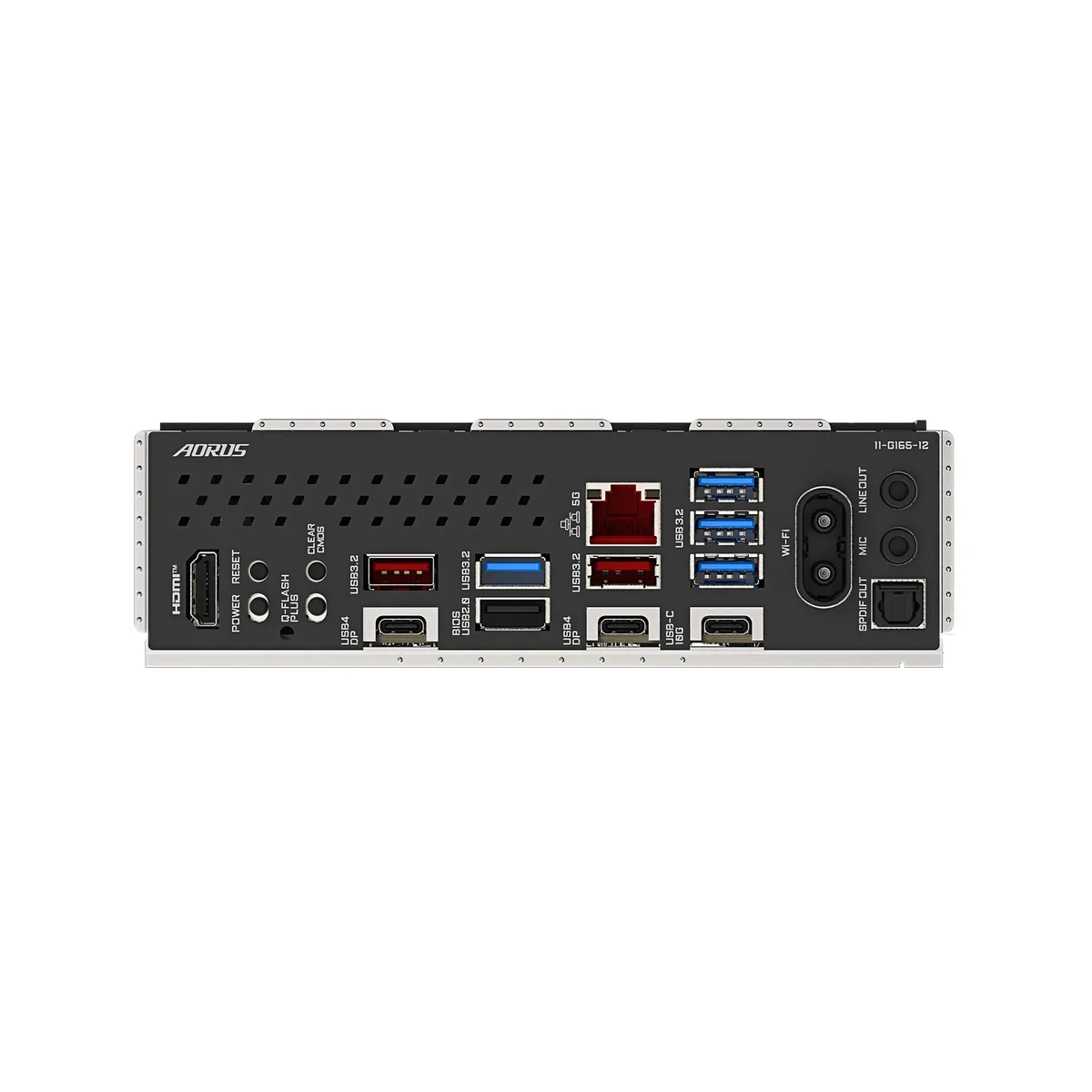

Back I/O Ports1 x HDMI port, 1 x reset button, 1 x power button, 1 x Clear CMOS button, 1 x x-Flash Plus button, 5 x USB 3.2 Gen 2 Type-A ports, 1 x USB Type-C port, 2 x USB4 USB Type-C ports, 1 x RJ-45 port, 3 x USB 3.2 Gen 1 ports, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF Out connector
Video PortsHDMI + 2 x USB Type-C
S-VideoNo
HDMI1 x HDMI port
RJ451 x RJ45
DisplayPort2 x DisplayPort
USB 3.18 x USB 3.1
USB 3.07 x USB 3.0
USB 1.1/2.04 x USB 2.0/1.1 ports
USB Type-C2 x USB4 USB Type-C® ports, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB Type-C® port with USB 3.2 Gen 2x2 support
S/PDIF Out1 x Optical
Audio Ports2 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 4 x USB 3.2 + 4 x USB 2.0
Form FactorATX
LED LightingRGB
Dimensions (W x L)30.5cm x 24.4cm
Power Pin24 Pin
Windows 11Supported
Shipping weight2.40 kg
Package size343 × 272 × 84 mm

Questions about this item

Will this board fit a standard ATX case and work with my Ryzen 7000 series CPU?

Yes, the board uses the AM5 socket and supports Ryzen 7000, 8000 and 9000 series processors. It follows the ATX form factor for standard case mounting.

How much DDR5 memory can I install and what speeds are supported out of the box?

Four DDR5 slots accept up to 256 GB total. The board runs at 4800 MT/s by default and supports AMD EXPO profiles for higher speeds.

What high-speed storage and network connections are built in?

Four M.2 slots provide two PCIe 5.0 x4 and two PCIe 4.0 x4 interfaces. Networking includes WIFI7, Bluetooth 5.4 and a 5 GbE LAN port.
