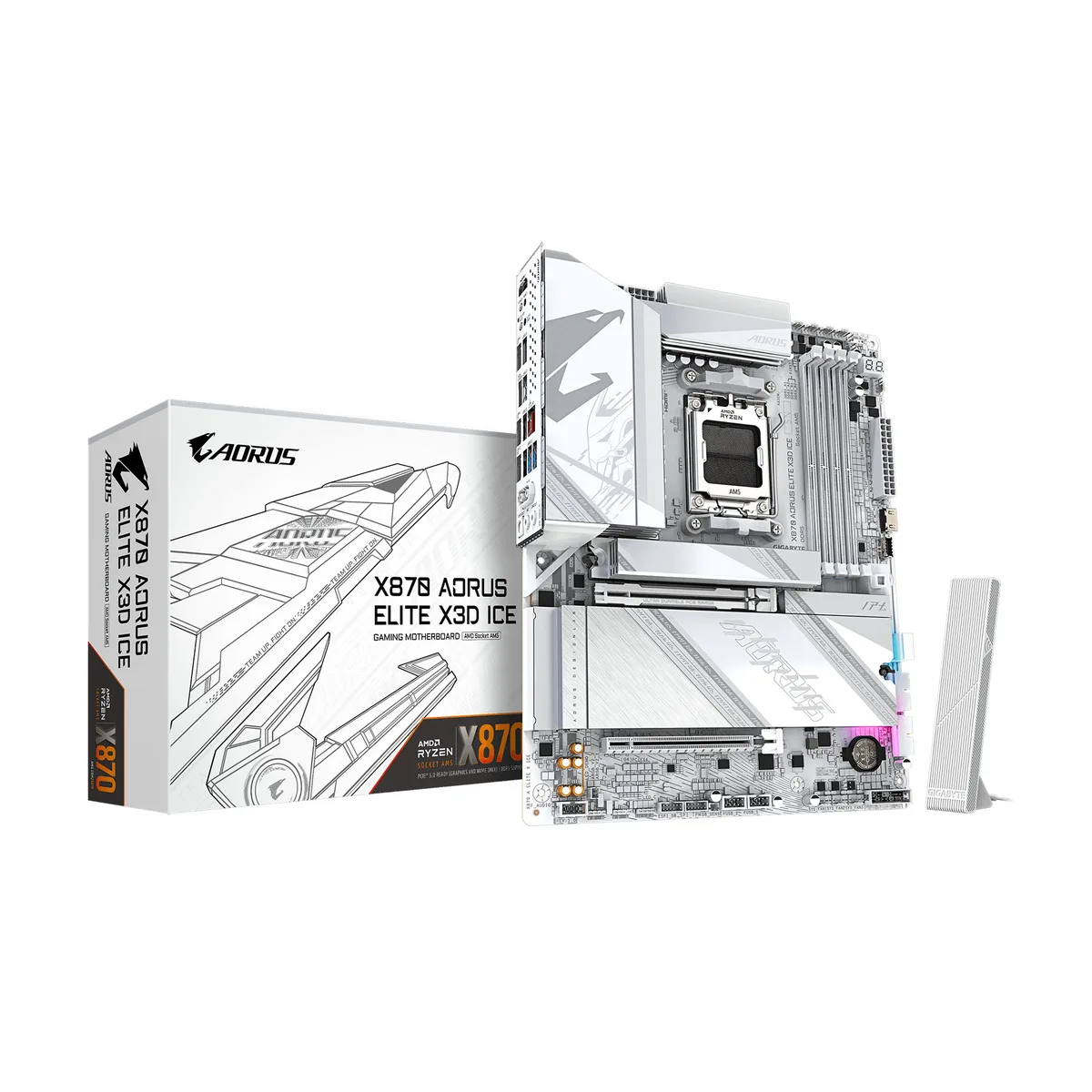

White ATX motherboard with silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE X870 AORUS ELITE X3D ICE AMD motherboard

SKU CH-TQ6Q-YRW38 MPN X870 AORUS ELITE X3D ICE

AM5 board with 16+2+2 power phases, four DDR5 slots up to 256 GB, four M.2 sockets, PCIe 5.0 graphics slot, USB4, WIFI7 and Bluetooth 5.4

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • South BridgeAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800
  • Supports Ryzen 7000, 8000 and 9000 Series CPUs on AM5 socket
  • 16+2+2 digital power phases with 8-layer PCB for stable delivery
  • Four DDR5 slots up to 256 GB with EXPO support
  • Four M.2 slots including two PCIe 5.0 and two PCIe 4.0
  • WIFI7 and Bluetooth 5.4 plus 5 GbE LAN for fast networking

Ready for Ryzen 9000 and X3D CPUs

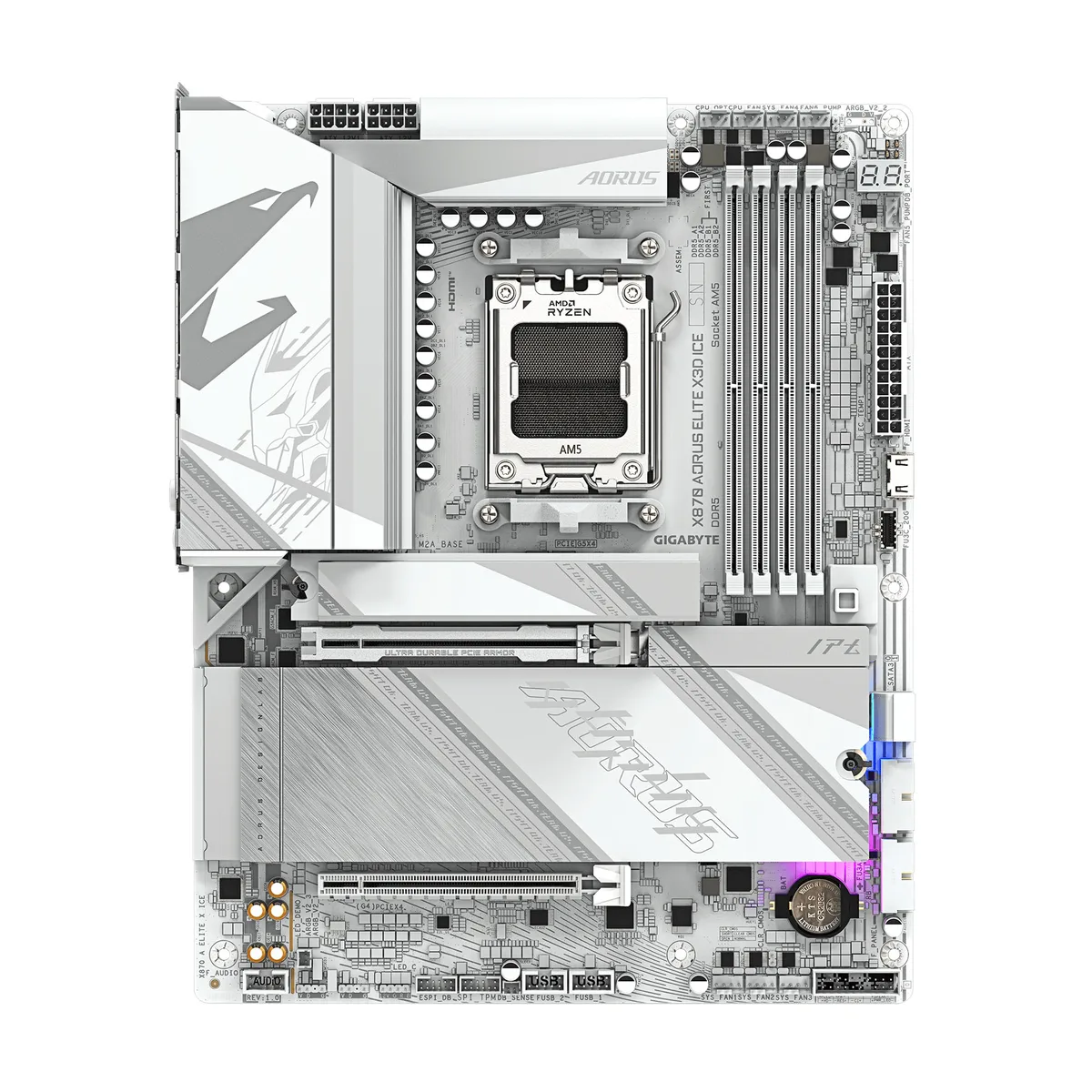

The GIGABYTE X870 AORUS ELITE X3D ICE is an ATX motherboard built for AMD Socket AM5. It supports Ryzen 7000, 8000 and 9000 series processors with a 16+2+2 digital power phase design on an 8-layer PCB. Four DDR5 slots accept up to 256 GB of memory at 4800 MT/s with AMD EXPO profiles.

Ideal for X3D gaming builds, not for compact cases

This board suits enthusiasts who want the X3D Turbo Mode 2.0 AI optimisation for Ryzen X3D chips and up to 25 % gaming uplift in supported titles. Builders needing a smaller form factor or a chipset with fewer PCIe lanes should consider other models.

EZ-Latch hardware and AI-driven BIOS simplify

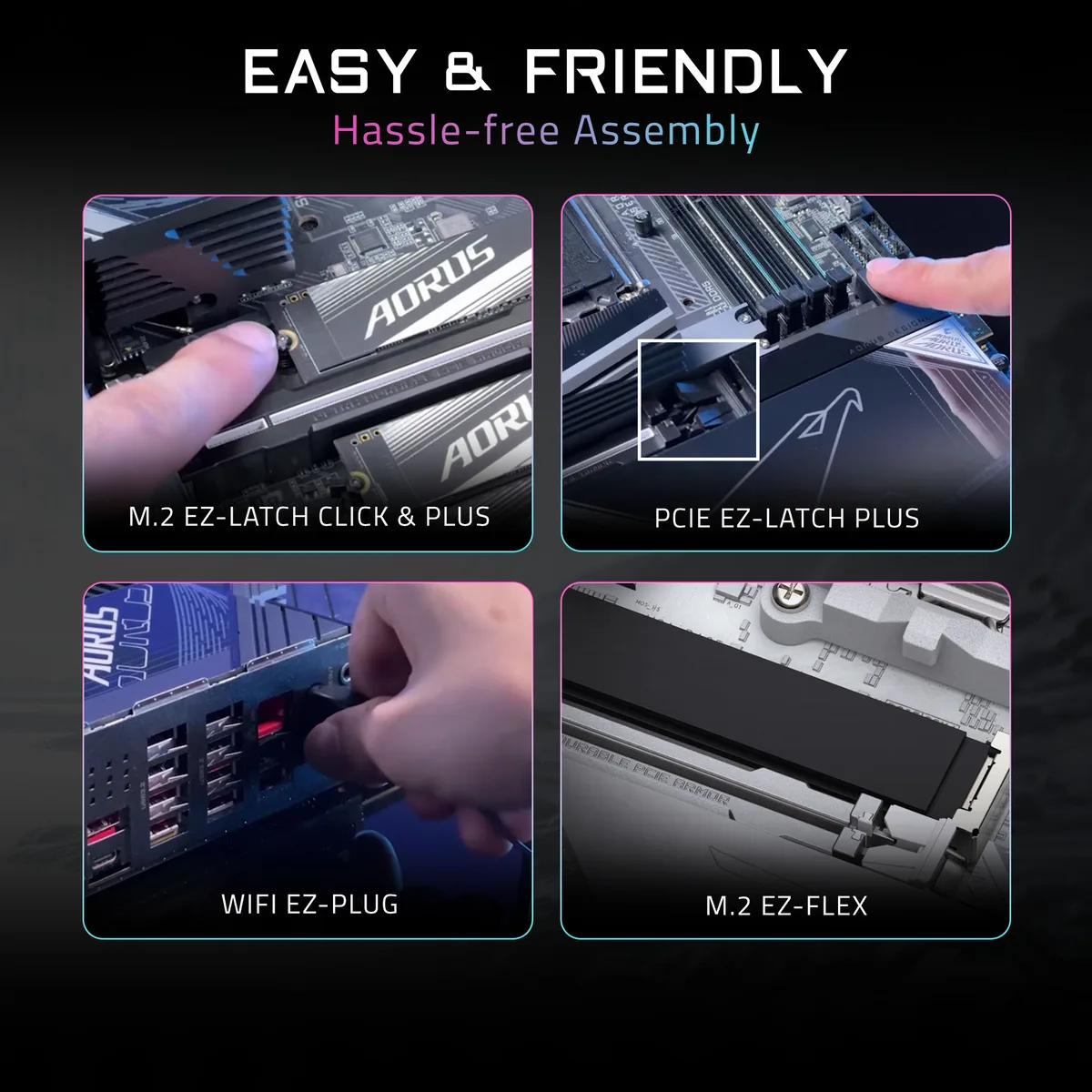

PCIe EZ-Latch Plus releases the graphics card with one click, while M.2 EZ-Latch Click and Plus install SSDs and heatsinks without screws. WIFI EZ-Plug connects the antenna quickly, and the HyperTune BIOS applies AI-optimised memory settings for speeds up to 8800 MT/s.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 Series CPUs on AM5 socket
  • 16+2+2 digital power phases with 8-layer PCB for stable delivery
  • Four DDR5 slots up to 256 GB with EXPO support
  • Four M.2 slots including two PCIe 5.0 and two PCIe 4.0
  • WIFI7 and Bluetooth 5.4 plus 5 GbE LAN for fast networking

Specifications

BrandGIGABYTE
SeriesAORUS
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
South BridgeAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)2 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetRealtek 5GbE
Max LAN Speed5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes

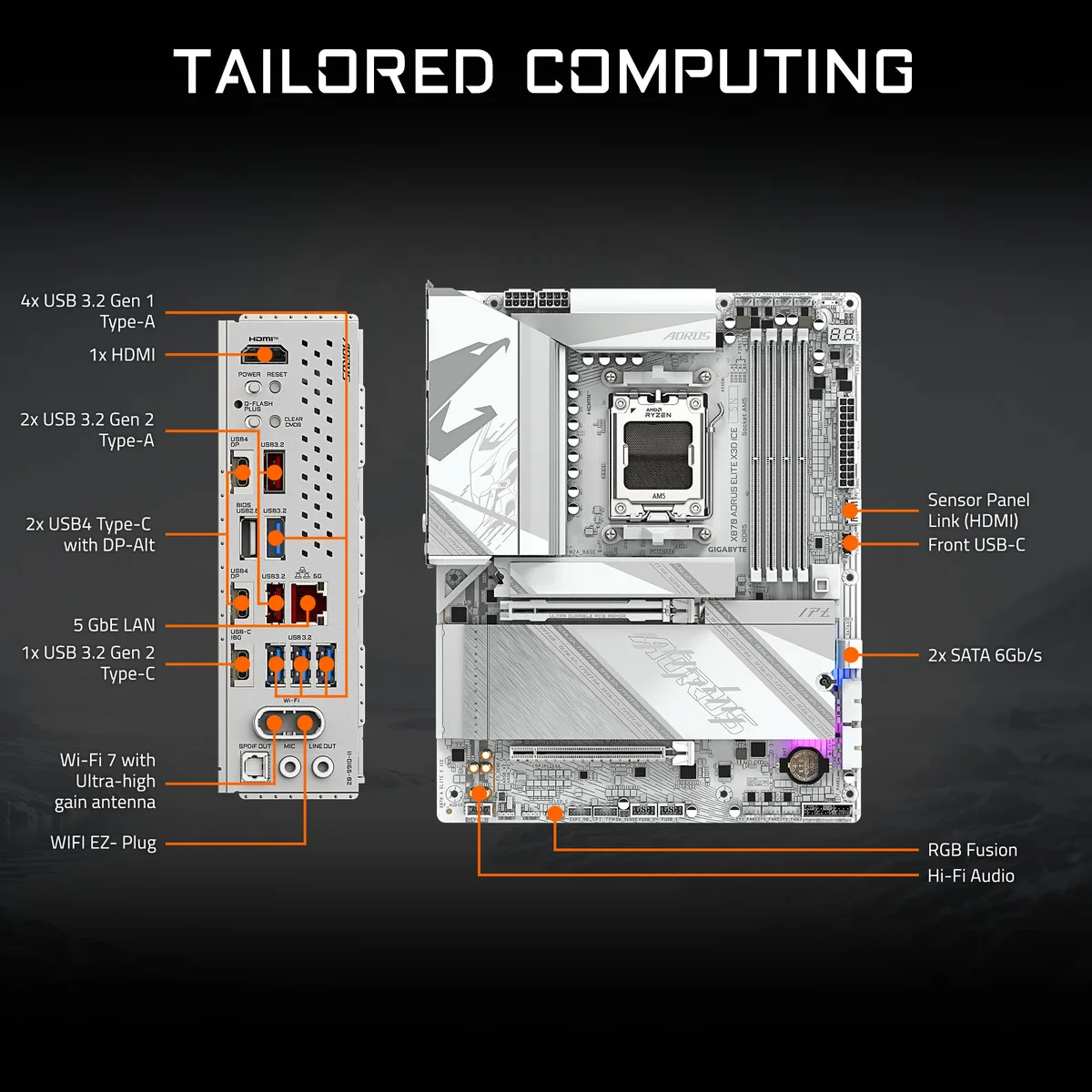

Back I/O Ports1 x HDMI port, 1 x power button, 1 x reset button, 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x USB4 USB Type-C ports, 1 x USB Type-C port, 2 x USB 3.2 Gen 2 Type-A ports, 4 x USB 3.2 Gen 1 ports, 1 x USB 2.0/1.1 port, 1 x RJ-45 port, 2 x antenna connectors, 1 x optical S/PDIF Out connector, 2 x audio jacks
Video PortsHDMI + 2 x USB Type-C
S-VideoNo
HDMI1 x HDMI port
RJ451 x RJ45
DisplayPort2 x DisplayPort
USB 3.19 x USB 3.1
USB 3.08 x USB 3.0
USB 1.1/2.05 x USB 2.0/1.1 ports
USB Type-C2 x USB4 USB Type-C port, 1 x USB Type-C port, with USB 3.2 Gen 2 support, 1 x USB Type-C port with USB 3.2 Gen 2x2 support
S/PDIF Out1 x Optical
Audio Ports2 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 2 x USB 3.2 + 2 x USB 2.0
Form FactorATX
LED LightingRGB
Dimensions (W x L)30.5cm x 24.4cm
Power Pin24 Pin
Windows 11Supported
Shipping weight2.36 kg
Package size345 × 273 × 84 mm

Questions about this item

What CPU socket must my processor have to fit this motherboard?

The board uses the AM5 socket, so you need a Ryzen 7000, 8000 or 9000 series processor that matches that socket.

Will my existing DDR5-4800 memory run at its rated speed on this board?

Yes, DDR5-4800 is the base memory standard supported, and the four 288-pin slots accept up to 256 GB in dual-channel mode.

How can I confirm the X3D Turbo Mode 2.0 feature is active after I build the system?

Enter the BIOS and verify that X3D Turbo Mode 2.0 is enabled; the AI-driven optimisation will then apply automatically to a compatible Ryzen X3D processor.
