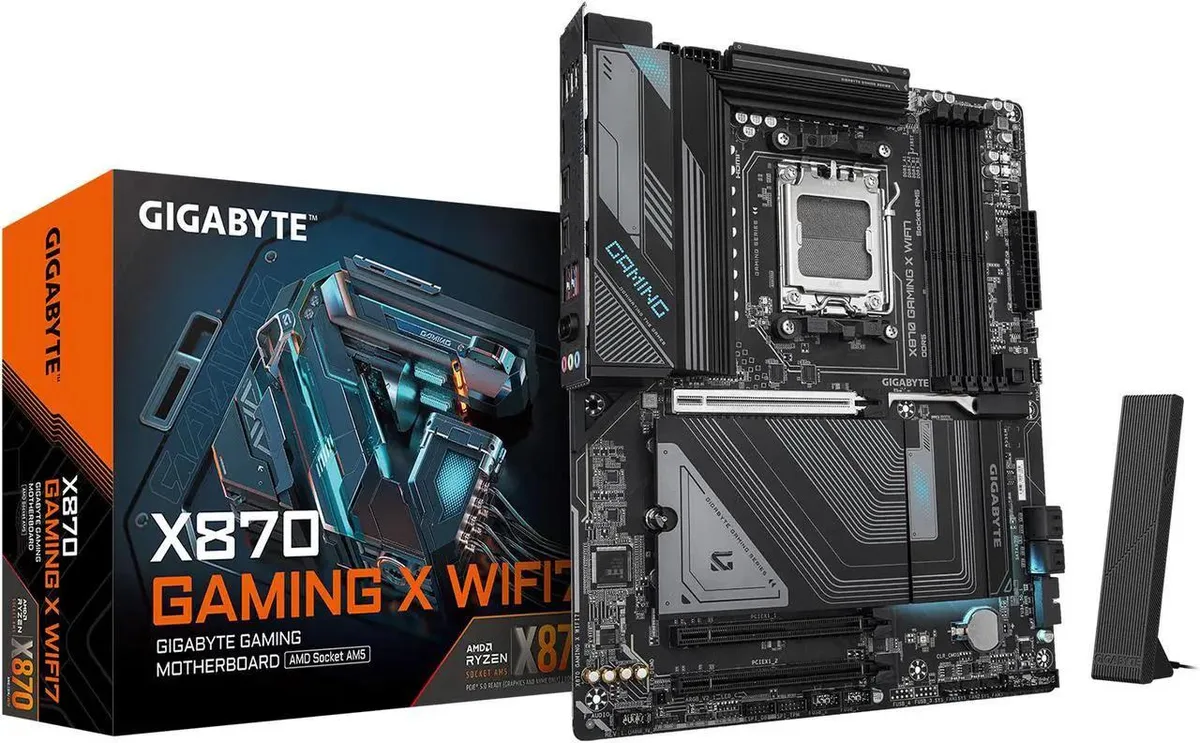

Rectangular ATX motherboard with black PCB, silver heatsinks, four DDR5 slots, PCIe x16 slot, multiple M.2 covers

GIGABYTE

GIGABYTE X870 GAMING X WIFI7 AM5 AMD motherboard FF4D516G6000HC38ADC01

SKU CH-SSE6-FVP2F MPN FF4D516G6000HC38ADC01

AM5 board with 16+2+2 power, four DDR5 slots to 256 GB, three M.2 sockets, PCIe 5.0, dual USB4, Wi-Fi 7 and 2.5 GbE

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Supports Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • DDR5 memory up to 8000 MT/s overclocked across four DIMM slots with AMD EXPO
  • 16+2+2 phase power design with VRM and M.2 thermal guards for sustained loads
  • PCIe 5.0 graphics slot, three M.2 connectors, dual USB4 and front plus rear USB-C
  • Wi-Fi 7, BLUETOOTH 5.4 and 2.5 GbE LAN for high-speed networking

Socket AM5 DDR5 Motherboard

The GIGABYTE X870 GAMING X WIFI7 is an ATX motherboard built for AMD Socket AM5 processors. It supports Ryzen 9000, 8000 and 7000 series CPUs with four DDR5 DIMM slots and AMD EXPO memory profiles. The board provides a 16+2+2 power phase design and VRM plus M.2 thermal guards for sustained operation.

Builders who want PCIe 5.0 and Wi-Fi 7

This board suits enthusiasts assembling a high-speed desktop with PCIe 5.0 graphics and storage plus Wi-Fi 7 and 2.5GbE LAN. It also offers dual USB4 ports and front-panel USB-C. Users needing ECC memory, legacy PCI slots or a smaller form factor should consider other models.

DIY-friendly latches and debug zone

Installation is simplified by M.2 EZ-Latch, PCIe EZ-Latch and Wi-Fi EZ-Plug mechanisms that remove screw handling. An EZ-Debug Zone with LEDs helps identify boot issues quickly. Builders must verify CPU generation for full PCIe 5.0 x16 and M.2 5.0 x4 support as Ryzen 8000 series operate at reduced lane widths.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series processors via AM5 socket
  • DDR5 memory up to 8000 MT/s overclocked across four DIMM slots with AMD EXPO
  • 16+2+2 phase power design with VRM and M.2 thermal guards for sustained loads
  • PCIe 5.0 graphics slot, three M.2 connectors, dual USB4 and front plus rear USB-C
  • Wi-Fi 7, BLUETOOTH 5.4 and 2.5 GbE LAN for high-speed networking

Specifications

BrandGIGABYTE
ModelX870 GAMING X WIFI7
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x1Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_
SATA RAID0/1/5/10
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4
Back I/O Ports1 x Q-Flash Plus button
2 x antenna connectors (2T2R)
1 x HDMI port
2 x USB4 USB Type-C ports (DisplayPort)
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Questions about this item

What DDR5 memory speed must the kit I already own run at to work without overclocking on this X870 board?

The board runs DDR5 5200 MT/s natively; any kit rated at 5200 or lower will operate at that speed without enabling EXPO profiles.

Will a PCIe 3.0 x1 sound card I want to keep function in the chipset slots of this motherboard?

Yes, the chipset provides two PCIe 3.0 x16 slots wired at x1 (PCIEX1_1/2) that accept legacy x1 add-in cards.

How can I confirm the Wi-Fi 7 radio is active after I build the system?

The EZ-Debug Zone LEDs show Wi-Fi status, and Windows Device Manager will list an 802.11 be adapter with Bluetooth 5.4 once drivers load.
