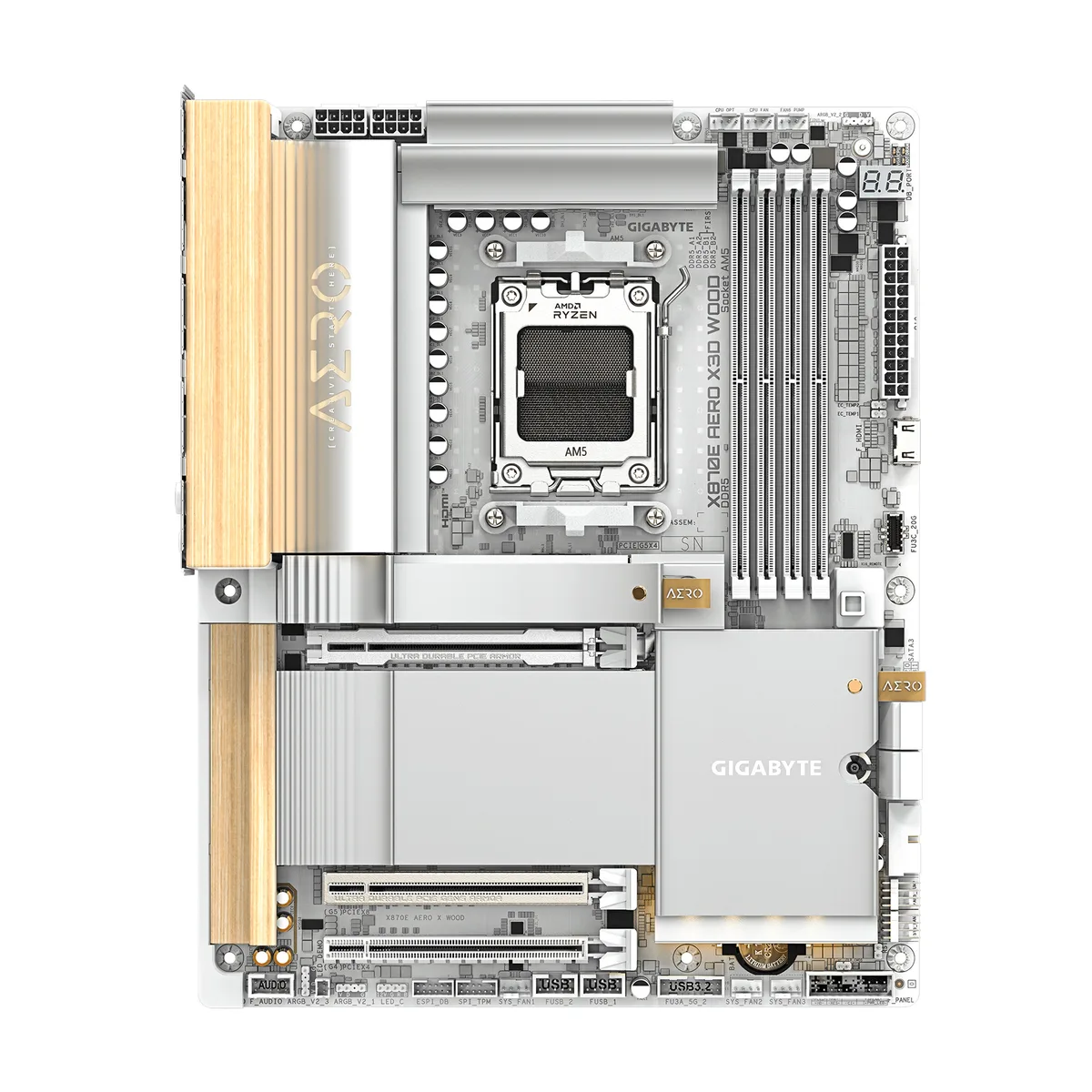

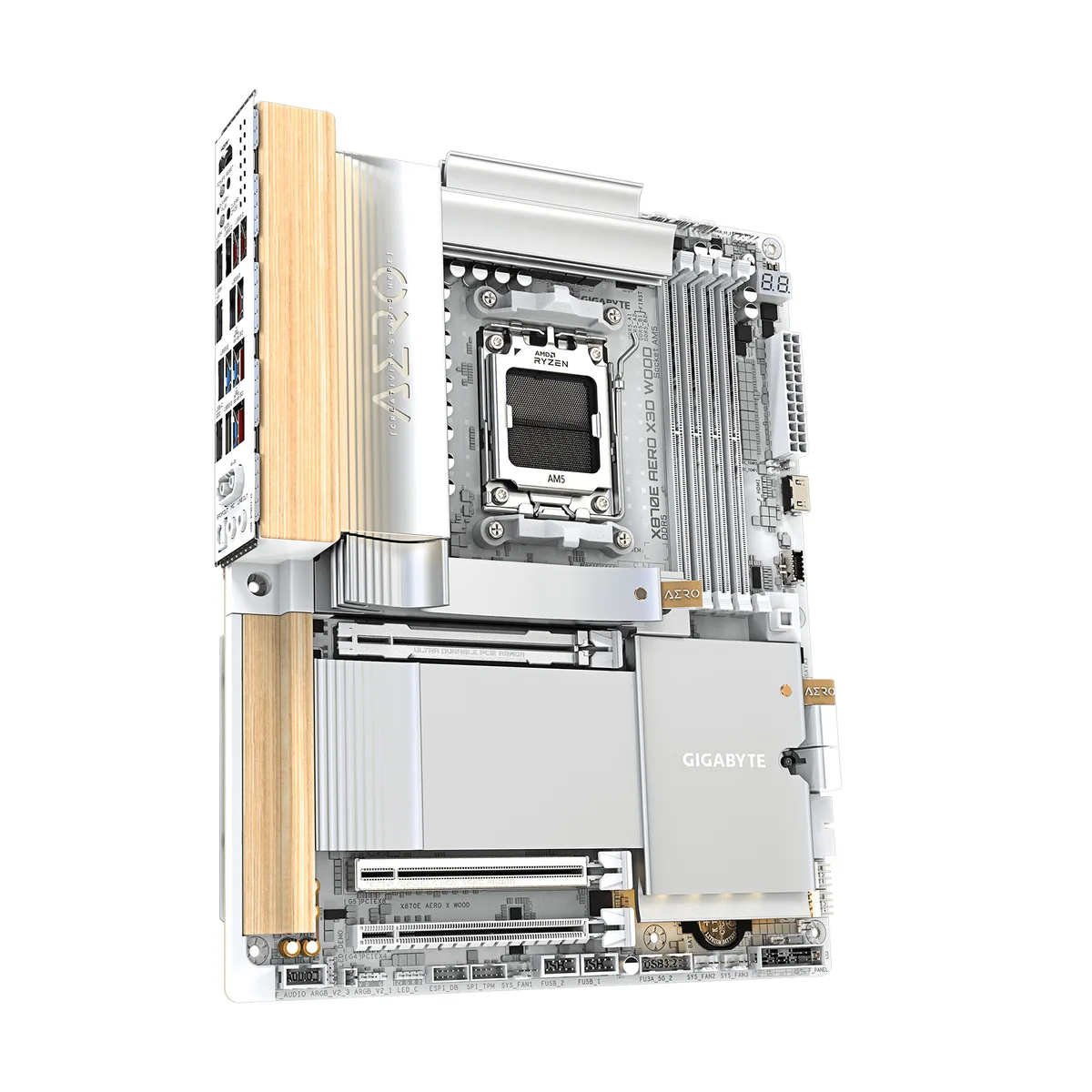

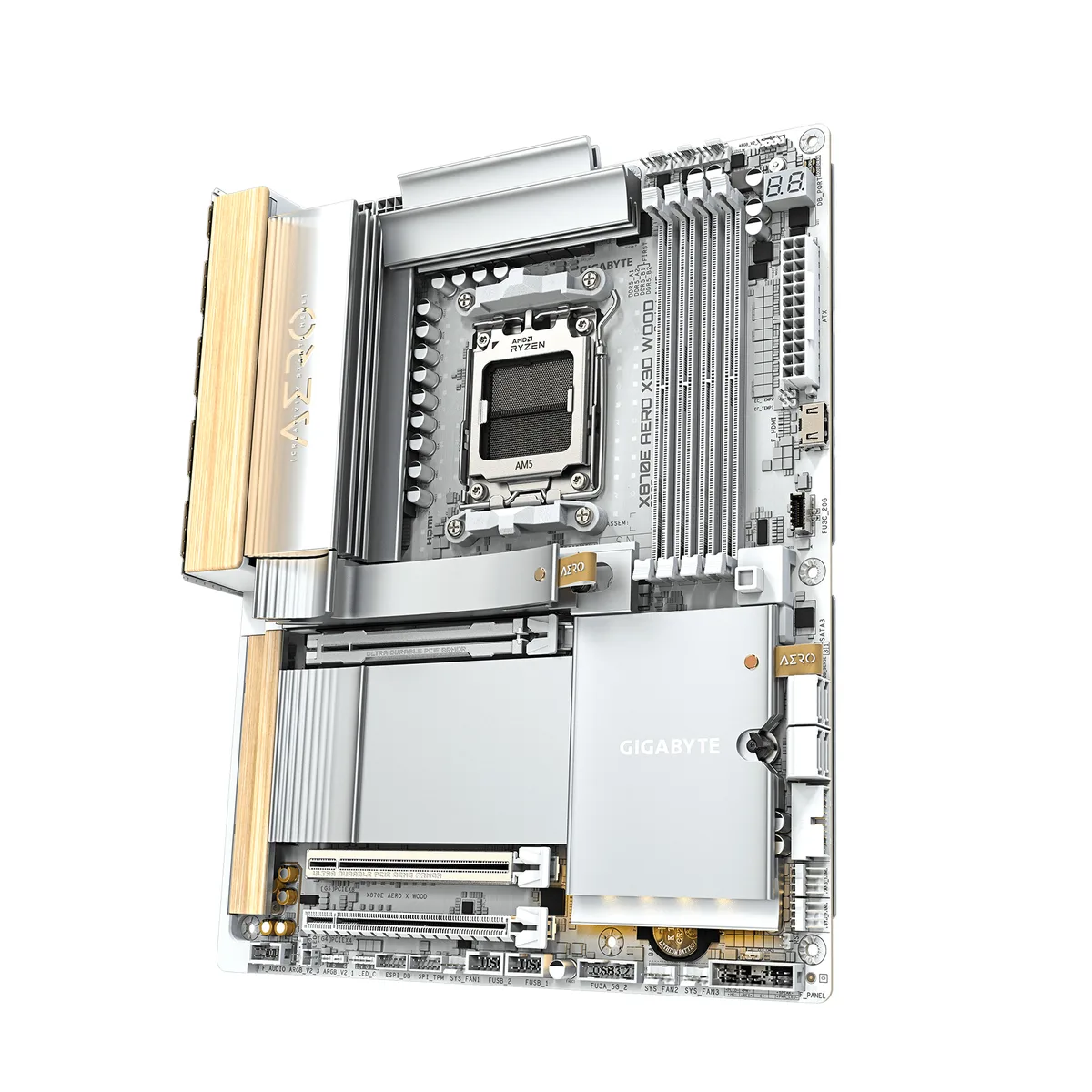

ATX motherboard with wood-grain finish and silver heatsinks

GIGABYTE

GIGABYTE X870E AERO X3D WOOD AMD AM5 motherboard

SKU CH-AEXW-QG5YF MPN X870E AERO X3D WOOD

ATX motherboard for AMD Ryzen 7000, 8000 and 9000 series with DDR5, PCIe 5.0, WIFI7, Bluetooth 5.4 and dual 5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB
  • Ready for Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • Digital Twin 16+2+2 power phases with 8-layer PCB for stable delivery
  • Advanced VRM heatsinks and integrated I/O shield improve thermals and build speed
  • Four DDR5 slots support up to 256 GB with AMD EXPO profiles
  • WIFI7, Bluetooth 5.4 and dual 5 GbE LAN for high-speed networking

Socket AM5 Platform

The GIGABYTE X870E AERO X3D WOOD is an ATX motherboard built for AMD Socket AM5. It supports Ryzen 7000, 8000 and 9000 Series processors. The board targets enthusiasts who need high-end connectivity and robust power delivery in a standard form factor.

Memory Capacity and Headroom

Four DDR5 slots accept up to 256 GB of memory running at 5200 MT/s with AMD EXPO profiles. Dual-channel architecture feeds modern CPUs, while the 256 GB ceiling handles heavy multitasking and content workloads. Non-ECC unbuffered modules are required; registered or ECC DIMMs will not work.

Primary Expansion Interface

One CPU-linked PCIe 5.0 x16 slot delivers full bandwidth for graphics cards when a Ryzen 9000 or 7000 processor is installed. Ryzen 8000 Series CPUs limit the link to PCIe 4.0 x8 or x4 depending on the specific model. This single slot determines the GPU performance ceiling for the build.

Highlights

  • Ready for Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • Digital Twin 16+2+2 power phases with 8-layer PCB for stable delivery
  • Advanced VRM heatsinks and integrated I/O shield improve thermals and build speed
  • Four DDR5 slots support up to 256 GB with AMD EXPO profiles
  • WIFI7, Bluetooth 5.4 and dual 5 GbE LAN for high-speed networking

Specifications

BrandGIGABYTE
ModelX870E AERO X3D WOOD
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot
PCI Express x16Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed in theM2B_C
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed2 x 5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

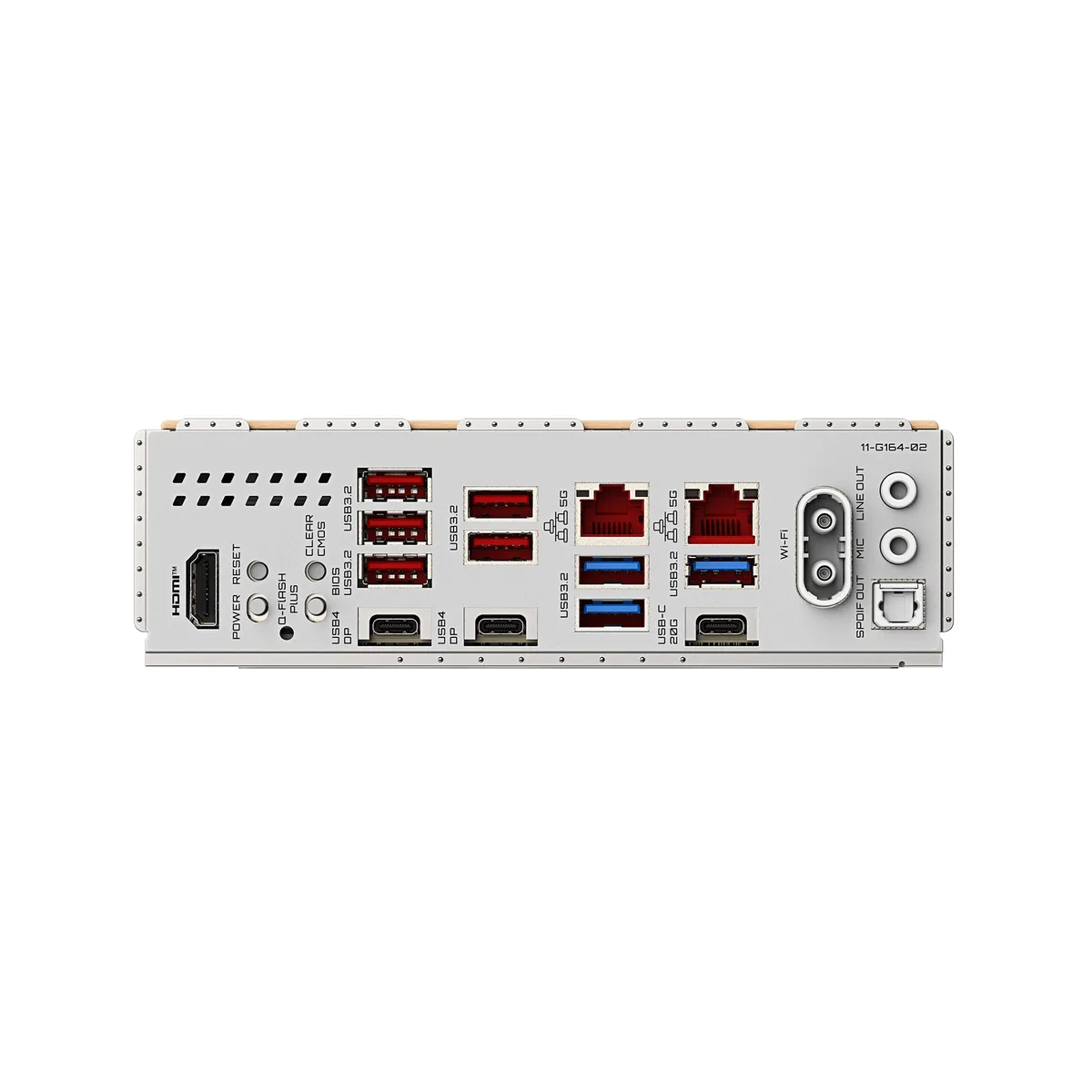

Back I/O Ports1 x Q-Flash Plus button
1 x Clear CMOS button
1 x power button
1 x reset button
1 x HDMI port (Note)
2 x USB4 USB Type-C ports (DisplayPorts (Note))
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
5 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11Supported
Shipping weight3.15 kg
Package size335 × 305 × 89 mm

Questions about this item

Will my existing DDR5-5200 modules run at rated speed on the four 288-pin slots?

The board supports DDR5 5200 as its base standard and AMD EXPO profiles on all four slots, so compatible modules will operate at their rated frequency without manual tuning.

How can I confirm the PCIe 5.0 x16 slot is running at full width after installing a Ryzen 9000 series CPU?

With a Ryzen 9000 or 7000 processor the primary PCIEX16 slot operates at PCIe 5.0 x16; the BIOS main screen and GPU-Z will both report the link width and generation.

Does the package include the Wi-Fi 7 antenna and M.2 heatsink screws, or must I source them separately?

The open-box unit ships with the integrated I/O shield pre-installed; Wi-Fi EZ-Plug antenna and M.2 EZ-Latch screwless hardware are standard box contents, so no extra parts are required for wireless or SSD installation.
