GIGABYTE

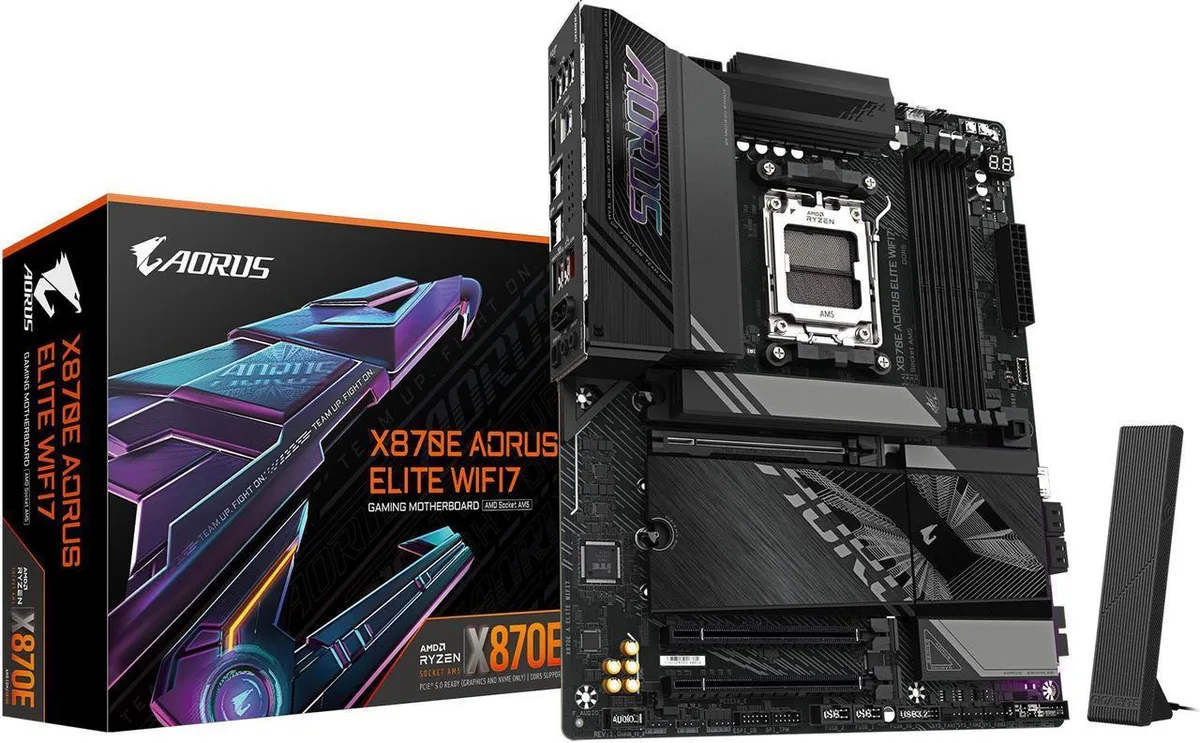

GIGABYTE X870E AORUS ELITE WIFI7 EZ-Latch AMD motherboard
ATX board for AMD Ryzen CPUs with DDR5 memory up to 256 GB, PCIe 5.0 graphics slot, four M.2 sockets, dual USB4, Wi-Fi 7 and 2.5 GbE LAN
- CPU Socket TypeAM5
- CPU TypeRyzen Series
- ChipsetAMD X870E
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardDDR5 5200
- Maximum Memory Supported256GB
- Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
- DDR5 memory up to 8000 MT/s overclocked across four 288-pin slots
- 16+2+2 phase power design with VRM and M.2 thermal guards
- Four M.2 slots plus PCIe 5.0 graphics slot and dual USB4 ports
- Wi-Fi 7 and 2.5 GbE LAN with EZ-Latch M.2, PCIe and Wi-Fi plug tools
Socket AM5 DDR5 ATX Board

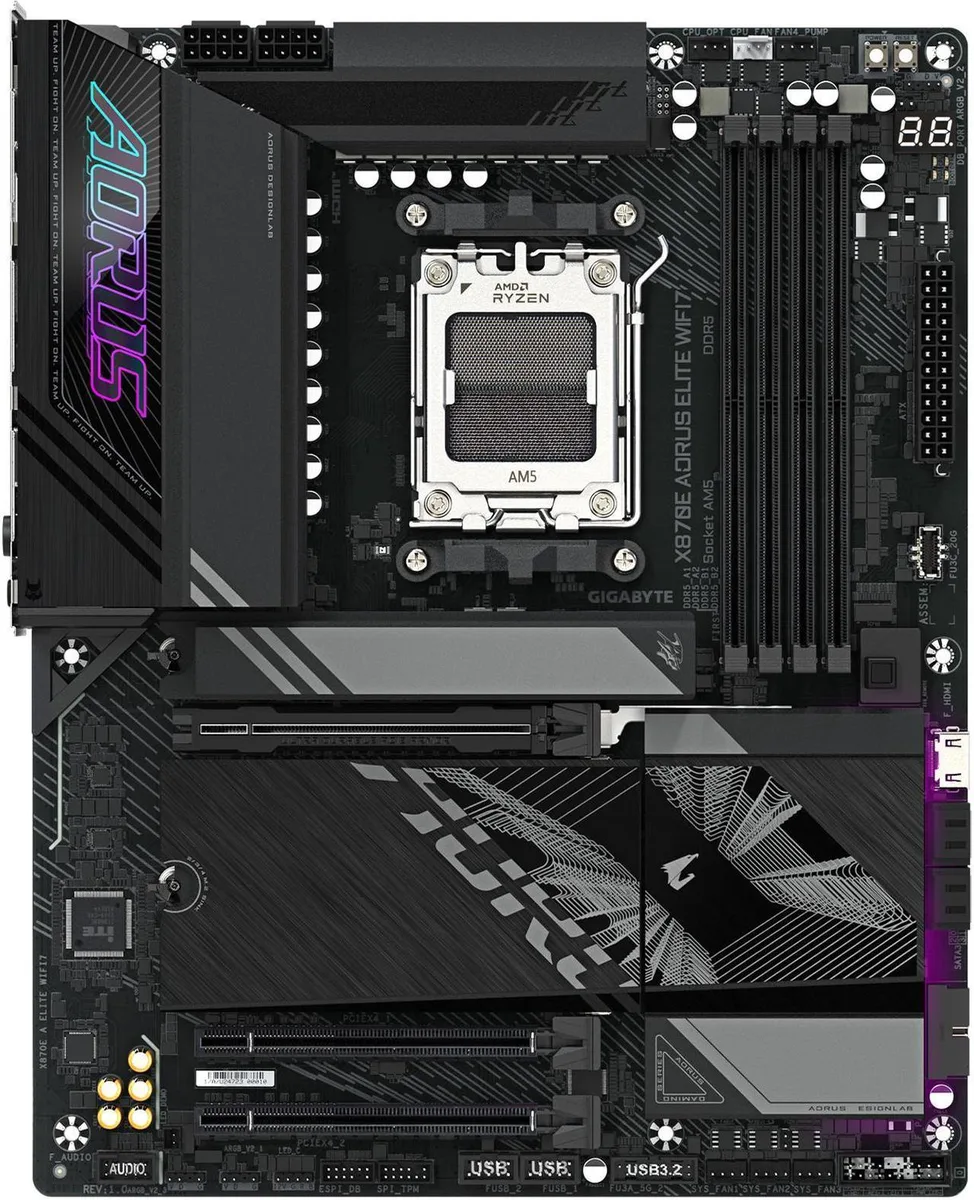

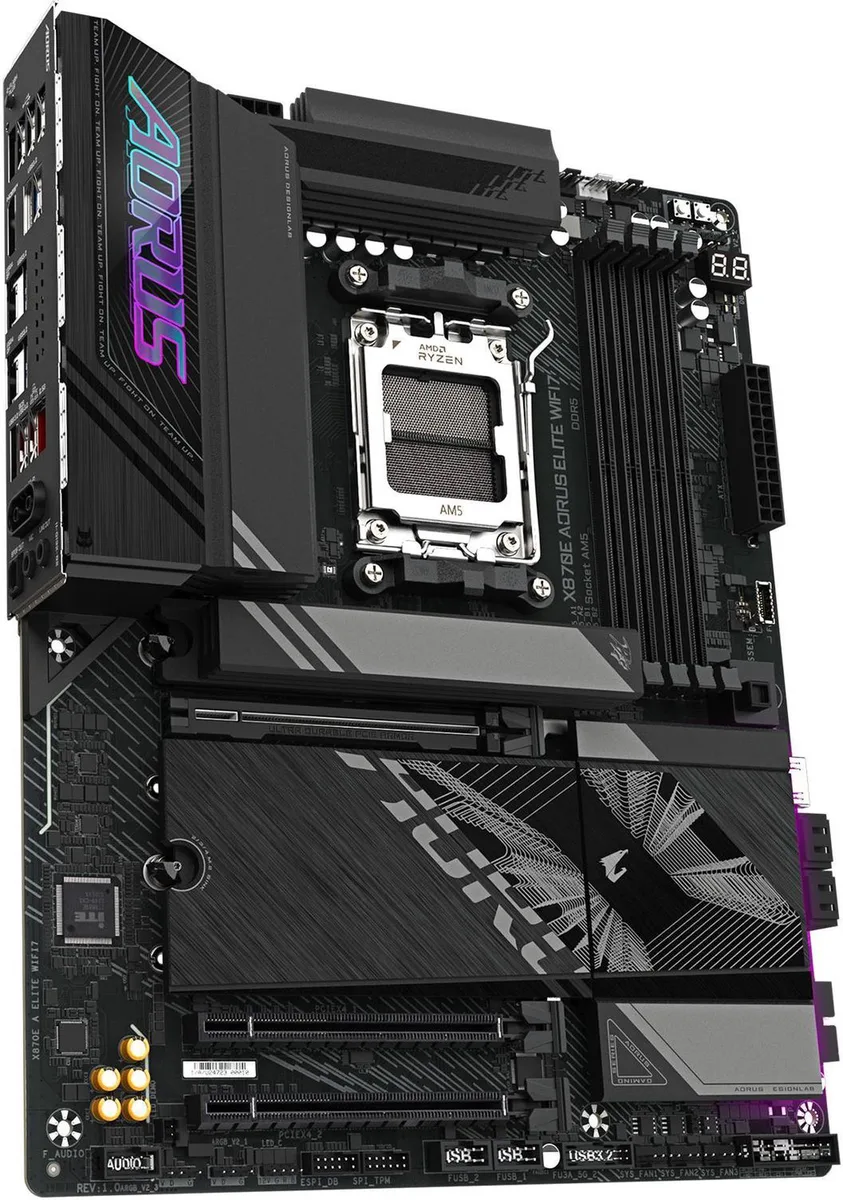

The GIGABYTE X870E AORUS ELITE WIFI7 is an ATX motherboard built for AMD Ryzen 9000, 8000 and 7000 series processors. It uses the X870E chipset and provides four 288-pin DDR5 slots supporting up to 256 GB in dual-channel mode. The 16+2+2 power design and VRM thermal guard are engineered for stable operation.
Suits High-Speed Builders Not Budget Users
This board suits builders who want PCIe 5.0 graphics and storage, Wi-Fi 7 and dual USB4 ports on a mainstream platform. The four M.2 slots and EZ-Latch mechanisms help enthusiasts assemble quickly. Users needing ECC memory, 10 GbE or a smaller form factor should look elsewhere.
PCIe 5.0 x16 From The CPU
The primary PCIe x16 slot runs at 5.0 speeds when paired with Ryzen 9000 or 7000 series CPUs, delivering maximum bandwidth for current graphics cards. M2B_CPU and M2C_CPU share this lane budget, so populating those M.2 sockets reduces the slot to x8.
Highlights
- Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
- DDR5 memory up to 8000 MT/s overclocked across four 288-pin slots
- 16+2+2 phase power design with VRM and M.2 thermal guards
- Four M.2 slots plus PCIe 5.0 graphics slot and dual USB4 ports
- Wi-Fi 7 and 2.5 GbE LAN with EZ-Latch M.2, PCIe and Wi-Fi plug tools
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | X870E AORUS ELITE WIFI7 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 5200 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) |
| PCI Express x4 | Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoen |
| SATA RAID | 0/1/10 |
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | BLUETOOTH 5.4 |
| Back I/O Ports | 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x HDMI port 2 x USB4 USB Type-C ports (DisplayPort) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x SMA antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| BIOS Feature | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Windows 11 | Supported |
| Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support Smart Backup |
Questions about this item
What limits the CPU PCIe 5.0 x16 slot to x8 when a second M.2 drive is added?
The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot, so installing a device in M2B_CPU forces the graphics slot to run at x8 instead of x16.
How hot does the VRM area get during all-day loads and what cooling does the board provide?
The board uses a VRM Thermal Guard heatsink over the 16+2+2 power stages to dissipate heat during sustained operation.
Which Ryzen processor must I already have for the board to post and run?
The AM5 socket supports AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 series processors, so any CPU from those families will work.
