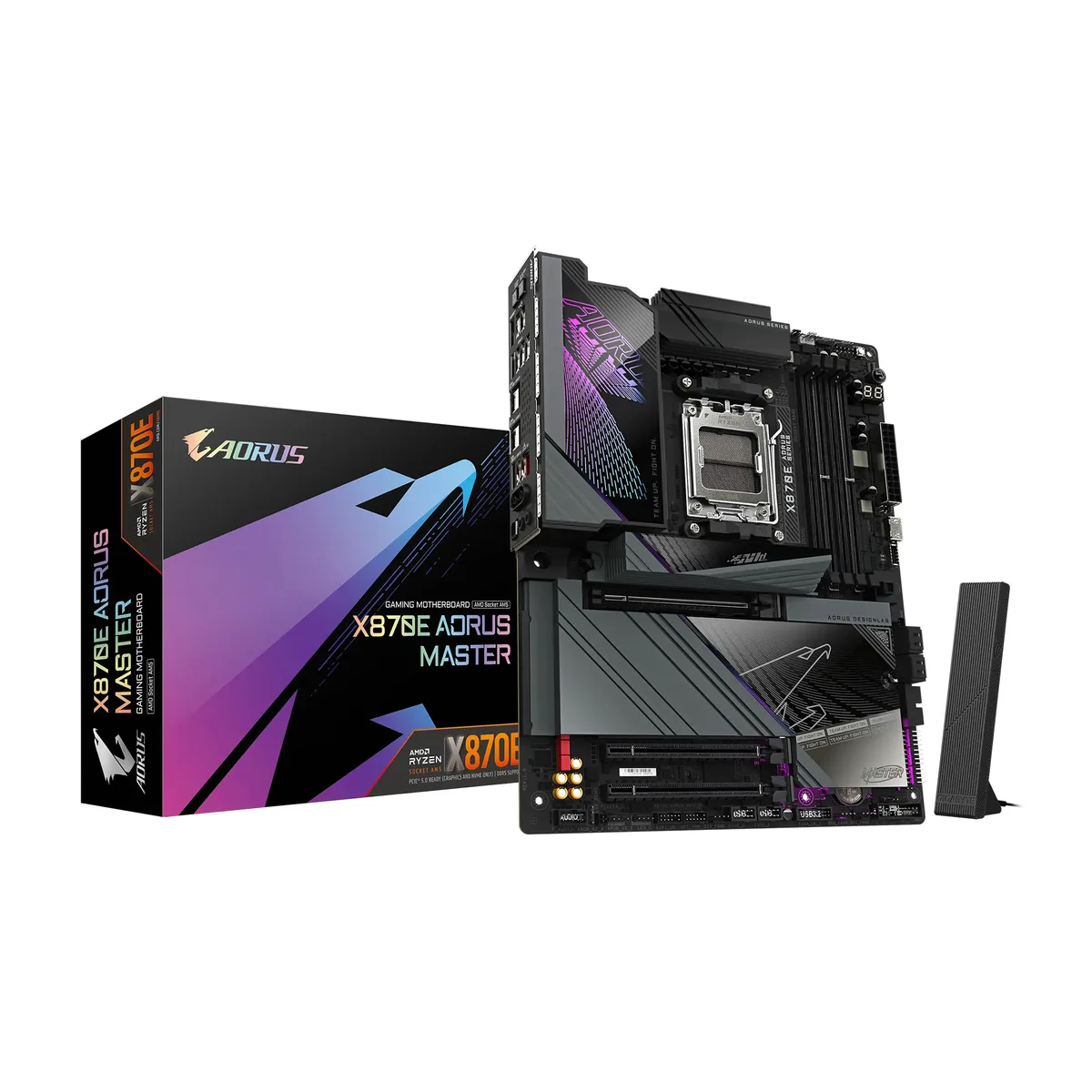

Gigabyte X870E Aorus Master ATX motherboard with silver VRM heatsinks and black PCB

GIGABYTE

GIGABYTE X870E AORUS MASTER AM5 AMD motherboard

SKU CH-YEV1-4PNTV MPN X870E AORUS MASTER

ATX board for Ryzen 9000/8000/7000 CPUs with four DDR5 slots up to 256 GB, one PCIe 5.0 x16 slot, four M.2 connectors, dual USB4, Wi-Fi 7 and 5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series / Ryzen 8000 Series / Ryzen 7000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB
  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 16+2+2 phase 110A power stages deliver stable VRM current
  • Four DDR5 slots reach 256GB capacity with EXPO profiles
  • PCIe 5.0 graphics slot plus four M.2 connectors for fast storage
  • Wi-Fi 7 and 5GbE LAN provide high-speed wired and wireless networking

AMD AM5 Platform Ready

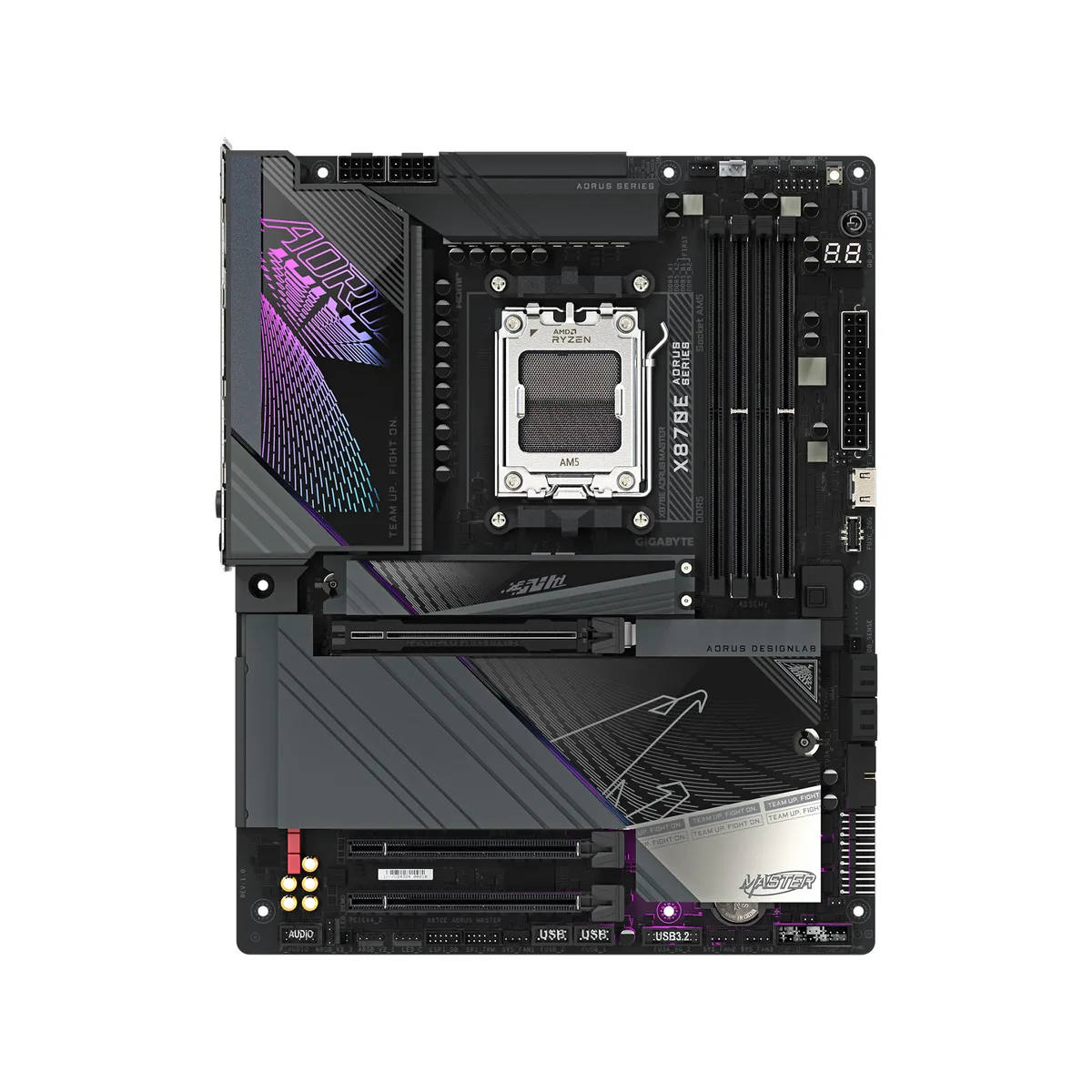

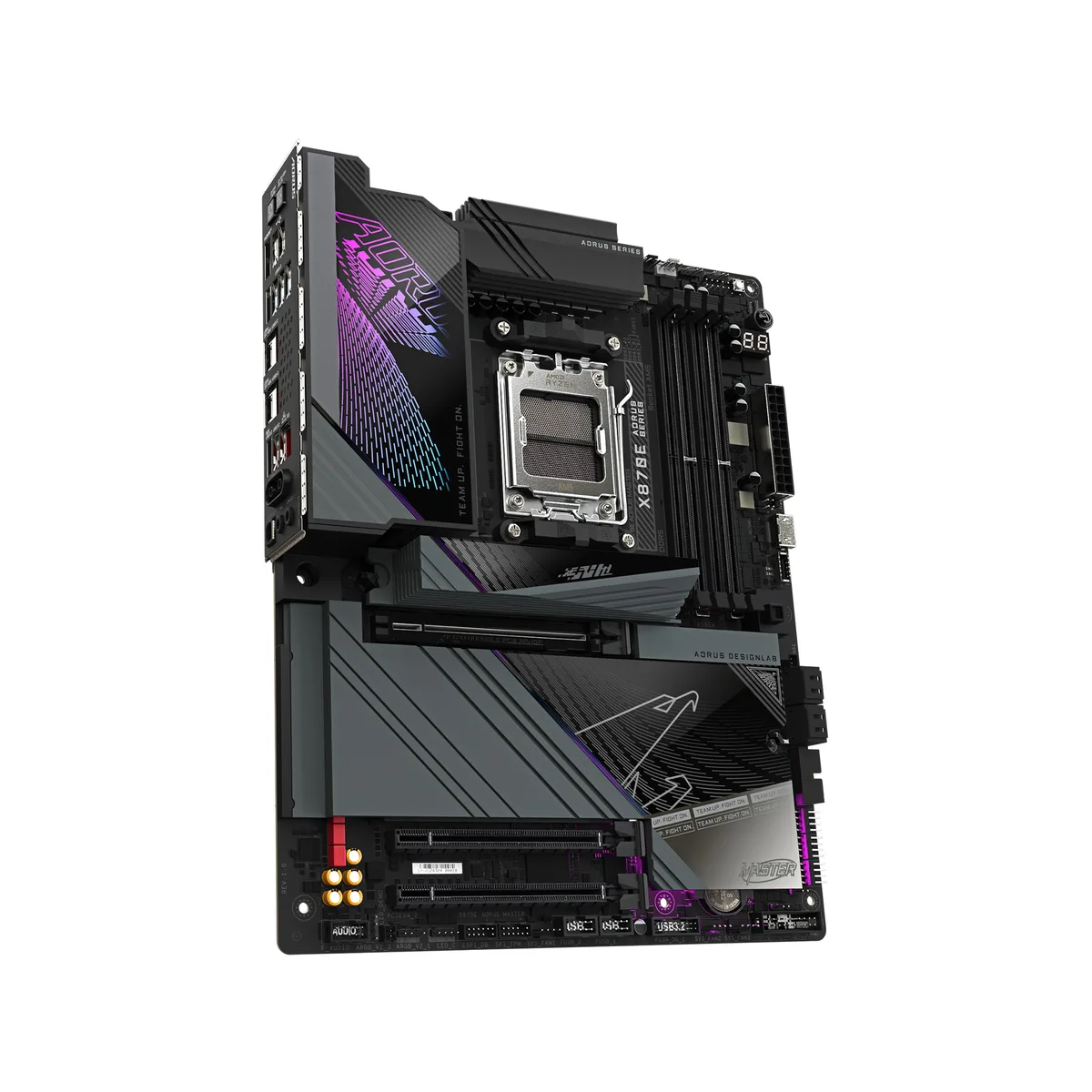

The GIGABYTE X870E AORUS MASTER is an ATX motherboard built for AMD Ryzen 9000, 8000 and 7000 series processors in the AM5 socket. It targets enthusiasts and professionals who need high memory capacity and fast storage expansion. Four 288-pin DDR5 slots support up to 256 GB in dual-channel mode with AMD EXPO and Intel XMP 3.0 profiles.

Sustained Load Power Delivery

A 16+2+2 phase design uses 110 A smart power stages to supply the CPU socket during prolonged heavy workloads. The VRM thermal guard covers the power circuitry to maintain stable operation when all cores run at high frequency for extended periods. M.2 thermal guards keep SSD temperatures in check during large sequential transfers.

Thermals Noise And Connectivity

Heatsinks on the VRM and four M.2 slots dissipate heat without active fans, so the board adds no audible noise to the system. The Realtek ALC1220 codec provides 7.1 channel audio for monitoring or content creation. Networking includes Wi-Fi 7 and a 5 GbE LAN port, while dual USB4 ports and front-panel USB-C handle high-speed peripherals.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 16+2+2 phase 110A power stages deliver stable VRM current
  • Four DDR5 slots reach 256GB capacity with EXPO profiles
  • PCIe 5.0 graphics slot plus four M.2 connectors for fast storage
  • Wi-Fi 7 and 5GbE LAN provide high-speed wired and wireless networking

Specifications

BrandGIGABYTE
ModelX870E AORUS MASTER
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series / Ryzen 8000 Series / Ryzen 7000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoen
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.3

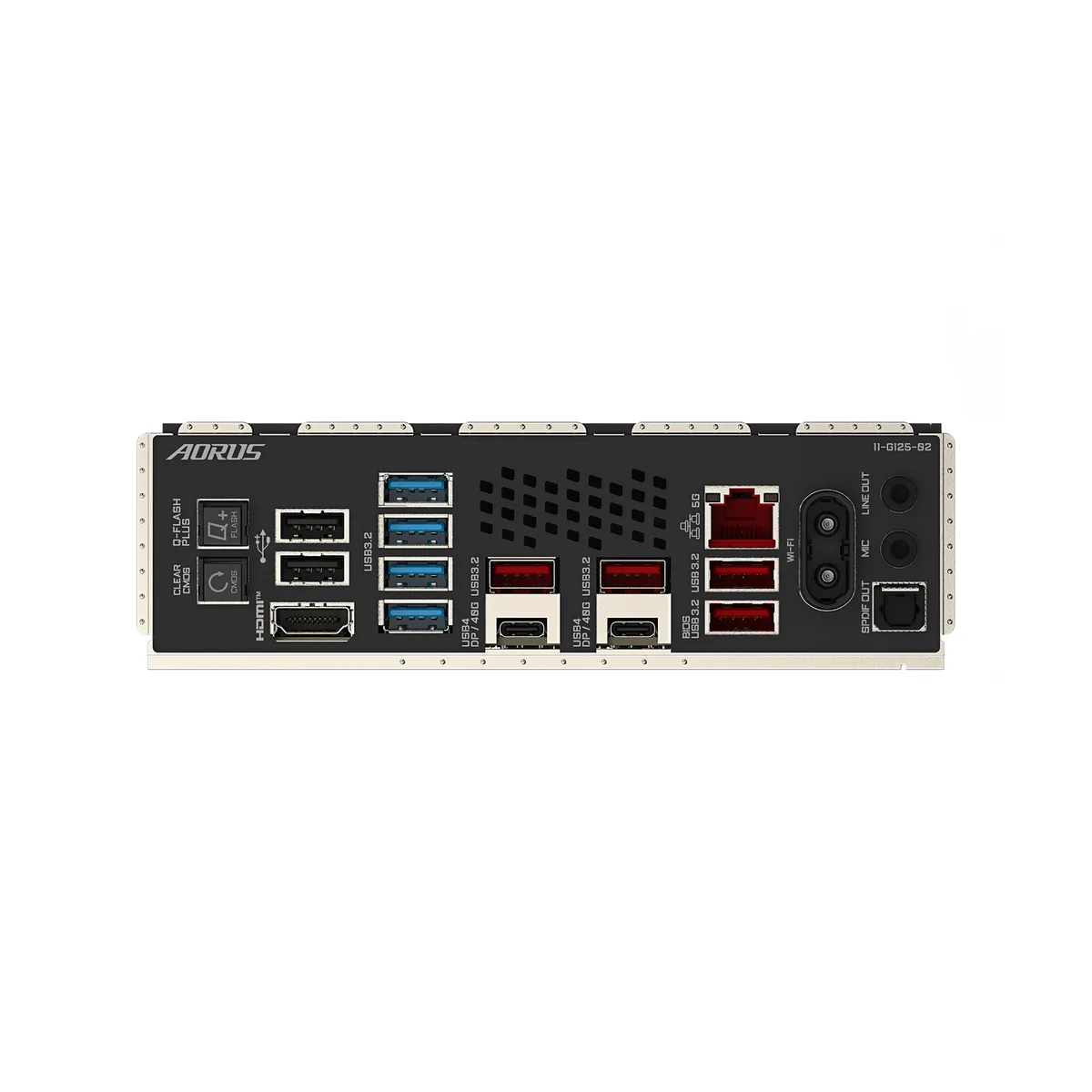

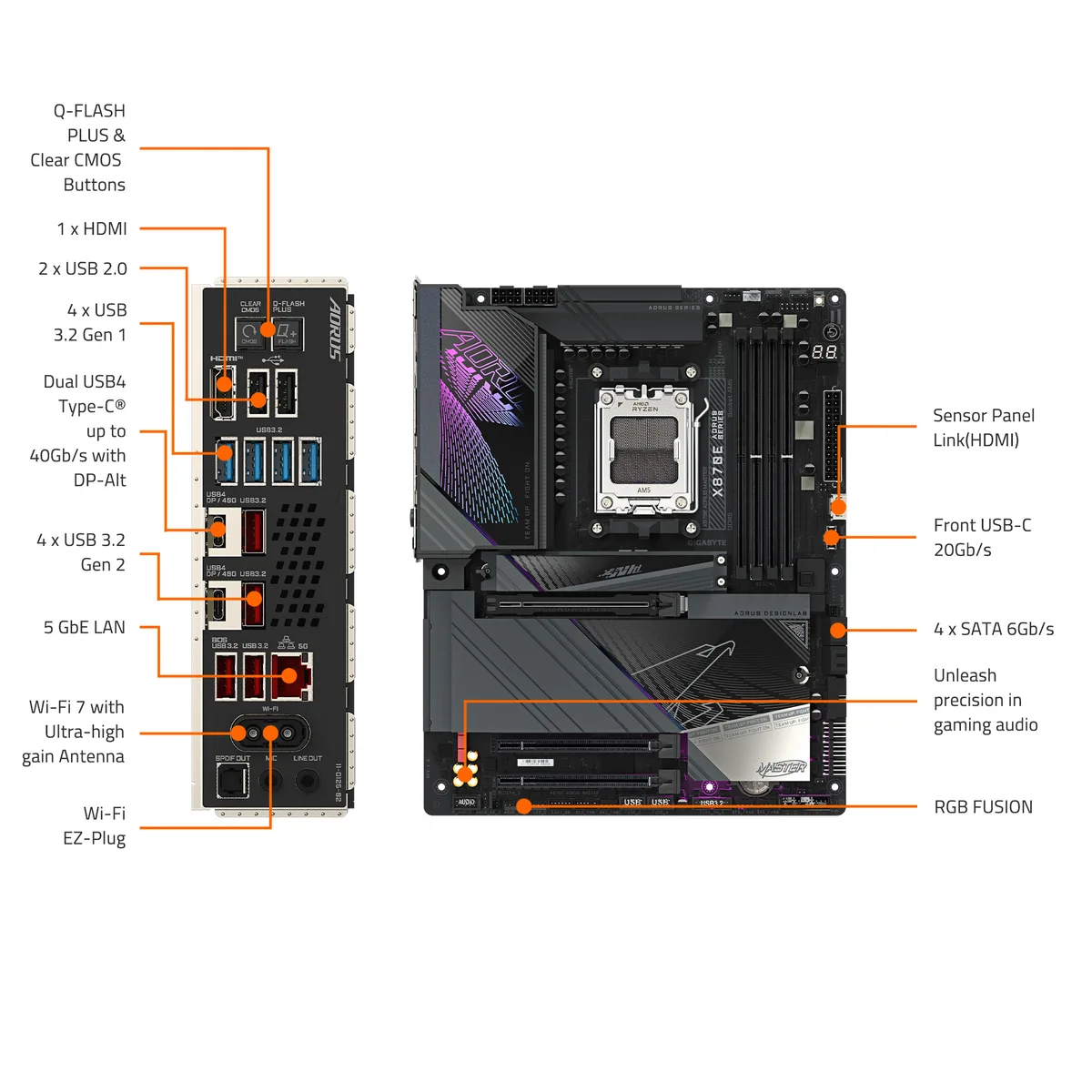

Back I/O Ports1 x Q-Flash Plus button
1 x Clear CMOS button
1 x HDMI port (Note)
2 x USB4 USB Type-C ports (DisplayPorts (Note))
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Shipping weight2.63 kg
Package size351 × 305 × 76 mm

Questions about this item

How loud or hot does the 16+2+2 110A VRM get during all-day loads?

The 16+2+2 phase design with 110A smart power stages and VRM Thermal Guard keeps temperatures controlled under sustained workloads, so fan noise stays low even during extended sessions.

Which DDR5 memory kit and CPU cooler must I already own for this board to post?

You need a DDR5 kit up to 256GB across four 288-pin slots and an AM5-compatible cooler; the board supports Ryzen 9000, 8000 and 7000 series processors out of the box.

Will my PCIe 3.0 x4 NVMe drive and SATA SSDs still work at full speed alongside the new M.2 slots?

Yes — the chipset provides one PCIe 4.0 x4 and one PCIe 3.0 x4 slot plus four SATA 6Gb/s ports, so older drives run at their rated speeds without sharing bandwidth with the CPU-linked M.2 connectors.
