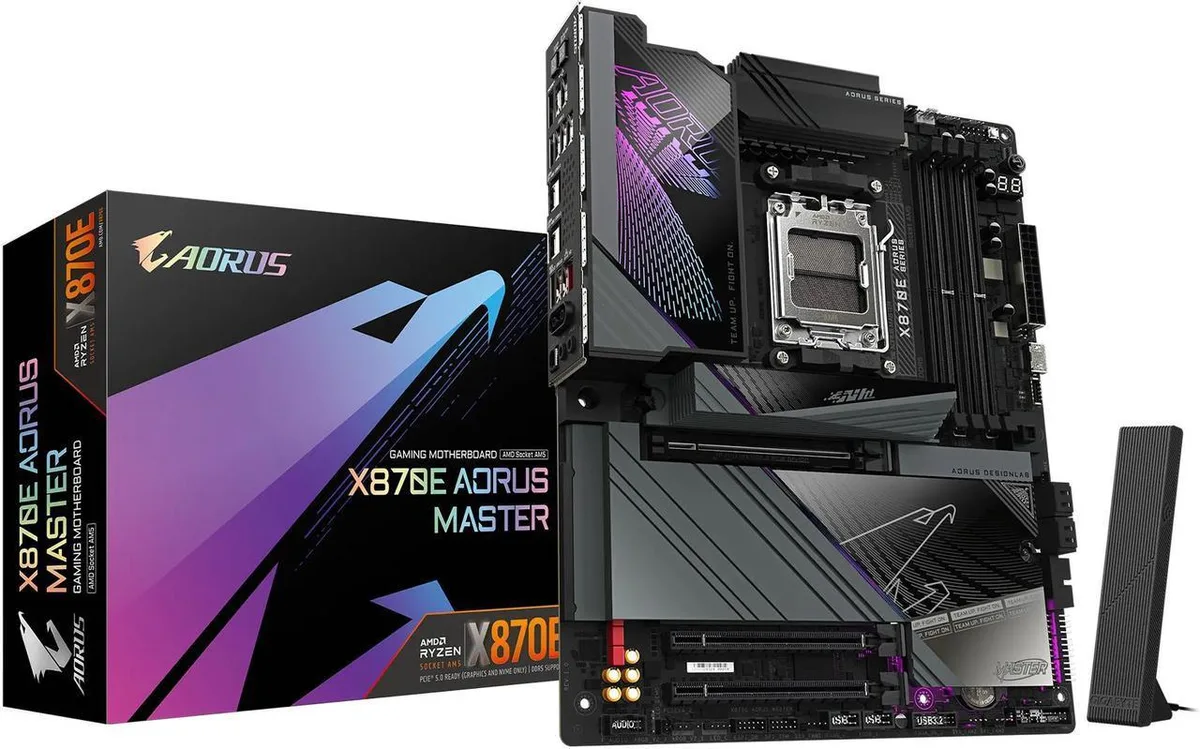

Black ATX motherboard with silver VRM heatsinks and M.2 shields

GIGABYTE

GIGABYTE X870E AORUS MASTER FF4D516G6000HC38ADC01 AMD motherboard

SKU CH-NK12-HHNH2 MPN FF4D516G6000HC38ADC01

Socket AM5 board with DDR5 support up to 8200 MT/s, PCIe 5.0 graphics and M.2, four M.2 slots, dual USB4, Wi-Fi 7 and 5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB
  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • DDR5 memory up to 256 GB with EXPO profiles up to 8200 MT/s
  • 16+2+2 phase power design using 110 A smart power stages
  • Four M.2 slots with PCIe 5.0 support plus VRM and M.2 thermal guards
  • Wi-Fi 7 and 5 Gbps LAN plus dual USB4 ports

Socket AM5 Platform for Ryzen 9000 Series

This ATX motherboard uses the AMD X870E chipset and the AM5 socket to support Ryzen 9000, 8000 and 7000 series processors. It targets builders who want a full-size board with extensive connectivity for high-end desktop systems.

DDR5 Memory Up to 8200 MT/s Overclocked

Four 288-pin slots accept unbuffered non-ECC DDR5 modules up to 256 GB total in dual-channel mode. The board validates speeds from 4400 to 8200 MT/s when overclocked, with a base standard of 5200 MT/s and AMD EXPO profile support.

Tool-Free M.2 and PCIe Latches Simplify Build

EZ-Latch mechanisms on the M.2 slots and the primary PCIe x16 slot let you install drives and graphics cards without screws or levers. The EZ-Debug zone shows POST codes for quick troubleshooting, while the Wi-Fi EZ-Plug eases antenna attachment.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • DDR5 memory up to 256 GB with EXPO profiles up to 8200 MT/s
  • 16+2+2 phase power design using 110 A smart power stages
  • Four M.2 slots with PCIe 5.0 support plus VRM and M.2 thermal guards
  • Wi-Fi 7 and 5 Gbps LAN plus dual USB4 ports

Specifications

BrandGIGABYTE
ModelX870E AORUS MASTER
CPU Socket TypeAM5
CPU TypeRyzen Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoen
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.3
Back I/O Ports1 x Q-Flash Plus button
1 x Clear CMOS button
1 x HDMI port (Note)
2 x USB4 USB Type-C ports (DisplayPorts (Note))
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Questions about this item

What does the 256 GB maximum memory mean for a real build?

You can populate all four DDR5 slots up to 256 GB total, running dual-channel at speeds from 4800 MT/s up to 8200 MT/s with EXPO profiles.

How does the PCIe 5.0 x16 slot cap graphics or storage performance?

The top x16 slot runs at PCIe 5.0 x16 when a Ryzen 9000 or 7000 CPU is installed, giving full bandwidth to one GPU or one NVMe SSD.

What physical space and mounting does the board need in a case?

Standard ATX layout with LGA 1718 socket, four 288-pin DDR5 slots, four M.2 sockets (2280/2580/22110/25110) and EZ-Latch release for tool-free M.2 and PCIe card installation.
