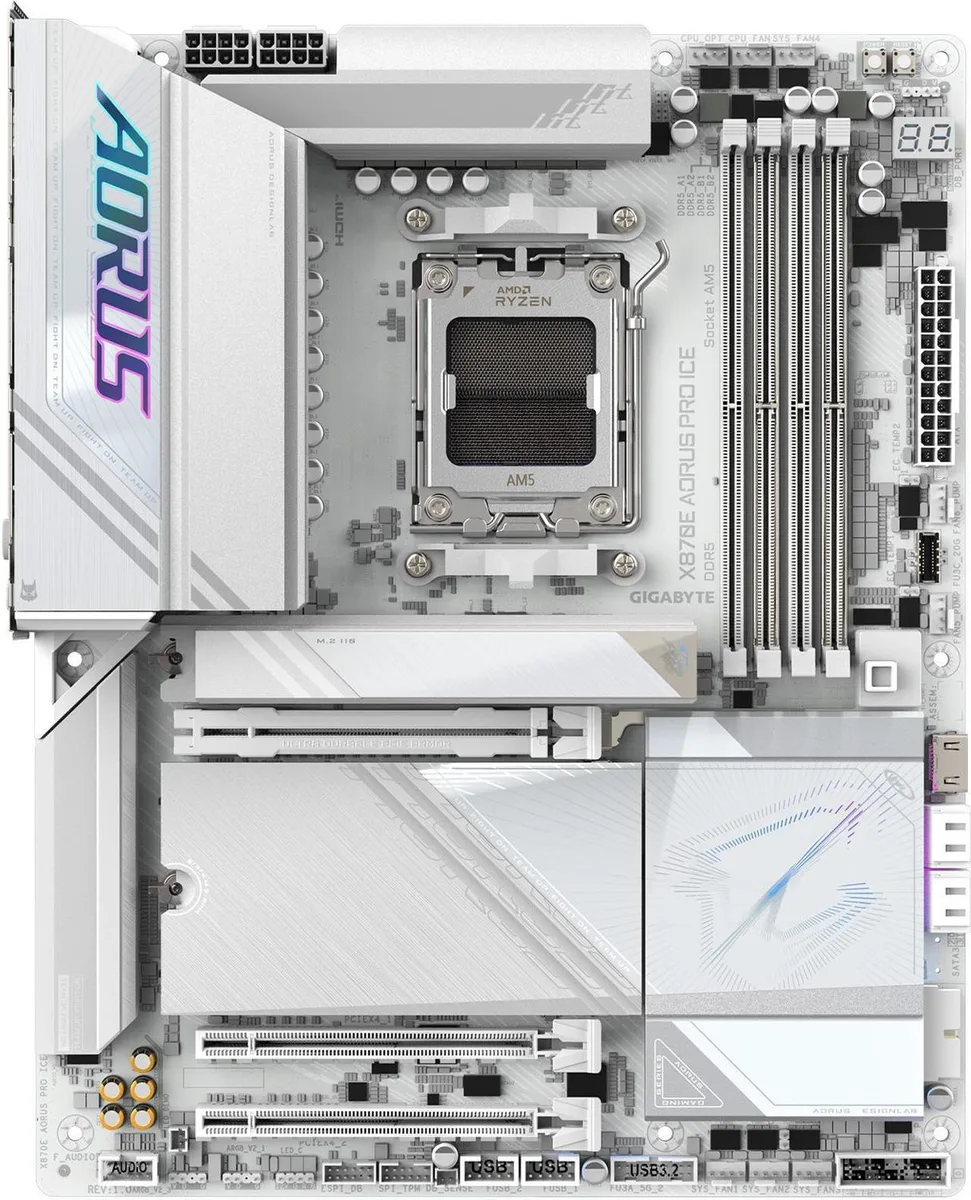

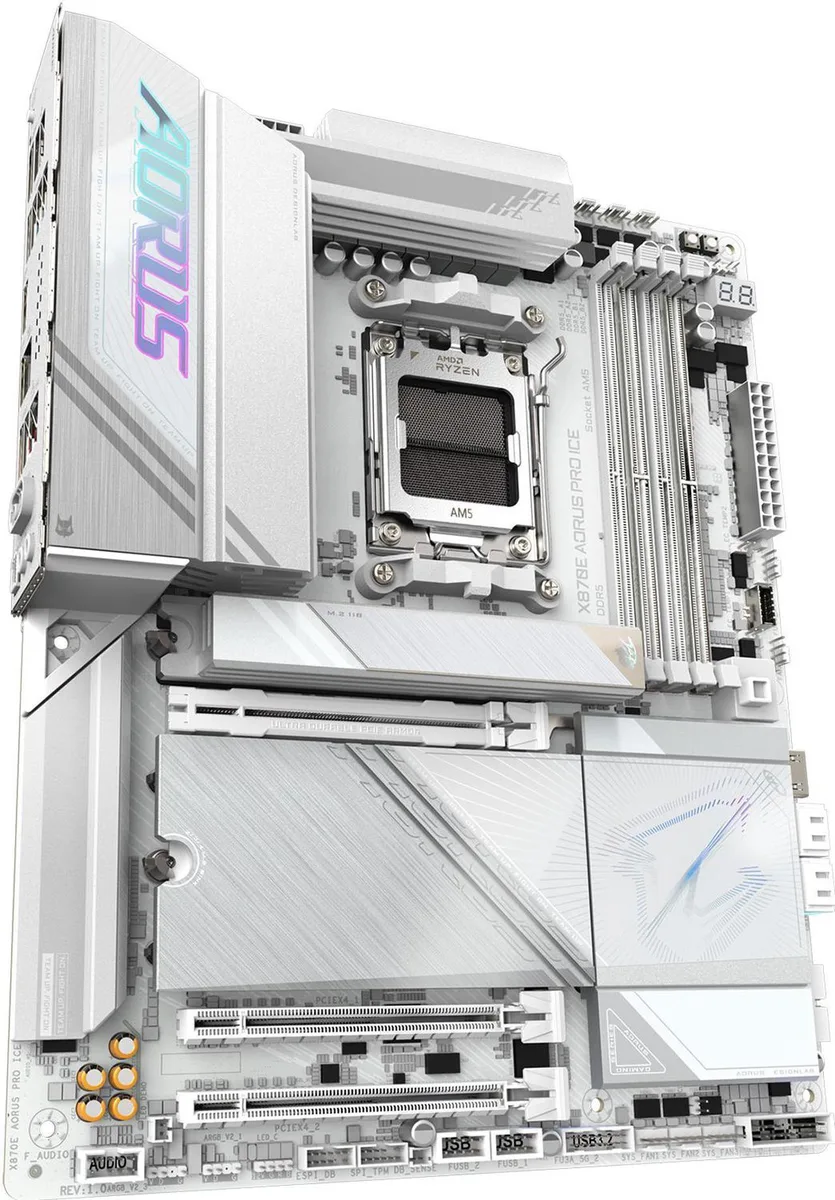

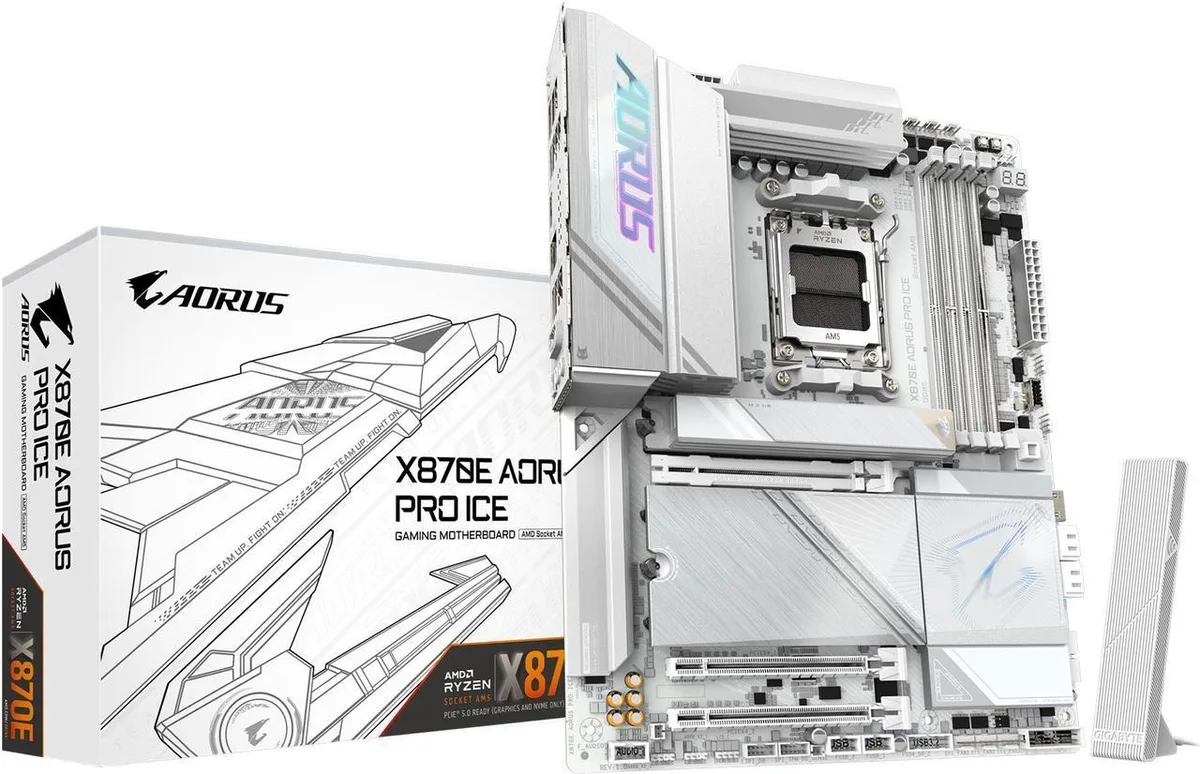

White ATX motherboard with silver heatsinks and four DDR5 slots

GIGABYTE

GIGABYTE X870E AORUS PRO ICE AM5 LGA 1718 ATX DDR5 4x M.2 PCIe 5.0 USB4 Wi-Fi 7 2.5GbE LAN

SKU CH-5CFR-J1J2N

AM5 motherboard with 16+2+2 80A power stages, four DDR5 slots up to 256GB, four M.2 sockets, PCIe 5.0 graphics slot, dual USB4, Wi-Fi 7 and 2.5GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB
  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 256 GB DDR5 capacity across four 288-pin slots with EXPO overclocking profiles
  • 16+2+2 phase 80 A power delivery keeps VRM temperatures controlled
  • Four M.2 slots including PCIe 5.0 x4 from CPU plus PCIe 4.0 and 3.0 x4 from chipset
  • Dual USB4, Wi-Fi 7 and 2.5 GbE LAN for high-speed connectivity

AM5 platform with X870E chipset

The board uses the AMD X870E chipset and the AM5 socket for Ryzen 9000, 8000 and 7000 series processors. Four 288-pin DDR5 slots support up to 256GB of unbuffered non-ECC memory in dual-channel mode. PCIe 5.0 is available on the primary x16 slot and one CPU-linked M.2 connector, while the chipset adds two further x4 slots at PCIe 4.0 and 3.0.

Tool-free latches simplify the build

M.2 EZ-Latch and PCIe EZ-Latch let you install drives and graphics cards without screws. The Wi-Fi EZ-Plug makes antenna attachment straightforward and the EZ-Debug Zone provides quick POST-code visibility. Bandwidth sharing between the top PCIe 5.0 slot and the M2B_CPU or M2C_CPU connectors means populating those M.2 sockets can reduce the graphics slot to x8, so plan device placement before fitting components.

Verify cooler clearance and power phases

The 16+2+2 phase design uses 80A smart power stages, so ensure your CPU cooler does not obstruct the VRM heatsink area. Confirm that your chassis can accommodate an ATX board with four M.2 slots, four SATA 6Gb/s ports, dual USB4, front and rear USB-C, 2.5GbE LAN and Wi-Fi 7 antennas. Memory kits rated up to 8000 MT/s are supported via AMD EXPO profiles.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 256 GB DDR5 capacity across four 288-pin slots with EXPO overclocking profiles
  • 16+2+2 phase 80 A power delivery keeps VRM temperatures controlled
  • Four M.2 slots including PCIe 5.0 x4 from CPU plus PCIe 4.0 and 3.0 x4 from chipset
  • Dual USB4, Wi-Fi 7 and 2.5 GbE LAN for high-speed connectivity

Specifications

BrandGIGABYTE
ModelX870E AORUS PRO ICE
CPU Socket TypeAM5
CPU TypeRyzen Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors will become unavailable when using the
AMD Ryzen 8000
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.3
Back I/O Ports1 x Q-Flash Plus button
2 x USB 2.0/1.1 ports
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB4 USB Type-C port (DisplayPort
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
2 x antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x HDMI port
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Questions about this item

How can I confirm the motherboard is working correctly after assembly?

Power on the system and check the EZ-Debug Zone LEDs; if all indicators remain off and the board posts to BIOS, the 16+2+2 80A power stages and VRM Thermal Guard are functioning as intended.

What ships with the board and what must I purchase separately?

The package includes the ATX motherboard with pre-installed I/O shield, Wi-Fi 7 antenna, SATA cables, M.2 EZ-Latch screws, and documentation; you must buy an AM5 Ryzen processor, DDR5 memory modules, storage drives, and a compatible chassis.

Which memory speed should I choose for this X870E board?

The board supports DDR5 from 4400 MT/s up to 8000 MT/s (OC) across its four 288-pin slots with a 256 GB maximum; select a kit on the AMD EXPO list that matches your desired frequency and capacity.
