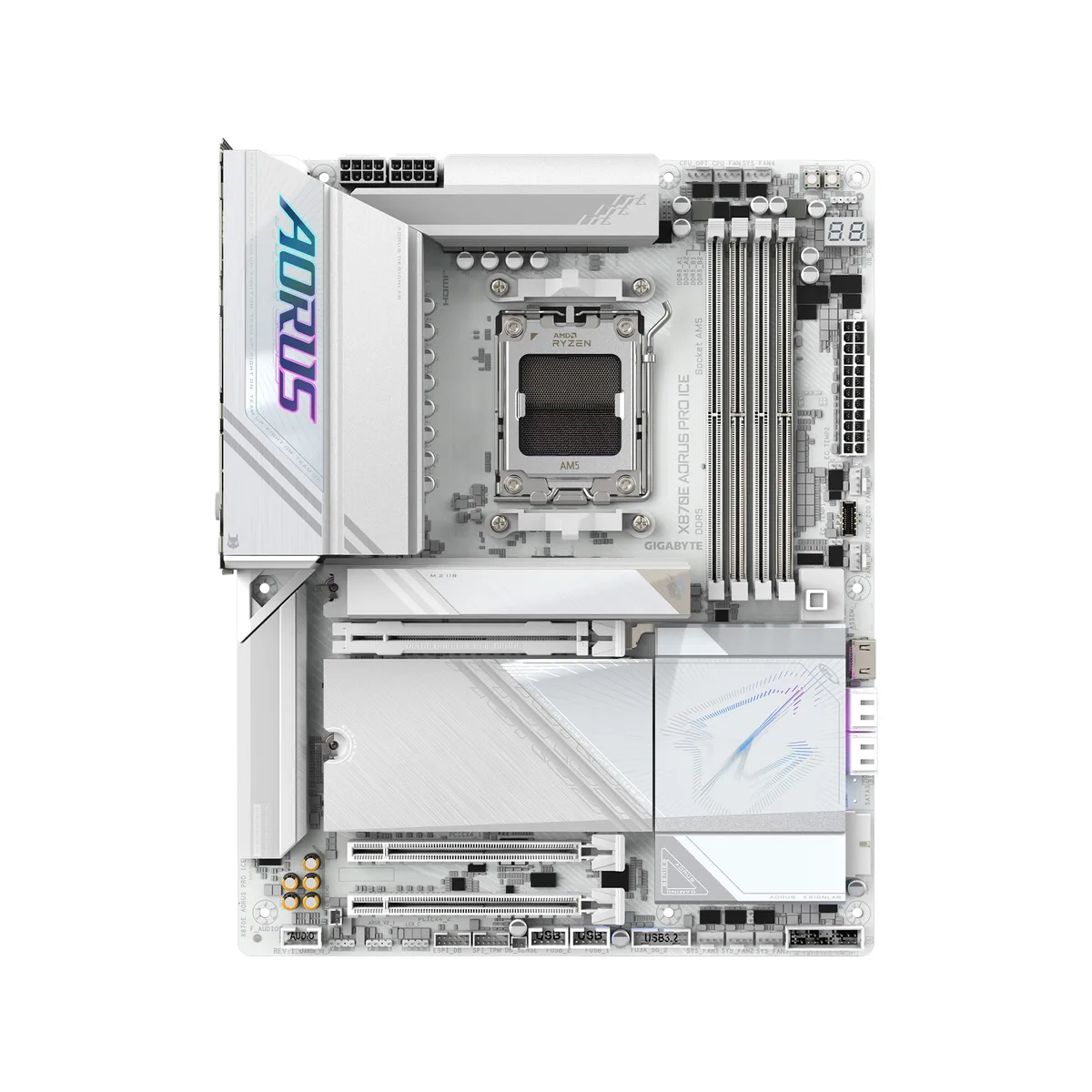

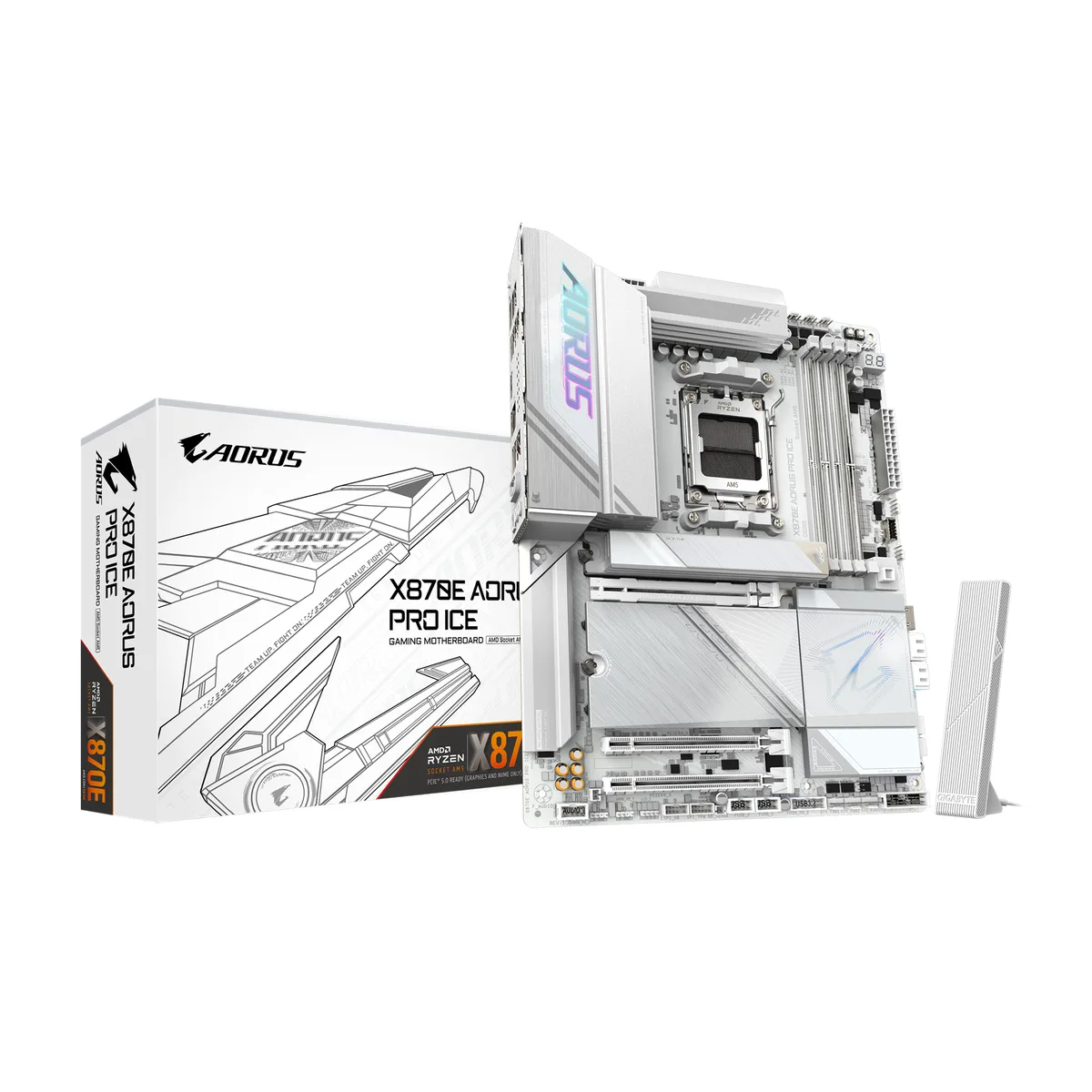

White ATX motherboard with silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE X870E AORUS PRO ICE AMD motherboard

SKU CH-4E01-AWZ12 MPN X870E AORUS PRO ICE

AM5 ATX board with 16+2+2 80A power stages, four DDR5 slots up to 256 GB, four M.2 sockets including three PCIe 5.0, dual USB4, Wi-Fi 7 and 2.5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB

Option X870E AORUS PRO ICE

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 16+2+2 phase VRM with 80 A smart power stages for stable delivery
  • Four DDR5 slots up to 256 GB with AMD EXPO support
  • Four M.2 slots including three PCIe 5.0 x4 for ultra-fast storage
  • Wi-Fi 7 and 2.5 GbE LAN plus dual USB4 Type-C ports

AM5 Motherboard with X870E Chipset

The GIGABYTE X870E AORUS PRO ICE is an ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors on the AM5 socket. It provides four DDR5 DIMM slots supporting up to 256GB of memory and a 16+2+2 phase VRM with 80A power stages. Connectivity includes PCIe 5.0, four M.2 slots, dual USB4, Wi-Fi 7 and 2.5GbE LAN.

Built for High-End Gaming and Workstation Builds

Enthusiasts who want maximum PCIe 5.0 bandwidth for graphics and storage will benefit from the three CPU-linked M.2 connectors and the reinforced x16 slot. Users planning a compact ITX system or those needing legacy PCI slots should look at a different form factor and chipset.

Sustained Loads Handled by VRM Armour and M.2 Guards

The VRM thermal armour and M.2 Thermal Guard L are designed to dissipate heat during extended heavy workloads. The digital power design maintains stable delivery through the 16+2+2 phases, while the 80A smart power stages run efficiently under continuous multi-core CPU utilisation and high-speed storage traffic.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 16+2+2 phase VRM with 80 A smart power stages for stable delivery
  • Four DDR5 slots up to 256 GB with AMD EXPO support
  • Four M.2 slots including three PCIe 5.0 x4 for ultra-fast storage
  • Wi-Fi 7 and 2.5 GbE LAN plus dual USB4 Type-C ports

Specifications

BrandGIGABYTE
ModelX870E AORUS PRO ICE
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors will become unavailable when using the
AMD Ryzen 8000
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.3

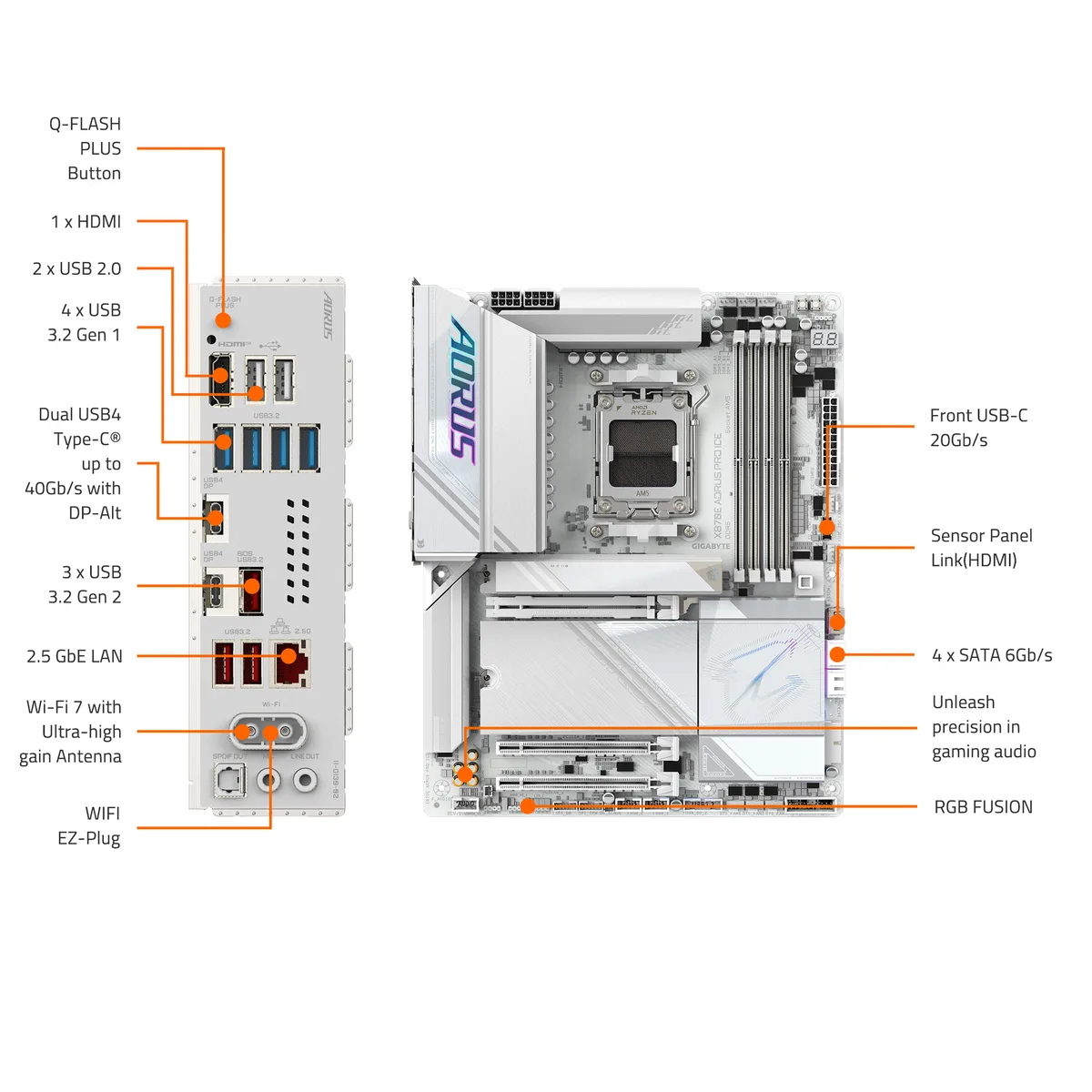

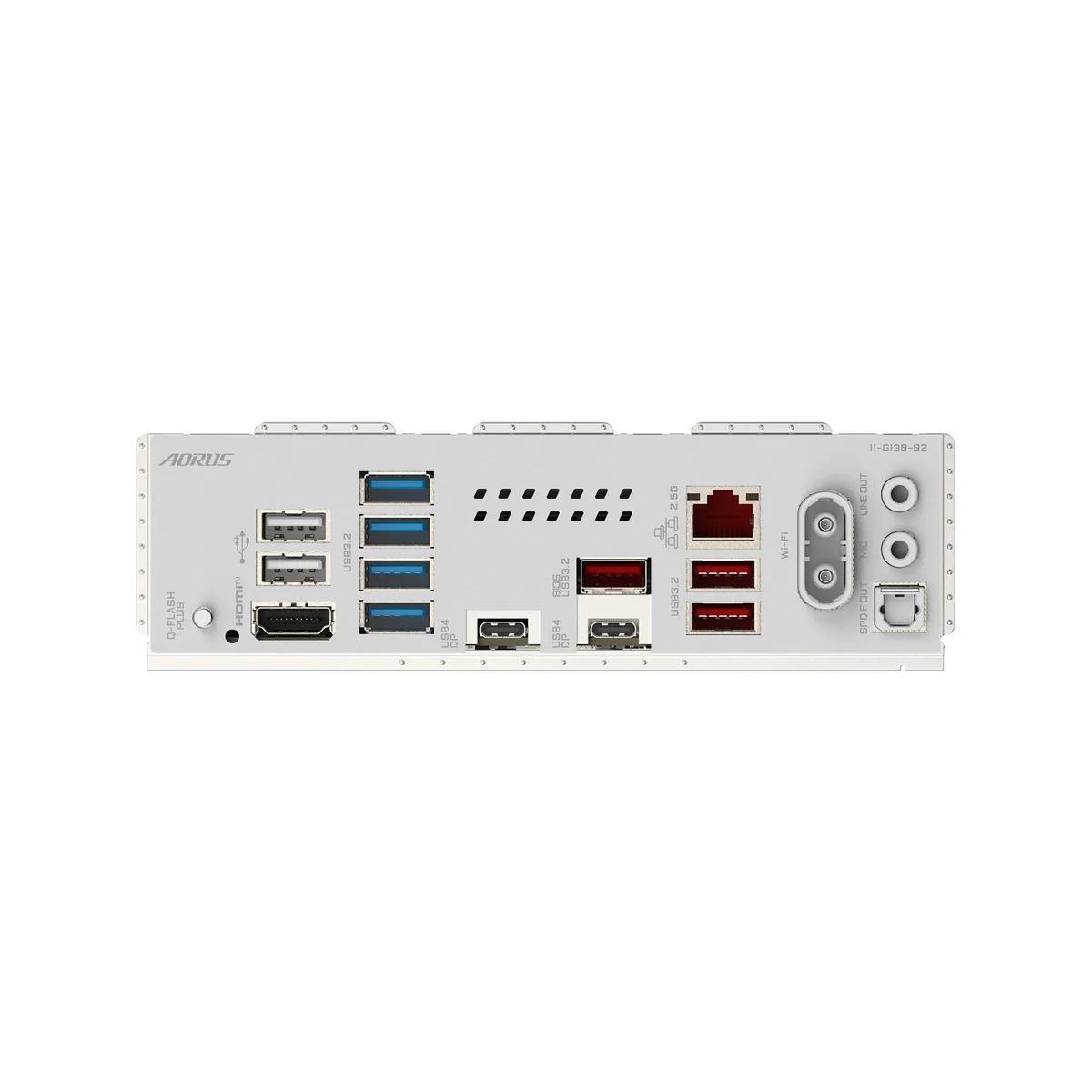

Back I/O Ports1 x Q-Flash Plus button
2 x USB 2.0/1.1 ports
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB4 USB Type-C port (DisplayPort
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
2 x antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x HDMI port
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Shipping weight2.36 kg
Package size330 × 267 × 89 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my Ryzen 9000 CPU run the PCIe 5.0 x16 slot and the top M.2 at full speed together?

The PCIe 5.0 x16 slot and the M2B_CPU or M2C_CPU connectors share bandwidth; using one of those M.2 drives reduces the graphics slot to x8 mode.

What DDR5 speeds can I reach with four sticks installed?

The board validates DDR5 up to 8000 MT/s with overclocking; EXPO profiles and manual tuning let you scale between 4400 and 8000 MT/s depending on the memory kit and CPU memory controller.

Does the rear I/O include video outputs for an iGPU?

Yes, HDMI and dual USB4 Type-C ports with DisplayPort Alt Mode are provided so Ryzen 8000 series APUs can drive displays without a discrete graphics card.
