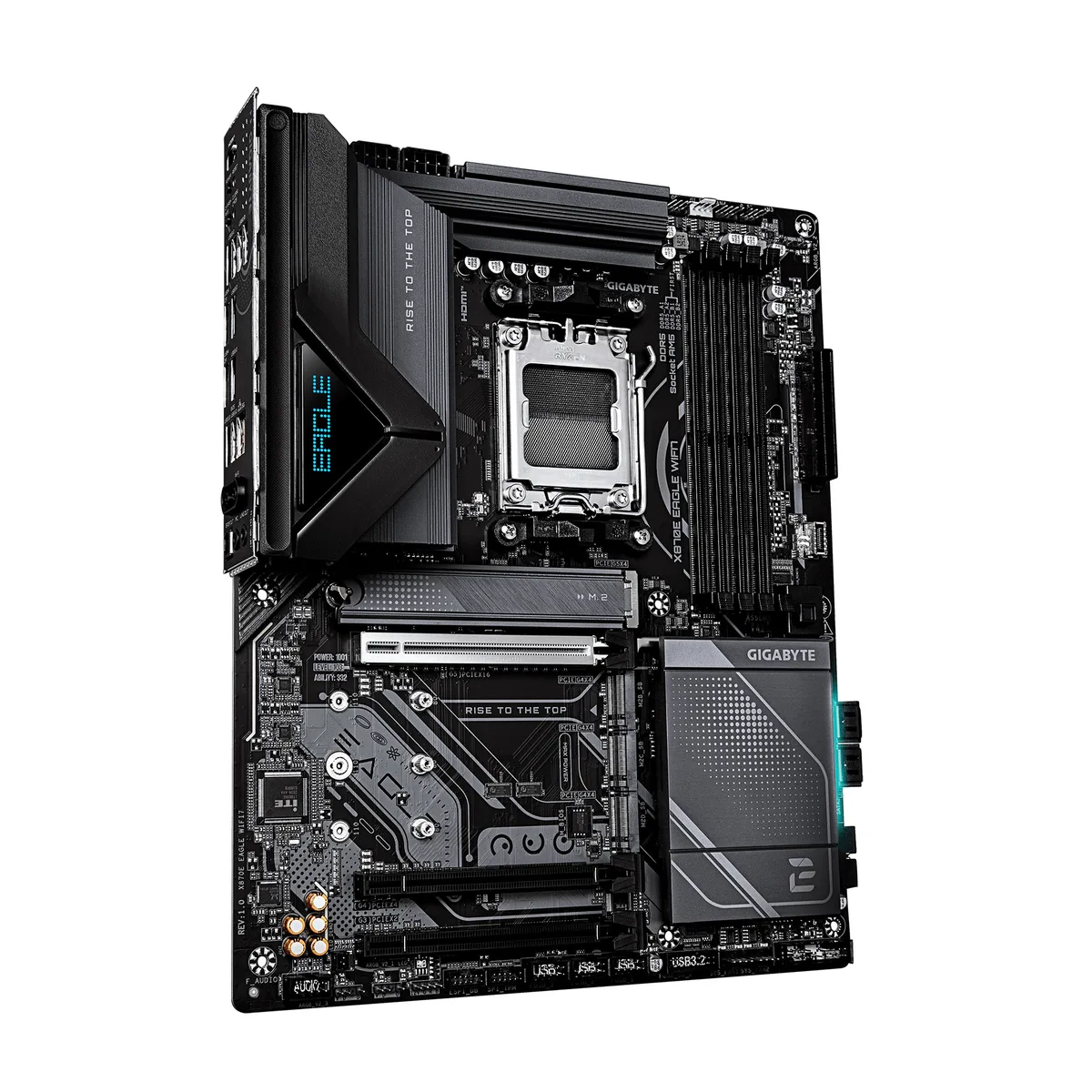

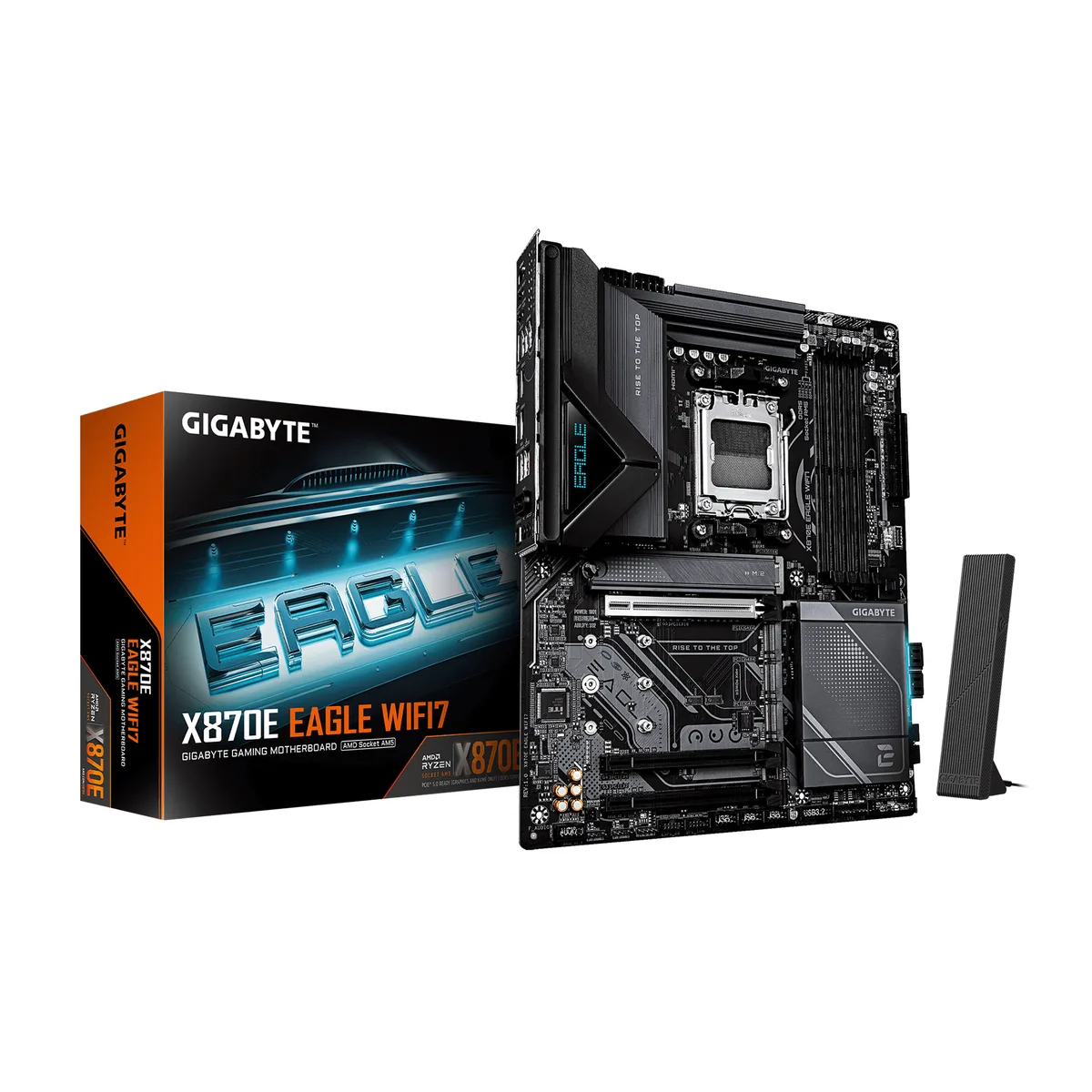

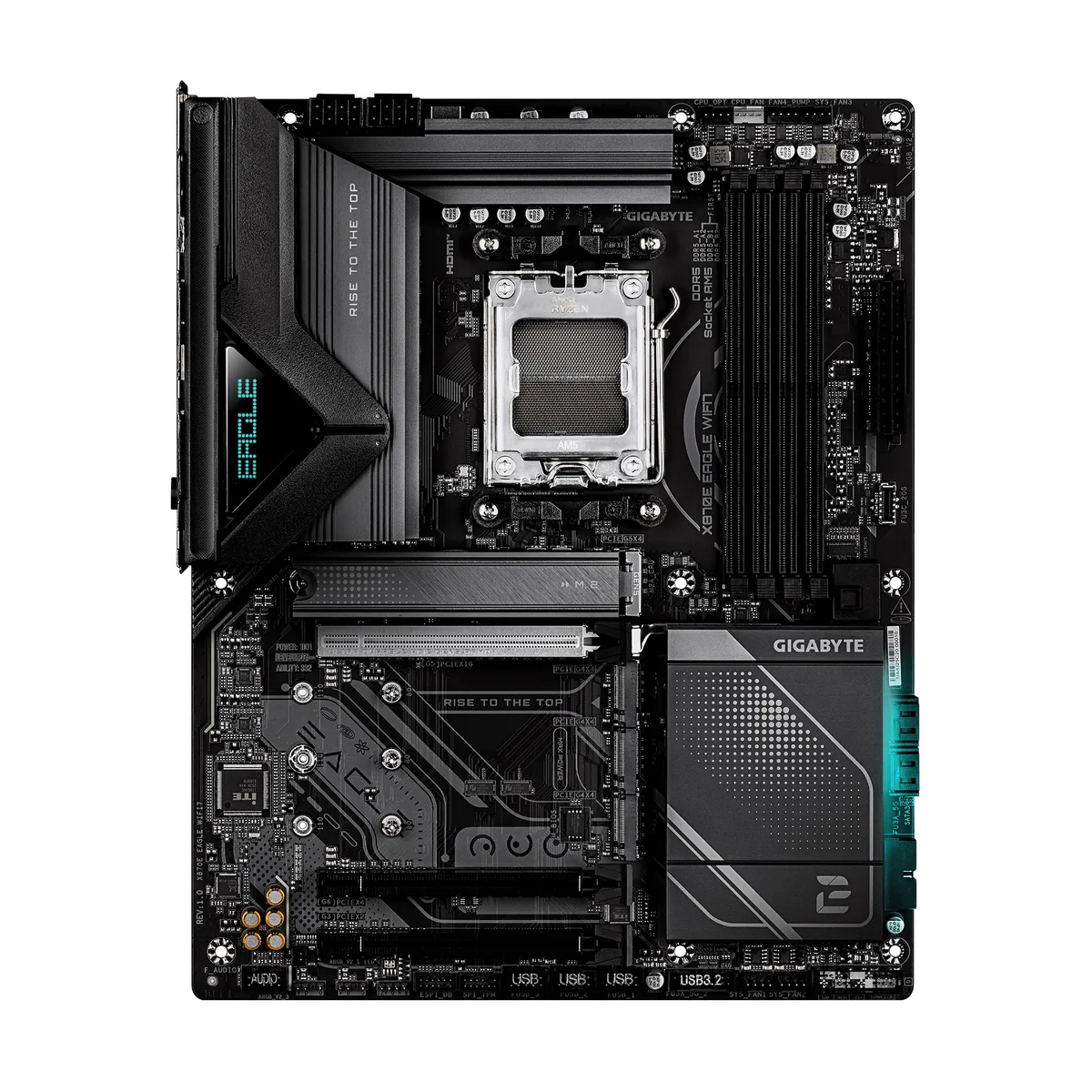

ATX motherboard, dark grey finish, silver heatsinks, AM5 socket, four DDR5 slots, three PCIe x16 slots, four M.2 slots

GIGABYTE

GIGABYTE X870E EAGLE WIFI7 AMD motherboard

SKU CH-XWAC-DSH52 MPN X870E EAGLE WIFI7

Socket AM5 ATX board for Ryzen 9000/8000/7000 CPUs with DDR5 4400 support to 256 GB, four M.2 slots, PCIe 5.0 x16, USB4, WIFI7, 5GbE LAN and EZ-Latch DIY features

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
  • ChipsetAMD X870E
  • South BridgeAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Supports AMD Ryzen 9000, 8000 and 7000 series processors
  • Digital Twin 16+2+2 power phases deliver steady CPU voltage
  • Four DDR5 slots up to 256 GB with AMD EXPO profiles
  • Four M.2 slots plus PCIe 5.0 x16 and USB4 connectivity
  • WIFI7, 5 GbE LAN and Bluetooth 5.4 for fast wireless and wired links

AM5 Platform for Ryzen 9000 8000 7000 Series

This ATX motherboard uses the AMD X870E chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series processors. Four DDR5 slots accept up to 256 GB of dual-channel memory at 4400 with AMD EXPO profiles. Three PCIe x16 slots include one PCIe 5.0, one PCIe 4.0 and one PCIe 3.0 lane configuration.

Four M.2 Slots USB4 5GbE WIFI7 Bluetooth 5.4

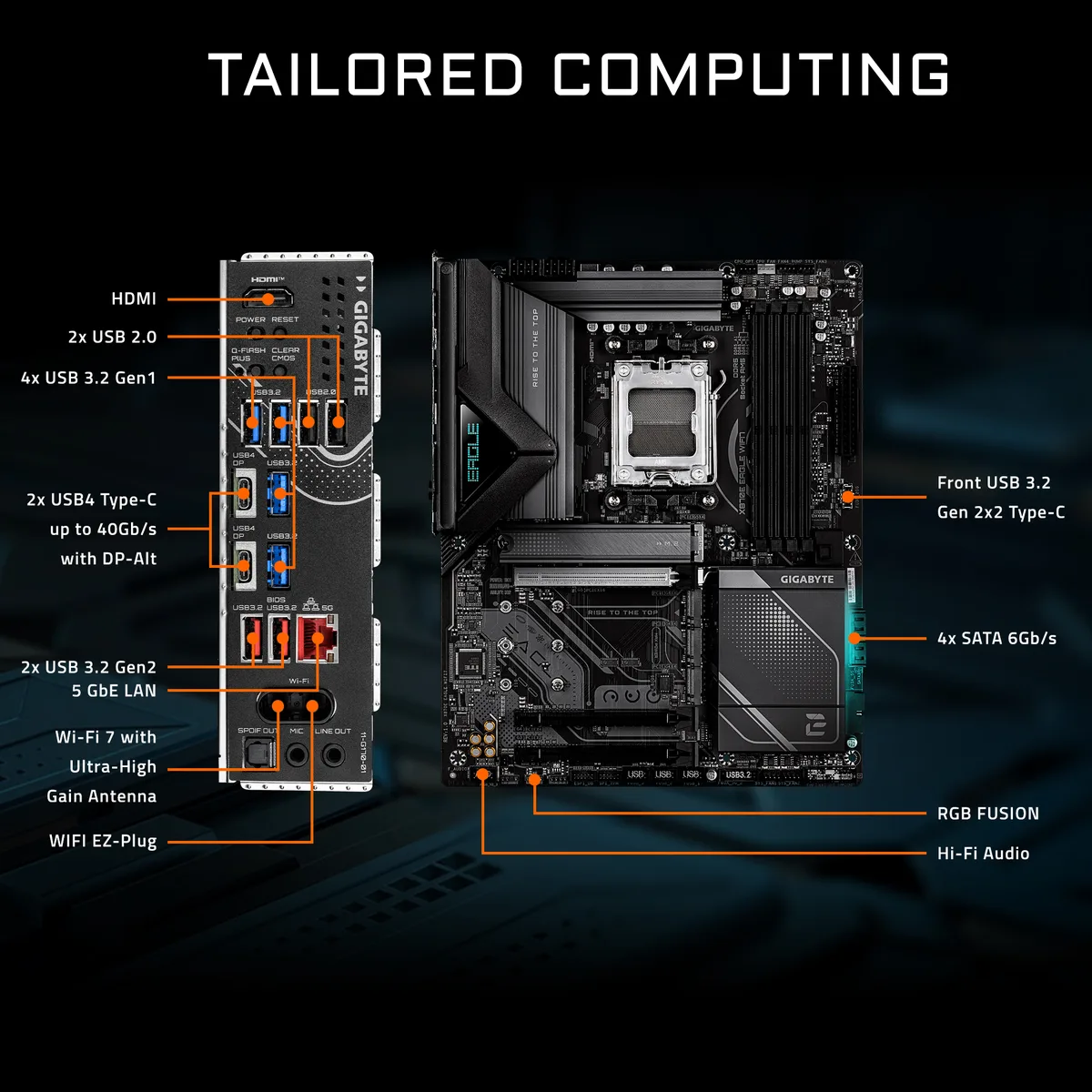

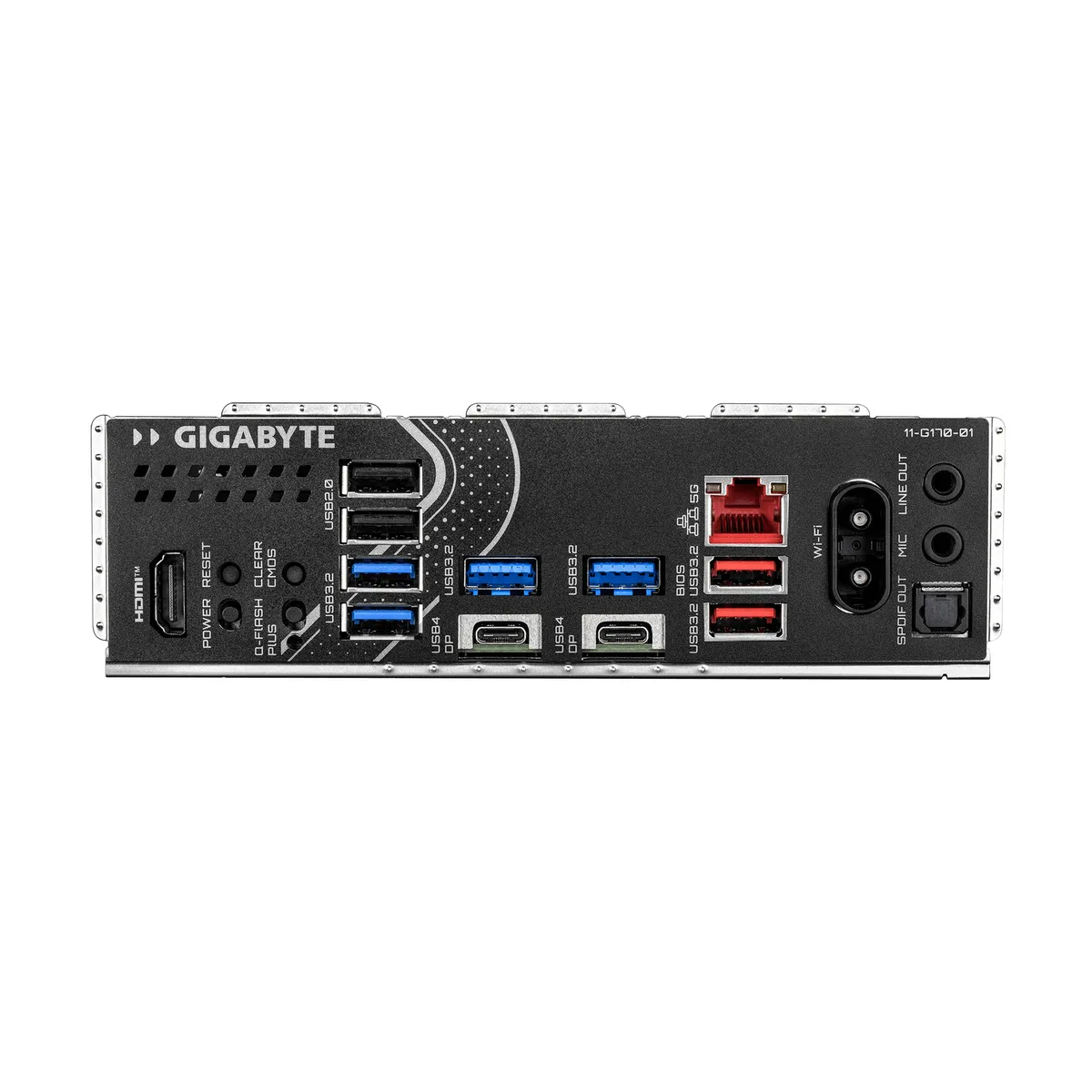

Four M.2 sockets handle PCIe 5.0 x4 and PCIe 4.0 x4 drives alongside four SATA 6Gb/s ports. A rear USB4 port adds high-speed peripheral bandwidth. Networking combines a Realtek 5GbE LAN controller, WIFI7 with a directional ultra-high gain antenna and Bluetooth 5.4. Onboard audio uses the Realtek ALC1220 codec for 7.1-channel output.

EZ-Latch Plus Click Plus EZ-Plug Simplify Build

PCIe EZ-Latch Plus releases the graphics card with a single click. M.2 EZ-Latch Click and Plus secure heatsinks and SSDs without screws. WIFI EZ-Plug attaches the antenna quickly. The integrated I/O shield removes a separate installation step. BIOS includes multi-theme options, AIO fan control and Q-Flash Auto Scan for firmware updates.

Highlights

  • Supports AMD Ryzen 9000, 8000 and 7000 series processors
  • Digital Twin 16+2+2 power phases deliver steady CPU voltage
  • Four DDR5 slots up to 256 GB with AMD EXPO profiles
  • Four M.2 slots plus PCIe 5.0 x16 and USB4 connectivity
  • WIFI7, 5 GbE LAN and Bluetooth 5.4 for fast wireless and wired links

Specifications

BrandGIGABYTE
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
ChipsetAMD X870E
South BridgeAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express 2.0 x160 x PCI Express 2.0 x16
PCI Express x163 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)4 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/10
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetRealtek 5GbE
Max LAN Speed5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes
Video PortsHDMI + 2 x USB Type-C
S-VideoNo
HDMI1 x HDMI port
RJ451 x RJ45
DisplayPort2 x DisplayPort
USB 3.110 x USB 3.1
USB 3.08 x USB 3.0
USB 1.1/2.08 x USB 2.0/1.1 ports
USB Type-C2 x USB4 USB Type-C® ports, 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
S/PDIF Out1 x Optical
Game/MIDI Ports0
Audio Ports3 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 2 x USB 3.2 + 3 x USB 2.0
Form FactorATX
LED LightingRGB
Dimensions (W x L)30.5cm x 24.4cm
Power Pin24 Pin
Windows 11Supported
Shipping weight1.91 kg
Package size335 × 267 × 81 mm

Questions about this item

How often should the VRM heatsinks on the X870E EAGLE WIFI7 be cleaned to keep the 16+2+2 power phase running cool?

Dust the VRM heatsinks and chipset armour with compressed air every six to twelve months; the board has no user-replaceable cooling parts, so regular cleaning is the only maintenance the power delivery needs.

Which component hits its thermal ceiling first when all four M.2 slots run PCIe 5.0 x4 drives under sustained load?

The M.2 heatsinks share the VRM thermal armour, so the SSD controllers typically throttle before the VRM phases do; adding case airflow over the board edge delays that limit.

What noise and heat should I expect from the Realtek 5GbE LAN and WIFI7 radios during all-day transfers?

Both controllers are passively cooled and draw only a few watts, so they add no audible noise and barely raise board temperature; the loudest part under load will be the CPU cooler, not the networking hardware.
