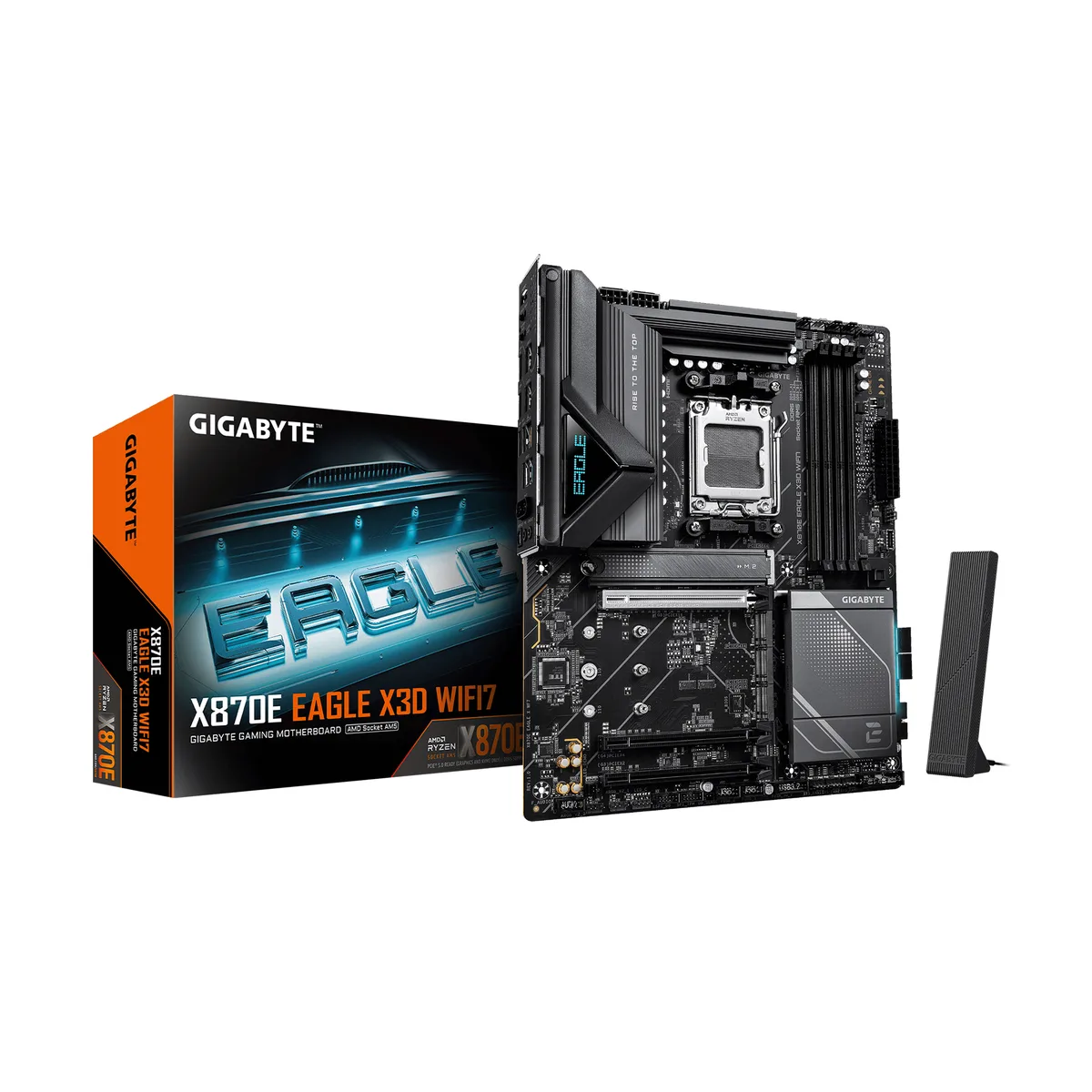

ATX motherboard with black heatsinks, silver accents, AM5 socket and rear I/O shield

GIGABYTE

GIGABYTE X870E EAGLE X3D WIFI7 AMD motherboard

SKU CH-3SBG-3KW54 MPN X870E EAGLE X3D WIFI7

Socket AM5 ATX board for Ryzen 9000, 8000 and 7000 CPUs with DDR5 up to 256 GB, four M.2 slots, PCIe 5.0 graphics, USB4 Type-C, WIFI7, Bluetooth 5.4 and 5 GbE LAN

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • South BridgeAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800
  • Maximum Memory Supported256GB
  • AI-optimised X3D Turbo Mode 2.0 boosts Ryzen gaming performance up to 25%
  • 16+2+2 digital power phases with 8-layer PCB deliver stable CPU voltage
  • Four M.2 slots including one PCIe 5.0 x4 and three PCIe 4.0 x4 for fast storage
  • WIFI7, Bluetooth 5.4 and 5 GbE LAN provide high-speed wired and wireless connectivity
  • PCIe EZ-Latch Plus, M.2 EZ-Latch Click and WIFI EZ-Plug simplify component installation

Socket AM5 Platform Ready

The GIGABYTE X870E EAGLE X3D WIFI7 motherboard uses the AMD X870E chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series processors. It provides four DDR5 slots with a native 4800 standard and up to 256 GB capacity. Dual-channel operation and AMD EXPO profiles are supported for memory tuning.

Verify Power, Cooling And Case Clearance

Confirm that your power supply delivers the required EPS connectors for the 16+2+2 phase digital VRM. Ensure the chassis can fit an ATX board and has airflow for the VRM heatsinks and four M.2 slots. Check that the CPU cooler mounting pattern matches AM5 and does not block the first PCIe 5.0 x16 slot.

X3D Turbo Mode 2.0 And DIY EZ-Latch Features

X3D Turbo Mode 2.0 applies an AI-driven hardware circuit to optimize Ryzen X3D processor parameters in real time, offering up to 25 percent uplift in supported titles. The bundle adds PCIe EZ-Latch Plus for single-click GPU release, M.2 EZ-Latch Click and Plus for screwless SSD installation, WIFI EZ-Plug for the directional antenna, and a Rear EZ-button for quick troubleshooting.

Highlights

  • AI-optimised X3D Turbo Mode 2.0 boosts Ryzen gaming performance up to 25%
  • 16+2+2 digital power phases with 8-layer PCB deliver stable CPU voltage
  • Four M.2 slots including one PCIe 5.0 x4 and three PCIe 4.0 x4 for fast storage
  • WIFI7, Bluetooth 5.4 and 5 GbE LAN provide high-speed wired and wireless connectivity
  • PCIe EZ-Latch Plus, M.2 EZ-Latch Click and WIFI EZ-Plug simplify component installation

Specifications

BrandGIGABYTE
SeriesEAGLE
CPU Socket TypeAM5
ChipsetAMD X870E
South BridgeAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x163 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)4 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/10
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetRealtek 5GbE
Max LAN Speed5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes

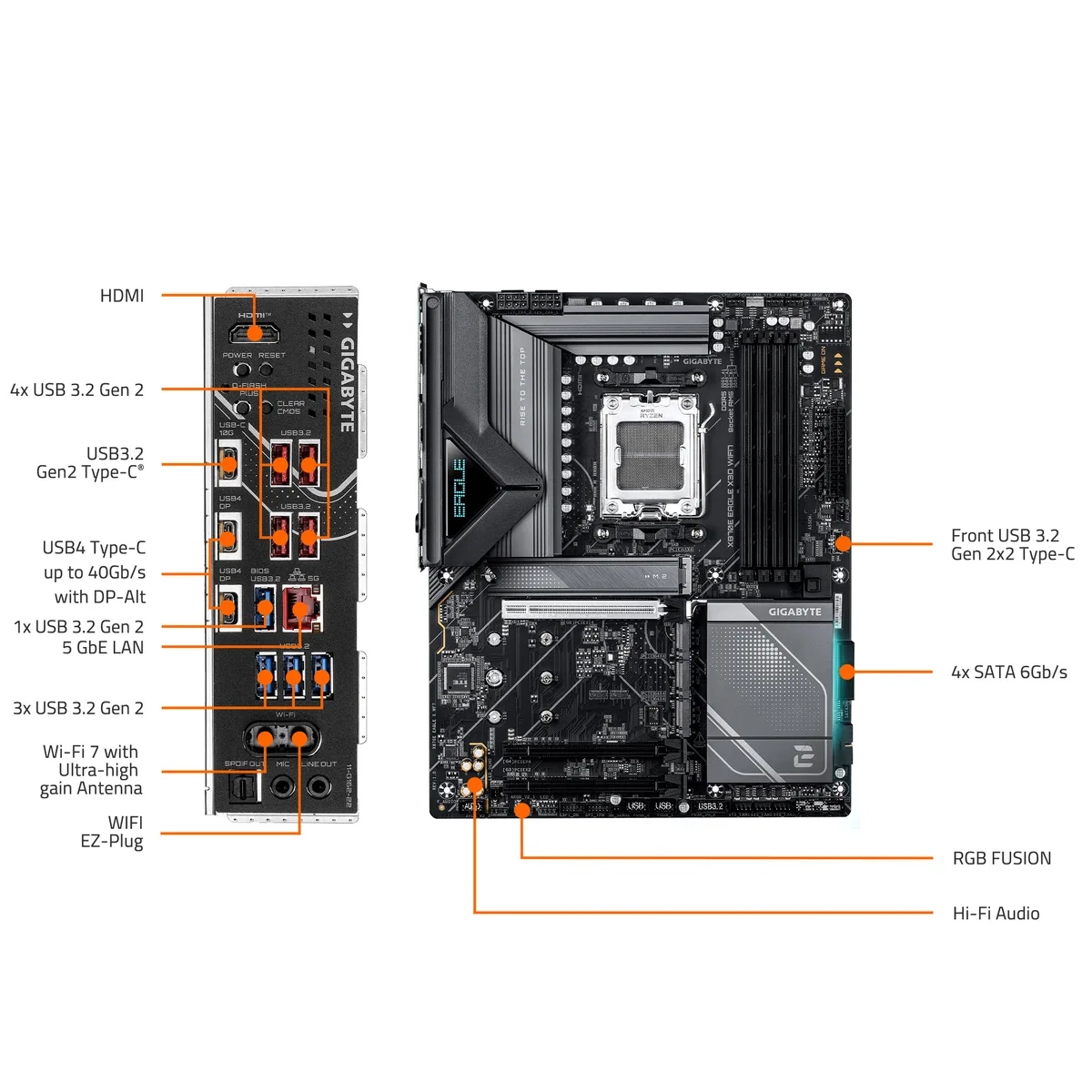

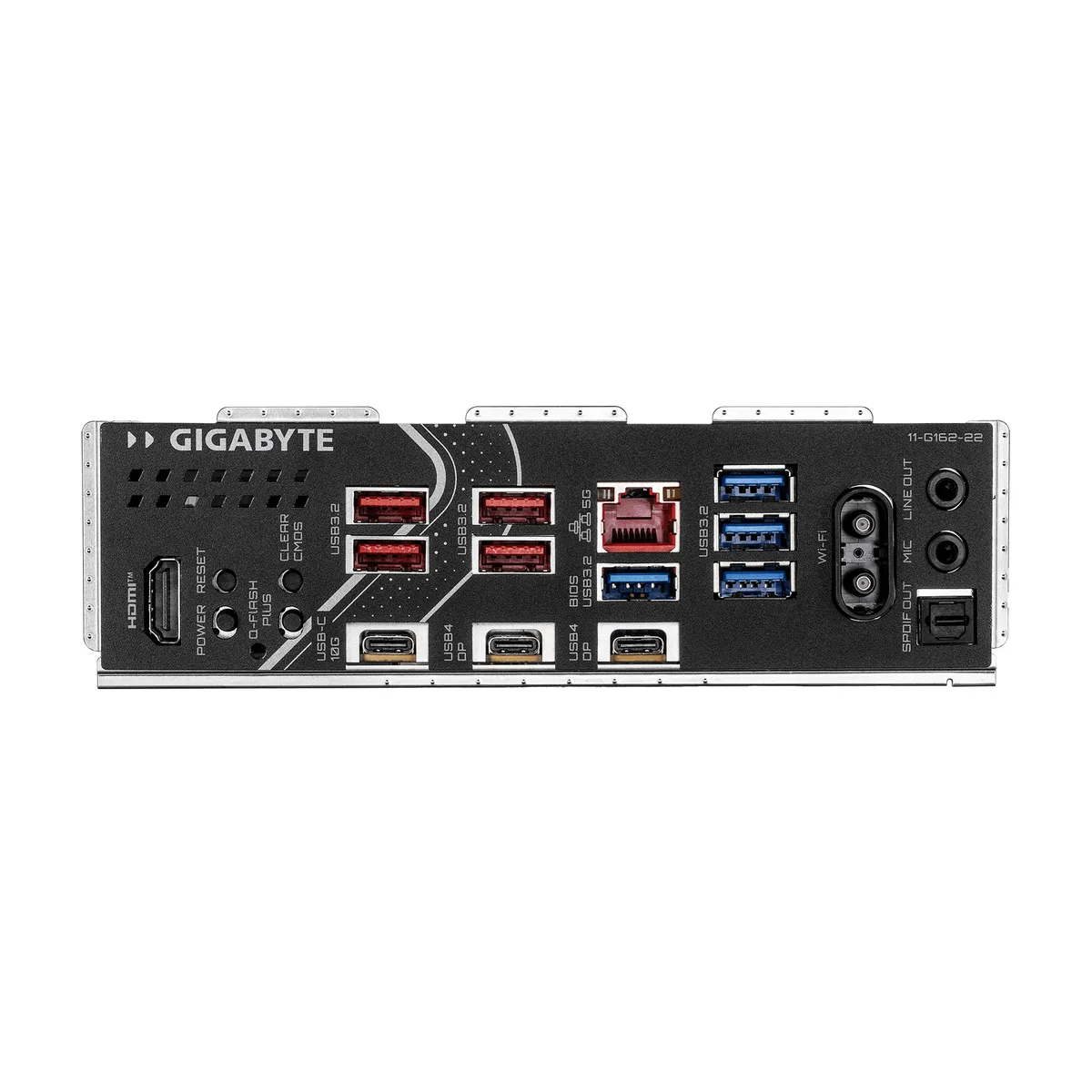

Back I/O Ports1 x HDMI port, 1 x reset button, 1 x power button, 1 x Clear CMOS button, 1 x Q-Flash Plus button, 4 x USB 3.2 Gen 2 Type-A ports, 1 x USB Type-C port, 2 x USB4 USB Type-C ports, 1 x RJ-45 port, 4 x USB 3.2 Gen 1 ports, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF Out connector
Video PortsHDMI + 2 x USB Type-C
S-VideoNo
HDMI1 x HDMI port
RJ451 x RJ45
DisplayPort2 x DisplayPort
USB 3.113 x USB 3.1
USB 3.08 x USB 3.0
USB 1.1/2.04 x USB 2.0/1.1 ports
USB Type-C2 x USB4 USB Type-C ports, 1 x USB Type-C port, with USB 3.2 Gen 2 support, 1 x USB Type-C port with USB 3.2 Gen 2x2 support
S/PDIF Out1 x Optical
Audio Ports3 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 4 x USB 3.2 + 4 x USB 2.0
Form FactorATX
LED LightingRGB
Dimensions (W x L)30.5cm x 24.4cm
Power Pin24 Pin
Windows 11Supported
Shipping weight2.04 kg
Package size343 × 267 × 76 mm

Questions about this item

Does the board include any M.2 SSD or must I buy one separately?

No M.2 SSD is included; the board provides four M.2 slots supporting PCIe 5.0 x4 and PCIe 4.0 x4, so you must purchase storage separately.

Should I choose the 4800 MT/s DDR5 kit or a faster EXPO kit for this board?

The board runs DDR5 at 4800 MT/s by default and supports AMD EXPO profiles, so a faster EXPO kit will work at its rated speed if the CPU and memory controller allow it.

What does the X3D Turbo Mode 2.0 claim of up to 25% mean in a real build?

It is an AI-driven one-click BIOS feature that tunes Ryzen X3D processor parameters dynamically; actual uplift varies by game and workload, up to the stated 25% in best cases.
