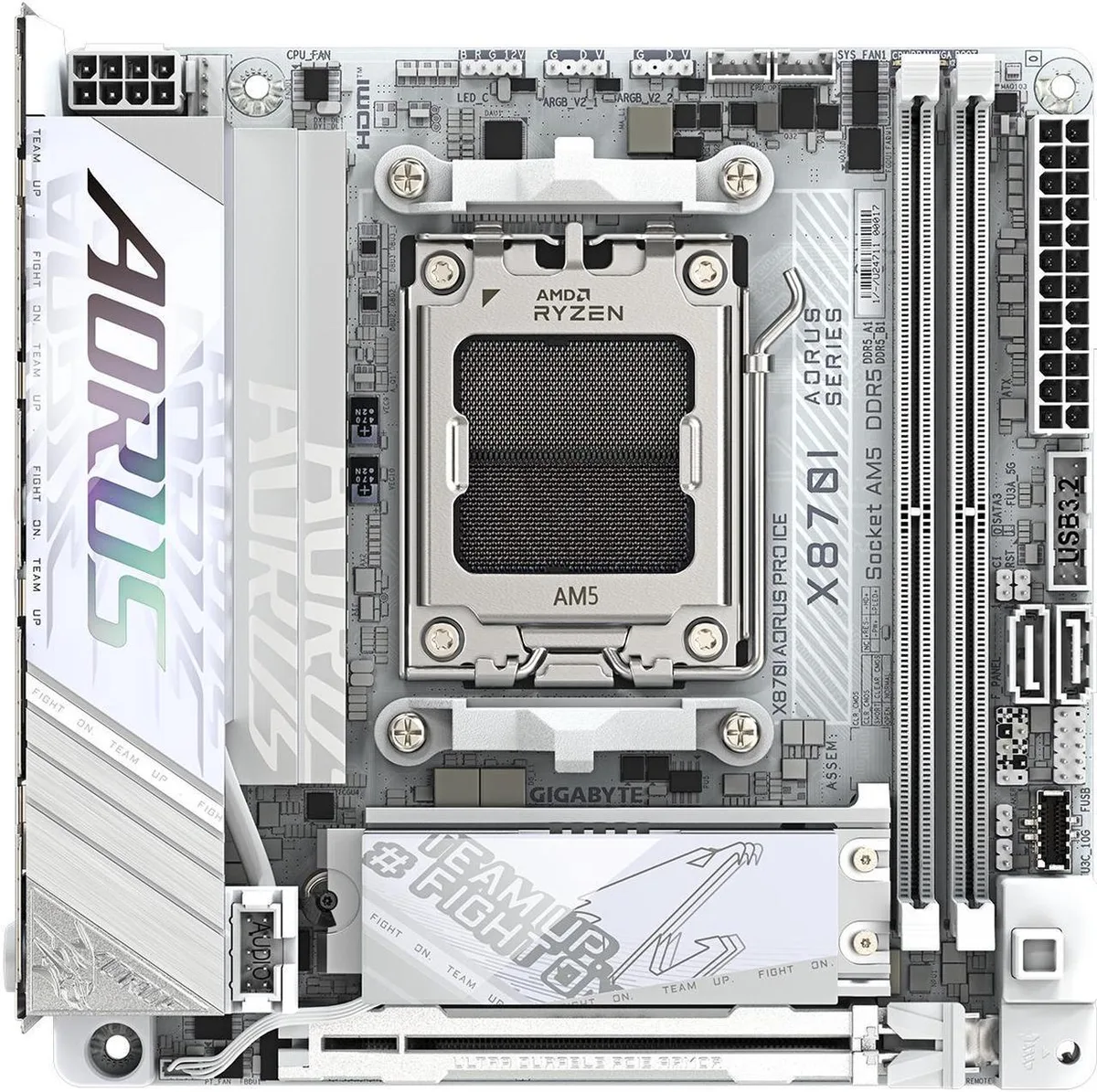

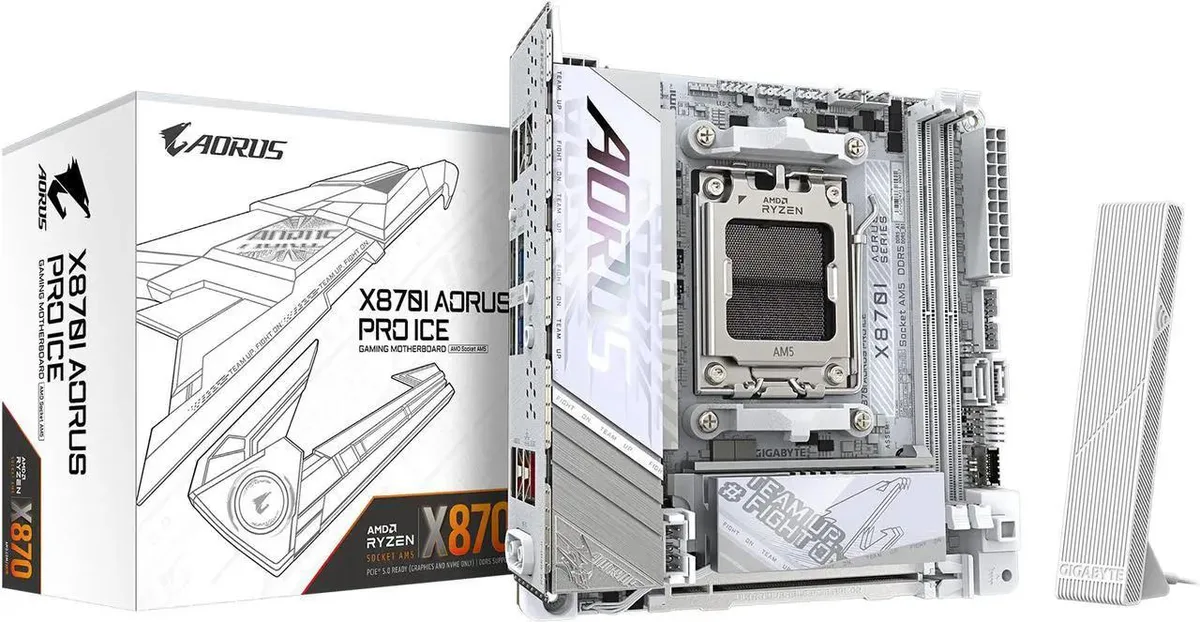

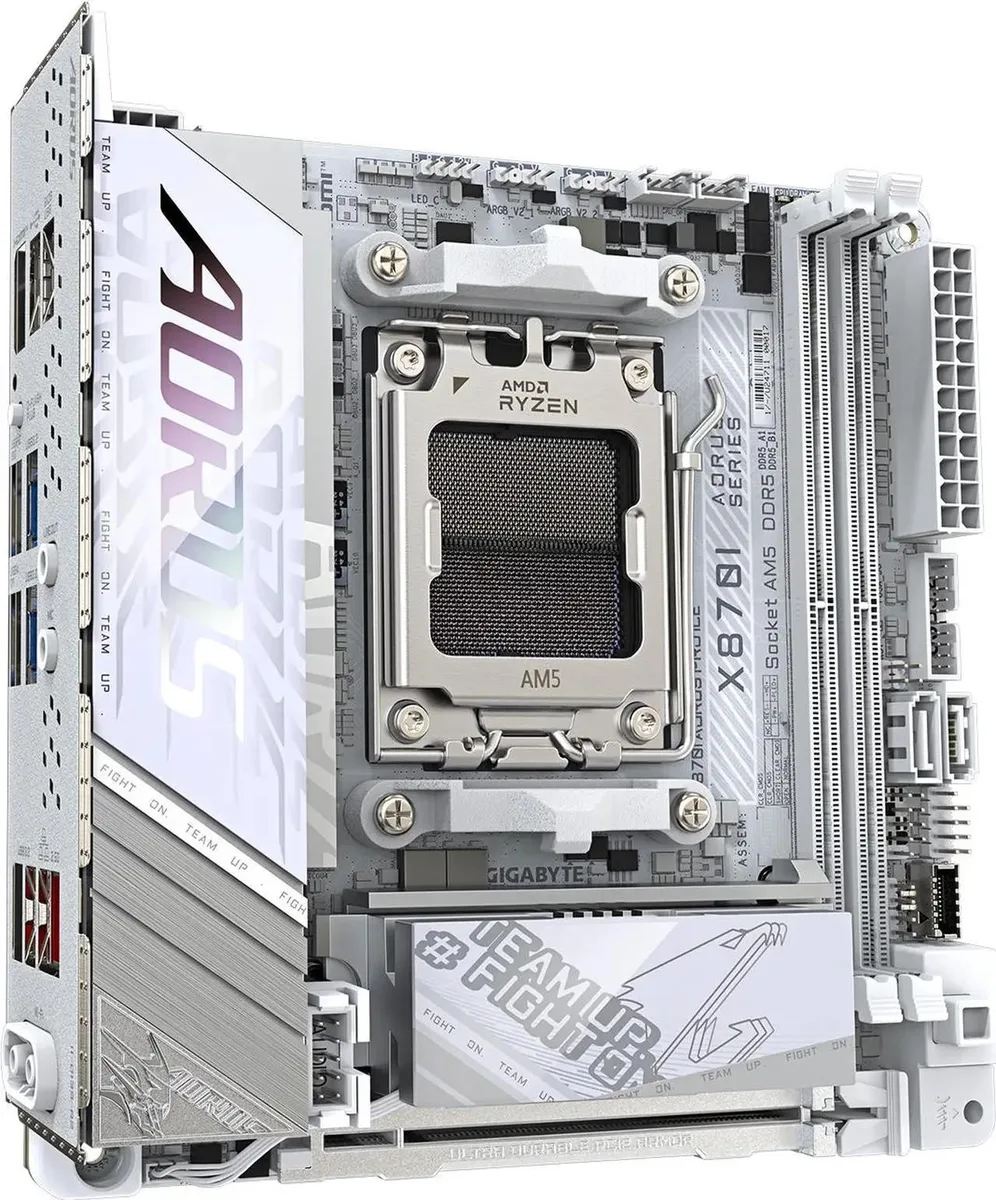

Compact Mini-ITX board in white finish with silver heatsinks, two memory slots, dual M.2 shields and rear USB-C ports

GIGABYTE

GIGABYTE X870I AORUS PRO ICE AMD motherboard AM5 LGA 1718 Mini-ITX DDR5 2x M.2 PCIe 5.0 USB-C

SKU CH-CZPC-D1GSZ

Mini-ITX AM5 board with 110A power stages, dual DDR5 slots up to 128GB, PCIe 5.0 x16, two M.2 slots, WIFI7, 2.5GbE LAN and front plus rear USB-C

  • CPU Socket TypeAM5
  • CPU TypeRyzen Series
  • ChipsetAMD X870
  • Number of Memory Slots2x288pin (DDR5)
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • Supports AMD Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 128 GB DDR5 capacity with AMD EXPO profiles for faster memory performance
  • 8+2+1 phase VRM with 110 A smart power stages delivers stable power
  • PCIe 5.0 graphics slot plus two M.2 slots for high-speed storage
  • Wi-Fi 7 and 2.5 GbE LAN provide modern wireless and wired networking

Mini-ITX AM5 board for Ryzen 9000 8000 7000

The GIGABYTE X870I AORUS PRO ICE fits a full AM5 platform into a Mini-ITX footprint. It accepts Ryzen 9000 8000 and 7000 series processors in the LGA 1718 socket. Two 288-pin DDR5 slots support up to 128 GB in dual-channel mode with AMD EXPO profiles. The 8+2+1 phase VRM uses 110A smart power stages for stable delivery.

PCIe 5.0 M.2 and USB-C limits with Ryzen 8000

The primary M.2 slot and the x16 graphics slot run at PCIe 5.0 only when a Ryzen 9000 or 7000 CPU is installed. With Ryzen 8000 series processors both interfaces drop to PCIe 4.0 x8 and x4 respectively. The rear panel includes one USB4 Type-C port and one USB 3.2 Gen 2 Type-C port alongside two USB 3.2 Gen 2 Type-A ports. WIFI7 and 2.5 GbE LAN handle networking.

EZ-Latch M.2 and PCIe EZ-Latch simplify the build

M.2 EZ-Latch removes the tiny retaining screw so the drive clicks into place. PCIe EZ-Latch releases the graphics card with a single lever press. Wi-Fi EZ-Plug snaps the antenna cables onto the module without threading. The EZ-Debug zone shows POST codes for quick fault finding. Remember that the CPU generation decides whether the board runs at PCIe 5.0 or 4.0 speeds.

Highlights

  • Supports AMD Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 128 GB DDR5 capacity with AMD EXPO profiles for faster memory performance
  • 8+2+1 phase VRM with 110 A smart power stages delivers stable power
  • PCIe 5.0 graphics slot plus two M.2 slots for high-speed storage
  • Wi-Fi 7 and 2.5 GbE LAN provide modern wireless and wired networking

Specifications

BrandGIGABYTE
ModelX870I AORUS PRO ICE
CPU Socket TypeAM5
CPU TypeRyzen Series
ChipsetAMD X870
Number of Memory Slots2x288pin (DDR5)
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Serial ATA (SATA)2 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0 and RAID 1 support for SATA storage devices
Audio ChipsetRealtek ALC4080
Audio Channels2 Channels
Max LAN Speed2.5Gbps
Wireless LANRealtek Wi-Fi 7 RTL8922AE

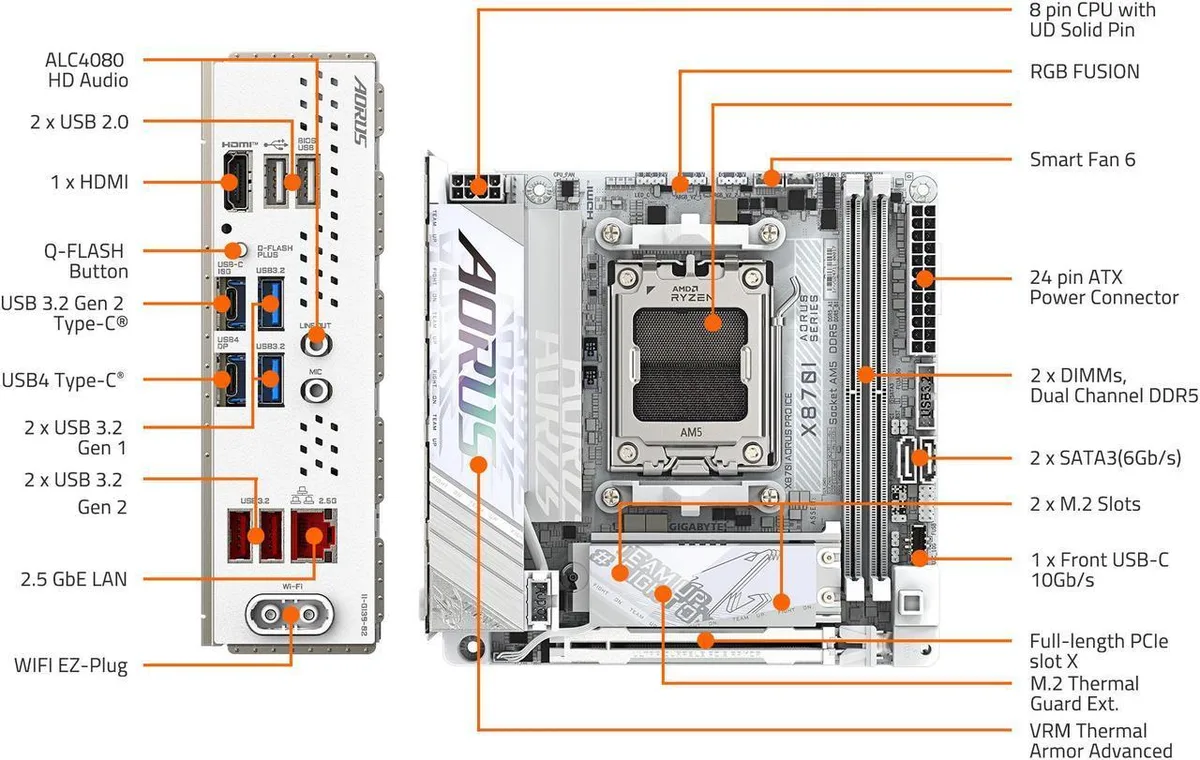

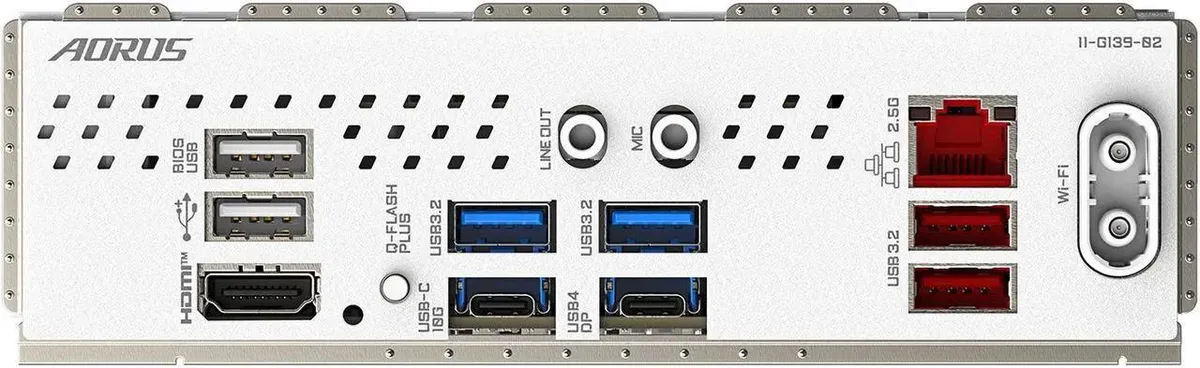

Back I/O Ports1 x Q-Flash Plus button
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
1 x USB4 USB Type-C port (DisplayPort (Note))
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x audio jacks
(Note) Actual support may vary by CPU.
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x speaker header
1 x front panel audio header (routed from the adapter card on the rear panel)
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11Support for Windows 11 64-bit
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Questions about this item

Should I pick a 128 GB kit or a smaller capacity for the two DDR5 slots?

The board accepts up to 128 GB across its two 288-pin DDR5 slots, so choose a matched kit that fits your workload and budget.

What does the PCIe 5.0 x16 slot actually deliver once a CPU is installed?

With a Ryzen 9000 or 7000 processor the slot runs at PCIe 5.0 x16; with an 8000-series Phoenix 1 chip it drops to PCIe 4.0 x8, and Phoenix 2 runs at PCIe 4.0 x4.

How fast is the rear USB-C port labelled USB4 in real use?

The USB4 Type-C port supports DisplayPort alternate mode and USB 3.2 Gen 2 speeds, while the second Type-C port is limited to USB 3.2 Gen 2.
