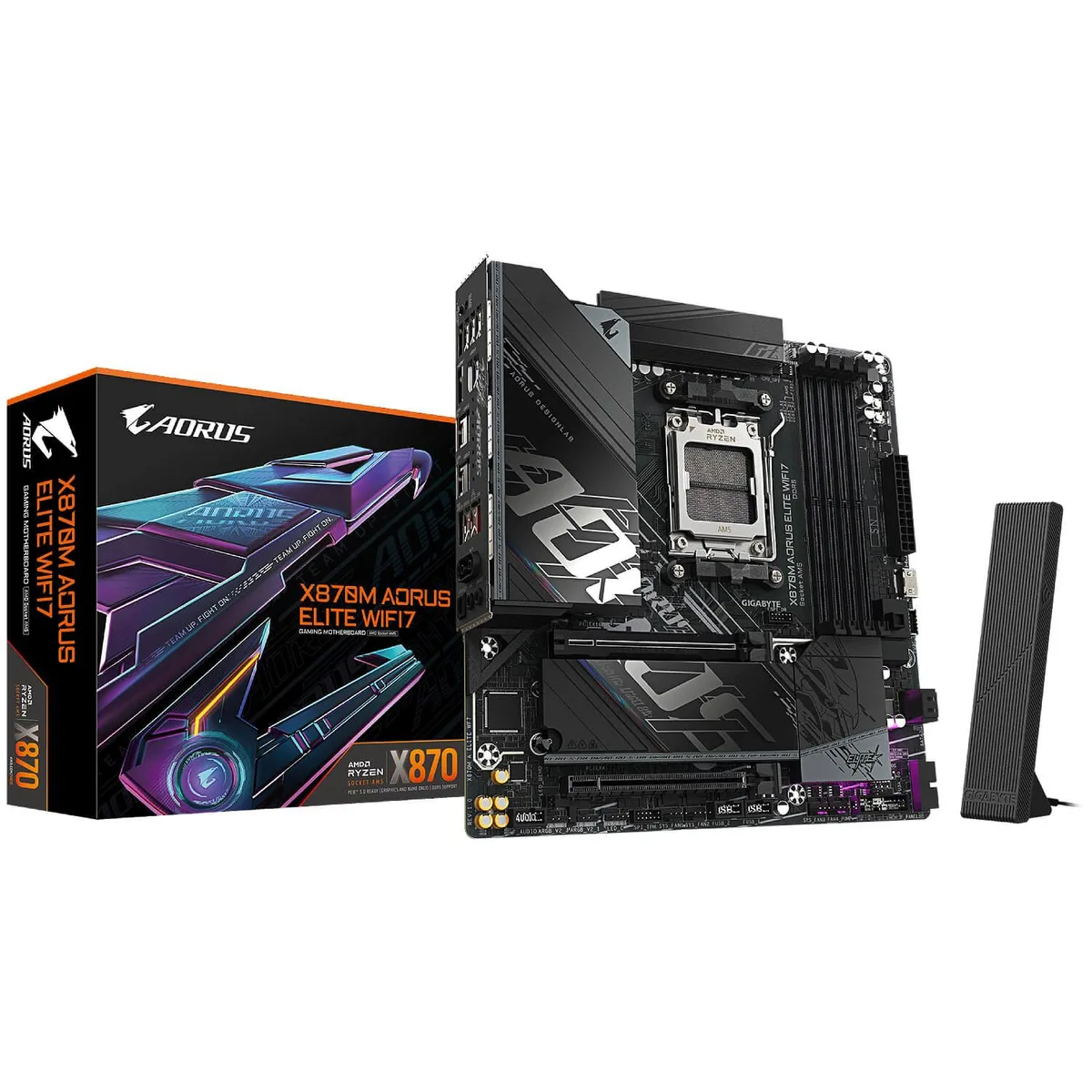

Micro-ATX motherboard with black PCB, silver heatsinks and rear I/O panel

GIGABYTE

GIGABYTE X870M AORUS ELITE WiFi7 AMD motherboard

SKU CH-MC8N-S7A3J

Micro-ATX AM5 board with 14+2+2 phase VRM, DDR5 up to 8200 MT/s, WiFi7 and dual USB4 Type-C video outputs

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 14+2+2 phase digital VRM delivers stable power for high-end CPUs
  • DDR5 memory overclocking up to 8200 MT/s with AMD EXPO support
  • Four DIMM slots allow up to 256 GB total system memory
  • WiFi7 and dual USB4 Type-C ports with 3840x2160 DisplayPort output

Micro ATX AM5 board with X870 chipset

The GIGABYTE X870M AORUS ELITE WiFi7 is a Micro ATX motherboard built around the AMD X870 chipset and the AM5 socket. It supports Ryzen 9000, 8000 and 7000 series processors and delivers a 14+2+2 phase digital VRM design for stable power delivery. Four DDR5 DIMM slots accept up to 256 GB of memory with EXPO and XMP support up to 8200 MT/s.

Suited for compact high-performance builds.

This board suits builders who want a small footprint without sacrificing memory capacity or overclocking headroom. The Micro ATX form factor fits a wide range of cases, while the dual USB4 Type-C ports with DisplayPort video output handle modern peripherals and displays. Buyers restricted to full-size ATX mounting patterns should look at larger alternatives.

8200 MT/s DDR5 ceiling and 256 GB capacity

The decisive specification is the validated DDR5 overclock ceiling of 8200 MT/s across four slots, enabling 256 GB total system memory. If your workload or gaming scenario demands that bandwidth and density, this board meets it; if your memory kit tops out well below that speed, the extra headroom will go unused.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 14+2+2 phase digital VRM delivers stable power for high-end CPUs
  • DDR5 memory overclocking up to 8200 MT/s with AMD EXPO support
  • Four DIMM slots allow up to 256 GB total system memory
  • WiFi7 and dual USB4 Type-C ports with 3840x2160 DisplayPort output

Specifications

BrandGIGABYTE
ModelX870M AORUS ELITE WiFi7
CPU Socket TypeAM5
ChipsetAMD X870

Questions about this item

How do I install the Wi-Fi antenna on the X870M AORUS ELITE WiFi7 motherboard?

Use the WIFI EZ-Plug connector — align the antenna base and press it straight in until it clicks; the step people miss is tightening the knurled collar afterwards, otherwise the antenna can work loose and drop signal.

What maintenance or replacement will the VRM area need later?

The 14+2+2 phase digital twin VRM has no user-serviceable parts; if a phase fails the board must be replaced, so keep airflow over the heatsink and avoid sustained loads that push the MOSFETs past their thermal limit.

What limit shows up first when running DDR5 at 8200 MT/s continuously?

The memory controller on the Ryzen 9000/8000/7000 CPU hits its voltage and temperature ceiling before the board’s D5 Bionic Corsa circuitry does, so sustained 8200 MT/s operation is limited by the processor’s IMC thermal budget.
