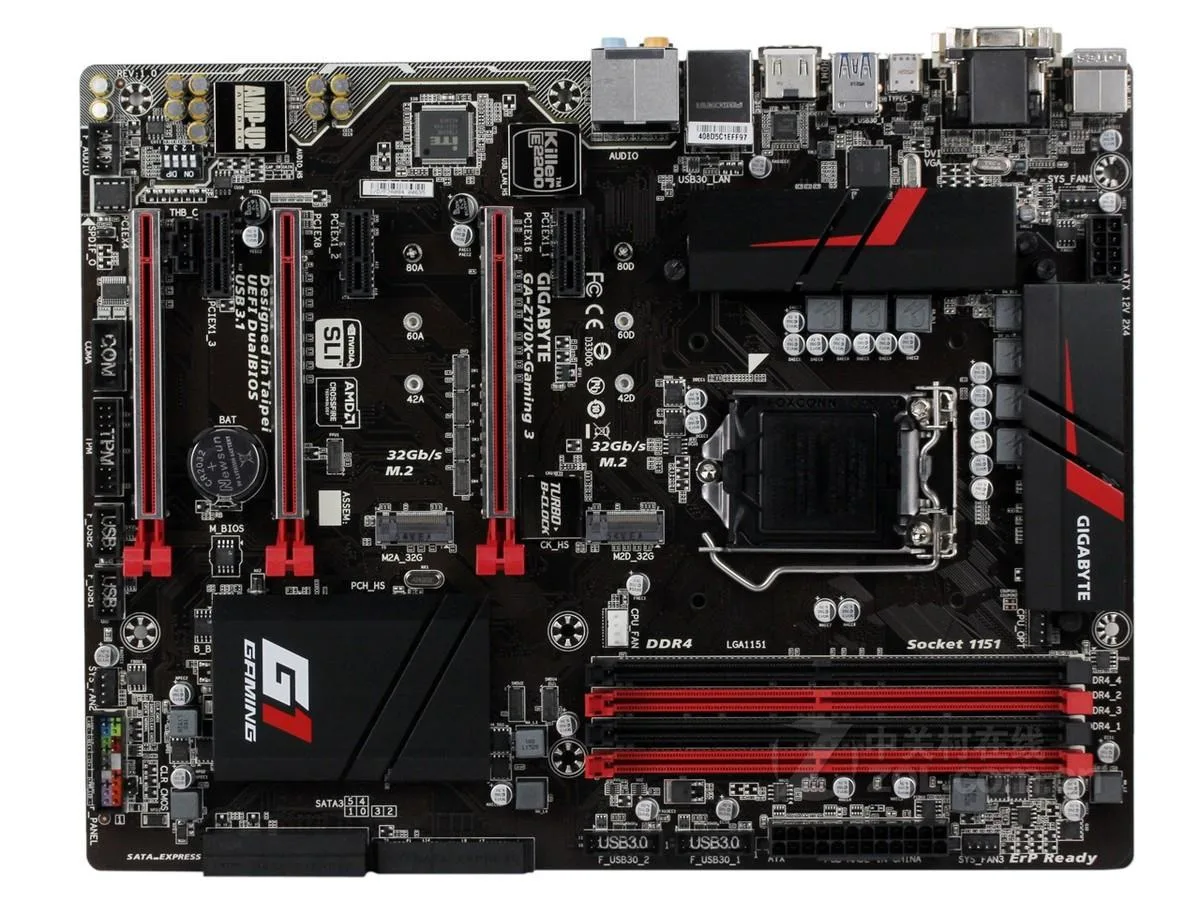

Rectangular ATX motherboard, black PCB with silver and orange accents, CPU socket and four memory slots visible

GIGABYTE

GIGABYTE Z170X-GAMING 3 rev 1.0 Intel motherboard

SKU CH-K7AD-X9G5P

LGA 1151 ATX board with Intel Z170 chipset, four DDR4 slots for 64GB, 1 PCI Express x16, 2 M.2, 3 SATA Express, 6 SATA III, Realtek ALC1150 plus TI Burr Brown OPA2134 audio, Killer E2201 LAN.

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports LGA1151 slot 7th/6th generation processors: Intel C
  • ChipsetIntel Z170
  • Maximum Memory Supported64GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID2XM.2 interface, 3xSATA Express interface, 6xSATA III interf
  • Supports 6th and 7th Gen Intel Core i7, i5, i3, Pentium, Celeron CPUs via LGA 1151 socket
  • Up to 64GB DDR4 memory capacity across four DIMM slots for high-performance multitasking
  • Intel Z170 chipset delivers extensive connectivity including 6 SATA III, 3 SATA Express, 2 M.2 interfaces
  • Realtek ALC1150 with TI Burr Brown OPA2134 amplifier plus Sound Blaster X-Fi MB3 for immersive 7.1 audio
  • Killer E2201 Gigabit LAN plus 7 USB 3.0 and 6 USB 2.0 ports for fast networking and peripherals

Z170 ATX board for 6th and 7th gen Intel CPUs

The GIGABYTE Z170X-GAMING 3 rev 1.0 fits the LGA 1151 socket and the Intel Z170 chipset. It accepts Core i7, i5, i3, Pentium and Celeron processors from the supported generations. Four DDR4 DIMM slots allow up to 64GB of system memory.

Primary x16 slot plus M.2 and SATA storage

A single PCI Express x16 slot runs at full x16 speed for the graphics card. Storage connects through two M.2 interfaces, three SATA Express ports and six SATA III ports. The rear I/O provides three USB 3.0 ports and two USB 2.0 ports; four more USB 3.0 and four USB 2.0 headers sit on the board.

Killer E2201 LAN and Realtek ALC1150 audio

The onboard Killer E2201 controller handles 10/100/1000 Mbit networking. Audio uses the Realtek ALC1150 codec with a TI Burr Brown OPA2134 amplifier and Sound Blaster X-Fi MB3 support for up to 7.1 channel output.

Highlights

  • Supports 6th and 7th Gen Intel Core i7, i5, i3, Pentium, Celeron CPUs via LGA 1151 socket
  • Up to 64GB DDR4 memory capacity across four DIMM slots for high-performance multitasking
  • Intel Z170 chipset delivers extensive connectivity including 6 SATA III, 3 SATA Express, 2 M.2 interfaces
  • Realtek ALC1150 with TI Burr Brown OPA2134 amplifier plus Sound Blaster X-Fi MB3 for immersive 7.1 audio
  • Killer E2201 Gigabit LAN plus 7 USB 3.0 and 6 USB 2.0 ports for fast networking and peripherals

Specifications

BrandGIGABYTE
SeriesGIGABYTE Z170X-GAMING 3(rev.1.0)
ModelGIGABYTE Z170X-GAMING 3(rev.1.0)
CPU Socket TypeLGA 1151
CPU TypeSupports LGA1151 slot 7th/6th generation processors: Intel Core ™ i7 processor/Intel Core ™ i5 processor/Intel Core ™ i3 processor/Intel Pentium processor/Intel Celeron processor
* Support 7th generation Intel Core ™ processor Please update the latest version of BIOS. ®
2. L3 cache depends on CPU
ChipsetIntel Z170
Maximum Memory Supported64GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
To maximize the performance of the graphics card, it is necessary to install it in the PCIEX16 slot when installing a graphics card.
1 PCI Express x16 slot, supporting x8 operating specifications (PCIEX8)
Due to the shared bandwidth between the PCIEX8 slot and the PCIEX16 slot, when installing a graphics card in the PCIEX8 slot, the PCIEX16 slot operates at a maximum bandwidth of x8.
3. 1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)
* Since PCIEX4 slots share bandwidth with PCIEX1_3 slo
SATA RAID2XM.2 interface, 3xSATA Express interface, 6xSATA III interface
Audio Chipset1. Built-in Realtek ALC1150 chip ®
Built-in TI Burr Brown OPA2134 sound amplifier chip ®
3. Support Sound Blaster X-Fi MB3
4. Support High Definition Audio
5. Support 2/4/5 1/7.1 channels
6. Support S/PDIF output
LAN ChipsetBuilt-in Killer E2201 network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1.7 USB 3.0/2 ports (3 on the rear panel, 4 to be connected from the USB socket in the main board via cable)
2.6 USB 2.0/1 ports (2 on the rear panel, 4 to be connected from the USB socket in the main board via cable)
Built-in chipset + Intel USB 3.1 controller: ®
3.1 USB Type-C ™ interface on the rear panel, supporting USB 3.1
4.1 USB 3.1 Type-A interface (red) on the rear panel

Questions about this item

How much DDR4 memory can the Z170X-GAMING 3 handle before the four DIMM slots are full?

The board supports up to 64GB of DDR4 across its four DIMM slots.

What is the sustained noise and heat profile of the onboard Killer E2201 LAN and Realtek ALC1150 audio during all-day operation?

The Killer E2201 LAN and Realtek ALC1150 audio with TI Burr Brown OPA2134 amplifier run passively, so they add no fan noise and minimal heat under continuous load.

Which Intel processor generation and socket must I already have for this LGA 1151 board to work?

You need a 6th or 7th generation Intel Core i7, i5, i3, Pentium or Celeron processor in an LGA 1151 socket.
