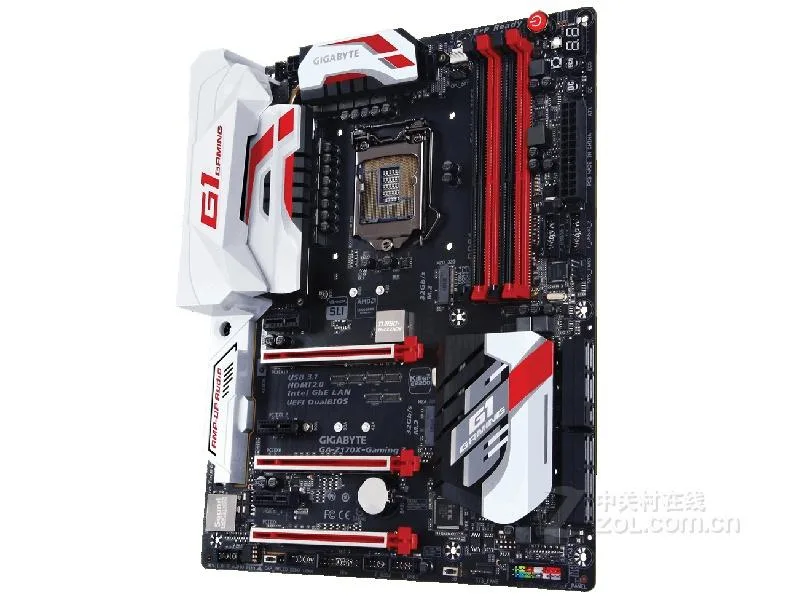

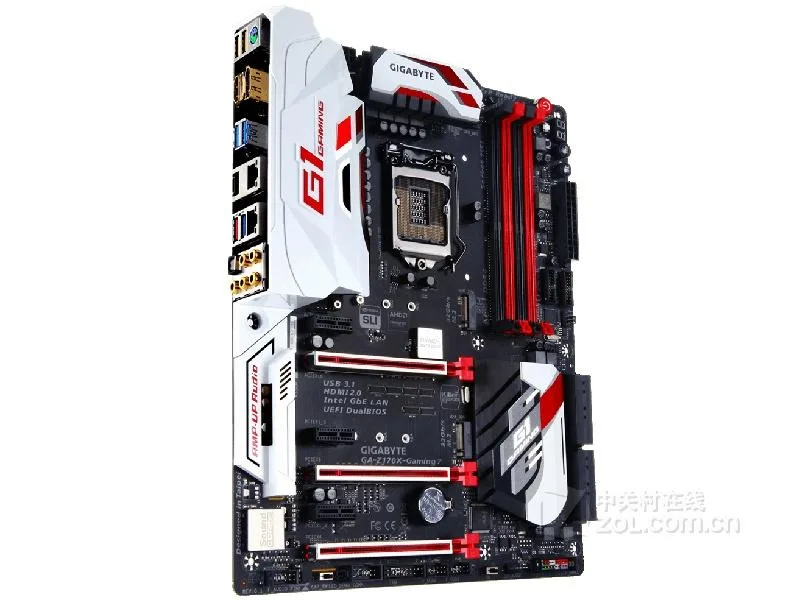

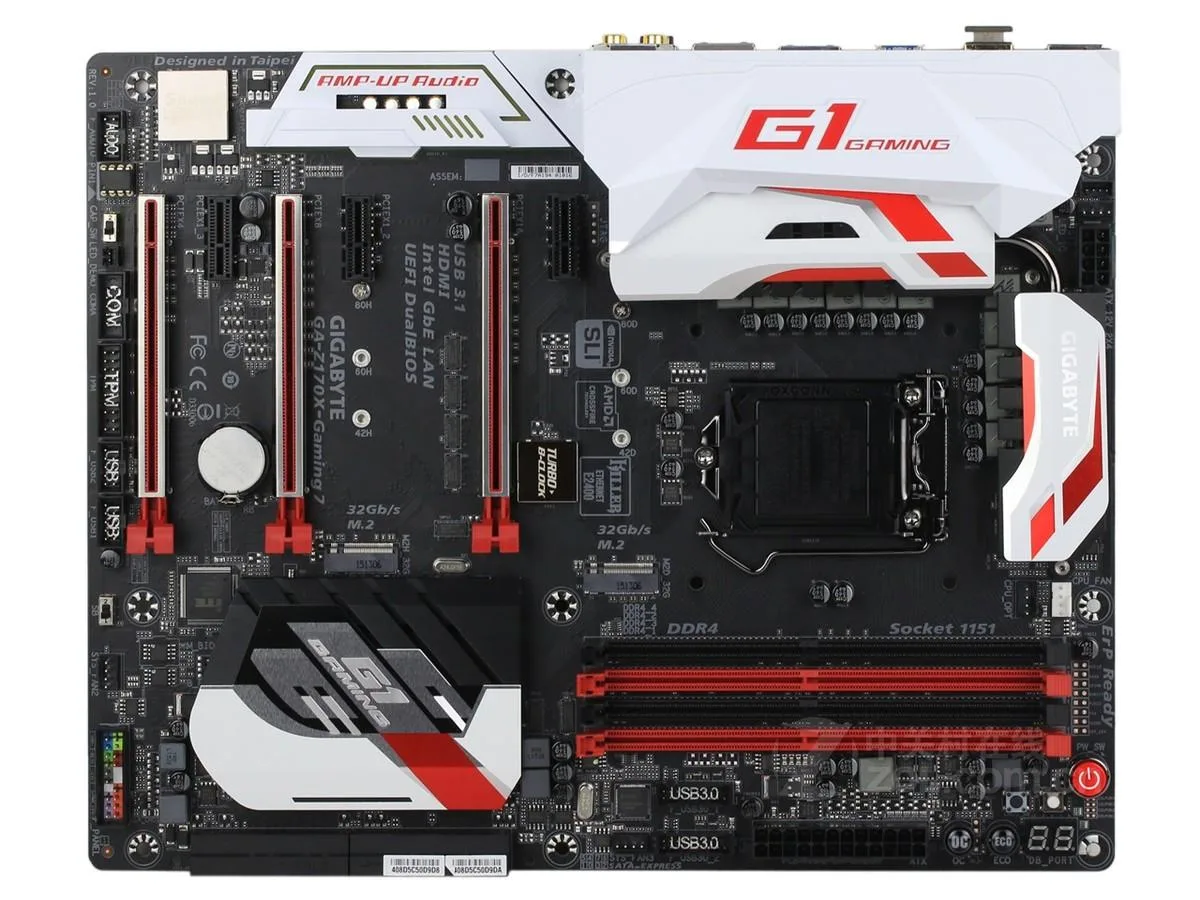

ATX motherboard in black with metallic heatsinks and reinforced PCIe slot

GIGABYTE

GIGABYTE Z170X-GAMING 7 rev 1.0 Intel motherboard

SKU CH-QJH4-WZGPK

LGA 1151 ATX board with Intel Z170 chipset, four DDR4 slots for 64 GB, dual Gigabit LAN, Creative Sound Core 3D audio, and multiple SATA connections

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports LGA1151 slot 7th/6th generation processors: Intel C
  • ChipsetIntel Z170
  • Maximum Memory Supported64GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID2XM.2 interface, 3xSATA Express interface, 6xSATA III interf
  • Supports 6th and 7th Gen Intel Core processors via LGA 1151 socket
  • Up to 64 GB DDR4 memory across four DIMM slots
  • Creative Sound Core3D with TI Burr Brown OPA2134 amplifier for high-fidelity audio
  • Dual Gigabit LAN with Intel and Killer E2400 controllers
  • ATX form factor measuring 30.5 cm by 24.4 cm

Z170 ATX motherboard for 6th/7th-gen Intel CPUs

The GIGABYTE Z170X-GAMING 7 rev 1.0 fits LGA 1151 processors from Core i7 down to Celeron. It is built on the Intel Z170 chipset and uses a standard ATX layout measuring 30.5 by 24.4 cm. The board targets builders who want a full-size platform with extensive connectivity.

64 GB DDR4 capacity and mixed storage headroom

Four DDR4 DIMM slots support up to 64 GB of system memory. Storage expansion uses two M.2 interfaces, three SATA Express interfaces and six SATA III ports. The M.2 and SATA Express lanes share bandwidth with the primary PCI Express x16 slot, so populating every drive interface can reduce the graphics slot to x8 electrical speed.

Dual LAN and premium audio for a complete build

Networking combines an Intel GbE controller and a Killer E2400 controller, each rated at 10/100/1000 Mbit, though teaming is not supported. Audio relies on a Creative Sound Core 3D chip with a TI Burr Brown OPA2134 amplifier driving 2/5.1-channel output and S/PDIF. Rear USB provides 1.5 USB 3.0/2 ports and 2.4 USB 2.0/1 ports, while internal headers add 3.4 USB 3.0/2 ports via a Renesas hub. The package includes the motherboard, one SATA cable and an I/O shield.

Highlights

  • Supports 6th and 7th Gen Intel Core processors via LGA 1151 socket
  • Up to 64 GB DDR4 memory across four DIMM slots
  • Creative Sound Core3D with TI Burr Brown OPA2134 amplifier for high-fidelity audio
  • Dual Gigabit LAN with Intel and Killer E2400 controllers
  • ATX form factor measuring 30.5 cm by 24.4 cm

Specifications

BrandGIGABYTE
SeriesGIGABYTE Z170X-GAMING 7(rev.1.0)
ModelGIGABYTE Z170X-GAMING 7(rev.1.0)
CPU Socket TypeLGA 1151
CPU TypeSupports LGA1151 slot 7th/6th generation processors: Intel Core ™ i7 processor/Intel Core ™ i5 processor/Intel Core ™ i3 processor/Intel Pentium processor/Intel Celeron processor
* Support 7th generation Intel Core ™ processor Please update the latest version of BIOS. ®
2. L3 cache depends on CPU
ChipsetIntel Z170
Maximum Memory Supported64GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
To maximize the performance of the graphics card, it is necessary to install it in the PCIEX16 slot when installing a graphics card.
1 PCI Express x16 slot, supporting x8 operating specifications (PCIEX8)
Due to the shared bandwidth between the PCIEX8 slot and the PCIEX16 slot, when installing a graphics card in the PCIEX8 slot, the PCIEX16 slot operates at a maximum bandwidth of x8.
3. 1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)
* Since PCIEX4 slots share bandwidth with M2H_32G sock
SATA RAID2XM.2 interface, 3xSATA Express interface, 6xSATA III interface
Audio Chipset1. Built-in Creative Sound Core 3D chip ®
2. Support Sound Blaster Recon3Di
3. Built-in TI Burr Brown OPA2134 sound amplifier chip ®
4. Support High Definition Audio
5. Support 2/5.1 channels
6. Support S/PDIF output
LAN Chipset1 built-in Intel GbE network chip (10/100/1000 Mbit) (LAN1) ®
Built-in 1 Killer E2400 network chip (10/100/1000 Mbit) (LAN2)
The built-in network does not support line consolidation function (Teaming).
Onboard USBBuilt-in chipset:
1.5 USB 3.0/2 ports on rear panel
2.4 USB 2.0/1 ports (need to be connected from the USB socket in the main board via cable)
Built-in chipset + Renesas USB 3.0 Hub: ®
3.4 USB 3.0/2 ports (need to be connected from the USB socket in the main board via cable)
Built-in chipset + Intel Thunderbolt ™ 3 controller: ®
4.1 USB Type-C ™ interface on the rear panel, supporting USB 3.1
5.1 USB 3.1 Type-A interface (red) on the rear panel

Questions about this item

Will my DDR4 modules and SATA drives work with the LGA 1151 socket and Z170 chipset?

Yes, the board accepts DDR4 memory up to 64 GB across four DIMM slots and provides six SATA III ports plus three SATA Express connectors for existing drives.

How can I confirm the Creative Sound Core 3D and dual LAN chips are active after first boot?

Open Device Manager and verify the Sound Blaster Recon3Di audio controller, Intel GbE LAN1 and Killer E2400 LAN2 all appear without error codes.

Which accessories are included and which must I source separately for a working build?

The box contains the motherboard, one SATA cable and the rear I/O shield; CPU cooler mounting hardware, additional SATA cables and M.2 screws are not supplied.
