Green micro-ATX board with black sockets and silver heatsinks

GIGABYTE

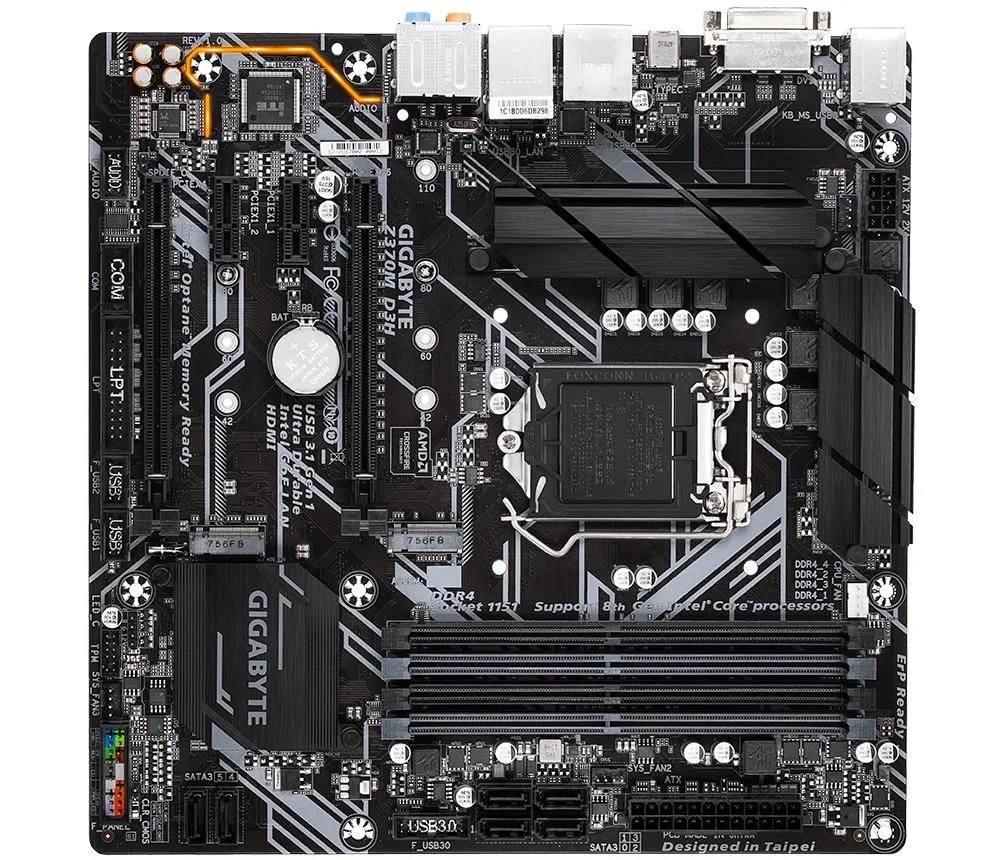

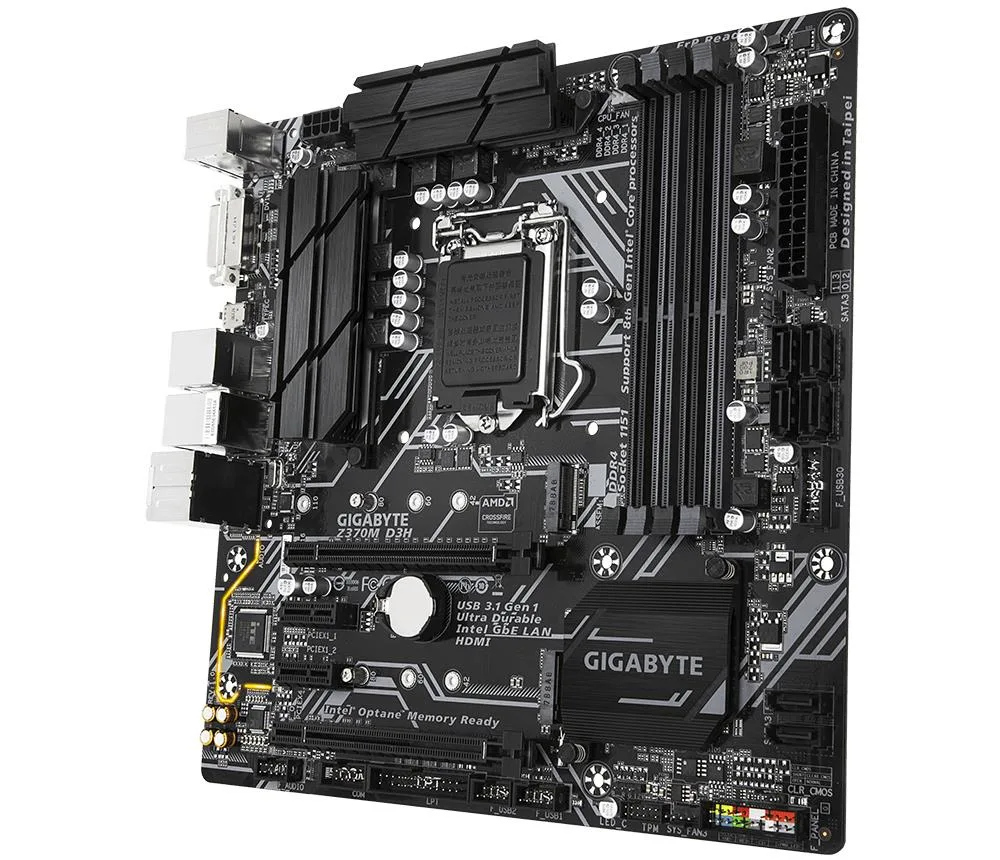

GIGABYTE Z370M D3H Intel motherboard

SKU CH-QXR5-56N50

Micro ATX board for Intel Core 9th Gen LGA 1151 CPUs with four DDR4 slots up to 64 GB, dual M.2, six SATA, USB 3.1 Gen 1 Type-C, and Gigabit LAN

  • CPU TypeIntel Core 9th Gen (LGA 1151)
  • Supports up to 64 GB DDR4 across four slots
  • Dual-channel DDR4 at 2133, 2400, 2666 MHz for responsive memory bandwidth
  • Intel Z370 chipset on Micro ATX for compact high-performance builds
  • Six SATA III ports plus two M.2 slots for flexible storage options
  • Six USB 3.0 Type-A and one Type-C on the rear I/O panel

Socket LGA 1151 Micro-ATX Board

The GIGABYTE Z370M D3H is a Micro-ATX motherboard built for Intel Core i3, i5 and i7 processors using the LGA 1151 socket. It targets builders who want a compact platform with the Z370 chipset feature set for a desktop PC.

Straightforward Install With Standard Connectors

Installation follows the usual Micro-ATX pattern with a 24-pin ATX power connector and a 12V CPU power header. The board provides six SATA III ports, two M.2 slots, one USB 3.0 internal header and two USB 2.0 headers for front-panel connectivity.

64 GB Dual-Channel DDR4 Ceiling

Four DIMM slots support unbuffered DDR4 at 2133, 2400 and 2666 MHz in dual-channel mode up to a maximum of 64 GB. ECC and non-ECC modules are both accepted. Builders who need more than 64 GB of system memory must choose a different platform.

Highlights

  • Supports up to 64 GB DDR4 across four slots
  • Dual-channel DDR4 at 2133, 2400, 2666 MHz for responsive memory bandwidth
  • Intel Z370 chipset on Micro ATX for compact high-performance builds
  • Six SATA III ports plus two M.2 slots for flexible storage options
  • Six USB 3.0 Type-A and one Type-C on the rear I/O panel

Specifications

CPU TypeIntel Core 9th Gen (LGA 1151)

Questions about this item

How do I verify the board posts and recognises memory after first power-on?

The board will beep once, then the BIOS splash appears showing total DDR4 capacity up to 64 GB at 2133, 2400 or 2666 MHz.

What cables and brackets come in the retail box versus what I must source myself?

The box includes the I/O shield, SATA cables and driver disc; CPU cooler, DDR4 modules, M.2 screws and case standoffs are not supplied.

Which memory speed should I select — 2133, 2400 or 2666 MHz — for a Core i5 build?

All three speeds are natively supported; 2666 MHz gives the highest default data rate without manual tuning.
