Green Micro ATX motherboard with black slots and silver heatsinks

GIGABYTE

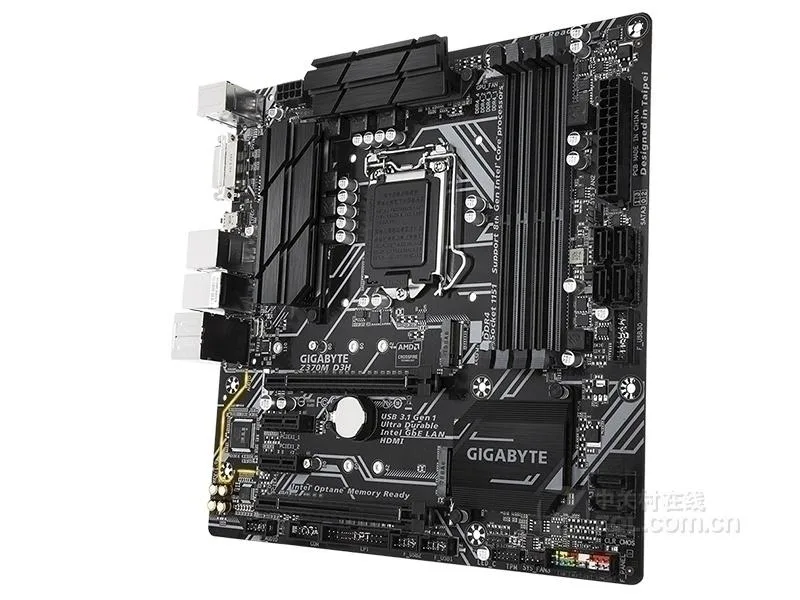

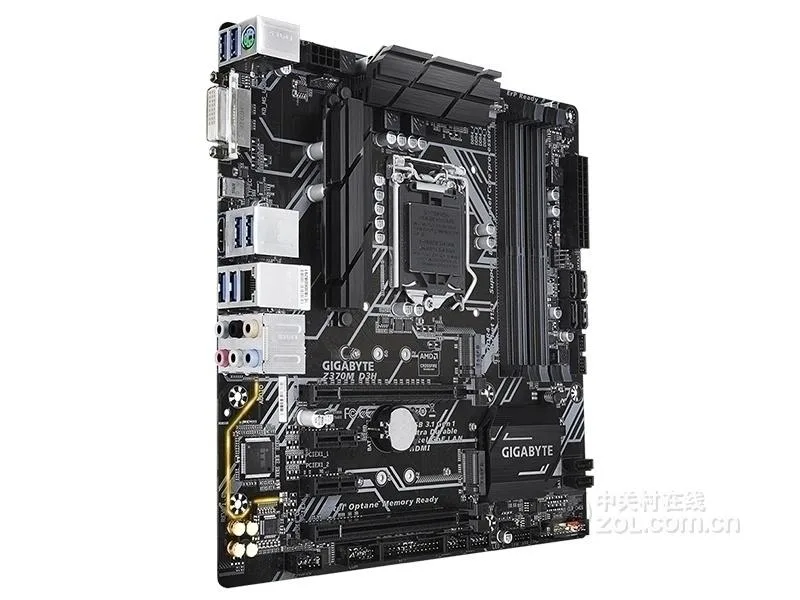

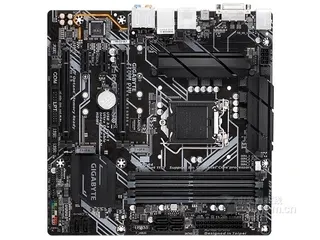

GIGABYTE Z370M D3H Intel motherboard LGA 1151 Z370 DDR4 64GB Micro ATX

SKU CH-1JKK-55XVY

Micro-ATX Intel Z370 board with LGA 1151 socket, four DDR4 slots for up to 64 GB, one PCI Express x16 slot, six SATA ports, two M.2 sockets, Intel gigabit LAN.

  • CPU Socket TypeLGA 1151
  • CPU TypeSupport LGA1151 slot 8th generation processor: Intel Core ™
  • ChipsetIntel Z370
  • Maximum Memory Supported64GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID2XM.2 interface, 6xSATA III interface
  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Micro ATX board measures 24.4 cm square for compact builds
  • Four DDR4 DIMM slots accept up to 64 GB memory
  • Realtek ALC892 audio delivers 7.1 channel high-definition sound
  • Intel gigabit LAN plus USB 3.1 Gen 1 Type-C on rear I/O

Z370 Micro ATX Board for 8th Gen Intel

The GIGABYTE Z370M D3H fits a Micro ATX chassis and accepts 8th generation Intel Core i7, i5 or i3 processors in the LGA 1151 socket. Four DDR4 DIMM slots support up to 64 GB of system memory. It is intended for compact desktop builds that need Z370 chipset features without a full-size ATX footprint. Builders who need more than four memory slots or a larger form factor should look elsewhere.

One SATA Cable and Rear I/O Shield Included

The open-box package supplies the motherboard, a single SATA cable and the chassis I/O back panel. No additional brackets, driver discs or Wi-Fi antennas are provided. The board itself exposes six SATA III ports and two M.2 interfaces for storage expansion. Users planning multiple SATA devices must source extra cables separately.

Aluminium Reinforcement on Primary PCIe Slot

The sole PCI Express x16 slot uses a metal-reinforced design to hold heavier graphics cards securely. Rear connectivity includes one USB Type-C port running at USB 3.1 Gen 1 speeds, six USB 3.1 Gen 1 Type-A ports and four USB 2.0 headers. Intel GbE LAN and Realtek ALC892 audio with 7.1-channel support handle networking and sound without add-in cards. The 24.4 cm square layout fits standard Micro ATX mounting points.

Highlights

  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Micro ATX board measures 24.4 cm square for compact builds
  • Four DDR4 DIMM slots accept up to 64 GB memory
  • Realtek ALC892 audio delivers 7.1 channel high-definition sound
  • Intel gigabit LAN plus USB 3.1 Gen 1 Type-C on rear I/O

Specifications

BrandGIGABYTE
SeriesGIGABYTE Z370M D3H
ModelGIGABYTE Z370M D3H
CPU Socket TypeLGA 1151
CPU TypeSupport LGA1151 slot 8th generation processor: Intel Core ™ i7 processor/Intel Core ™ i5 processor/Intel Core ™ i3 processor ®®®
2. L3 cache depends on CPU
ChipsetIntel Z370
Maximum Memory Supported64GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
To maximize the performance of the graphics card, it is necessary to install it in the PCIEX16 slot when installing a graphics card.
1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)
3. 2 PCI Express x1 slots
All PCI Express slots support PCI Express 3.0.
SATA RAID2XM.2 interface, 6xSATA III interface
Audio Chipset1. Built-in Realtek ALC892 chip ®
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
4. Support S/PDIF output
LAN ChipsetBuilt-in Intel GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1 USB Type-C ™ interface on the rear panel, supporting USB 3.1 Gen 1
2.8 USB 3.1 Gen 1 ports (6 on the rear panel, 2 to be connected from the USB socket in the main board via cable)
3. 4 USB 2.0/1 interfaces, which need to be connected from the USB socket in the main board through the cable

Questions about this item

Will the CMOS battery need replacing and is one included?

A metal battery is supplied with the board so the CMOS cell is already present and will only need changing when it eventually loses charge.

What caps the graphics throughput on the single full-size slot?

The board provides one PCI Express x16 slot running at x16 electrical, so the card itself sets the performance ceiling.

How loud and hot does the Z370 chipset get during all-day loads?

The chipset is passively cooled with no fan, so it adds no noise and its heat output stays within normal motherboard operating limits.
