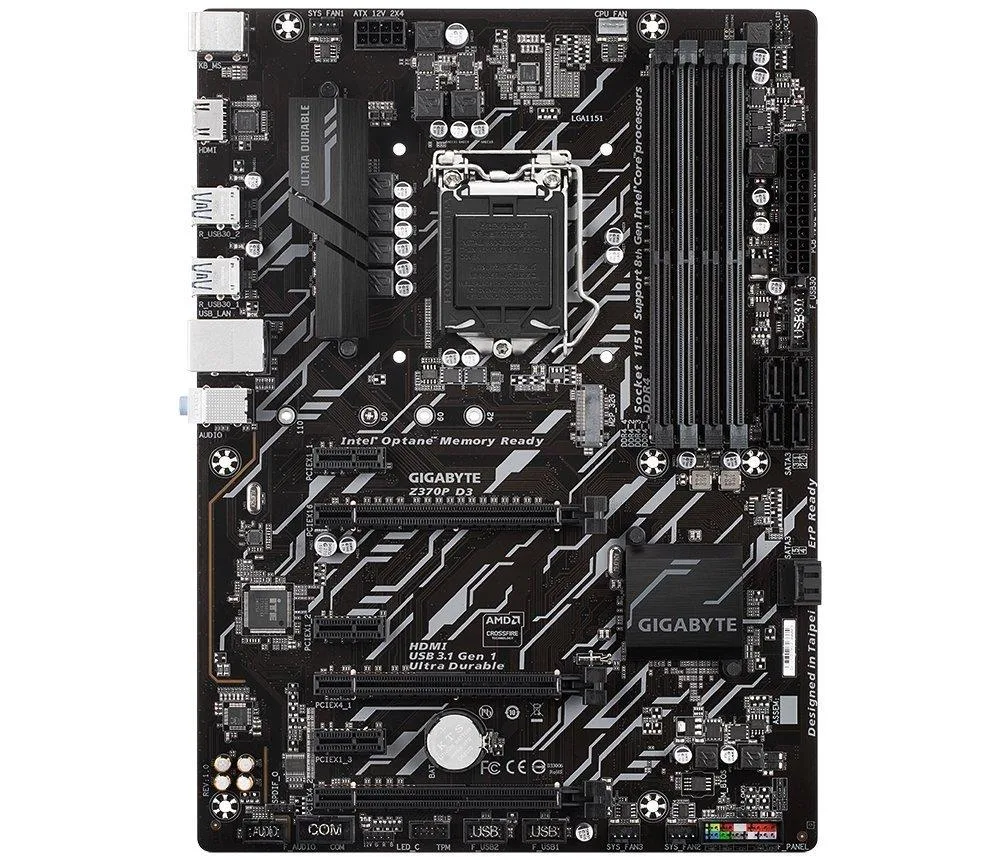

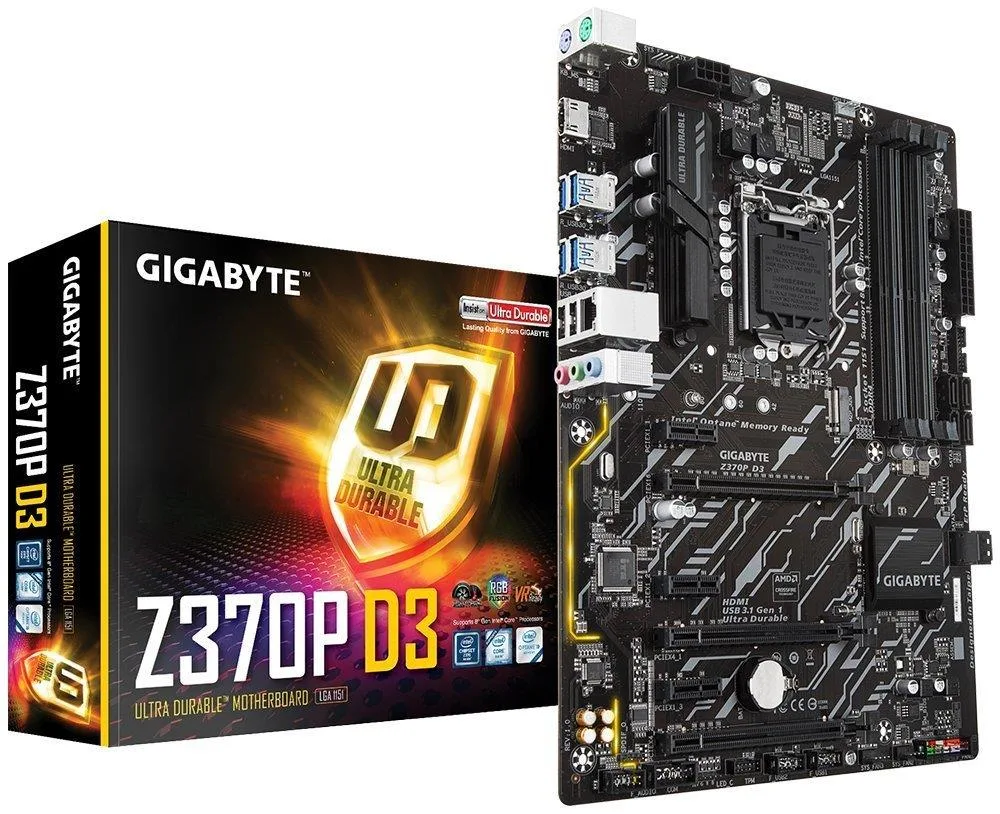

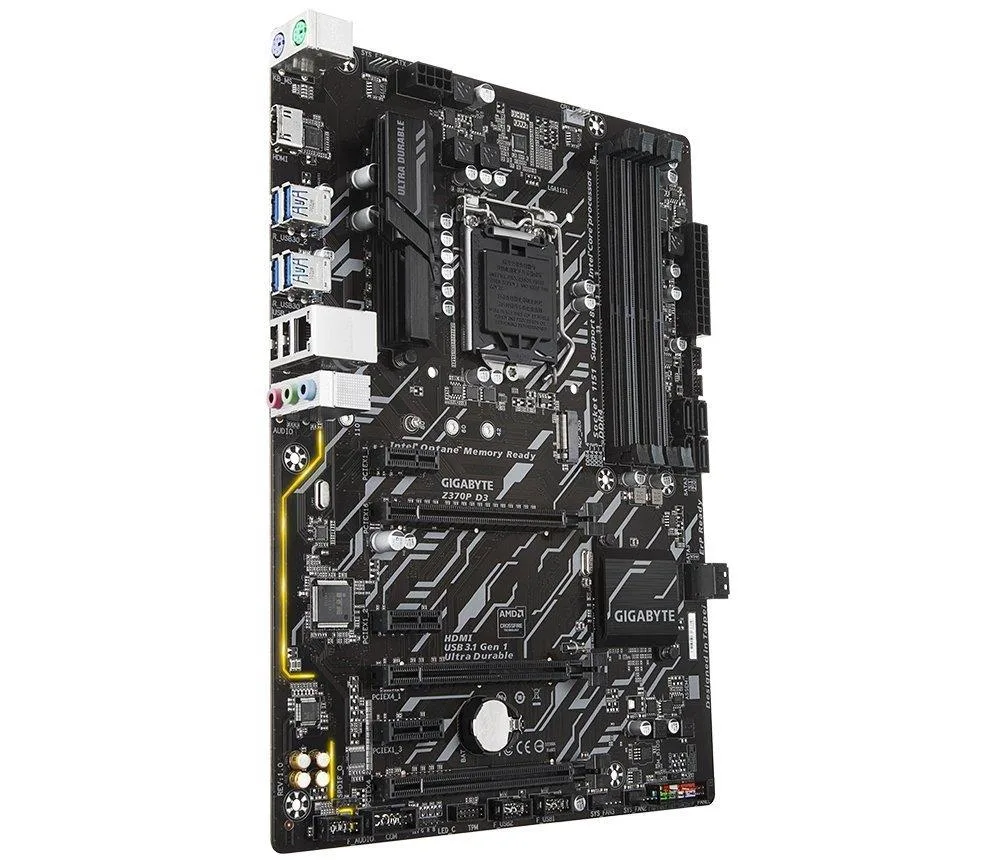

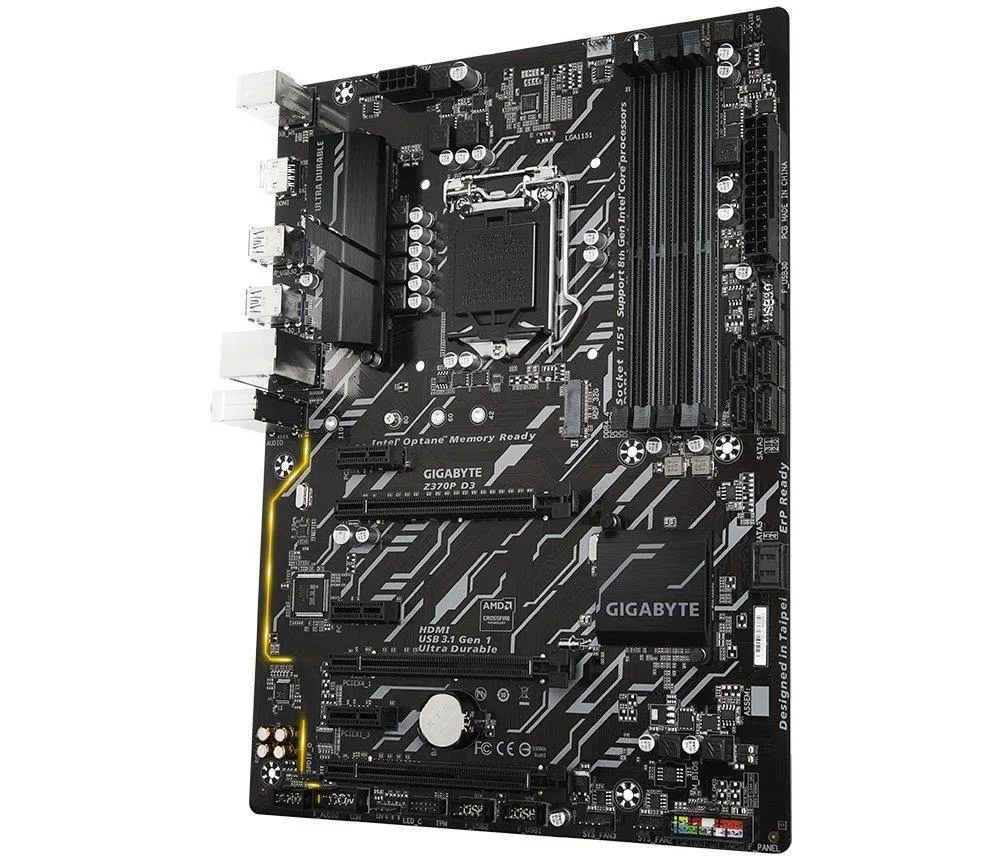

Refurbished ATX motherboard, black PCB with silver heatsinks and blue slots

GIGABYTE

GIGABYTE Z370P D3 Intel motherboard

SKU CH-9QYG-SC6CQ MPN Z370P D3

Refurbished Intel Z370 board with LGA 1151 socket, four DDR4 slots up to 64 GB, HDMI, six SATA 6Gb/s ports, one M.2 slot and Gigabit LAN

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupport for 8th Generation Intel Core i7 processors/Intel Co
  • ChipsetIntel Z370
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support:1
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.
  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 across four slots up to 64 GB capacity
  • Ultra-fast M.2 slot with PCIe Gen3 x4 and SATA support
  • Gigabit LAN with cFosSpeed accelerator and 25 KV ESD protection
  • Realtek ALC887 audio with noise guard and LED trace path

Platform Foundation

This refurbished GIGABYTE Z370P D3 motherboard uses the Intel Z370 chipset and an LGA 1151 socket limited to 8th Generation Intel Core i7, i5 and i3 processors. It provides four DDR4 DIMM slots supporting dual-channel memory up to 64 GB and speeds from 2133 MT/s to 4000 MT/s when overclocked.

Fit and Alternatives

Builders upgrading an existing 8th Gen system or assembling a cost-conscious Z370 platform will find the essential connectivity here: six SATA 6Gb/s ports, one M.2 slot for SATA or PCIe x4 SSDs, Gigabit LAN and HDMI output. Buyers who need a newer socket for 9th or 10th Generation CPUs, integrated Wi-Fi, additional full-length PCIe x16 slots or 10 GbE networking should select a different board.

Deciding Specification

The single detail that determines compatibility is the LGA 1151 (300 Series) socket, which accepts only 8th Generation Intel Core processors and is not backward compatible with earlier LGA 1151 CPUs.

Highlights

  • Supports 8th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 across four slots up to 64 GB capacity
  • Ultra-fast M.2 slot with PCIe Gen3 x4 and SATA support
  • Gigabit LAN with cFosSpeed accelerator and 25 KV ESD protection
  • Realtek ALC887 audio with noise guard and LED trace path

Specifications

BrandGIGABYTE
ModelZ370P D3 (rev. 1.0)
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupport for 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors in the LGA1151 package* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel Z370
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz* Support for HDMI 1.4 version and HDCP 2.2.Maximum shared memory of 1GB
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
PCI Express x13 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Support for S/PDIF Out
LAN ChipsetRealtek GbE LAN chip
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
PS/21 x PS/2 mouse port1 x PS/2 Keyboard port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.14 x USB 3.1 Gen 1 ports
USB 1.1/2.02 x USB 2.0
Audio Ports3 x audio jacks (Line In, Line Out, Mic In)
Onboard USB1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header3 x system fan headers1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 8.9"
Power Pin1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologiesI/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each a
Shipping weight1.18 kg
Package size267 × 264 × 66 mm

Questions about this item

Will my 8th generation Intel Core i5 processor fit this LGA 1151 socket?

Yes, the LGA 1151 (300 Series) socket supports 8th generation Intel Core i7, i5 and i3 processors in the LGA1151 package.

What DDR4 memory speeds can I run with four modules installed?

The board supports DDR4 up to 4000 MT/s when overclocked, with native speeds of 2666, 2400 and 2133 MT/s across four slots for a maximum of 64 GB in dual-channel mode.

Can I connect an M.2 SATA SSD and still use all six SATA ports?

The single M.2 connector accepts both SATA and PCIe x4 or x2 drives in 2242, 2260, 2280 and 22110 sizes; using a SATA M.2 drive does not disable any of the six SATA 6Gb/s ports.
