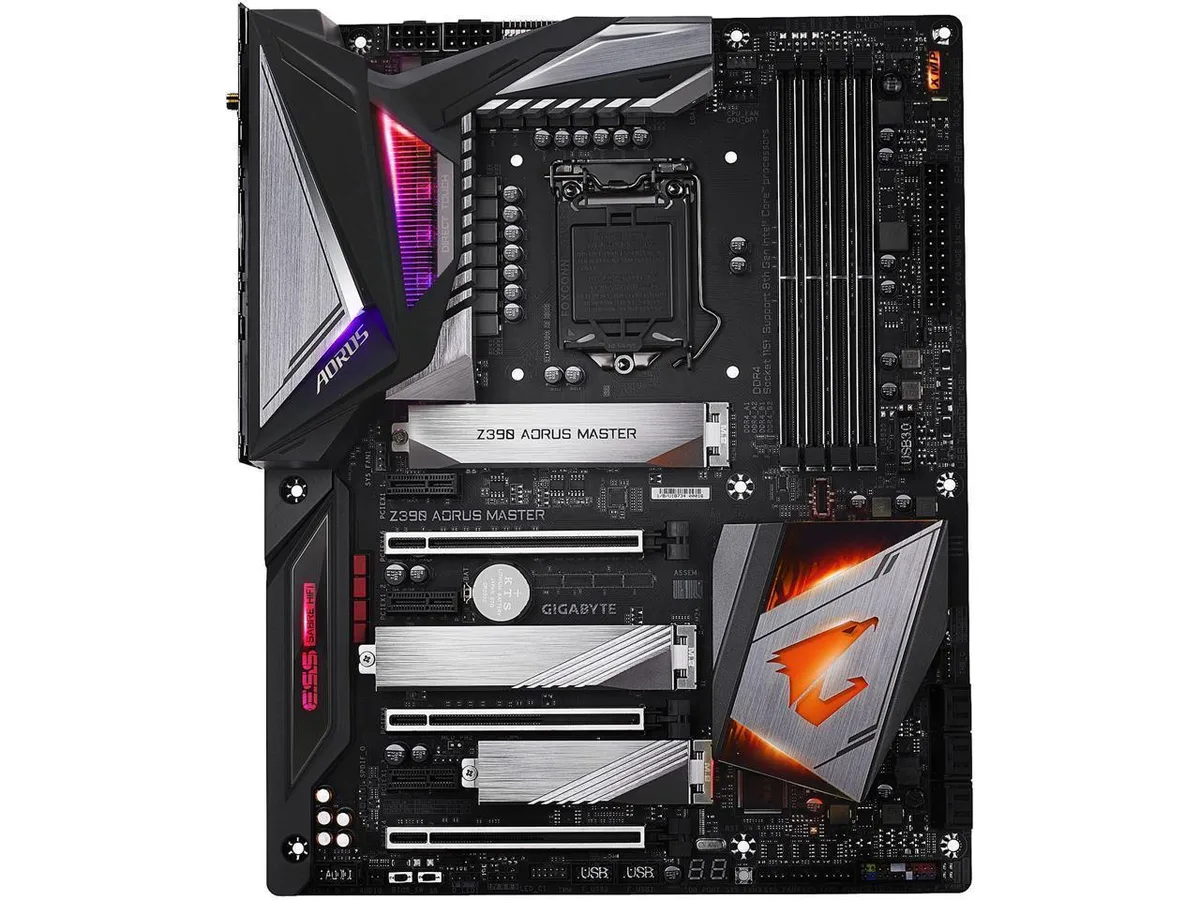

ATX motherboard with black heatsinks and integrated I/O shield

GIGABYTE

GIGABYTE Z390 Aorus Master LGA 1151 ATX Intel motherboard

SKU CH-RF89-8TEZ7

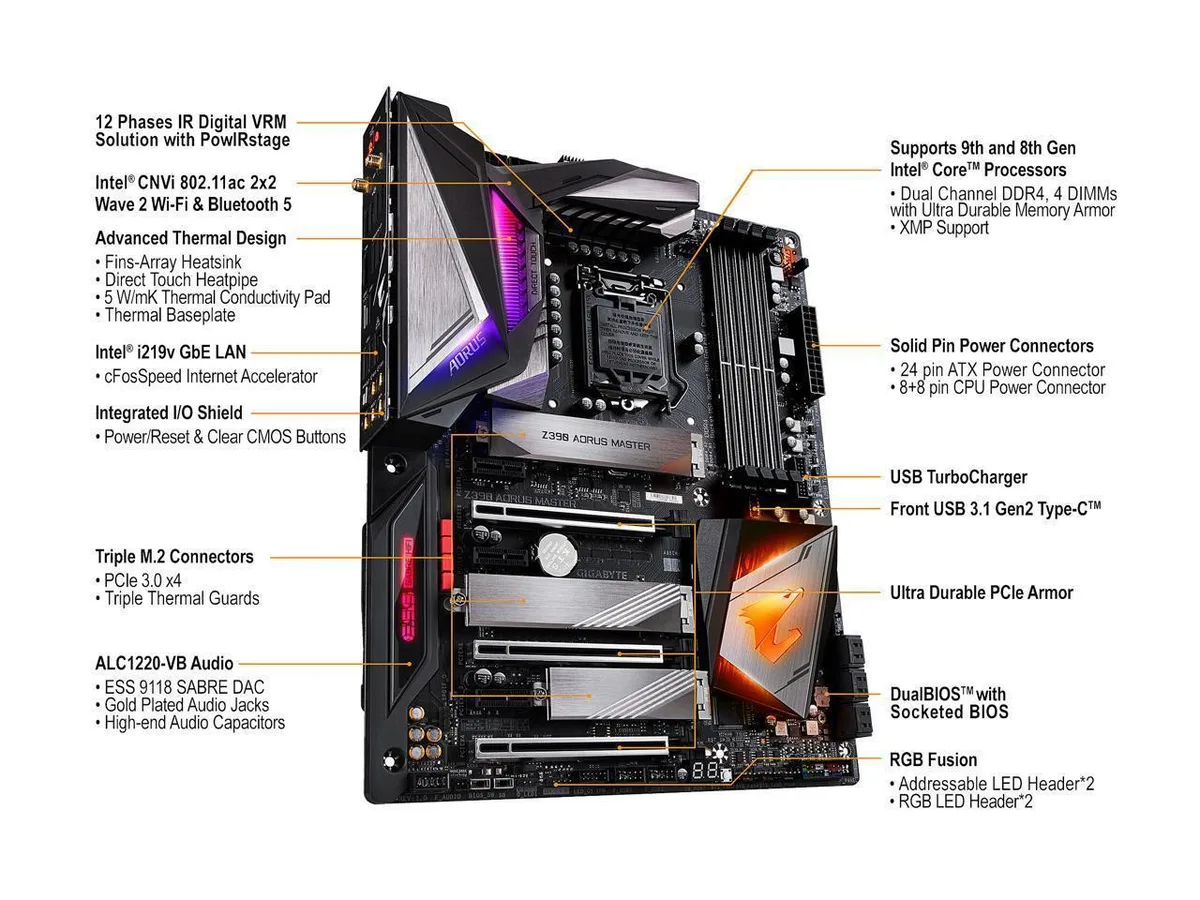

ATX board for Intel 8th and 9th Gen CPUs with 12-phase digital VRM, DDR4 to 4400 MHz, integrated I/O shield, Wi-Fi, USB 3.1 Gen 2 Type-C header and triple M.2 slots with heatsinks

  • CPU Socket TypeLGA 1151
  • Supports Intel 8th and 9th Gen Core processors via LGA 1151 socket
  • 12-phase IR digital VRM with PowIRstage delivers stable power for overclocking
  • DDR4 memory up to 4400 MHz overclocked across four dual-channel DIMM slots
  • Integrated I/O shield and Intel 802.11 ac Wi-Fi simplify build and connectivity
  • AMP-UP Audio with ALC1220 and ESS SABRE 9118 DAC provides high-fidelity sound

Z390 Aorus Master ATX motherboard

The Gigabyte Z390 Aorus Master is an ATX motherboard built for the LGA 1151 socket. It supports Intel 8th and 9th Generation Core i9, i7, i5, i3, Celeron and Pentium processors. The board uses a 12-phase IR digital VRM with PowIRstage components. It includes an integrated I/O shield for simpler installation.

Builders needing 8th or 9th Gen Intel on ATX

This board suits builders assembling a system around Intel 8th or 9th Generation LGA 1151 processors who want robust power delivery and integrated Wi-Fi. It is not for buyers whose CPU uses a different socket or who require a smaller form factor such as micro-ATX or mini-ITX. It also does not suit anyone needing support for newer processor generations.

12-phase digital VRM with PowIRstage

The 12-phase IR digital VRM solution with PowIRstage is the specification that defines this board's power capability. It delivers clean current for high-end Core i9 and i7 chips under sustained loads. If your build targets a lower-power processor or a tighter budget, a board with a simpler VRM may be more appropriate.

Highlights

  • Supports Intel 8th and 9th Gen Core processors via LGA 1151 socket
  • 12-phase IR digital VRM with PowIRstage delivers stable power for overclocking
  • DDR4 memory up to 4400 MHz overclocked across four dual-channel DIMM slots
  • Integrated I/O shield and Intel 802.11 ac Wi-Fi simplify build and connectivity
  • AMP-UP Audio with ALC1220 and ESS SABRE 9118 DAC provides high-fidelity sound

Specifications

CPU Socket TypeLGA 1151

Questions about this item

What DDR4 memory speeds does the Z390 Aorus Master support, and where does overclocking begin?

The board runs DDR4 at 2133, 2400 and 2666 MHz natively; every speed from 2800 MHz up to 4400 MHz is marked O.C. and requires manual tuning.

What clearance does the 12-phase VRM heatsink and fins-array design need for a CPU cooler?

The VRM heatsink and direct-touch heatpipe sit close to the LGA 1151 socket, so choose a cooler that clears the top heatsink fin stack.

How do I enable the front-panel USB 3.1 Gen 2 Type-C header during installation?

Connect the case cable to the motherboard header, then enable the USB 3.1 Gen 2 controller in BIOS or the port will stay inactive.
