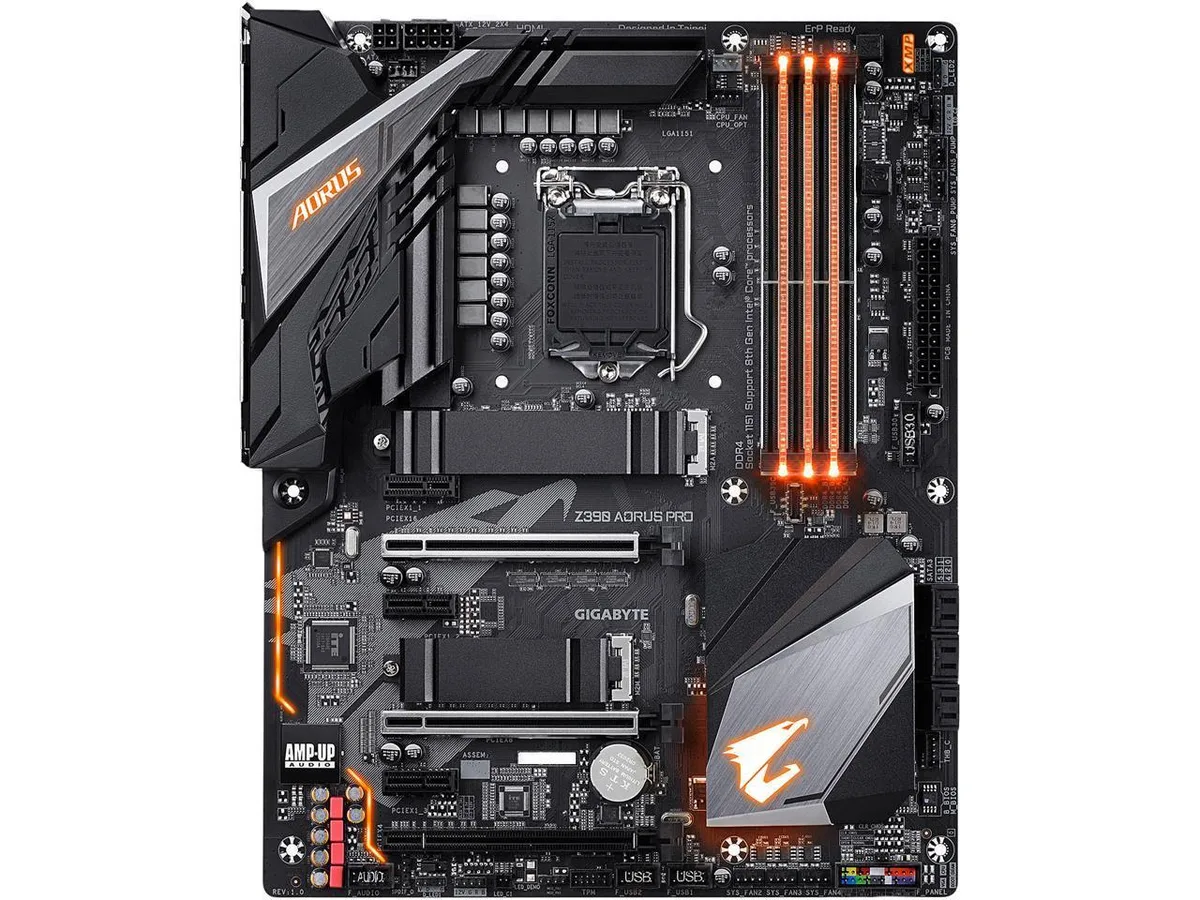

Black ATX motherboard with silver heatsinks and integrated rear I/O shield

GIGABYTE

GIGABYTE Z390 AORUS PRO LGA 1151 Intel motherboard

SKU CH-BMH9-X0QRF

ATX Intel Z390 board for 8th and 9th Gen Core CPUs with four DDR4 slots, dual M.2, six SATA 6Gb/s ports, HDMI 1.4 and Intel gigabit LAN

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupport for 9th and 8th Generation Intel Core i9 processors/
  • ChipsetIntel Z390
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support: 1
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.
  • Supports 9th and 8th Gen Intel Core i9, i7, i5, i3, Pentium, Celeron LGA 1151 processors
  • Dual-channel DDR4 across four 288-pin slots up to 64 GB
  • Two M.2 sockets for 2242, 2260, 2280, 22110 SATA and PCIe SSDs with Intel Optane Ready
  • 12+1 phase digital VRM with DrMOS plus multi-cut heatsinks and heatpipe for stable power delivery
  • Realtek ALC1220-VB codec delivering 114 dB rear and 110 dB front SNR with HDMI 1.4 4096×2160@30 Hz output

Intel Z390 ATX motherboard for LGA 1151 CPUs

This board uses the Intel Z390 chipset and fits the LGA 1151 socket. It accepts 8th and 9th generation Core i9, i7, i5, i3, Pentium and Celeron processors. Four DDR4 slots support up to 64 GB in dual-channel mode. The ATX form factor suits standard desktop cases.

Integrated I/O shield and multi-phase VRM cooling

An integrated I/O shield simplifies installation and removes a loose part. A 12+1 phase digital VRM with DrMOS is cooled by multi-cut heatsinks and a heatpipe. Six SATA 6 Gb/s ports and two M.2 sockets (2242, 2260, 2280, 22110) handle SATA and PCIe x4 storage. HDMI 1.4 outputs 4096x2160 at 30 Hz. Realtek ALC1220-VB audio delivers 114 dB rear and 110 dB front SNR.

Check CPU generation, cooler clearance

Verify the processor is an 8th or 9th generation LGA 1151 model; earlier 6th and 7th generation chips are not supported. Ensure the CPU cooler fits around the VRM heatsink array. Confirm M.2 drive lengths match the 2242, 2260, 2280 or 22110 keys before purchase. The package contains only the motherboard and I/O shield.

Highlights

  • Supports 9th and 8th Gen Intel Core i9, i7, i5, i3, Pentium, Celeron LGA 1151 processors
  • Dual-channel DDR4 across four 288-pin slots up to 64 GB
  • Two M.2 sockets for 2242, 2260, 2280, 22110 SATA and PCIe SSDs with Intel Optane Ready
  • 12+1 phase digital VRM with DrMOS plus multi-cut heatsinks and heatpipe for stable power delivery
  • Realtek ALC1220-VB codec delivering 114 dB rear and 110 dB front SNR with HDMI 1.4 4096×2160@30 Hz output

Specifications

BrandGIGABYTE
ModelZ390 AORUS PRO
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupport for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package
* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel Z390
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1GB
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x13 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN ChipsetIntel GbE LAN chip
Max LAN Speed1Gbps
HDMI1 x HDMI
RJ451 x RJ45
USB 3.12 x USB 3.1 Gen 2 Type-A ports (red)
3 x USB 3.1 Gen 1 ports
USB 1.1/2.04 x USB 2.0
USB Type-C1 x USB Type-C port, with USB 3.1 Gen 2 support
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB1 x USB Type-C port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Thunderbolt add-in card connector
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
2 x temperature sensor headers
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIO

Questions about this item

What HDMI version does the board provide and what resolution does it cap at?

The HDMI 1.4 port supports up to 4096x2160 at 30 Hz with HDCP 2.2.

What physical space and mounting points does the ATX board need?

Standard ATX standoff layout and I/O shield cut-out; the board includes an integrated I/O shield.

How is the M.2 SSD installed and which step is often missed?

Insert the 2242/2260/2280/22110 drive into the M-key Socket 3 slot at an angle, then secure it with the screw; many forget to fit the screw.
