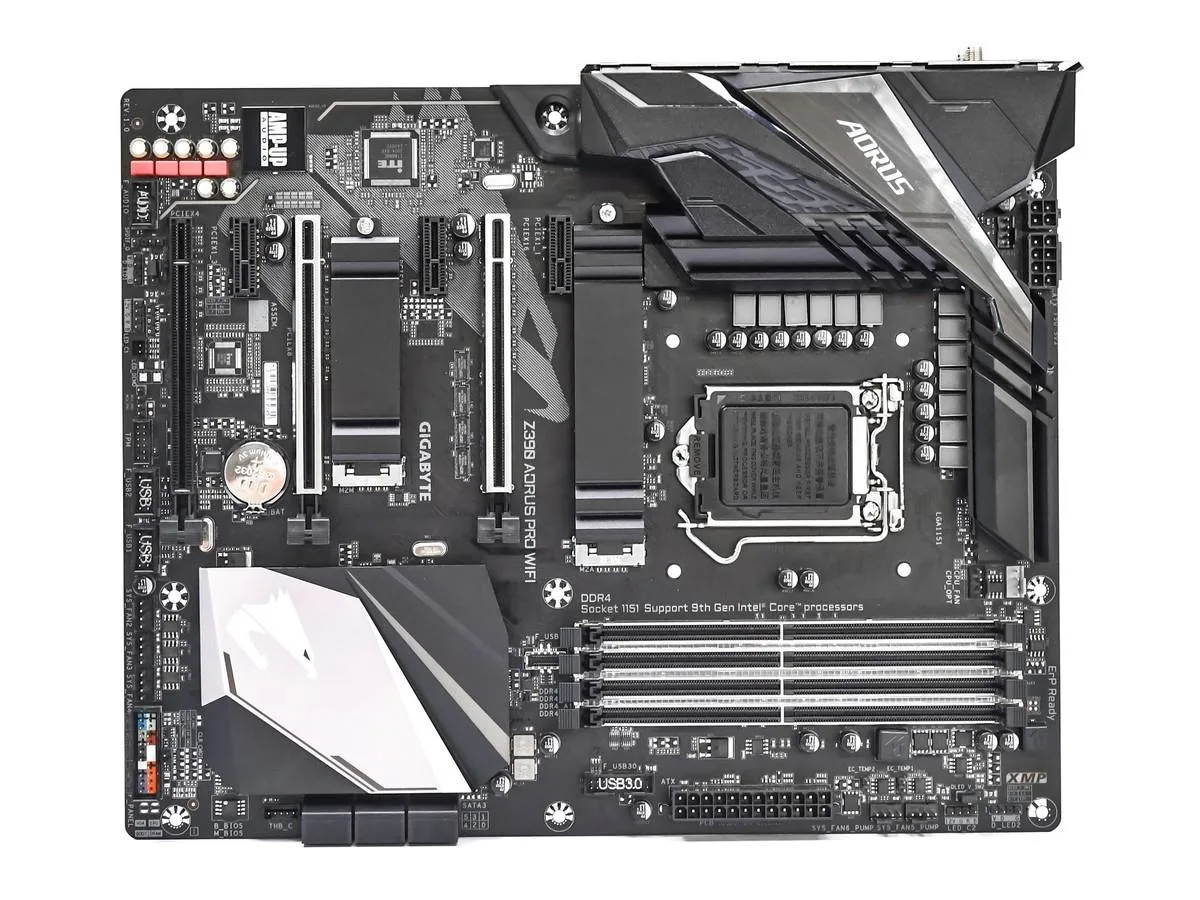

ATX motherboard with black PCB, silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE Z390 AORUS PRO WIFI LGA 1151 Intel Z390 DDR4 128GB ATX motherboard

SKU CH-H15Q-BHP25

ATX Intel Z390 board with LGA 1151 socket supporting 8th and 9th generation CPUs, four DDR4 slots up to 128GB, 7.1-channel Realtek ALC1220-VB audio, Intel gigabit LAN, USB 3.1 Gen 2 Type-C.

  • CPU Socket TypeLGA 1151
  • CPU Type1. Support LGA1151 slot - Intel 9th and 8th generation proce
  • ChipsetIntel Z390
  • Maximum Memory Supported128GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAID2XM.2 interface, 6xSATA III interface
  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • Up to 128 GB DDR4 memory across four DIMM slots
  • Intel Z390 chipset with PCI Express x16 slot for graphics cards
  • Realtek ALC1220-VB audio with 7.1-channel and DSD support
  • Intel Gigabit LAN plus USB 3.1 Gen 2 Type-C connectivity

LGA 1151 ATX platform

The board fits the LGA 1151 socket and the Intel Z390 chipset, supporting 8th and 9th generation Core i9, i7, i5, i3, Pentium and Celeron processors. Four DDR4 DIMM slots accept up to 128 GB of system memory. The ATX form factor measures 30.5 by 24.4 cm.

Bundled I/O shield and single SATA cable

Only the rear I/O panel and one SATA data cable are included in the package. No additional cables, Wi‑Fi antennas, SLI bridges or decorative accessories are supplied, so builders must source any extra connectivity or mounting hardware separately.

PCI Express x16 and SATA III limits

The primary PCI Express x16 slot runs at x16 electrical speed; secondary slots operate at reduced lanes which can restrict multi‑GPU scaling. Six SATA III ports and two M.2 interfaces share bandwidth with the chipset, so populating every M.2 device may reduce available SATA connections.

Highlights

  • Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
  • Up to 128 GB DDR4 memory across four DIMM slots
  • Intel Z390 chipset with PCI Express x16 slot for graphics cards
  • Realtek ALC1220-VB audio with 7.1-channel and DSD support
  • Intel Gigabit LAN plus USB 3.1 Gen 2 Type-C connectivity

Specifications

BrandGIGABYTE
SeriesGIGABYTE Z390 AORUS PRO WIFI
ModelGIGABYTE Z390 AORUS PRO WIFI
CPU Socket TypeLGA 1151
CPU Type1. Support LGA1151 slot - Intel 9th and 8th generation processors: Intel Core ™ i9 processor/Intel Core ™ i7 processor/Intel Core ™ i5 processor/Intel Core ™ i3 processor/Intel Pentium processor/Intel Celeron processor ®
2. L3 cache depends on CPU
ChipsetIntel Z390
Maximum Memory Supported128GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
To maximize the performance of the graphics card, it is necessary to install it in the PCIEX16 slot when installing a graphics card.
1 PCI Express x16 slot, supporting x8 operating specifications (PCIEX8)
Due to the shared bandwidth between the PCIEX8 slot and the PCIEX16 slot, when installing a graphics card in the PCIEX8 slot, the PCIEX16 slot operates at a maximum bandwidth of x8.
3. 1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)
4. 3 PCI Express x1 slots
All PCI Express slots suppor
SATA RAID2XM.2 interface, 6xSATA III interface
Audio ChipsetBuilt-in Realtek ALC1220-VB chip
* The sound output hole provided by the rear sound source socket supports DSD audio. ®
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
4. Support S/PDIF output
LAN ChipsetBuilt-in Intel GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1 USB Type-C ™ interface on the rear panel, supporting USB 3.1 Gen 2
2. 1 USB Type-C ™ interface needs to be connected from the USB socket in the main board through the cable, supporting USB 3.1 Gen 1
2 USB 3.1 Gen 2 Type-A ports (red) on the rear panel
4.5 USB 3.1 Gen 1 ports (3 on the rear panel, 2 to be connected from the USB socket in the main board via cable)
Built-in chipset + 2 USB 2.0 Hubs.
5.8 USB 2.0/1 ports (4 on the rear panel, 4 USB plugged in from the main board via cable

Questions about this item

Will the Realtek ALC1220-VB audio codec or Intel GbE LAN chip need replacement under normal use?

The Realtek ALC1220-VB audio codec and Intel GbE LAN chip are soldered components on the board and are not user-replaceable parts; they are designed to last the lifetime of the motherboard under normal operating conditions.

What limits the PCI Express x16 slot to x16 speed when a graphics card is installed?

The single PCI Express x16 slot operates at x16 electrical speed by design; installing the graphics card in this PCIEX16 slot ensures maximum lane bandwidth for the GPU.

How much heat and noise does the board generate when running all day with a CPU installed?

The motherboard itself has no active cooling fans; heat and noise levels depend entirely on the installed CPU cooler, case airflow, and the graphics card used in the PCIEX16 slot.
