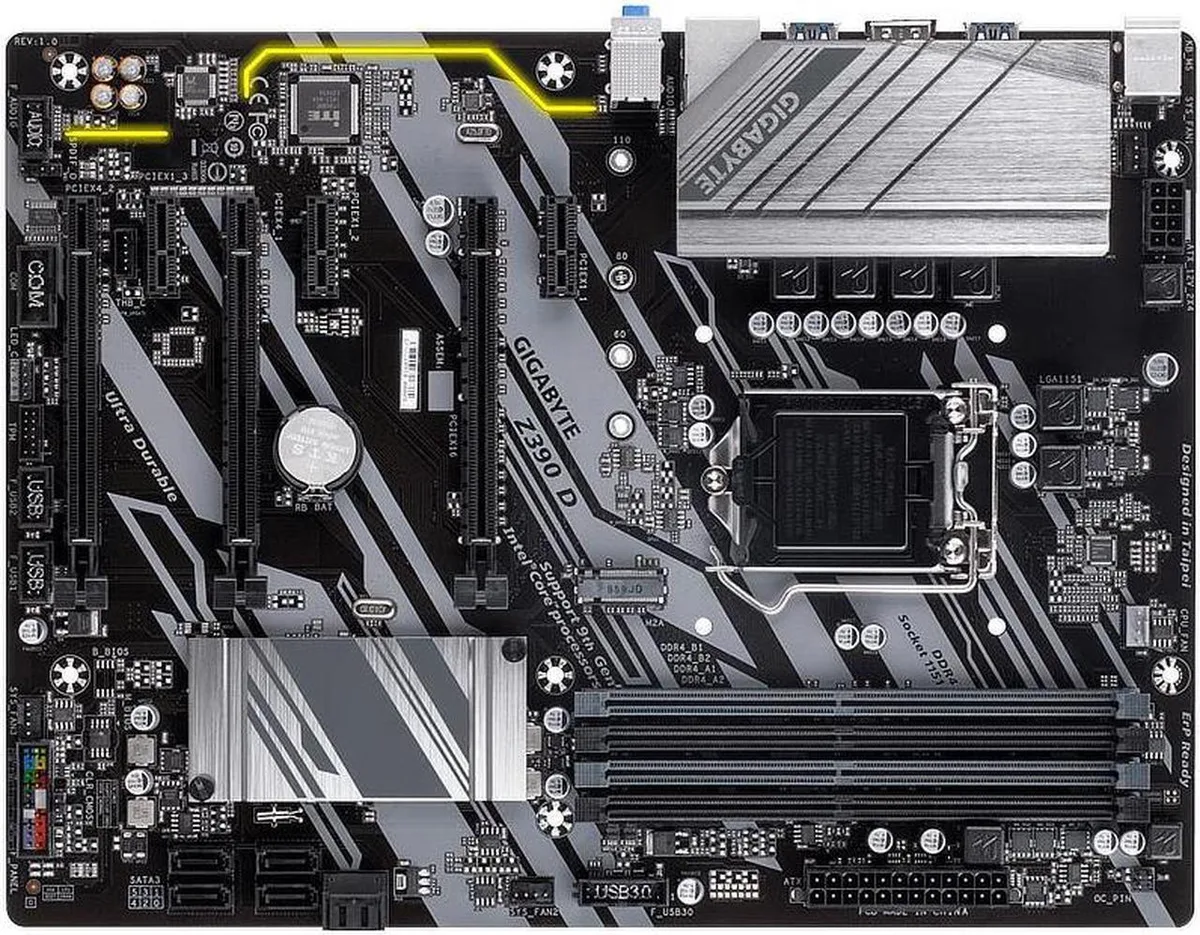

ATX motherboard, black PCB, silver I/O shield, four DDR4 slots, single PCIe x16 slot, six SATA ports, Realtek audio and LAN chips

GIGABYTE

GIGABYTE Z390 D LGA 1151 DDR4 128GB Intel motherboard

SKU CH-R80G-MC6XJ

An ATX Intel Z390 board with LGA 1151 socket supporting 8th and 9th Gen CPUs, four DDR4 slots up to 128GB, one PCIe x16 slot, six SATA III ports, Realtek ALC887 7.1 audio and Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports LGA1151 slot - 9th and 8th generation processors. I
  • ChipsetIntel Z390
  • Maximum Memory Supported128GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAIDM.2 interface, 6xSATA III interface
  • Supports 9th and 8th gen Intel Core i7, i5, i3, Pentium, Celeron CPUs via LGA 1151 socket
  • Up to 128GB DDR4 memory capacity across four DIMM slots
  • PCI Express x16 slot for graphics card installation
  • Realtek ALC887 audio with 7.1 channel support
  • Realtek Gigabit LAN plus 8 USB 3.1 Gen 1 ports

CPU Socket & Generation Support

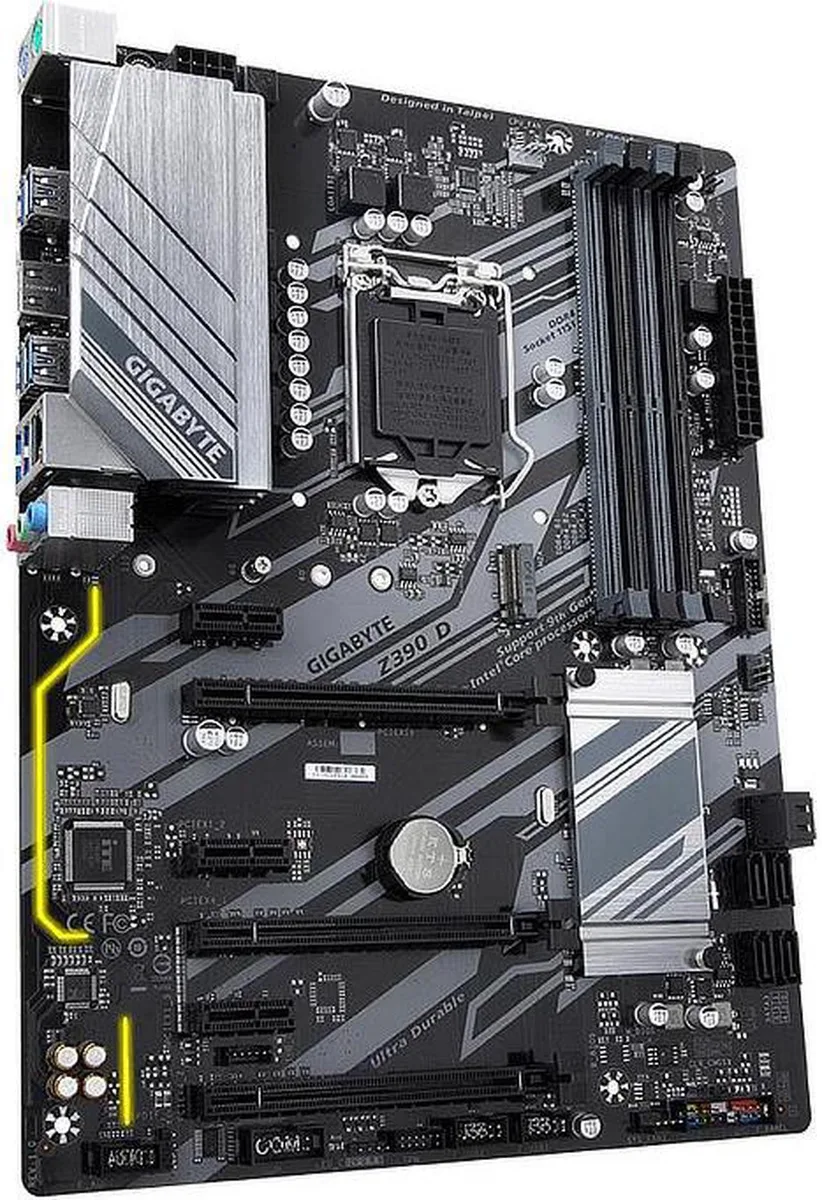

This GIGABYTE Z390 D motherboard uses the LGA 1151 socket and the Intel Z390 chipset. It supports 8th and 9th generation Intel Core i7, i5, i3, Pentium and Celeron processors. The board delivers a standard ATX form factor measuring 30.5 by 22.5 cm.

Memory Capacity & Target Builder

Four DDR4 DIMM slots accept up to 128GB of system memory. This capacity suits enthusiasts building a high-RAM workstation or gaming rig on the LGA 1151 platform. Builders needing newer CPU generations or different memory types should select a board with the appropriate socket and chipset.

Primary Expansion Slot

A single PCI Express x16 slot operating at x16 provides the main graphics card connection. Installing the GPU in this slot ensures maximum bandwidth for the card. The board also includes an M.2 interface and six SATA III ports for storage expansion.

Highlights

  • Supports 9th and 8th gen Intel Core i7, i5, i3, Pentium, Celeron CPUs via LGA 1151 socket
  • Up to 128GB DDR4 memory capacity across four DIMM slots
  • PCI Express x16 slot for graphics card installation
  • Realtek ALC887 audio with 7.1 channel support
  • Realtek Gigabit LAN plus 8 USB 3.1 Gen 1 ports

Specifications

BrandGIGABYTE
SeriesGIGABYTE Z390 D
ModelGIGABYTE Z390 D
CPU Socket TypeLGA 1151
CPU TypeSupports LGA1151 slot - 9th and 8th generation processors.
Intel Core ™ i7/Intel Core ™ i5/Intel Core ™ i3/Intel Pentium/Intel Celeron
2. L3 cache depends on CPU
ChipsetIntel Z390
Maximum Memory Supported128GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
To maximize the performance of the graphics card, it is necessary to install it in the PCIEX16 slot when installing a graphics card.
2 PCI Express x16 slots for x4 operating specifications (PCIEX4_1/PCIEX4_2)
3 PCI Express x1 slots
All PCI Express slots support PCI Express 3.0.
SATA RAIDM.2 interface, 6xSATA III interface
Audio Chipset1. Built-in Realtek ALC887 chip ®
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
To activate the 7.1 channel audio output, you must use the front panel audio output of the HD (High Definition, High Fax) audio module and select the multi-channel audio function through the audio software.
4. Support S/PDIF output
LAN ChipsetBuilt-in Realtek GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1.8 USB 3.1 Gen 1 ports (6 on the rear panel, 2 to be connected from the USB socket in the main board via cable)
2 USB 2.0/1 ports, which need to be connected from the USB socket in the main board through the cable

Questions about this item

What case clearance does the 30.5 cm by 22.5 cm ATX board require?

The board measures 30.5 cm by 22.5 cm and follows the standard ATX mounting pattern, so any case that accepts ATX motherboards will fit it.

Which PCI Express slot should hold the graphics card for full x16 operation?

Install the graphics card in the primary PCI Express x16 slot labelled PCIEX16; the manual notes that this slot runs at x16 electrical speed.

How many DDR4 DIMM slots are available for future memory upgrades?

Four DDR4 DIMM slots are provided, supporting up to 128 GB total capacity.
