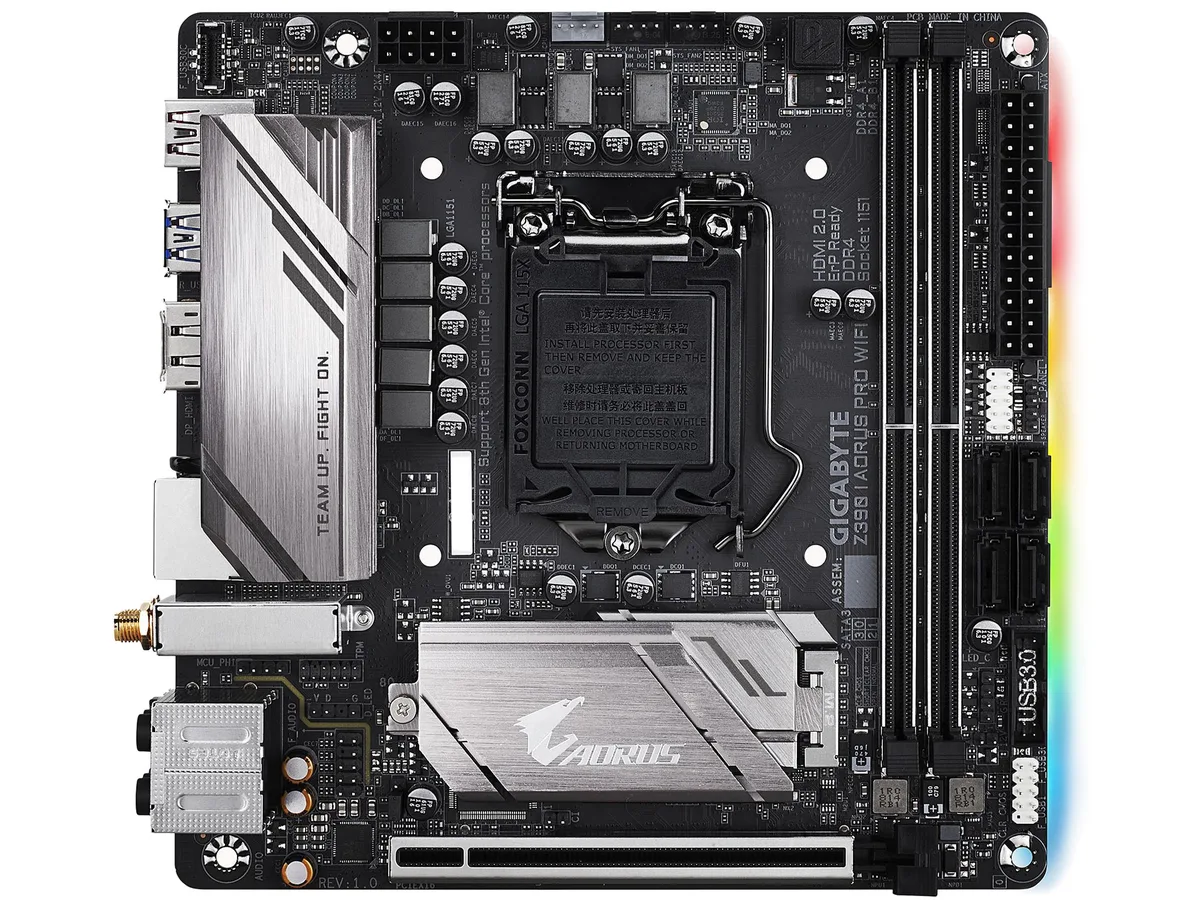

Compact Mini-ITX board with black heatsinks and silver I/O shield

GIGABYTE

GIGABYTE Z390 I AORUS PRO WIFI Intel motherboard

SKU CH-6DYD-X7EWG

Mini-ITX Intel Z390 board with dual M.2, Wi-Fi, 6-phase digital VRM, 32 GB DDR4 limit, HDMI 2.0 and Realtek ALC1220-VB audio

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupport for 9th and 8th Generation Intel Core i9 processors/
  • ChipsetIntel Z390
  • Onboard Video ChipsetIntegrated Graphics Processor + MegaChips MCDP2800 chip: 1 x
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 4400(O.C.)/ 4333(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.
  • Supports 8th and 9th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 with two 288-pin slots up to 4400 MT/s overclocked
  • 6-phase IR digital VRM with PowIRstage and extended fin heatsink
  • Dual M.2 slots with PCIe x4 support and single thermal guard
  • Realtek ALC1220-VB audio delivering 114 dB rear and 110 dB front SNR

Compact Z390 board for 8th and 9th Gen Intel CPUs

The GIGABYTE Z390 I AORUS PRO WIFI is a Mini-ITX motherboard built on the Intel Z390 chipset with an LGA 1151 socket. It supports 8th and 9th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron processors. The board provides two DDR4 DIMM slots running in dual-channel mode with a maximum capacity of 32 GB. Integrated graphics output is handled by an HDMI 2.0 port capable of 4096x2160 at 60 Hz.

Suits small-form-factor builds needing Wi-Fi

This board fits Mini-ITX cases and includes onboard Intel 802.11ac 2x2 Wave 2 Wi-Fi plus Intel Gigabit LAN. Two M.2 slots are available: one on the front supporting 2242, 2260 and 2280 drives, and one on the rear supporting 2260 and 2280 drives, both wired for PCIe x4 and SATA. Builders who need more than two memory slots, additional PCIe expansion, or legacy video outputs should consider a larger form factor.

Verify CPU cooler clearance.

Ensure your Mini-ITX chassis has the correct rear I/O shield cut-out for this board's port layout. Confirm the CPU cooler height allowance matches the VRM heatsink area around the LGA 1151 socket. Check that your power supply provides the required 24-pin ATX and 8-pin EPS connectors. The front-panel USB 3.1 Gen 1 Type-C header needs a matching case cable or adapter.

Highlights

  • Supports 8th and 9th Gen Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 with two 288-pin slots up to 4400 MT/s overclocked
  • 6-phase IR digital VRM with PowIRstage and extended fin heatsink
  • Dual M.2 slots with PCIe x4 support and single thermal guard
  • Realtek ALC1220-VB audio delivering 114 dB rear and 110 dB front SNR

Specifications

BrandGIGABYTE
ModelZ390 I AORUS PRO WIFI
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupport for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package
* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel Z390
Onboard Video ChipsetIntegrated Graphics Processor + MegaChips MCDP2800 chip:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Integrated Graphics Processor - Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz
* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
Maximum shared memory of 1GB
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 4400(O.C.)/ 4333(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express x161 x PCI Express x16 slot, running at x16
Other Slots1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN ChipsetIntel GbE LAN chip
Max LAN Speed1Gbps
Wireless LANIntel CNVi interface Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Support for 11 ac 160 MHz wireless standard and up to 1.73 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
BluetoothBLUETOOTH 5
Back I/O Ports1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
4 x USB 3.1 Gen 1 ports
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
1 x optical S/PDIF Out connector
5 x audio jacks
Onboard USB1 x USB Type-C port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
2 x system fan headers
1 x digital LED strip header
1 x digital LED strip power select jumper
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x chassis intrusion header
Windows 11Supported
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesI/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specificati

Questions about this item

What CPU cooler clearance does the board allow with its 6-phase VRM heatsink?

The extended fin heatsink sits close to the socket; verify your cooler's specifications against the Mini-ITX keep-out zone before purchase.

Will the single PCIe x16 slot run at full speed with an older PCIe 2.0 graphics card?

The slot is PCIe 3.0 x16 electrically; a PCIe 2.0 card will operate at its native 2.0 speeds without configuration.

How do I confirm the two M.2 slots are detected and running at PCIe x4 after installation?

Open BIOS and check the M.2 configuration screen; both M2P and M2M should show the installed drive model and a x4 link width.
