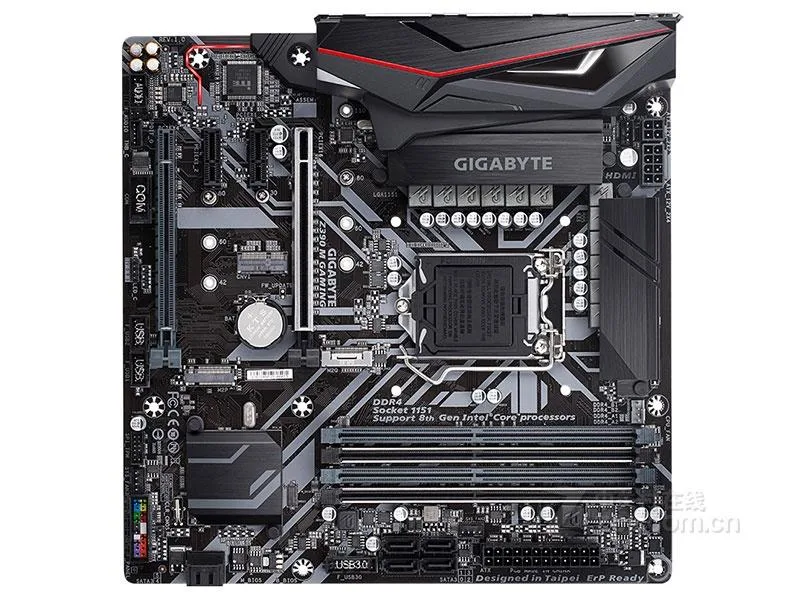

Micro-ATX motherboard, dark PCB with black and red accents, LGA 1151 socket, four DDR4 slots, single PCIe x16, rear I/O with USB Type-C

GIGABYTE

GIGABYTE Z390 M GAMING Intel motherboard LGA 1151

SKU CH-JC9V-EMMFW

Micro ATX Intel Z390 board with LGA 1151 socket, 64 GB DDR4 limit, one PCIe x16 slot and six SATA III ports

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports LGA1151 slot - 9th and 8th generation processors. I
  • ChipsetIntel Z390
  • Maximum Memory Supported64GB
  • PCI Slots1 PCI Express x16 slot, supporting x16 operating specificati
  • SATA RAIDM.2 interface, 6xSATA III interface
  • Supports 9th and 8th Gen Intel processors via LGA 1151 socket
  • 64GB maximum DDR4 capacity across four DIMM slots
  • Intel GbE LAN delivers 10/100/1000 Mbit wired connectivity
  • Realtek ALC892 audio supports 7.1 channel High Definition sound
  • Micro ATX form factor measures 24.4 by 24.4 cm

Intel Z390 Micro-ATX Gaming Board

The GIGABYTE Z390 M GAMING is a Micro-ATX motherboard built on the Intel Z390 chipset for LGA 1151 processors. It supports 8th and 9th generation Intel Core i9, i7, i5, i3, Pentium and Celeron CPUs. Four DDR4 DIMM slots accept up to 64GB of system memory.

Suits Compact Builds With Full Z390 Features

This board fits builders who want Z390 overclocking and connectivity in a 24.4cm square form factor. It provides a single PCI Express x16 slot, six SATA III ports and an M.2 interface for storage. Buyers needing multiple graphics cards or larger ATX layouts should consider a different form factor.

Single PCI Express x16 Slot Limits Multi-GPU

The specification lists one PCI Express x16 slot operating at x16 speed. This constraint means the board cannot run SLI or CrossFire configurations. Verify that your graphics and expansion plans require only a single add-in card before purchase.

Highlights

  • Supports 9th and 8th Gen Intel processors via LGA 1151 socket
  • 64GB maximum DDR4 capacity across four DIMM slots
  • Intel GbE LAN delivers 10/100/1000 Mbit wired connectivity
  • Realtek ALC892 audio supports 7.1 channel High Definition sound
  • Micro ATX form factor measures 24.4 by 24.4 cm

Specifications

BrandGIGABYTE
SeriesGIGABYTE Z390 M GAMING
ModelGIGABYTE Z390 M GAMING
CPU Socket TypeLGA 1151
CPU TypeSupports LGA1151 slot - 9th and 8th generation processors.
Intel Core ™ i9/Intel Core ™ i7/Intel Core ™ i5/Intel Core ™ i3/Intel Pentium/Intel Celeron ®
2. L3 cache depends on CPU
ChipsetIntel Z390
Maximum Memory Supported64GB
PCI Slots1 PCI Express x16 slot, supporting x16 operating specifications (PCIEX16)
To maximize the performance of the graphics card, it is necessary to install it in the PCIEX16 slot when installing a graphics card.
1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)
3. 2 PCI Express x1 slots
All PCI Express slots support PCI Express 3.0.
4. 1 M.2 Socket 1 socket for Intel CNVi (CNVI) ®
SATA RAIDM.2 interface, 6xSATA III interface
Audio Chipset1. Built-in Realtek ALC892 chip ®
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
4. Support S/PDIF output
LAN ChipsetBuilt-in Intel GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in chipset:
1 USB Type-C ™ interface on the rear panel, supporting USB 3.1 Gen 2
2.1 USB 3.1 Gen 2 Type-A interface (red) on the rear panel
3.6 USB 3.1 Gen 1 ports (4 on the rear panel, 2 to be connected from the USB socket in the main board via cable)
4.4 USB 2.0/1 interfaces, which need to be connected from the USB socket in the main board through the cable

Questions about this item

Will my 9th generation Core i7 fit this socket?

Yes, the LGA 1151 socket supports both 8th and 9th generation Intel Core i7 processors.

Can I run four sticks of DDR4 to reach 64GB?

The board has four DDR4 DIMM slots and supports up to 64GB total memory.

Does the rear panel include a USB 3.1 Gen 2 Type-C port?

Yes, one USB 3.1 Gen 2 Type-C port is provided on the rear I/O panel.
