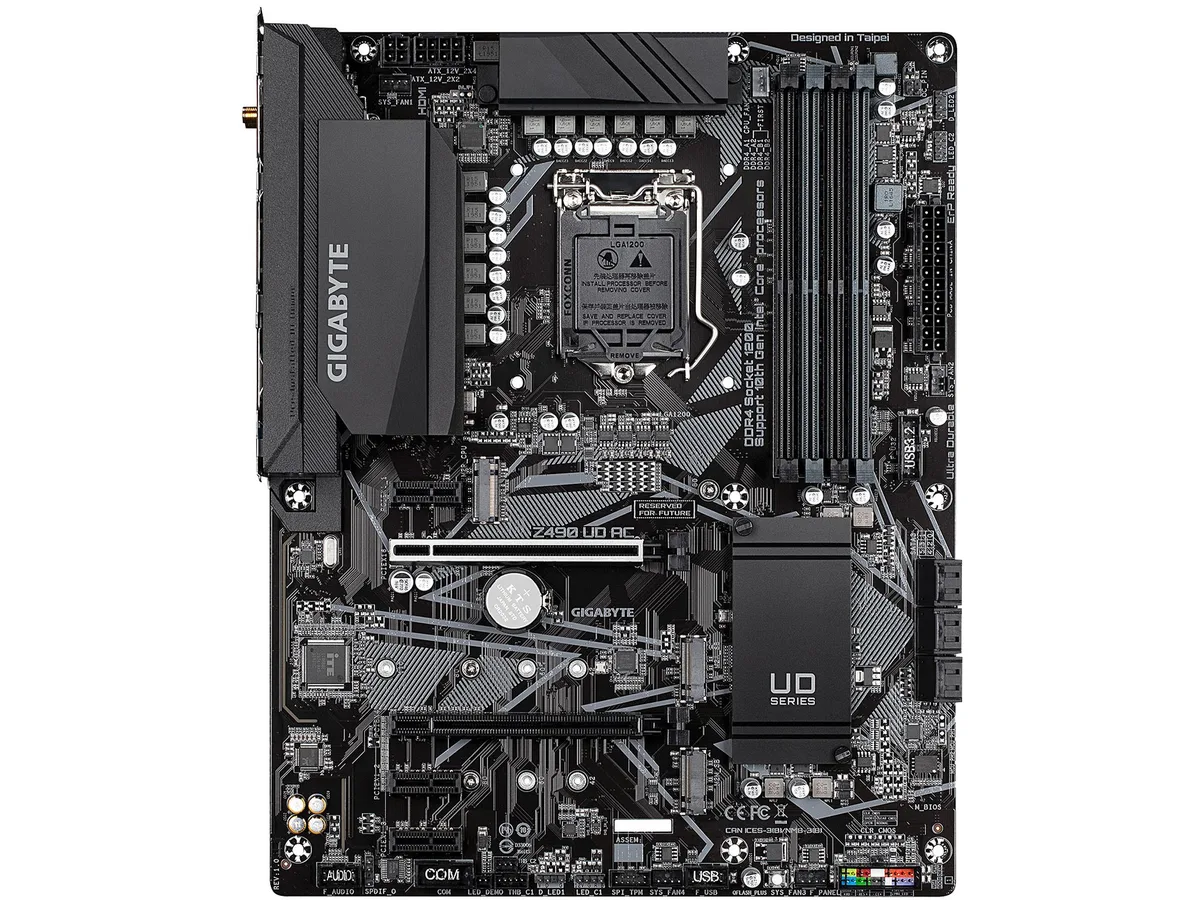

ATX motherboard in black with silver heatsinks and rear I/O panel

GIGABYTE

GIGABYTE Z490 UD AC ATX Intel Motherboard with WiFi 802.11ac Bluetooth 5

SKU CH-YAE9-ZNVN0

ATX motherboard for 10th Gen Intel Core processors with 11+1 phase digital VRM, four DDR4 slots, dual M.2, Intel WiFi 802.11ac and Bluetooth 5

  • Supports 10th Gen Intel Core processors for modern performance
  • 11+1 phase digital VRM with DrMOS delivers stable power
  • Extended MOS heatsink keeps VRM temperatures low
  • Dual-channel DDR4 with four 288-pin slots enables high memory capacity
  • Intel WiFi 802.11ac and Bluetooth 5 with high-gain antenna provides wireless connectivity

Z490 Platform for 10th Gen Intel

This ATX motherboard uses the Z490 chipset to support 10th Gen Intel Core processors. It targets builders who want overclocking headroom and integrated wireless connectivity. The board provides a single full-speed PCI Express 3.0 x16 slot plus a secondary x4 slot for expansion cards. Four DDR4 DIMM slots allow dual-channel memory configurations up to the speeds permitted by the installed CPU.

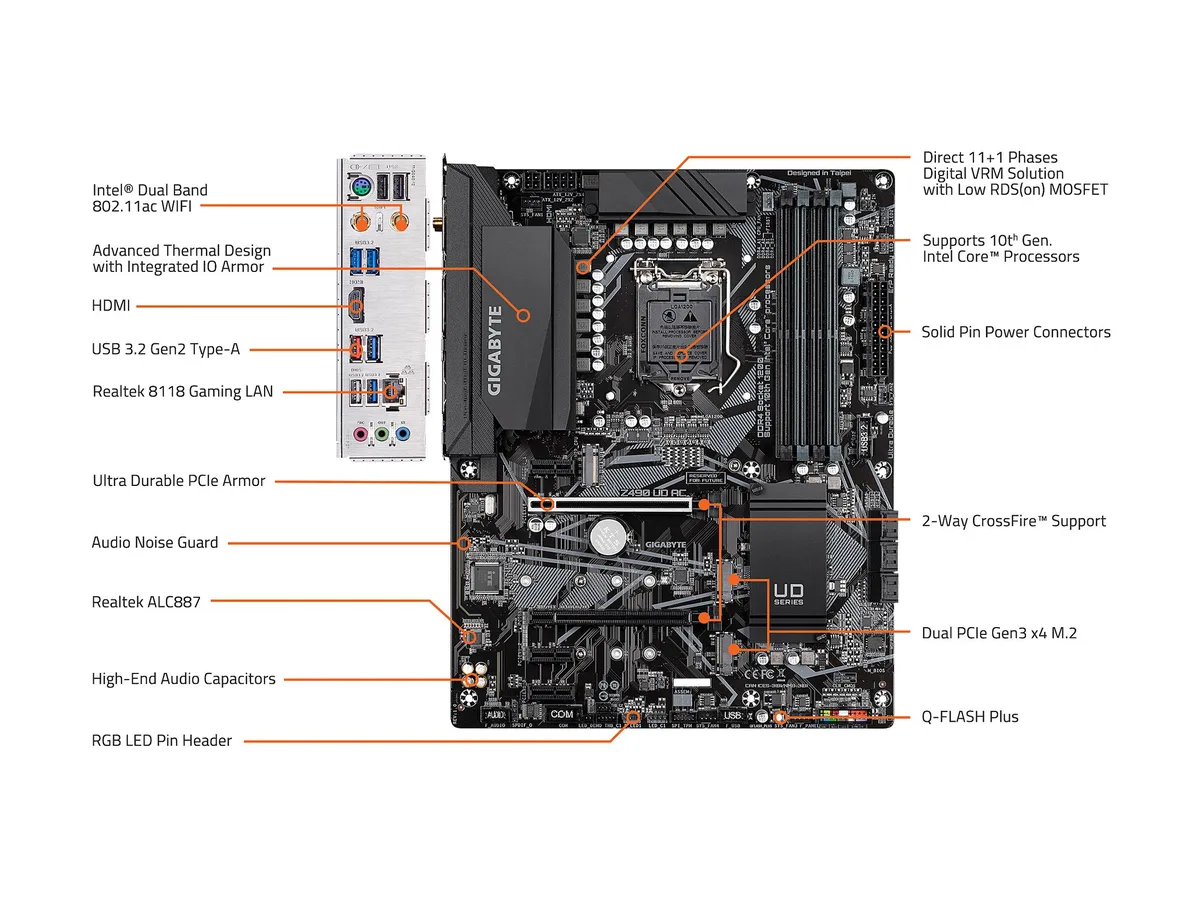

Direct 11+1 Phase VRM with Extended Heatsink

Power delivery uses 11+1 digital phases with DrMOS stages to maintain stable voltage during sustained heavy workloads. An extended MOS heatsink covers the VRM area to dissipate heat without relying on active cooling. This design helps the board sustain higher frequencies over long rendering or compilation sessions rather than only short benchmark runs. Realtek GbE LAN and Intel WiFi 802.11ac with Bluetooth 5 handle wired and wireless networking.

Upgrade from Non-Z Chipset or Older Socket

Moving from a B- or H-series board unlocks CPU overclocking and the more robust 11+1 phase power design. Builders on 8th or 9th Gen platforms gain 10th Gen support and the higher DDR4 speeds listed for Core i9 and i7 processors. The jump is worthwhile when you need the extra M.2 slot, the integrated high-gain antenna, or the ALC887 audio implementation for content creation. It does not suit buyers who need more than two M.2 slots or a newer socket generation.

Highlights

  • Supports 10th Gen Intel Core processors for modern performance
  • 11+1 phase digital VRM with DrMOS delivers stable power
  • Extended MOS heatsink keeps VRM temperatures low
  • Dual-channel DDR4 with four 288-pin slots enables high memory capacity
  • Intel WiFi 802.11ac and Bluetooth 5 with high-gain antenna provides wireless connectivity

Specifications

No published specifications for this item yet.

Questions about this item

Will this board run a Core i9 at DDR4-4500 speeds?

The board lists DDR4-4500 as an overclocked speed supported with Core i9 or i7 processors; actual stability depends on the memory kit and CPU sample.

Does the primary x16 slot share bandwidth with the M.2 slots?

The specification shows one PCI Express 3.0 x16 slot running at x16 and a second x16 slot running at x4; M.2 connectivity is not detailed in the supplied facts.

What wireless standard does the onboard module use?

The board includes Intel WiFi 802.11ac with Bluetooth 5 using a 1x1 antenna configuration and a supplied high-gain antenna.
