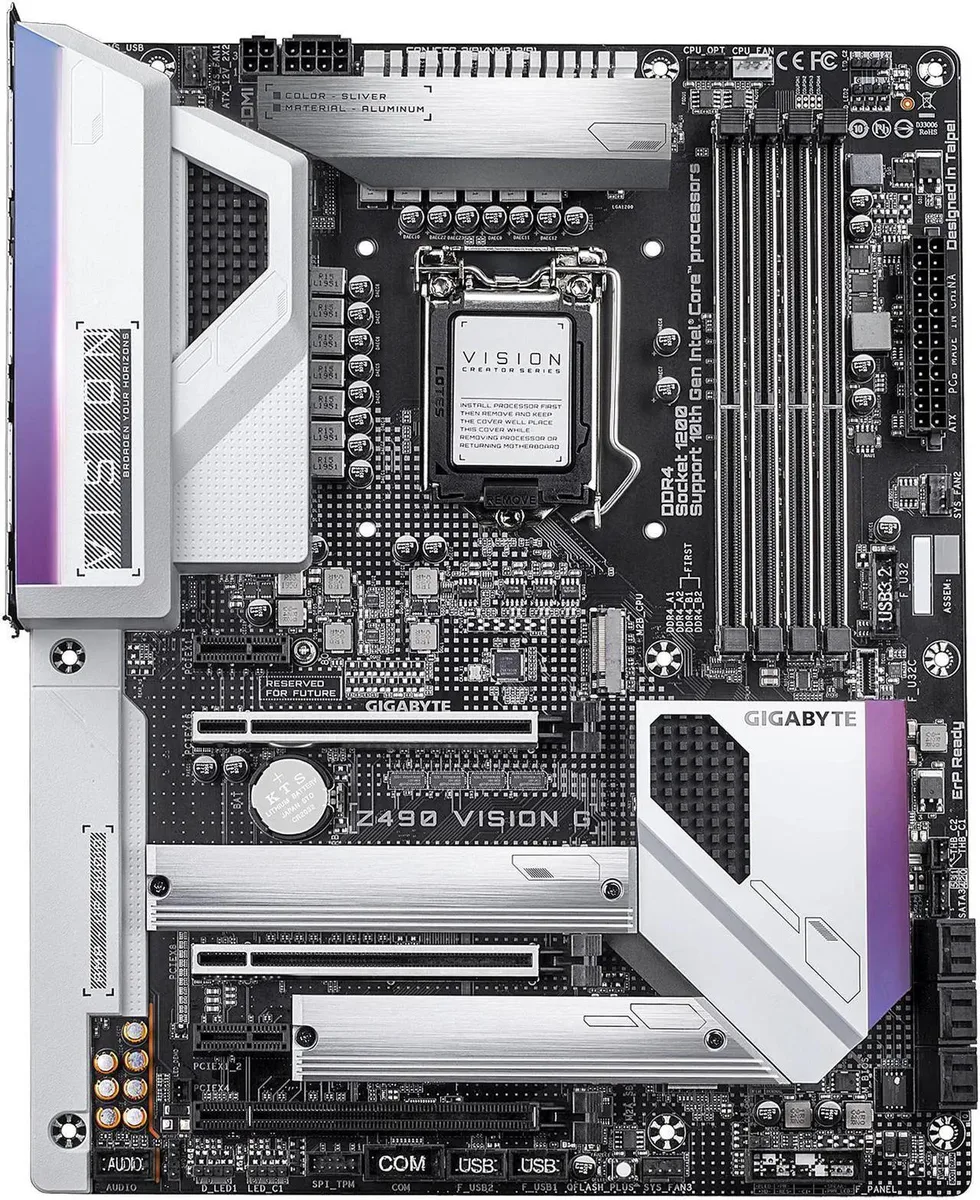

Rectangular ATX motherboard in silver and black with silver heatsinks, four DDR4 slots, two M.2 shields

GIGABYTE

GIGABYTE Z490 VISION G LGA 1200 Intel motherboard

SKU CH-DVQB-BBTVX

ATX board for 10th Gen Intel Core CPUs with dual M.2 slots, 2.5 GbE LAN, USB 3.2 Gen 2 ports and 128 GB DDR4 support

  • CPU Socket TypeLGA 1200
  • CPU TypeSupport for 10th Generation Intel Core i9 processors/Intel C
  • ChipsetIntel Z490
  • Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support: 1 x
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardIntel Core i9/i7 processors: Support for DDR4 5000(O.C.)/ 49
  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Direct 12+1 phase digital VRM with DrMOS for stable power delivery
  • Intel 2.5 GbE LAN provides 2.5 Gbps network throughput
  • Dual M.2 slots with thermal guards for high-speed storage expansion
  • Realtek ALC1220-VB audio delivers 114 dB rear and 110 dB front SNR

Z490 VISION G LGA 1200 Motherboard

The GIGABYTE Z490 VISION G is an ATX motherboard built around the Intel Z490 chipset for LGA 1200 processors. It supports 10th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron CPUs. A direct 12+1 phase digital VRM with DrMOS delivers stable power for demanding creative workloads.

Suited for content creators needing dual M.2

This board fits editors and designers who want two M.2 slots with thermal guards, six SATA 6Gb/s ports and Intel 2.5 GbE networking. Realtek ALC1220-VB audio provides 114dB rear and 110dB front SNR. Builds requiring integrated Wi-Fi or Bluetooth should consider other models.

Build foundation with DDR4 up to 128 GB

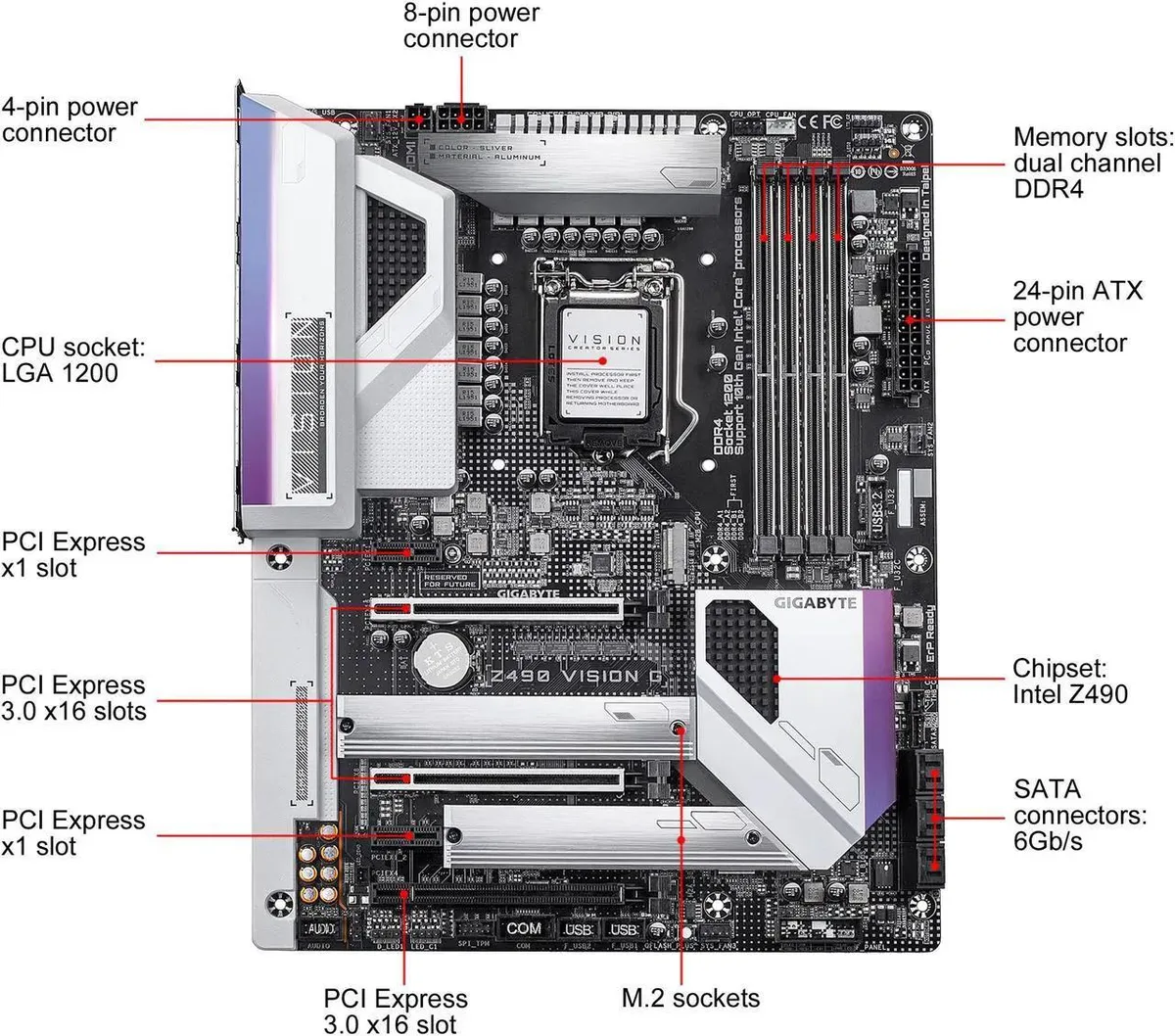

Four 288-pin DDR4 slots run dual-channel up to 128 GB with overclocked speeds reaching 5000 MT/s. The primary PCIe 3.0 x16 slot operates at x16, a second runs at x4, plus two x1 slots. Rear I/O includes HDMI 1.4, DisplayPort, three USB 3.2 Gen 2 Type-A, one Type-C, four USB 3.2 Gen 1 and two USB 2.0 ports. Q-Flash Plus updates BIOS without a CPU installed.

Highlights

  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Direct 12+1 phase digital VRM with DrMOS for stable power delivery
  • Intel 2.5 GbE LAN provides 2.5 Gbps network throughput
  • Dual M.2 slots with thermal guards for high-speed storage expansion
  • Realtek ALC1220-VB audio delivers 114 dB rear and 110 dB front SNR

Specifications

BrandGIGABYTE
ModelZ490 VISION G
CPU Socket TypeLGA 1200
CPU TypeSupport for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package
ChipsetIntel Z490
Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512MB
Number of Memory Slots4x288pin (DDR4)
Memory StandardIntel Core i9/i7 processors:
Support for DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
Intel Core i5/i3/ Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x12 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN ChipsetIntel 2.5GbE LAN chip
Max LAN Speed2.5Gbps
Back I/O Ports2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
4 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 2 Type-A ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x RJ-45 port
6 x audio jacks
Onboard USB1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Suppo

Questions about this item

What 10th Gen Intel Core processor socket must I already have to use this board?

The board requires an LGA 1200 processor such as a Core i9, i7, i5, i3, Pentium or Celeron in that package.

Will my existing SATA 6Gb/s drives and DDR4 memory work with the Z490 chipset?

Yes, the board provides six SATA 6Gb/s ports and four DDR4 slots supporting up to 128 GB in dual-channel mode.

How can I confirm the 2.5 GbE LAN is running at full speed after setup?

Check the network adapter status in Windows or your OS; it should report a 2.5 Gbps link speed when connected to a 2.5 GbE switch or router.
