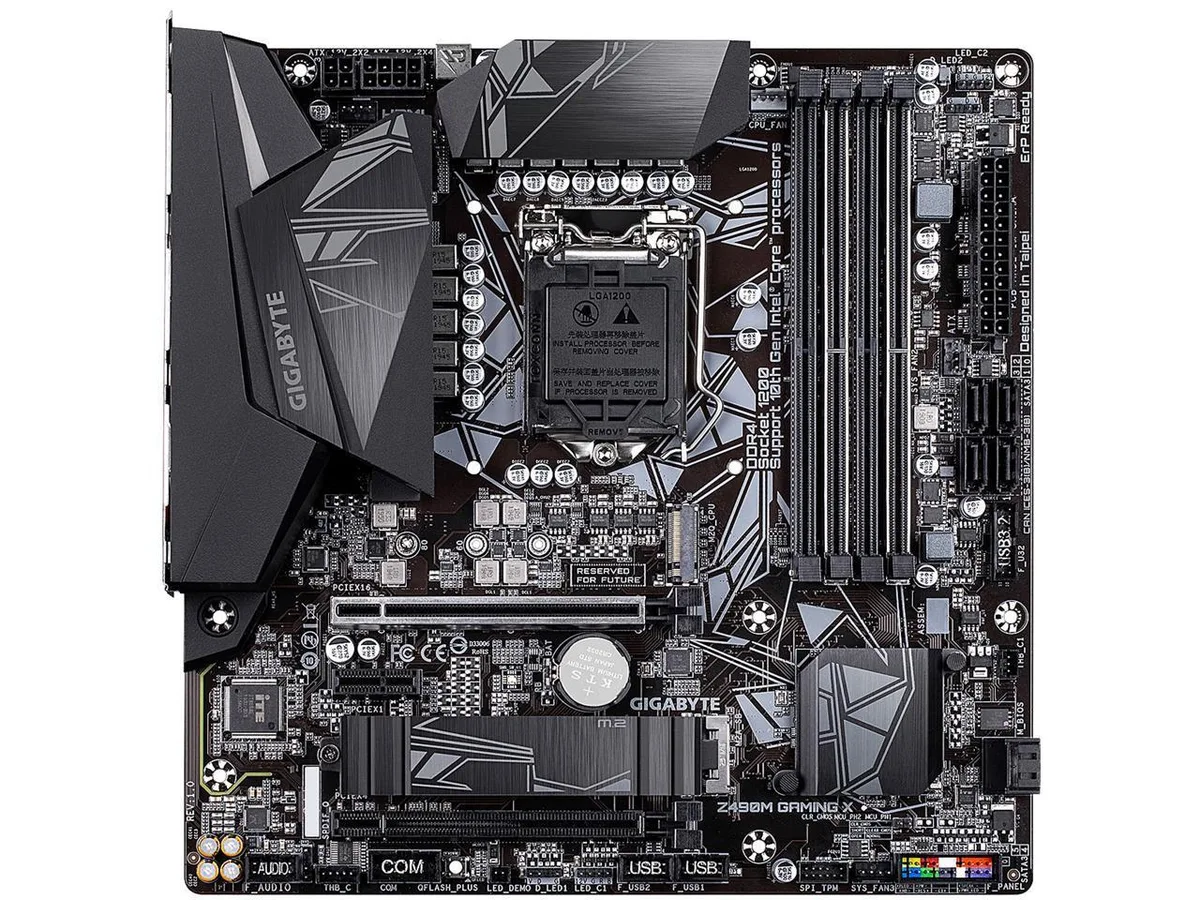

Micro-ATX motherboard dark PCB silver heatsinks rear I/O shield

GIGABYTE

GIGABYTE Z490M GAMING X Intel motherboard

SKU CH-4Y35-0J3PS

Micro-ATX Z490 board for 10th Gen Intel CPUs, 128 GB DDR4, 11+1 phase VRM with DrMOS and heatsink, M.2 thermal guard, Intel 1 GbE LAN, Realtek ALC1200 7.1 audio, RGB Fusion 2.0

  • CPU Socket TypeLGA 1200
  • CPU TypeSupport for 10th Generation Intel Core i9 processors/Intel C
  • ChipsetIntel Z490
  • Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support: 1 x
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardSupport for DDR4 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.
  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Direct 11+1 phase digital VRM with DrMOS stages for stable power delivery
  • Extended MOS heatsink cools VRM area under heavy loads
  • Four DDR4 slots support up to 128 GB dual-channel memory
  • Intel I219-V gigabit LAN plus USB 3.2 Gen 2 Type-A and Type-C ports

Micro-ATX Z490 for 10th Gen Intel

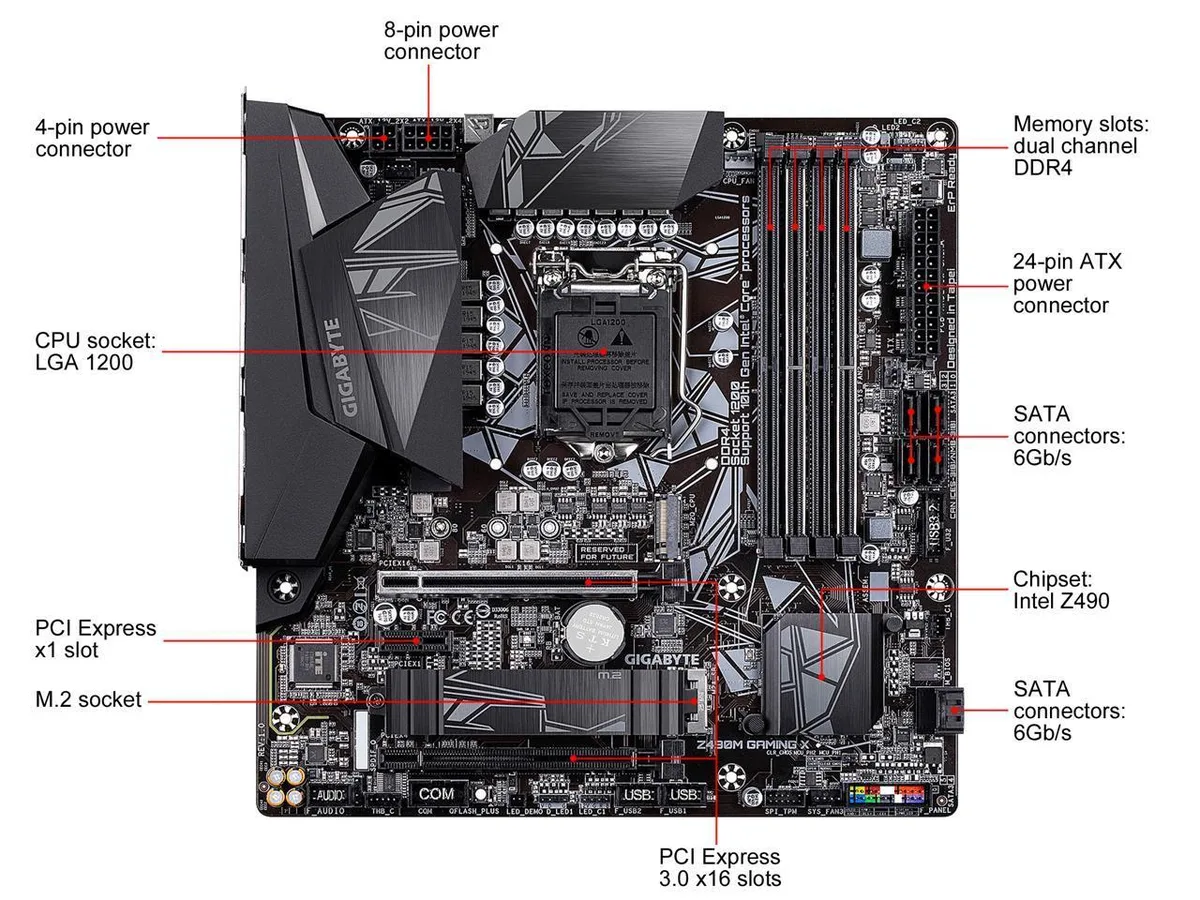

The GIGABYTE Z490M GAMING X fits a Micro-ATX chassis and takes 10th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron processors in the LGA 1200 socket. The Intel Z490 chipset provides a 1 x PCI Express 3.0 x16 slot and a 1 x PCI Express x1 slot for expansion cards. It is built for compact gaming or workstation builds.

128 GB DDR4 across four slots

Four 288-pin DDR4 slots support up to 128 GB in dual-channel mode. JEDEC speeds include 2933 and 3200; a long list of overclocked steps reaches 4400. The board also offers 6 x SATA 6Gb/s ports and one M.2 Socket 3 M key connector accepting 2242, 2260, 2280 and 22110 SATA and PCIe x4/x2 SSDs.

DisplayPort 1.4 and HDMI for integrated graphics

The rear I/O includes DisplayPort 1.4 with HDCP 2.3 and HDR, driving up to 4096x2304 at 60 Hz, plus an HDMI port. Networking uses an Intel I219-V 1 Gbps LAN controller. Audio is handled by a Realtek ALC1200 codec with 2, 4, 5.1 and 7.1-channel output and S/PDIF. Rear USB provides 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C and 4 x USB 3.2 Gen1.

Highlights

  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Direct 11+1 phase digital VRM with DrMOS stages for stable power delivery
  • Extended MOS heatsink cools VRM area under heavy loads
  • Four DDR4 slots support up to 128 GB dual-channel memory
  • Intel I219-V gigabit LAN plus USB 3.2 Gen 2 Type-A and Type-C ports

Specifications

BrandGIGABYTE
ModelZ490M GAMING X
CPU Socket TypeLGA 1200
CPU TypeSupport for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package
ChipsetIntel Z490
Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Maximum shared memory of 512MB
Number of Memory Slots4x288pin (DDR4)
Memory StandardSupport for DDR4 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz memory modules
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x11 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1200
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard/mouse port
4 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x RJ-45 port
6 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported fu

Questions about this item

Will my existing DDR4 memory modules work with the four 288-pin slots on this Z490M GAMING X board?

The board accepts DDR4 memory up to 128 GB across four slots running in dual-channel mode, with supported speeds from 2933 MT/s up to 4400 MT/s when overclocked.

How can I verify the Intel I219-V LAN controller is running at its full 1 Gbps link speed after installation?

Check the network adapter properties in the operating system or the router status page; both should report a 1 Gbps full-duplex connection when the cable and switch support it.

Which cables or adapters must I buy separately to use the M.2 slot and the six SATA 6Gb/s ports?

The M.2 slot takes 2242, 2260, 2280 or 22110 form-factor drives and includes a thermal guard; SATA data and power cables for up to six drives are not included.
