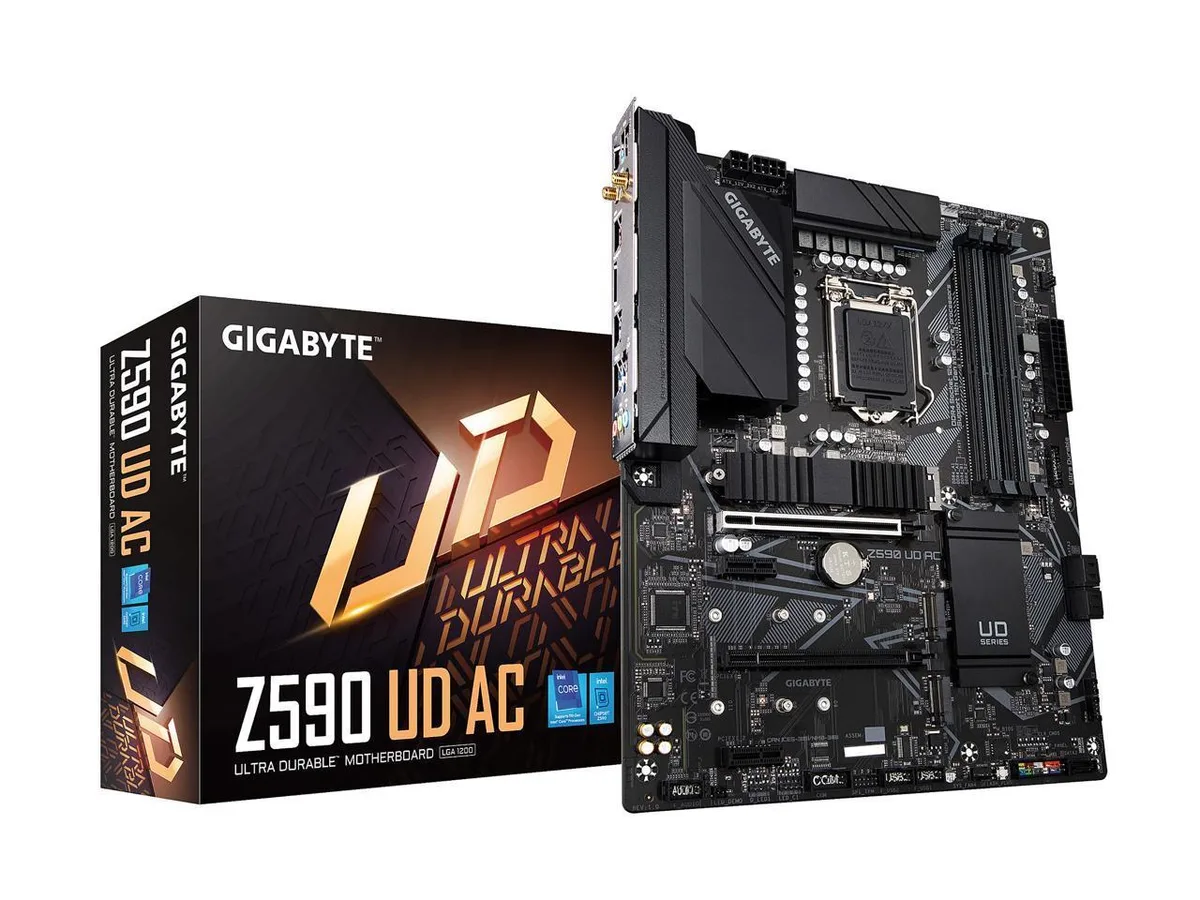

Black ATX motherboard with large silver heatsinks and rear I/O shield visible

GIGABYTE

GIGABYTE Z590 UD AC Intel motherboard

SKU CH-4GS3-FMR5G

Supports 10th and 11th Gen Intel Core processors with 12+1 phase VRM, triple M.2 slots, 2.5GbE LAN, and Intel 802.11ac Wi-Fi

  • CPU TypeIntel Core 11th Gen (LGA 1200)
  • Stable power delivery for 11th Gen Intel Core with 12+1 phase 50A DrMOS VRM
  • Faster wired networking via 2.5GbE LAN with bandwidth management
  • Wireless freedom using Intel 802.11ac Wi-Fi and Bluetooth with high-gain antenna
  • Three NVMe PCIe 4.0 M.2 slots with thermal guards for speedy storage
  • Quick BIOS updates without CPU or memory installed using Q-Flash Plus

Intel Z590 ATX Motherboard

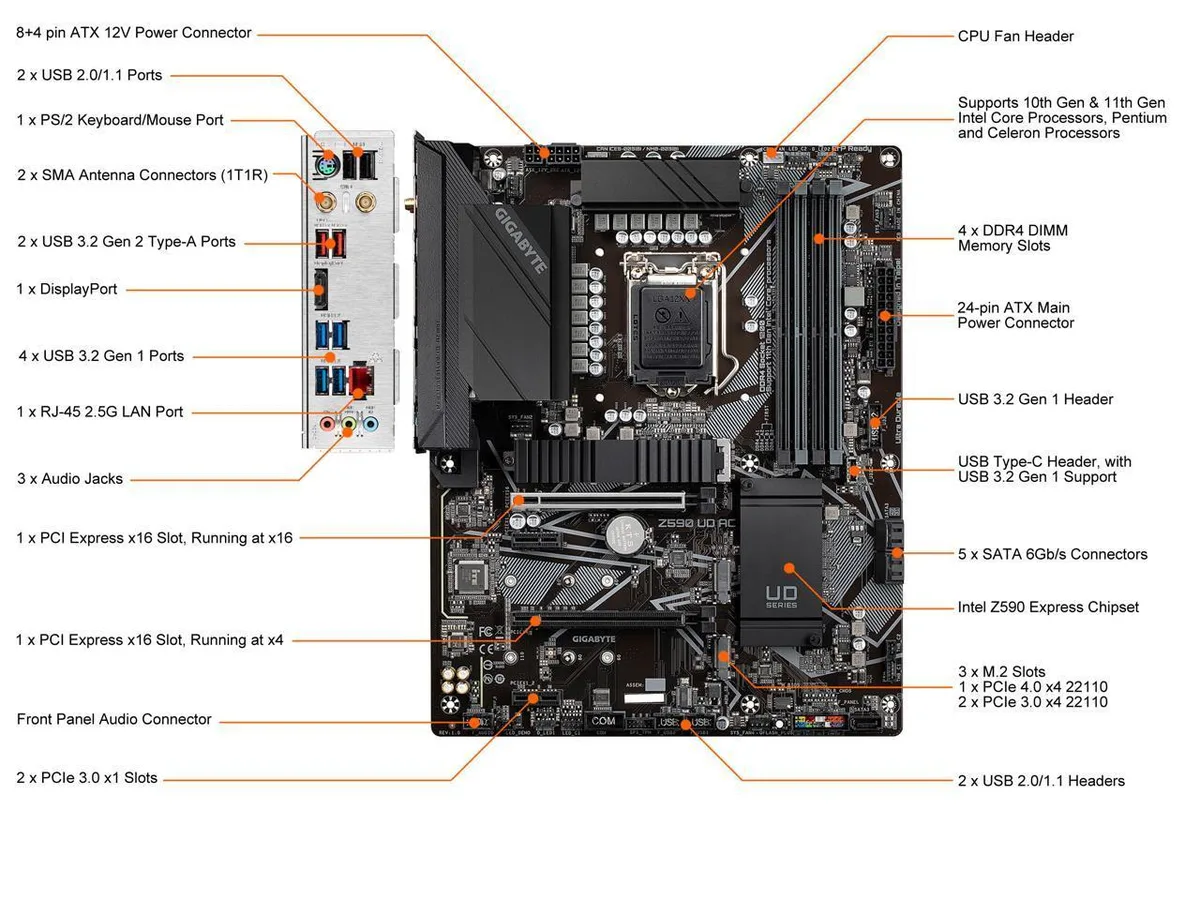

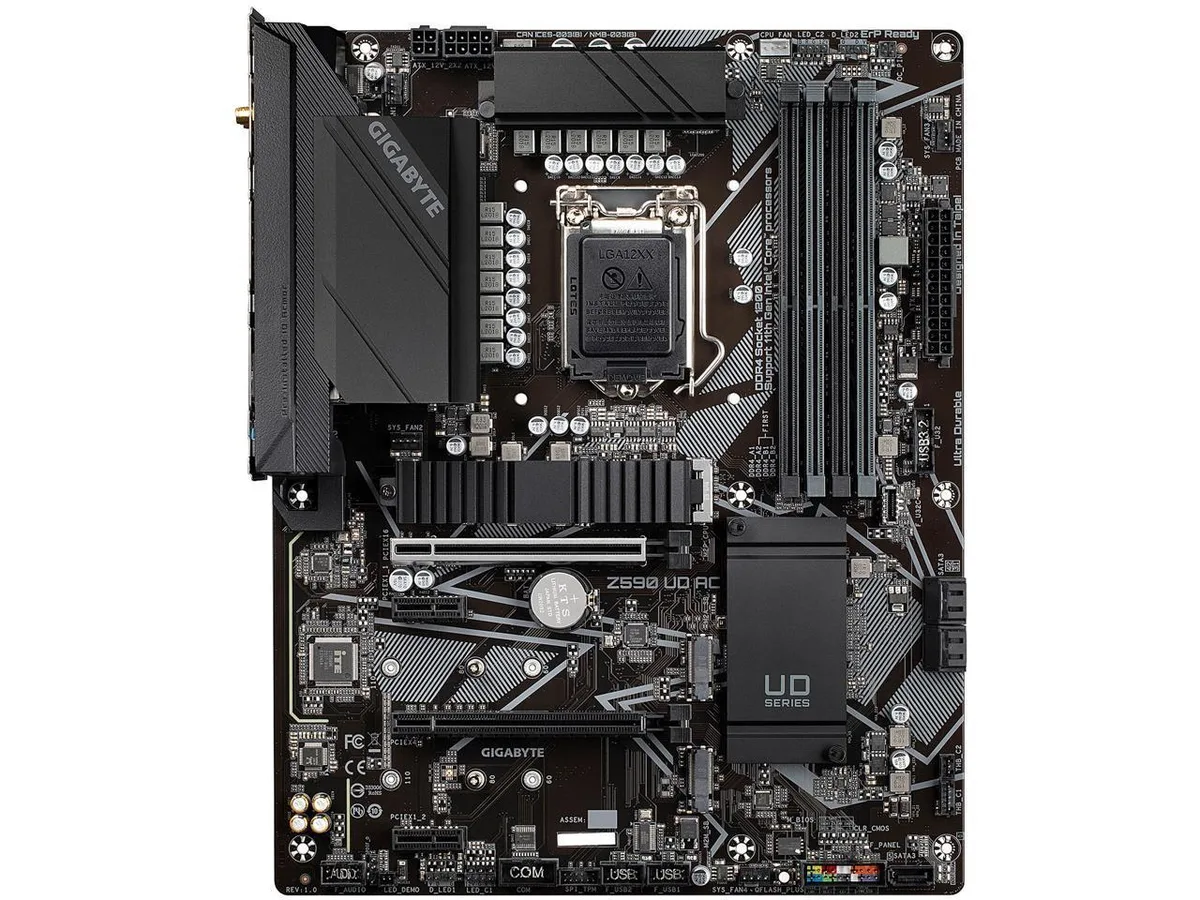

This ATX motherboard uses the Intel Z590 chipset and LGA 1200 socket to support 11th and 10th Generation Intel Core processors. It provides four DDR4 DIMM slots in a dual-channel layout and a direct 12+1 phase digital VRM with 50A DrMOS for stable power delivery. An enlarged heatsink with air-flow grooving cools the VRM area while shielded memory routing helps with memory overclocking.

Connectivity and Expansion

The board includes triple M.2 slots that run at PCIe 4.0 or 3.0 x4 speeds, each fitted with a thermal guard for NVMe drives. Networking is handled by a 2.5GbE LAN port and onboard Intel 802.11ac Wi-Fi with Bluetooth and a high-gain antenna. USB 3.2 Gen 2 ports and a front-panel USB Type-C header add fast peripheral connections, while RGB Fusion 2.0 supports addressable and standard RGB strips.

BIOS Update Without Components

Q-Flash Plus allows the BIOS to be updated without installing a CPU, memory or graphics card, which is useful for builders preparing the board for a newer processor. Smart Fan 6 uses multiple temperature sensors and hybrid fan headers with a fan-stop function for quiet operation. A pre-installed I/O shield simplifies installation in the case.

Highlights

  • Stable power delivery for 11th Gen Intel Core with 12+1 phase 50A DrMOS VRM
  • Faster wired networking via 2.5GbE LAN with bandwidth management
  • Wireless freedom using Intel 802.11ac Wi-Fi and Bluetooth with high-gain antenna
  • Three NVMe PCIe 4.0 M.2 slots with thermal guards for speedy storage
  • Quick BIOS updates without CPU or memory installed using Q-Flash Plus

Specifications

CPU TypeIntel Core 11th Gen (LGA 1200)

Questions about this item

How can I verify the 12+1 phase 50A DrMOS VRM is working after setup?

Enter the BIOS to confirm the CPU is detected and voltages read normally, then use Smart Fan 6 to check that VRM temperature sensors report stable values under load.

What ships in the box and what must I buy separately?

The board arrives with a pre-installed I/O shield, a high-gain antenna for the onboard Intel 802.11ac wireless and Bluetooth module, and a driver disc; you must supply an LGA 1200 processor, DDR4 memory, NVMe M.2 drives, and a graphics card if your CPU lacks integrated graphics.

Which M.2 slot should I use first for a PCIe 4.0 NVMe drive?

All three M.2 slots support PCIe 4.0 x4 and 3.0 x4 NVMe drives with Thermal Guard; choose the slot that best fits your cooler clearance and cable routing.
