Silver extended ATX board, black heatsinks, white PCB accents, four DDR5 slots, dual PCIe 5.0 x16, rear I/O shield

GIGABYTE

GIGABYTE Z690 AERO D Intel motherboard

SKU CH-8EZS-3T0KP

Extended ATX motherboard for 12th and 13th Gen Intel Core CPUs with DDR5 memory, PCIe 5.0, four M.2 slots, 10 GbE and 2.5 GbE LAN, WiFi 6, and Thunderbolt 4

  • CPU Socket TypeLGA 1700 * Dedicated LGA1700 mounting bracket is required.
  • CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron P
  • ChipsetIntel Z690
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) /
  • Supports 12th and 13th Gen Intel Core processors with LGA 1700 socket
  • DDR5 memory up to 6400 MHz overclocked across four slots for 128 GB capacity
  • PCIe 5.0 x16 slots deliver high bandwidth for modern graphics cards
  • Quad M.2 connectors with PCIe 4.0 x4 support fast NVMe storage expansion
  • Dual LAN with 10 Gbps and 2.5 Gbps plus WiFi 6 for versatile networking

Socket LGA 1700 DDR5 motherboard

The GIGABYTE Z690 AERO D is an Extended ATX board built on the Intel Z690 chipset for LGA 1700 processors. It accepts 12th and 13th Gen Intel Core, Pentium Gold and Celeron CPUs and runs dual-channel DDR5 up to 6400 MT/s over four slots. A dedicated LGA 1700 mounting bracket is required for cooler installation.

Creators and high-speed networking

Four M.2 sockets and six SATA 6 Gb/s ports give ample room for NVMe and SATA storage, while twin PCIe 5.0 x16 slots support modern graphics cards. Onboard networking combines a 10 Gbps Marvell AQtion controller with a 2.5 Gbps Intel LAN port and WiFi 6, suiting video editors and data-heavy workflows. Builds that need only a single 1 GbE link or lack an LGA 1700 bracket should consider simpler platforms.

Quad M.2 PCIe 4.0 x4

The chipset provides two M.2 connectors and the CPU provides one more, each wired for PCIe 4.0 x4 speeds with support for 2260, 2280 and 22110 form factors. A fourth M.2 slot shares bandwidth with other interfaces, so populating all four may reduce throughput on the shared device.

Highlights

  • Supports 12th and 13th Gen Intel Core processors with LGA 1700 socket
  • DDR5 memory up to 6400 MHz overclocked across four slots for 128 GB capacity
  • PCIe 5.0 x16 slots deliver high bandwidth for modern graphics cards
  • Quad M.2 connectors with PCIe 4.0 x4 support fast NVMe storage expansion
  • Dual LAN with 10 Gbps and 2.5 Gbps plus WiFi 6 for versatile networking

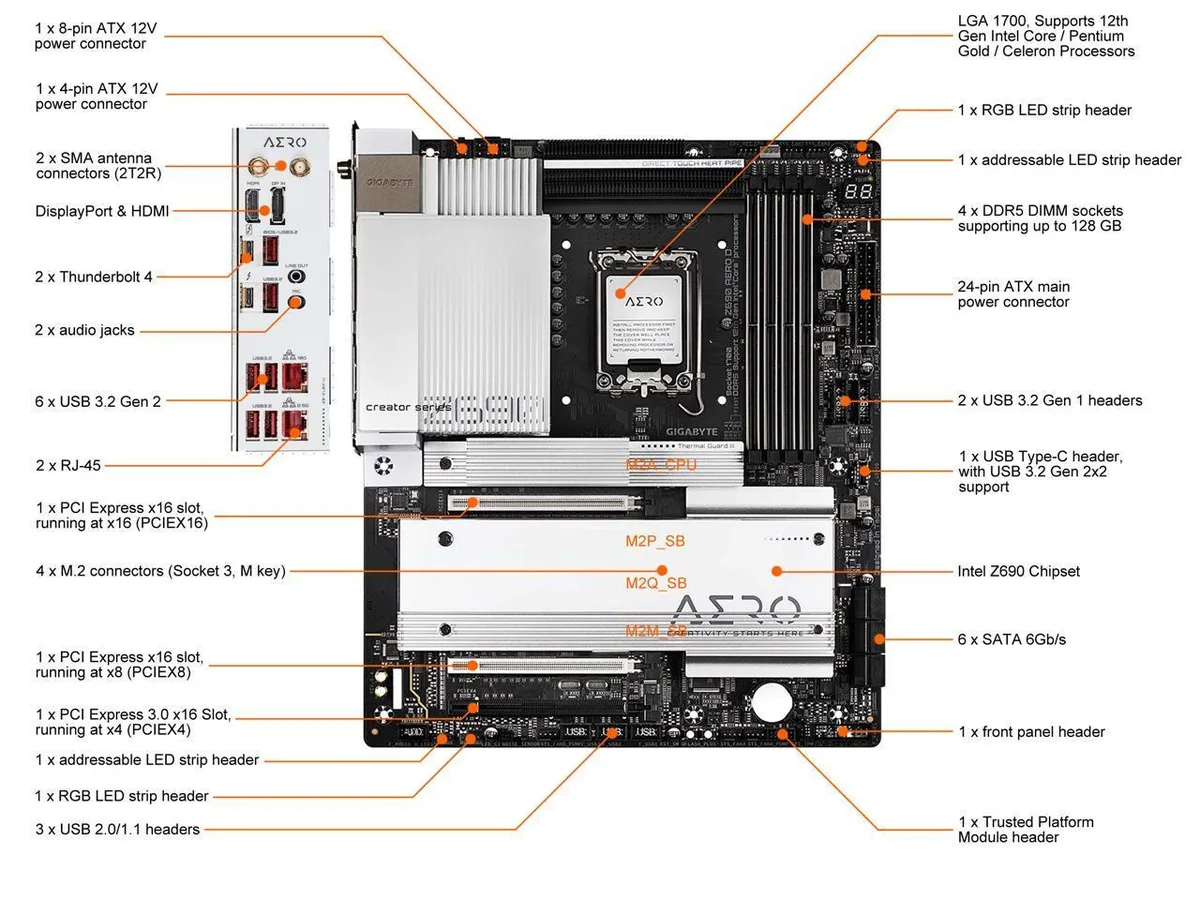

Specifications

BrandGIGABYTE
ModelZ690 AERO D
CPU Socket TypeLGA 1700
* Dedicated LGA1700 mounting bracket is required.
CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
ChipsetIntel Z690
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 5.0 x162 x PCI Express 5.0 x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
PCI Express 3.0 x161 x PCI Express 3.0 x16
* Running at x4.
Serial ATA (SATA)6 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
Intel Optane ReadyYes
* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Audio ChipsetRealtek ALC4080 codec (rear panel audio)
Realtek ALC897 codec (front panel audio)
Audio Channels2 Channels
LAN ChipsetMarvell AQtion AQC113C
Second LAN ChipsetIntel 2.5GbE LAN chip
Max LAN Speed10Gbps + 2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.2

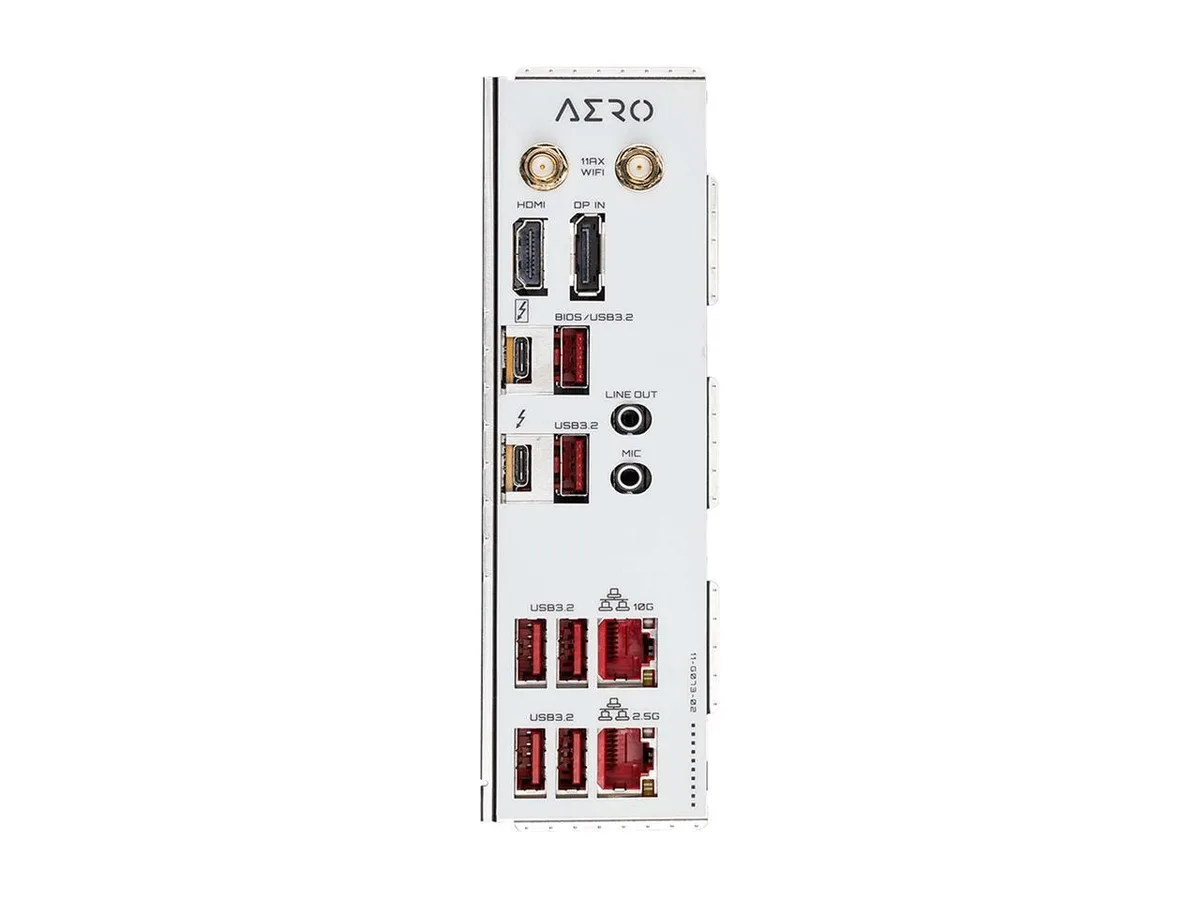

Back I/O Ports2 x SMA antenna connectors (2T2R)
1 x DisplayPort In port
1 x HDMI port
2 x Thunderbolt 4 connectors (USB Type-C port, with USB 3.2 Gen 2 support)
6 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
2 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
3 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
3 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Windows 11Supported
Form FactorExtended ATX
LED LightingRGB
Dimensions (W x L)12.0" x 10.2"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
FeaturesMulti-Graphics Technology
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may var

Questions about this item

Do I need a specific cooler bracket for the LGA 1700 socket on this board?

Yes, a dedicated LGA 1700 mounting bracket is required for the CPU cooler.

What DDR5 speeds can I run on this motherboard?

The board supports DDR5 from 4800 up to 6400 MT/s when overclocked, with a maximum capacity of 128 GB across four slots.

How many M.2 drives can I install and what speeds do they use?

Four M.2 slots are available, all supporting PCIe 4.0 x4 or x2 NVMe SSDs in 2260, 2280 or 22110 form factors.
