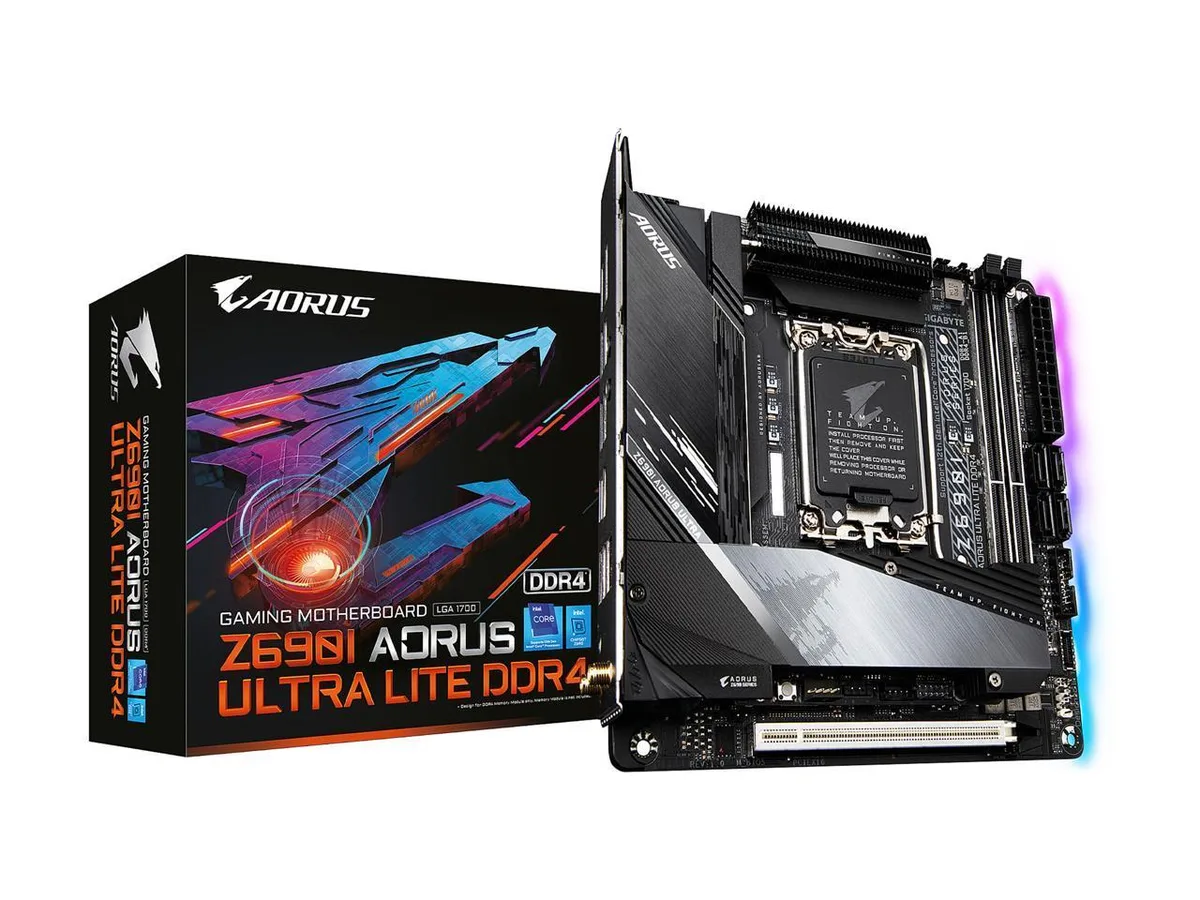

Compact Mini ITX motherboard, dark PCB with silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE Z690I AORUS ULTRA LITE DDR4 rev. 1.0 Intel motherboard

SKU CH-DGH7-BBV42

Mini ITX board for 12th Gen Intel CPUs with DDR4 memory, dual NVMe M.2 slots, 2.5 GbE LAN, Wi-Fi 6 and USB 3.2 Gen 2x2 Type-C

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 12th Gen (LGA 1700)
  • ChipsetIntel Z690
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 5333(OC) / 5133(OC) / 5000(OC) / 4933(OC) / 4800(OC) /
  • Supports 12th Gen Intel Core processors via LGA 1700 socket
  • 10+2+1 phase digital VRM with 105A power stages on 10-layer PCB
  • Dual-channel DDR4 up to 64GB with OC speeds to 5333 MT/s
  • Dual M.2 slots for PCIe 4.0 x4 NVMe and USB 3.2 Gen 2x2 Type-C
  • Intel Wi-Fi 6 AX201, 2.5GbE LAN and Bluetooth 5.2

Compact Z690 platform for 12th Gen Intel

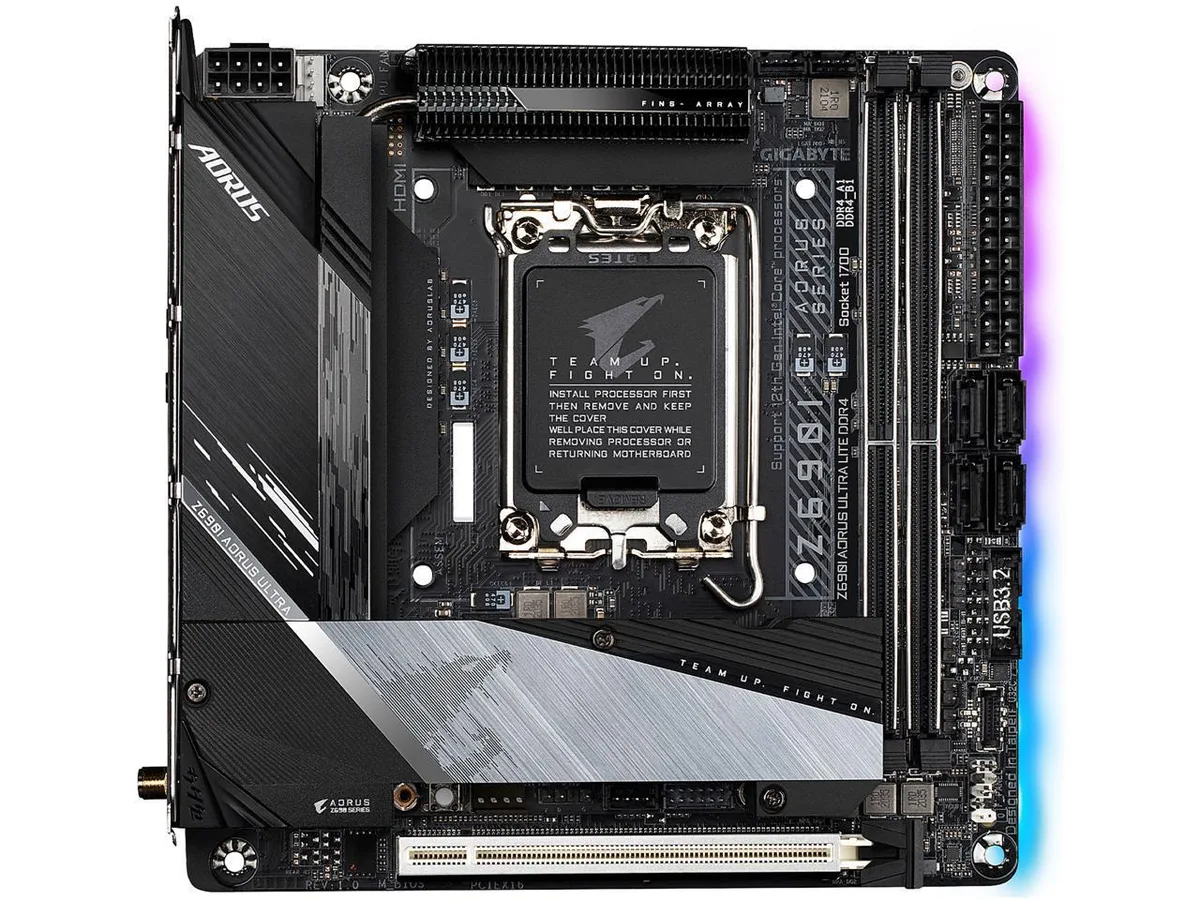

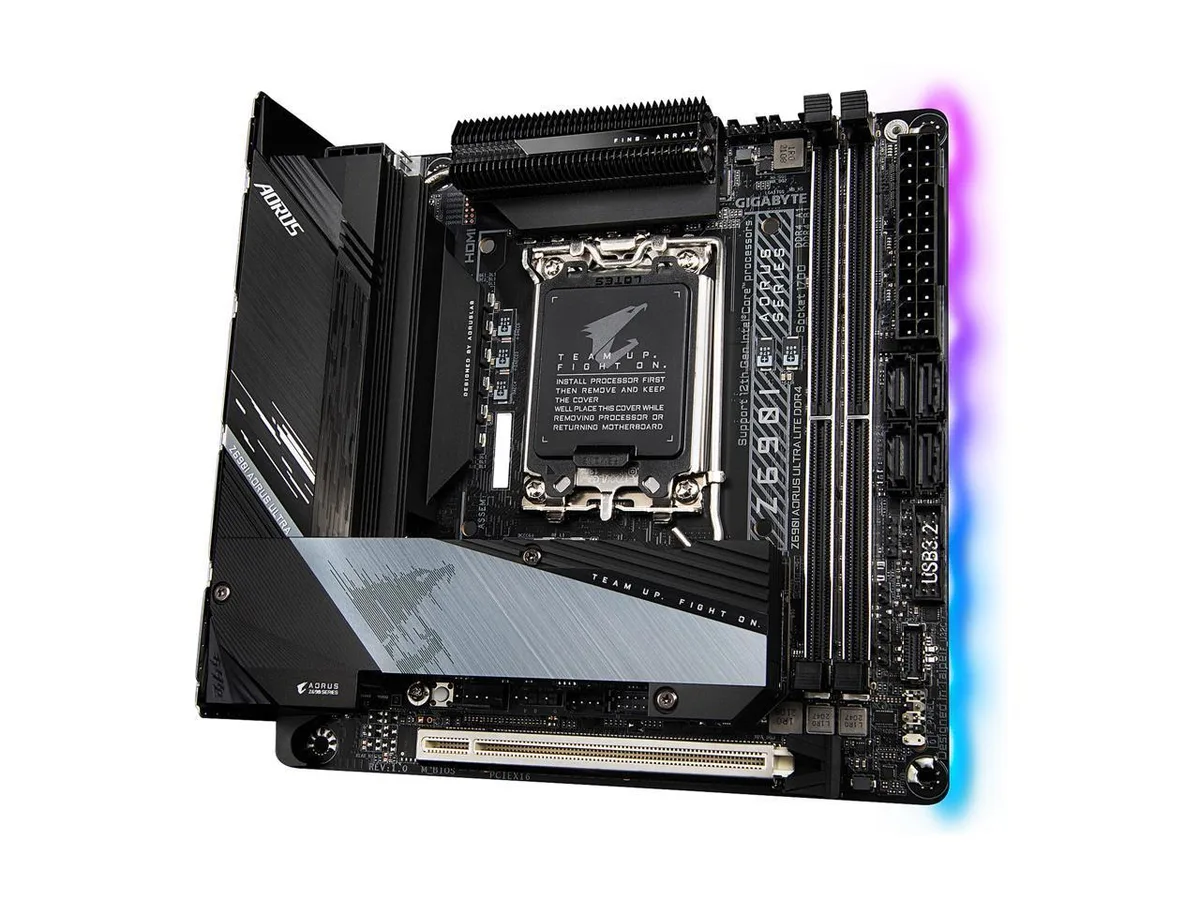

This Mini ITX board fits the LGA 1700 socket and supports 12th Gen Core processors with dual-channel DDR4 up to 64 GB. It provides one PCIe 3.0 x16 slot, four SATA 6Gb/s ports and two M.2 sockets for PCIe 4.0 x4 storage. Rear I/O includes 2.5 GbE LAN, Wi-Fi 6 AX201, Bluetooth 5.2, USB 3.2 Gen 2x2 Type-C and video outputs for CPUs with integrated graphics.

10+2+1 phase digital VRM with 105A stages

The 10+2+1 phase digital VRM uses 105A power stages on a 10-layer PCB to deliver stable current during extended workloads. This design keeps voltage regulation tight when all cores run at high frequency for long periods, reducing throttling risk in a small chassis. The board also supports memory speeds up to 5333 MT/s OC for sustained bandwidth.

Advanced thermal guards and Smart Fan 6

Fins Array II heatsinks and Thermal Guards III cover the VRM and M.2 slots to dissipate heat without large fans. Smart Fan 6 adjusts fan curves based on multiple temperature sensors, keeping noise low during typical desktop use while providing headroom for heavy loads. The 10-layer PCB further spreads heat across the board.

Highlights

  • Supports 12th Gen Intel Core processors via LGA 1700 socket
  • 10+2+1 phase digital VRM with 105A power stages on 10-layer PCB
  • Dual-channel DDR4 up to 64GB with OC speeds to 5333 MT/s
  • Dual M.2 slots for PCIe 4.0 x4 NVMe and USB 3.2 Gen 2x2 Type-C
  • Intel Wi-Fi 6 AX201, 2.5GbE LAN and Bluetooth 5.2

Specifications

BrandGIGABYTE
ModelZ690I AORUS ULTRA LITE DDR4 (rev. 1.0)
CPU Socket TypeLGA 1700
CPU TypeIntel Core 12th Gen (LGA 1700)
ChipsetIntel Z690
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 5333(OC) / 5133(OC) / 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Intel Optane ReadyIntel Optane Memory Ready
* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Audio ChipsetRealtek ALC4080
Audio Channels2 Channels
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6 AX201
WIFI a/b/g/n/ac/ax
BluetoothBluetooth 5.2
Back I/O Ports2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header(Note 1)
(Note 1) The connector is on the front of GC-Z690I BTB PLUG.
Other Connectors1 x external power connector(Note 1)
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1))
1 x addressable LED strip header(Note 1)
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x reset button(Note 1)
1 x reset jumper
1 x Clear CMOS jumper
(Note 1) The connector is on the front of GC-Z690I BTB PLUG.
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Windows 11Ready
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Questions about this item

How much heat does the 10+2+1 phase VRM with 105A power stages produce under sustained load?

The 10-layer PCB and Fins Array II thermal guards spread heat from the digital VRM, while Smart Fan 6 lets you tune fan curves to keep temperatures in check during all-day workloads.

Which cooler mounting hardware is required for the LGA 1700 socket on this board?

Only coolers that include or offer a dedicated LGA 1700 mounting kit will fit the socket on this motherboard.

Can I keep using my existing DDR4 modules with the two 288-pin slots on this Z690 board?

Yes, the board runs dual-channel DDR4 up to 64 GB and supports a wide range of overclocked speeds from 3466 MT/s to 5333 MT/s with compatible kits.
