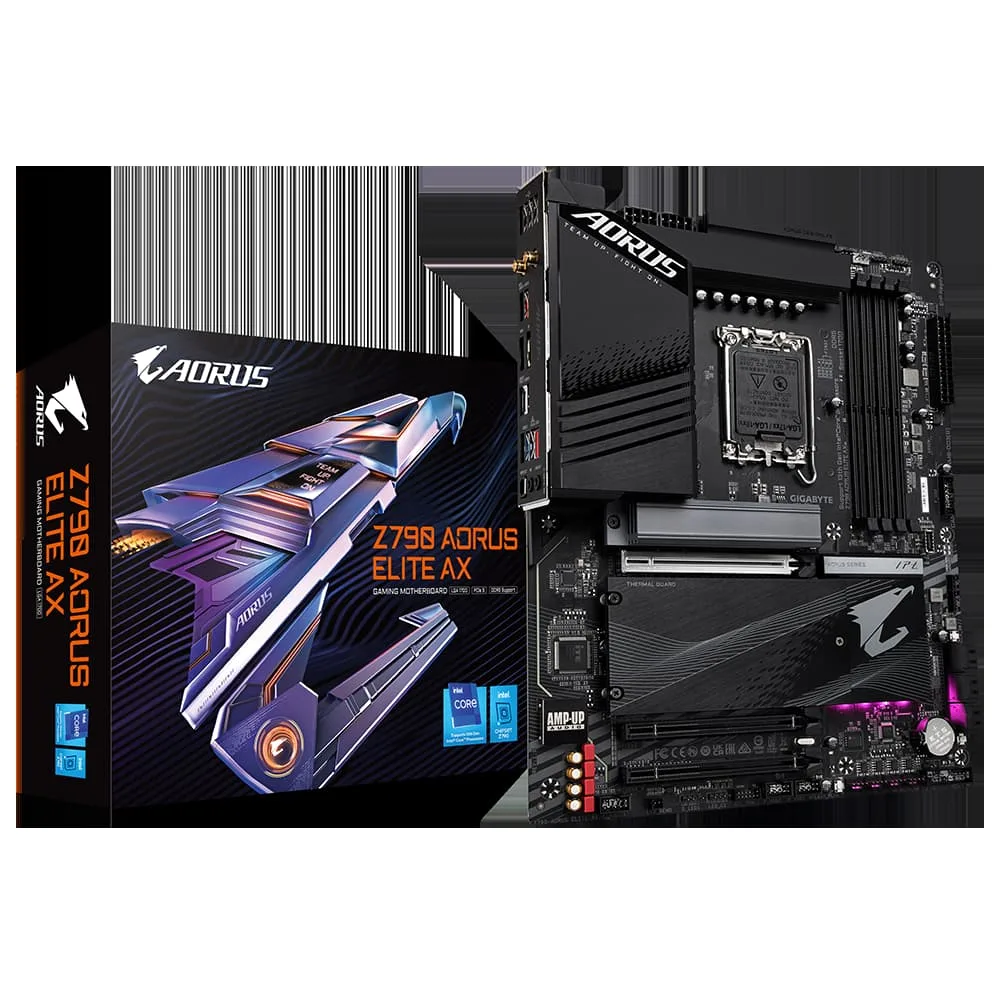

Rectangular black motherboard with silver heatsinks and LGA1700 socket

GIGABYTE

GIGABYTE Z790 AORUS ELITE AX DDR5 WIFI 6E 2.5GB Lan LGA1700 Intel motherboard

SKU CH-Q0XV-HQ6DZ

Supports 12th and 13th Gen Intel CPUs with DDR5 up to 7600 MHz, Wi-Fi 6E and 2.5 GbE LAN

  • Supports 12th and 13th Gen Intel Core processors on LGA1700 socket
  • Intel Z790 Express chipset enables advanced overclocking and connectivity features
  • DDR5 memory support up to 7600 MT/s overclocked across four DIMM slots
  • Dual video outputs include HDMI 2.0 and DisplayPort 1.2 for 4K 60 Hz displays
  • Integrated WIFI 6E and 2.5 GbE LAN for high-speed wired and wireless networking

Platform foundation

The Gigabyte Z790 Aorus Elite AX is an Intel motherboard built around the Z790 Express Chipset and the LGA1700 socket. It accepts 12th and 13th Generation Intel Core, Pentium Gold and Celeron processors. Four DDR5 DIMM slots support up to 128 GB of system memory with a single module limit of 32 GB. Dual channel architecture and XMP support are provided for memory tuning.

Memory and connectivity focus

This board suits builders who want high frequency DDR5 memory support with speeds ranging from 4000 up to 7600 O.C. and integrated wireless networking via WIFI 6E plus 2.5 GbE LAN. It is not intended for buyers who need ECC error correction active, as supported ECC un-buffered modules operate in non ECC mode only.

Display output specification

The rear panel provides one HDMI port compliant with version 2.0 and HDCP 2.3, supporting 4096x2160 at 60 Hz, and one DisplayPort compliant with version 1.2 and HDCP 2.3, supporting 4096x2304 at 60 Hz. These outputs rely on the installed processor integrated graphics and specifications may vary depending on CPU support.

Highlights

  • Supports 12th and 13th Gen Intel Core processors on LGA1700 socket
  • Intel Z790 Express chipset enables advanced overclocking and connectivity features
  • DDR5 memory support up to 7600 MT/s overclocked across four DIMM slots
  • Dual video outputs include HDMI 2.0 and DisplayPort 1.2 for 4K 60 Hz displays
  • Integrated WIFI 6E and 2.5 GbE LAN for high-speed wired and wireless networking

Specifications

No published specifications for this item yet.

Questions about this item

Will my 13th generation Intel Core processor fit this LGA1700 socket?

Yes, the board supports 13th and 12th generation Intel Core, Pentium Gold and Celeron processors in the LGA1700 socket

What is the maximum amount of DDR5 memory I can install across the four DIMM slots?

Four slots support up to 128 GB total with a 32 GB limit per single DIMM

Which display outputs are available for the processor integrated graphics?

One HDMI 2.0 port up to 4096x2160@60 Hz and one DisplayPort 1.2 up to 4096x2304@60 Hz
