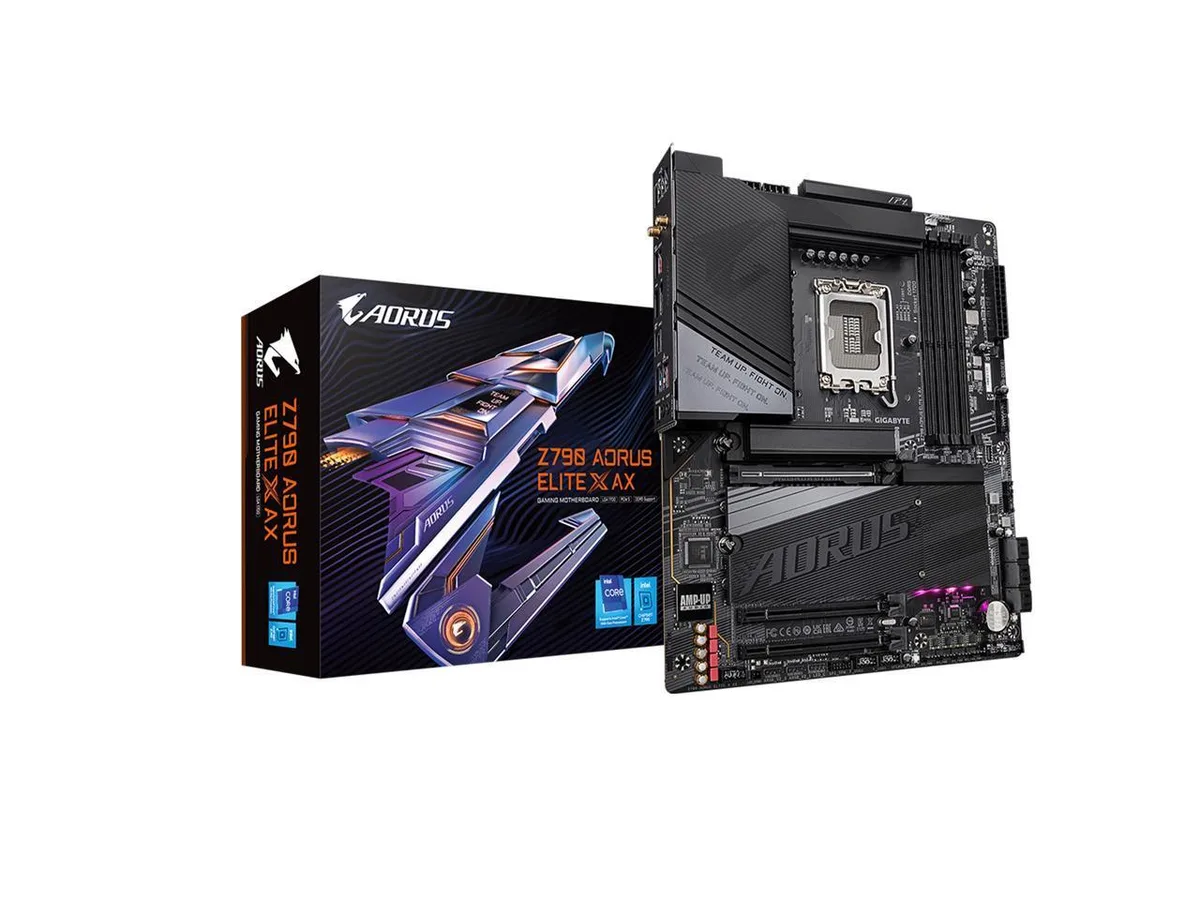

Rectangular ATX board, dark grey VRM heatsinks, silver M.2 shields, black PCB

GIGABYTE

GIGABYTE Z790 AORUS ELITE X AX Intel motherboard

SKU CH-XS81-612CB

ATX board for 13th and 14th gen Intel CPUs with DDR5 up to 192 GB, four PCIe 4.0 M.2 slots, 2.5 GbE LAN, Wi-Fi 6E and BLUETOOTH 5.3

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel LGA 1700 Socket: Supports 13th and next-gen processors
  • ChipsetIntel Z790 Express Chipset
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.
  • Maximum Memory Supported192GB
  • Supports 13th and 14th gen Intel CPUs on LGA 1700 socket
  • Four DDR5 DIMM slots deliver up to 192 GB with XMP 3.0
  • Twin 16+1+2 phase digital VRM with advanced thermal armor
  • Four PCIe 4.0 x4 M.2 slots plus one PCIe 5.0 x16 slot
  • 5 GbE LAN, Wi-Fi 6E and Bluetooth 5.3 with front and rear USB-C 20 Gb/s

Intel LGA 1700 platform board

This ATX motherboard pairs the Intel Z790 Express chipset with an LGA 1700 socket that supports 13th and 14th generation processors. Four DDR5 DIMM slots accept up to 192 GB of memory with XMP 3.0 profiles. It targets builders who need high core counts, fast storage lanes and modern wireless connectivity in a single chassis.

VRM Thermal Armor Advanced and M.2 Thermal Guard

A twin 16+1+2 phase digital VRM solution feeds the CPU while heatsinks cover the power stages and M.2 slots. Smart Fan 6 controls curve points based on onboard sensors to keep component temperatures in check during sustained loads. The 2.5 GbE LAN and Wi-Fi 6E controllers run without active cooling.

Four PCIe 4.0 x4 M.2 slots

One CPU-attached slot and three chipset-attached slots each deliver four lanes of PCIe 4.0 bandwidth for 2280 or 22110 solid-state drives. This density lets the platform serve as a primary workstation drive array or a compact gaming library without sacrificing the PCIe 5.0 x16 graphics slot.

Highlights

  • Supports 13th and 14th gen Intel CPUs on LGA 1700 socket
  • Four DDR5 DIMM slots deliver up to 192 GB with XMP 3.0
  • Twin 16+1+2 phase digital VRM with advanced thermal armor
  • Four PCIe 4.0 x4 M.2 slots plus one PCIe 5.0 x16 slot
  • 5 GbE LAN, Wi-Fi 6E and Bluetooth 5.3 with front and rear USB-C 20 Gb/s

Specifications

BrandGIGABYTE
ModelZ790 AORUS ELITE X AX
CPU Socket TypeLGA 1700
CPU TypeIntel LGA 1700 Socket: Supports 13th and next-gen processors
ChipsetIntel Z790 Express Chipset
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Feature4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
PCI Express 5.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
Serial ATA (SATA)6 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio ChipsetRealtek ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Audio Channels7.1 Channels
LAN ChipsetIntel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6E
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
BluetoothYes
Back I/O Ports1 x USB Type-C port, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
Windows 11Supported
Form FactorATX
Dimensions (W x L)30.5cm x 24.4cm
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Questions about this item

How do I use the Q-Flash Plus button to update the BIOS without a CPU installed?

With the 24-pin and 8-pin power cables connected, insert a USB drive containing the renamed BIOS file into the dedicated Q-Flash Plus USB port, then press the Q-Flash Plus button; the LED will flash during the update and stay solid when finished.

Which thermal pads on the M.2 Thermal Guard need replacing if SSD temperatures rise after a year?

The pre-applied pads on the M.2 heatsinks covering the four PCIe 4.0 x4 slots (M2A_CPU, M2P_SB, M2Q_SB and the fourth slot) can be peeled off and replaced with 1 mm pads of similar conductivity.

At what memory speed does the DDR5 voltage regulator hit its thermal limit first during a long stress test?

The 16+1+2 phase digital VRM is rated for the full supported range up to DDR5 8266 (O.C.), so the CPU or memory ICs typically throttle before the VRM reaches its thermal ceiling.
