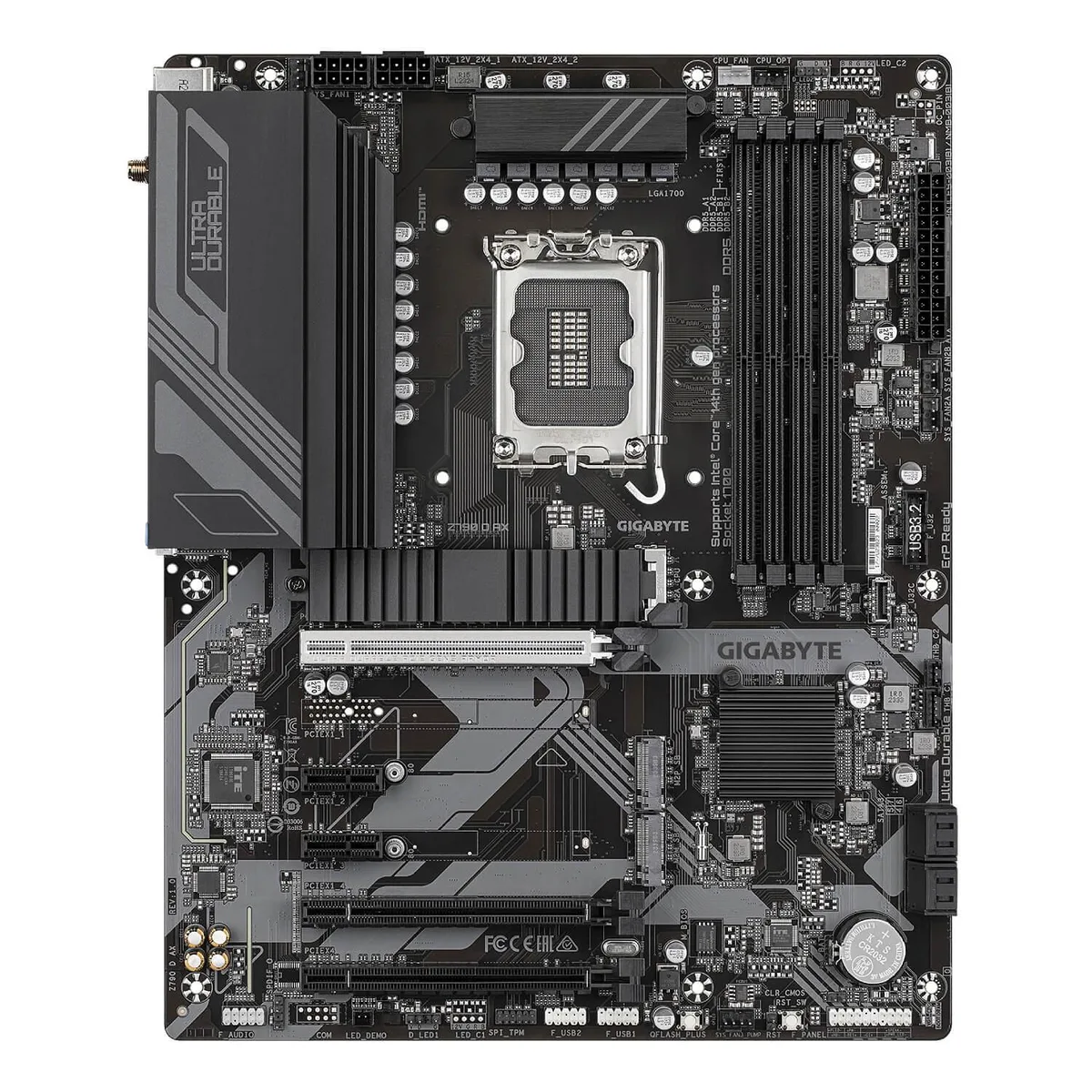

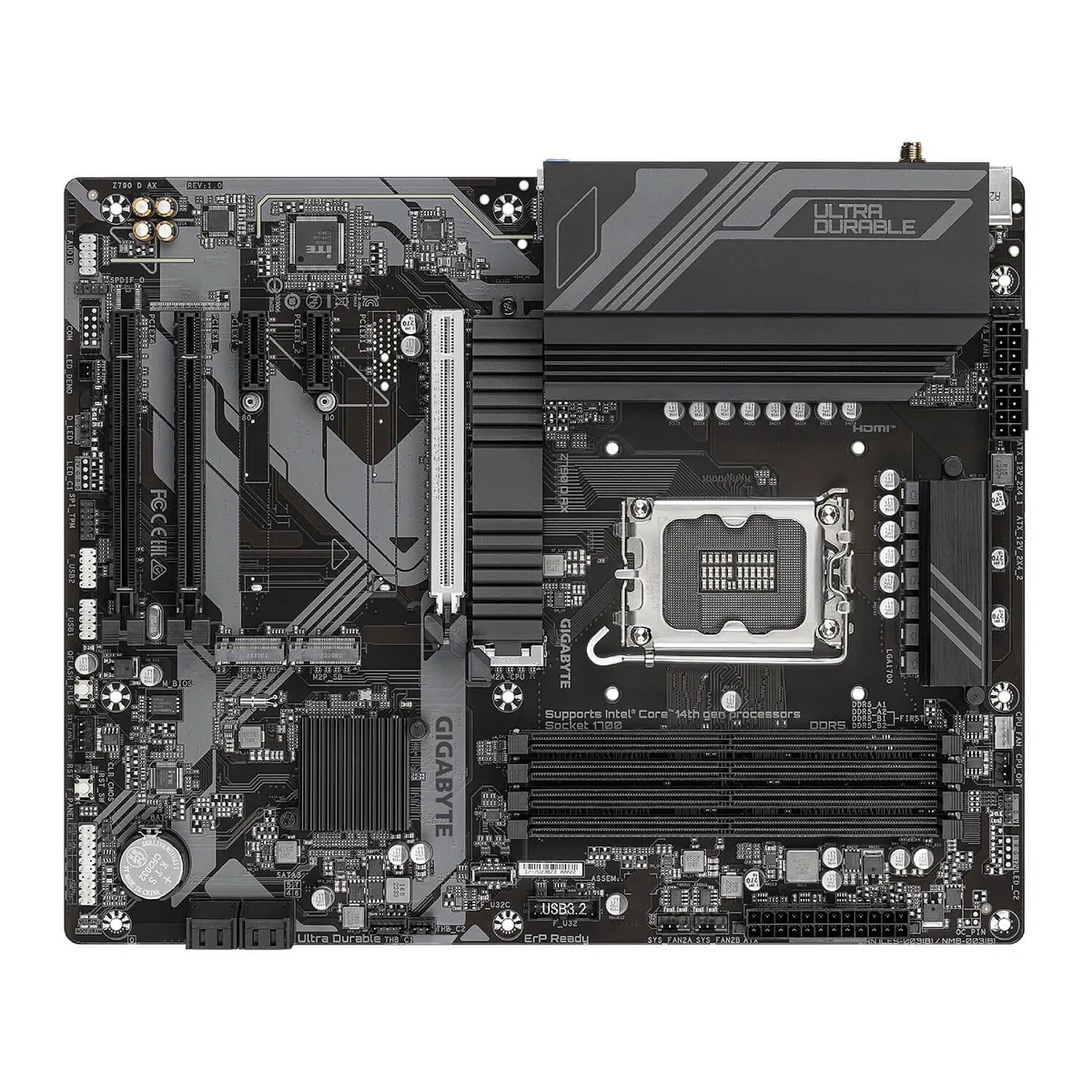

Full-size ATX motherboard, dark PCB with silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE Z790 D AX Intel Motherboard LGA 1700 DDR5 ATX Wi-Fi 6E

SKU CH-T674-TXEFK

ATX board for Intel LGA 1700 CPUs with DDR5 memory, Wi-Fi 6E, 2.5 GbE LAN and three M.2 PCIe slots

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Twin 12+1+1 phase digital VRM delivers stable power for high-end CPUs
  • Four DDR5 DIMM slots with XMP 3.0 support for high-speed memory
  • Three PCIe 4.0 x4 M.2 connectors with thermal guards for fast storage
  • 5 GbE LAN, Wi-Fi 6E and Bluetooth 5.3 provide high-speed wireless and wired connectivity

Chipset and Socket

This motherboard uses the Intel Z790 chipset and LGA 1700 socket to support Intel Core 12th, 13th and 14th generation processors. It provides four DDR5 slots with XMP 3.0 support in a dual-channel configuration. The ATX form factor fits standard cases and offers a 12+1+1 phase digital VRM design for stable power delivery.

Suitable Builders and Limitations

Builders wanting DDR5 memory, Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gigabit LAN in an ATX layout will find the core features covered. Three M.2 PCIe 4.0 connectors and four SATA3 ports handle multiple drives. Buyers who need more than three M.2 slots, more than two Thunderbolt 2 headers, or a larger PCIe x16 slot count should consider other platforms.

PCIe 5.0 x16 Slot

The board includes one PCIe 5.0 x16 expansion slot for the primary graphics card. This slot runs at the full 5.0 speed and supports EZ-Latch quick-release. Two additional PCIe x16 slots operate at x4 speed, alongside two PCIe x4 slots. Confirm your graphics card and riser cable match the PCIe 5.0 x16 specification.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Twin 12+1+1 phase digital VRM delivers stable power for high-end CPUs
  • Four DDR5 DIMM slots with XMP 3.0 support for high-speed memory
  • Three PCIe 4.0 x4 M.2 connectors with thermal guards for fast storage
  • 5 GbE LAN, Wi-Fi 6E and Bluetooth 5.3 provide high-speed wireless and wired connectivity

Specifications

No published specifications for this item yet.

Questions about this item

Will my existing DDR5 modules fit the four DIMM slots on this Z790 board?

The board provides four DDR5 DIMM slots that run in dual-channel mode and support XMP 3.0 memory profiles.

Can I keep using my current 2.5 GbE LAN cable and Wi-Fi 6 router with the onboard network controllers?

Yes, the integrated 2.5 Gigabit LAN and Wi-Fi 6E 802.11 ax interfaces are backward compatible with those older standards.

How do I confirm the M.2 SSDs are running at PCIe 4.0 x4 speeds after installation?

Check the BIOS storage information page or use a system utility such as HWInfo to verify each drive shows a PCIe 4.0 x4 link width.
