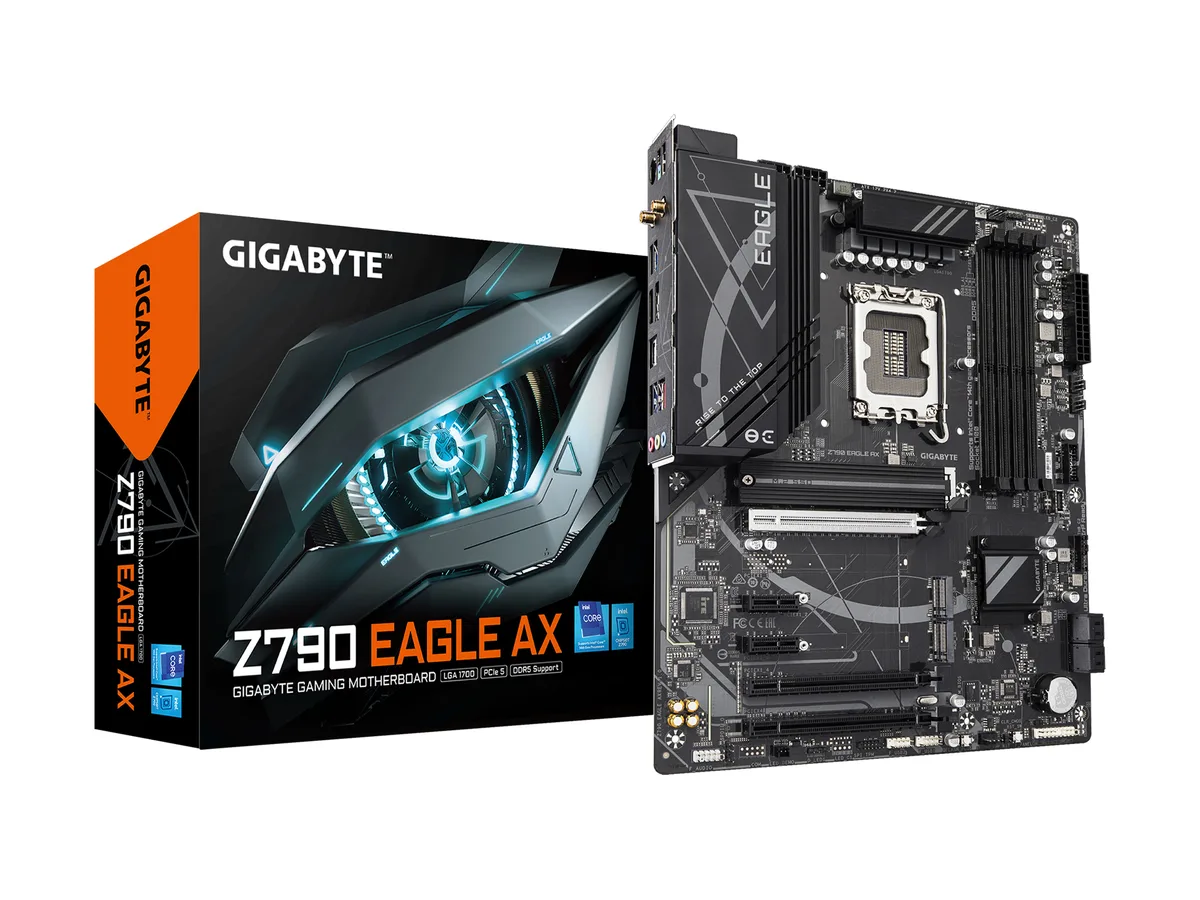

ATX motherboard dark PCB silver heatsinks LGA 1700 socket four DDR5 slots

GIGABYTE

GIGABYTE Z790 EAGLE AX Intel motherboard

SKU CH-DV73-R9E28 MPN Z790 EAGLE AX

Supports Intel 12th, 13th and 14th Gen CPUs with DDR5 memory up to 7600 MT/s, PCIe 5.0 graphics slot, three M.2 connectors, 2.5 GbE LAN and Wi-Fi 6E

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600
  • Maximum Memory Supported192GB

Option Z790 EAGLE AX

  • Z790 AORUS MASTER
  • Z790 AERO G
  • Z790 AORUS ELITE AX
  • Z790 AORUS XTREME
  • Z790 UD AC
  • Z790 GAMING X AX
  • Z790 AORUS TACHYON
  • Z790 UD AX
  • Z790 AORUS XTREME X
  • Z790 AORUS MASTER X
  • Z790 AORUS PRO X
  • Z790 AORUS ELITE X WIFI7
  • Z790 AORUS ELITE X AX
  • Z790 AORUS ELITE AX ICE
  • Z790 AORUS TACHYON X
  • Z790 AORUS PRO X WIFI7
  • Z790 EAGLE AX
  • Z790M AORUS ELITE AX ICE

Struck-through versions exist but are not stocked here.

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Four DDR5 DIMM slots enable up to 192 GB dual-channel memory with XMP 3.0
  • Twin 12+1+1 phase digital VRM delivers stable power for overclocking
  • PCIe 5.0 x16 slot plus three PCIe 4.0 M.2 connectors for next-gen GPU and storage
  • 5 GbE LAN and Intel Wi-Fi 6E 802.11ax provide fast wired and wireless networking

Z790 platform for Intel Core 12th to 14th Gen

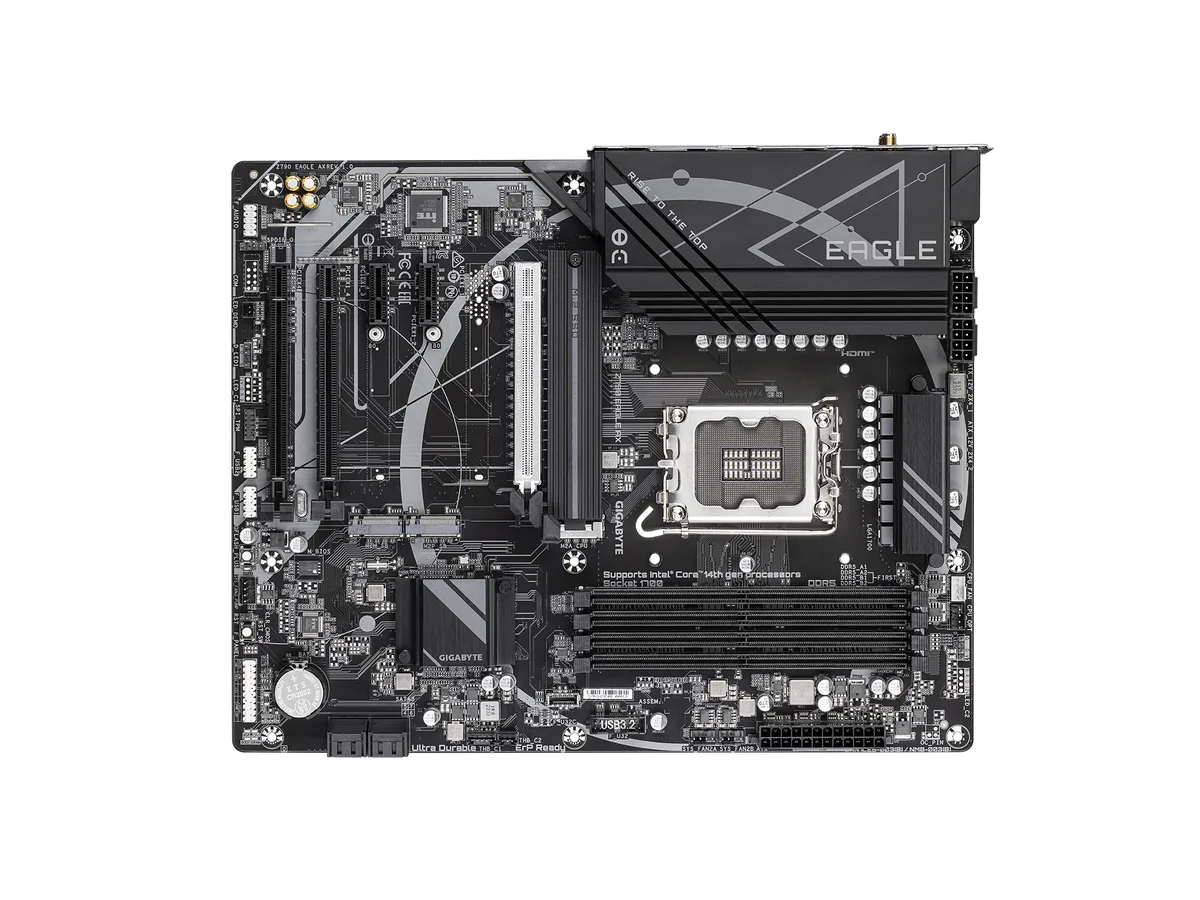

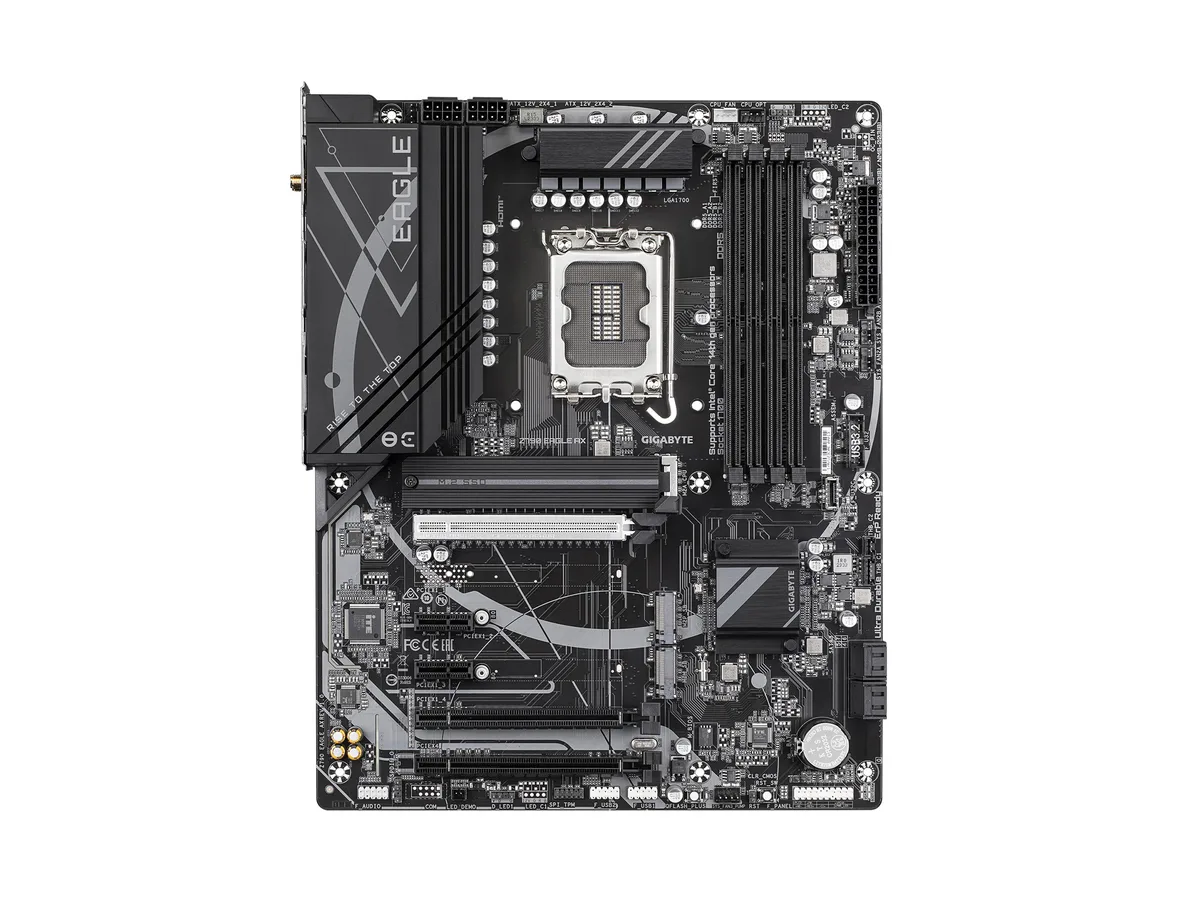

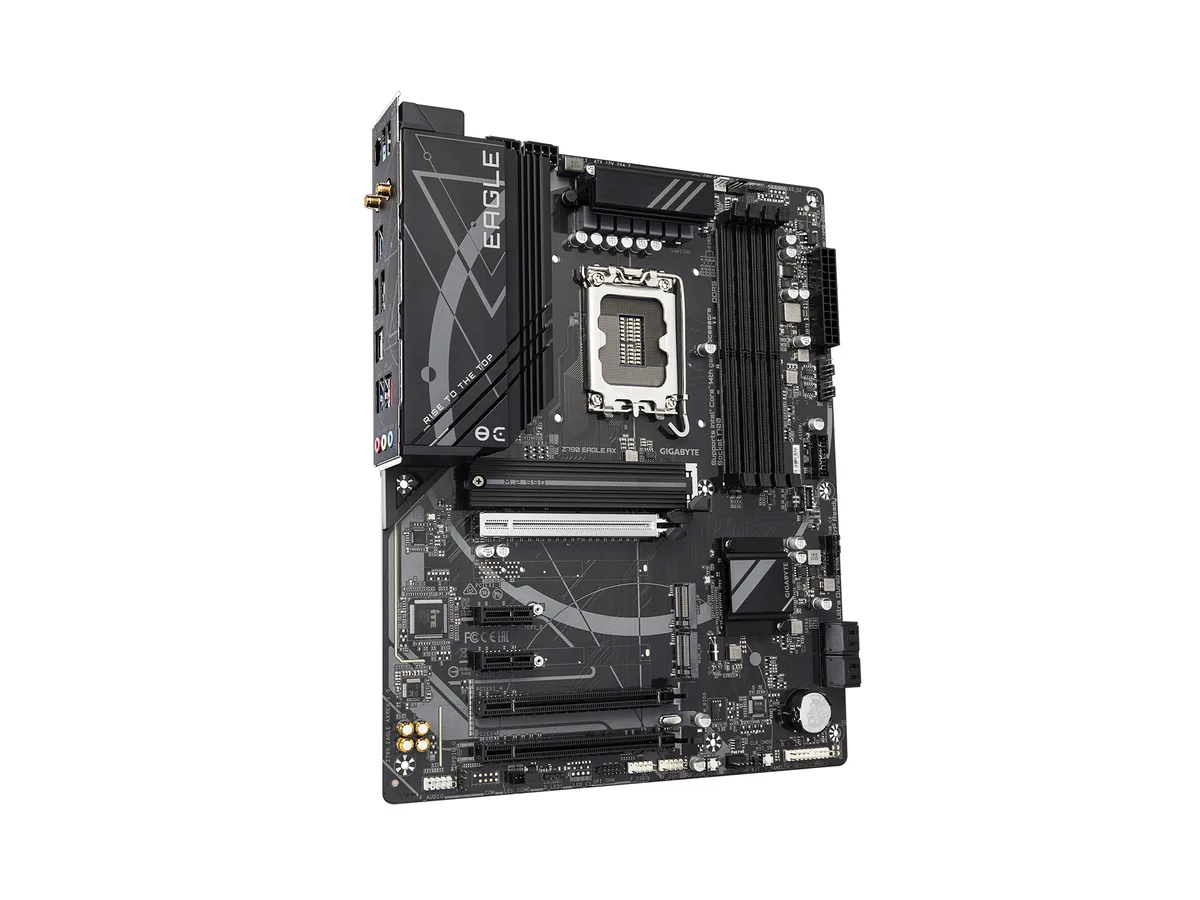

This ATX motherboard uses the Intel Z790 chipset and LGA 1700 socket to support 12th, 13th and 14th Gen Intel Core, Celeron and Pentium Gold processors. Four 288‑pin DDR5 slots run dual‑channel memory up to 192 GB with Intel XMP 3.0 profiles. A 12+1+1 phase digital VRM delivers stable power for high‑core‑count CPUs.

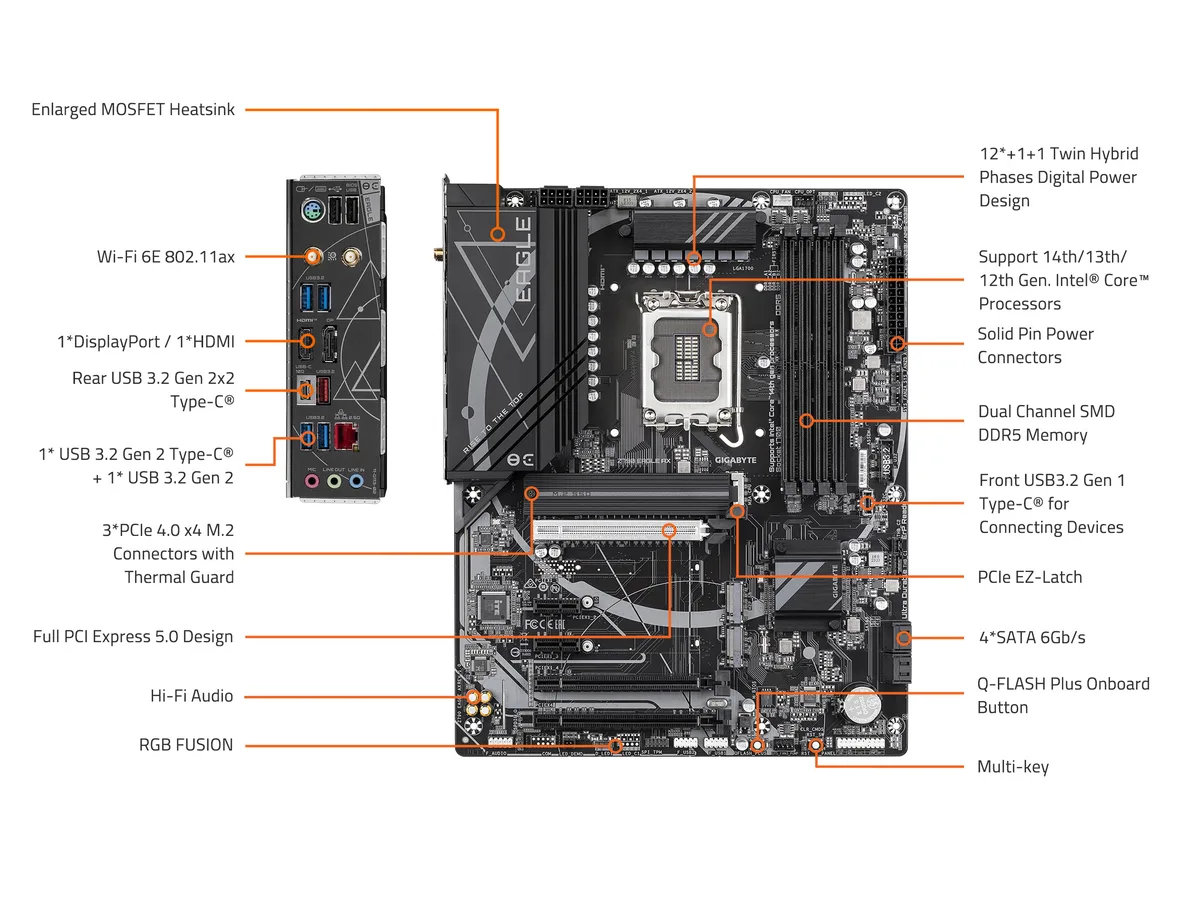

Enlarged MOSFET heatsinks and M.2 Thermal Guard

Advanced thermal design uses enlarged MOSFET heatsinks and an M.2 Thermal Guard to keep VRM and SSD temperatures in check during sustained loads. Smart Fan 6 reads multiple onboard sensors and controls hybrid fan headers with a fan‑stop function, reducing noise when the system is idle or lightly loaded.

EZ‑Latch quick‑release and Q‑Flash Plus

The primary PCIe 5.0 x16 slot features an EZ‑Latch quick‑release mechanism for tool‑free graphics card swaps. Q‑Flash Plus lets you update the BIOS using a USB drive without installing a CPU, memory or graphics card, simplifying recovery and new‑processor preparation.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Four DDR5 DIMM slots enable up to 192 GB dual-channel memory with XMP 3.0
  • Twin 12+1+1 phase digital VRM delivers stable power for overclocking
  • PCIe 5.0 x16 slot plus three PCIe 4.0 M.2 connectors for next-gen GPU and storage
  • 5 GbE LAN and Intel Wi-Fi 6E 802.11ax provide fast wired and wireless networking

Specifications

BrandGIGABYTE
ModelZ790 EAGLE AX
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Express 5.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
PCI Express 3.0 x16Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
PCI Express x1Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Additional RAID ControllerRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBLUETOOTH 5.3

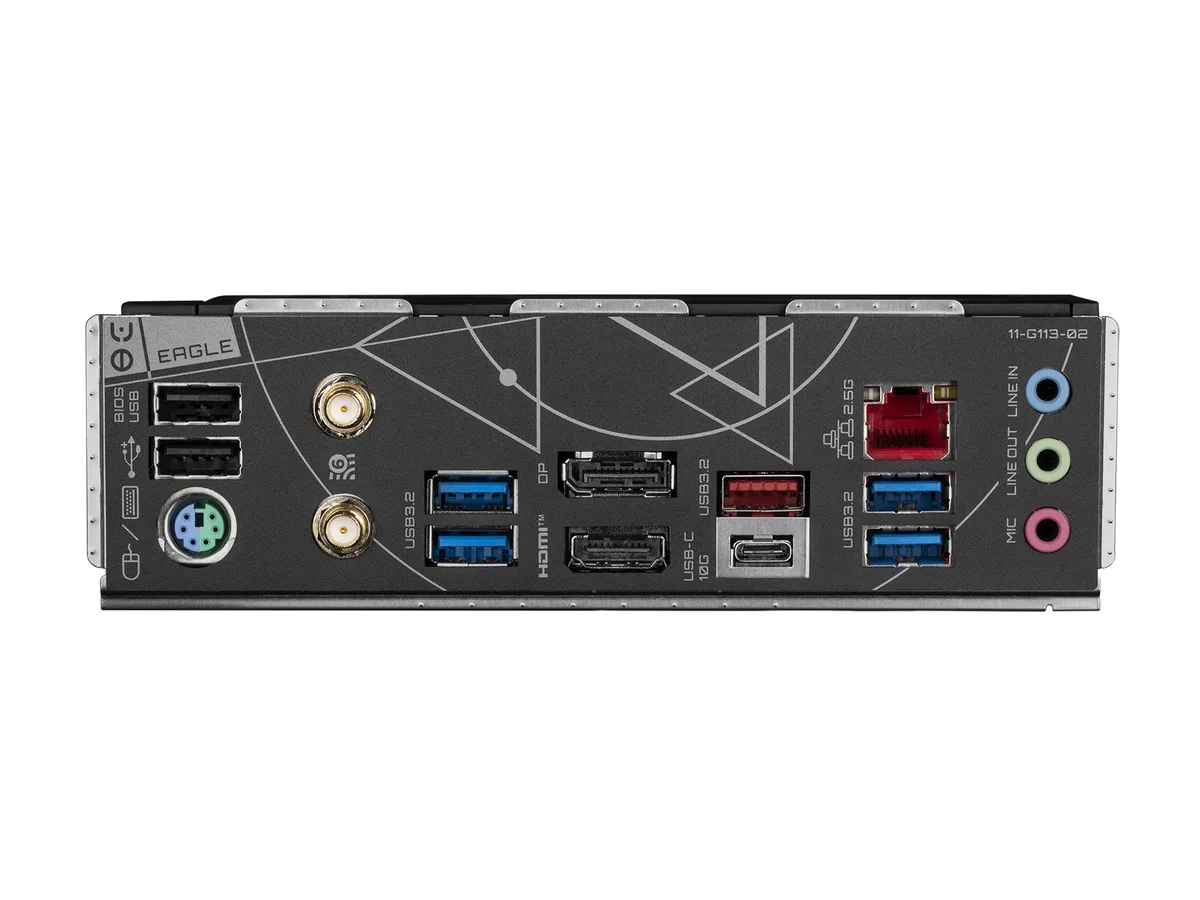

Back I/O Ports1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (1T1R)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Shipping weight1.93 kg
Package size335 × 270 × 80 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this board fit in a standard ATX case and work with a regular power supply?

Yes, it follows the ATX form factor and uses standard 12-pin plus 8-pin CPU power connectors, so any ATX case and PSU will work

Can I run a 13th Gen Intel Core i5 and DDR5 6000 memory without a BIOS update?

The board supports 12th, 13th and 14th Gen CPUs and DDR5 up to 7600 MT/s with XMP 3.0; if the CPU is newer than the shipping BIOS, use Q-Flash Plus to update without installing the CPU or memory

How many NVMe SSDs can I install and what speeds do they run at?

Three M.2 slots are provided, all PCIe 4.0 x4, supporting 2280 drives; the top slot connects to the CPU, the other two to the chipset
