GIGABYTE

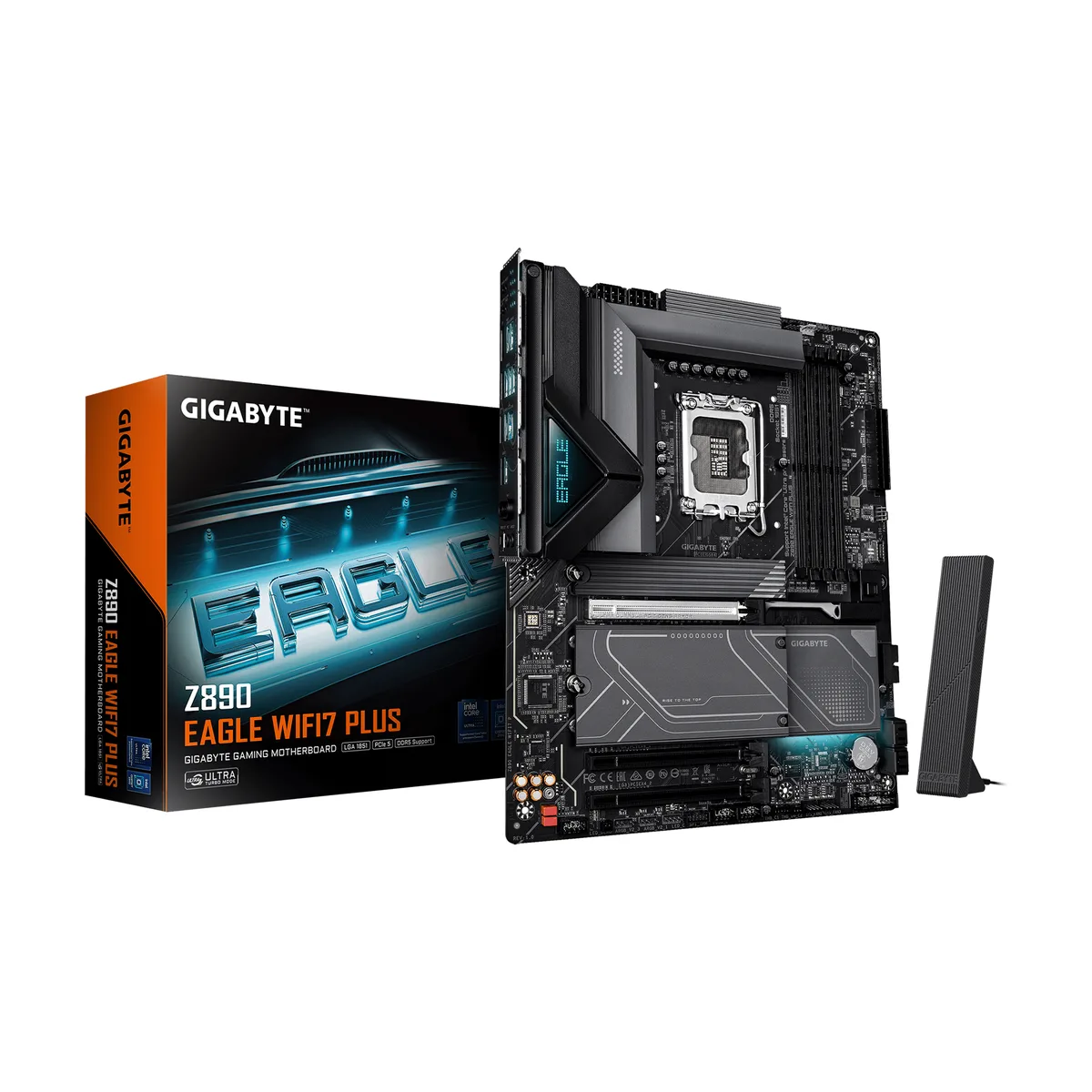

GIGABYTE Z890 EAGLE WIFI7 PLUS Intel LGA 1851 ATX motherboard
ATX board for Intel Core Ultra Series 2 with 14+1+2 power phases, four DDR5 slots up to 9466 MT/s, one PCIe 5.0 M.2, three PCIe 4.0 M.2, USB4, WiFi 7, 2.5 GbE and Bluetooth 5.4
- CPU Socket TypeLGA 1851
- CPU TypeIntel Core Ultra Processors (Series 2)
- ChipsetIntel Z890
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardSupport up to DDR5 9466+MT/s (OC)
- Maximum Memory Supported256GB
- Ready for Intel Core Ultra Series 2 processors with LGA 1851 socket
- Steady power delivery from 14+1+2 twin digital VRM design
- Up to DDR5 9466 MT/s overclocked memory speed supported
- Four M.2 slots including one PCIe 5.0 and three PCIe 4.0 connectors
- WiFi 7 and 2.5 GbE LAN with Bluetooth 5.4 for fast connectivity
Ready for Intel Core Ultra (Series 2)

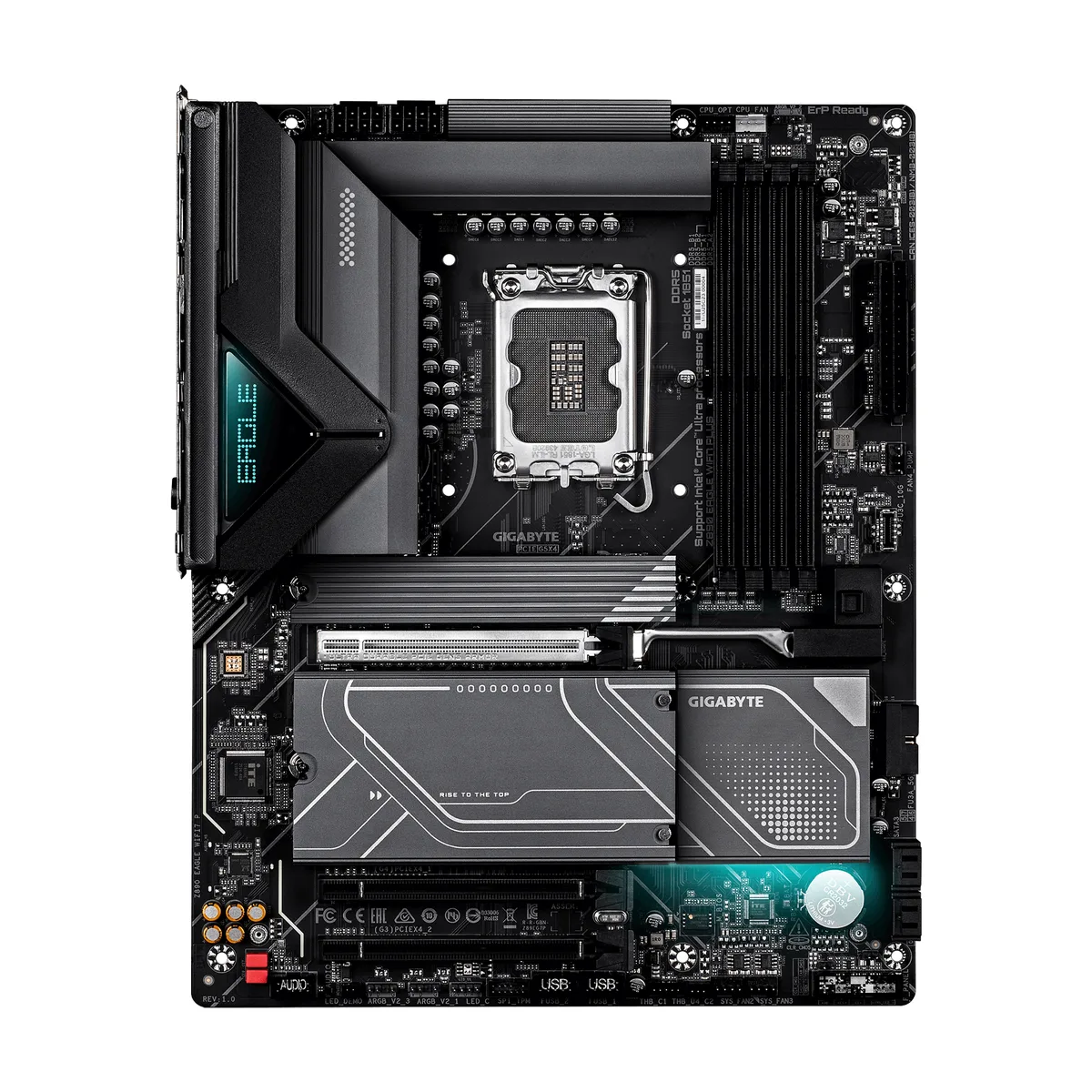

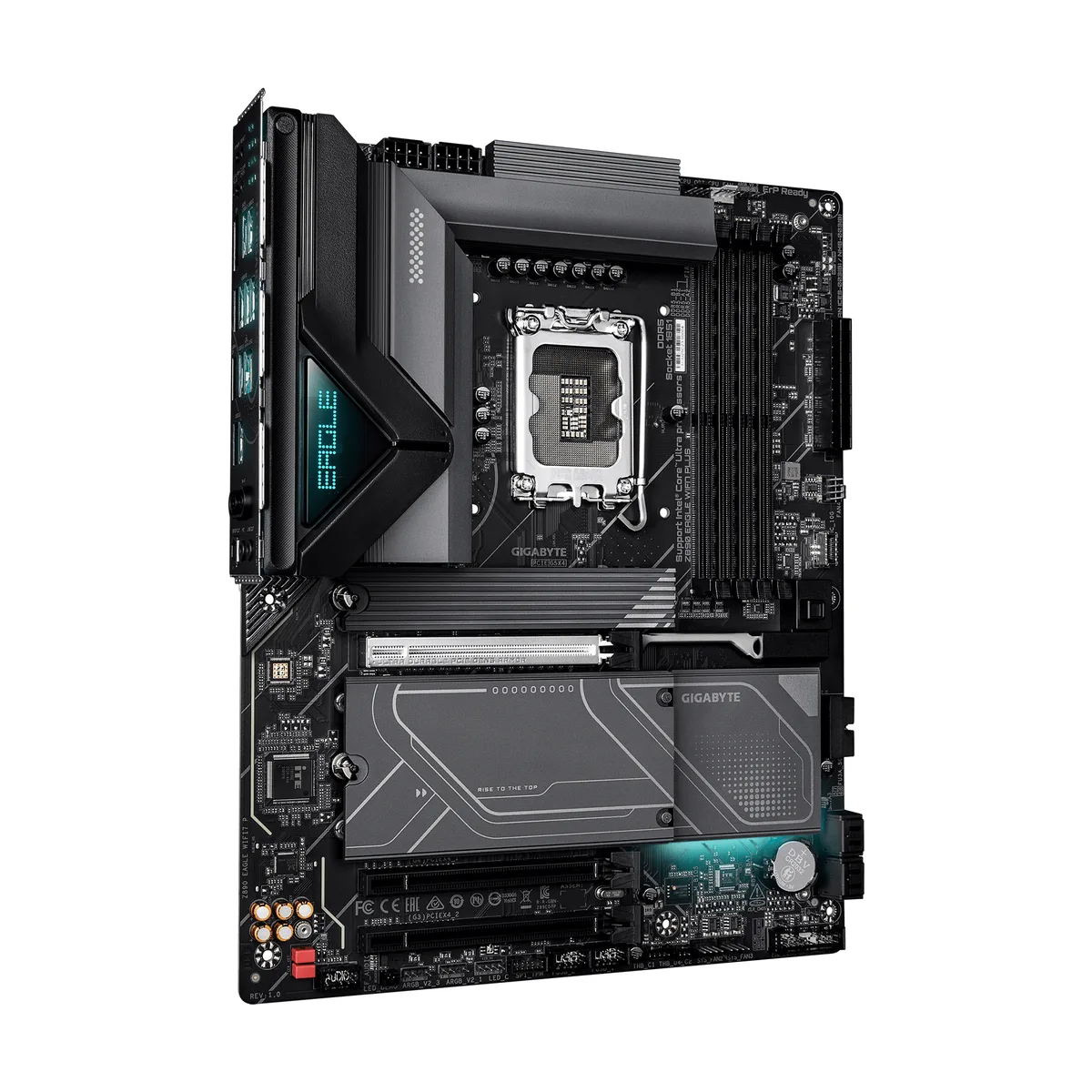

This ATX motherboard uses the Intel Z890 chipset and LGA 1851 socket to support the latest Core Ultra processors. Four DDR5 slots accept up to 256 GB of memory running at 9466 MT/s via Intel XMP 3.0. The 14+1+2 twin digital VRM design delivers stable power for demanding workloads.
Four M.2 slots with one PCIe 5.0 drive
The CPU provides one PCIe 5.0 M.2 socket and one PCIe 4.0 M.2 socket, while the chipset adds two more PCIe 4.0 M.2 sockets. Four SATA 6 Gb/s ports remain available for additional storage. The primary PCIe 5.0 x16 slot handles a graphics card or a single NVMe SSD.
WiFi 7 and 2.5 GbE networking

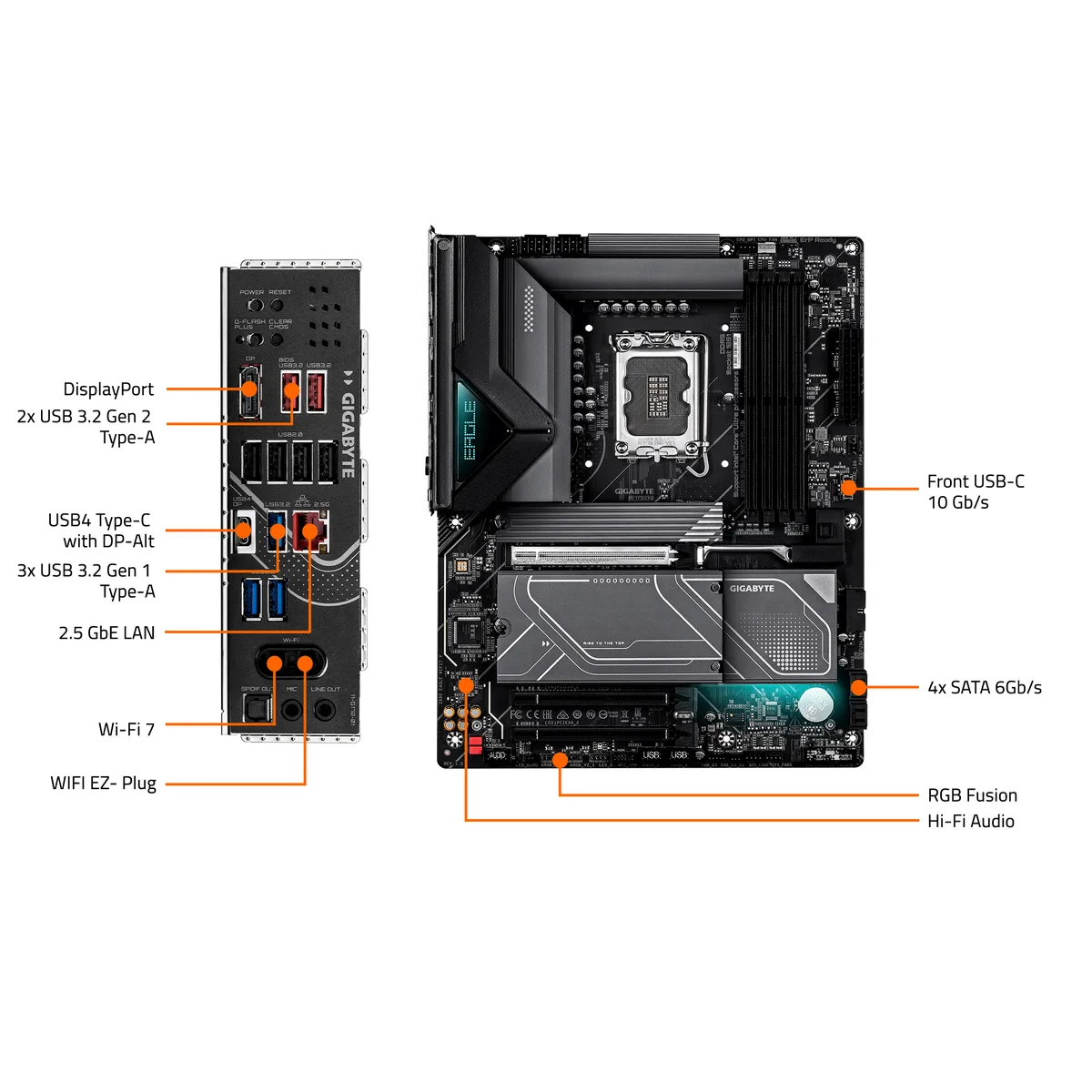

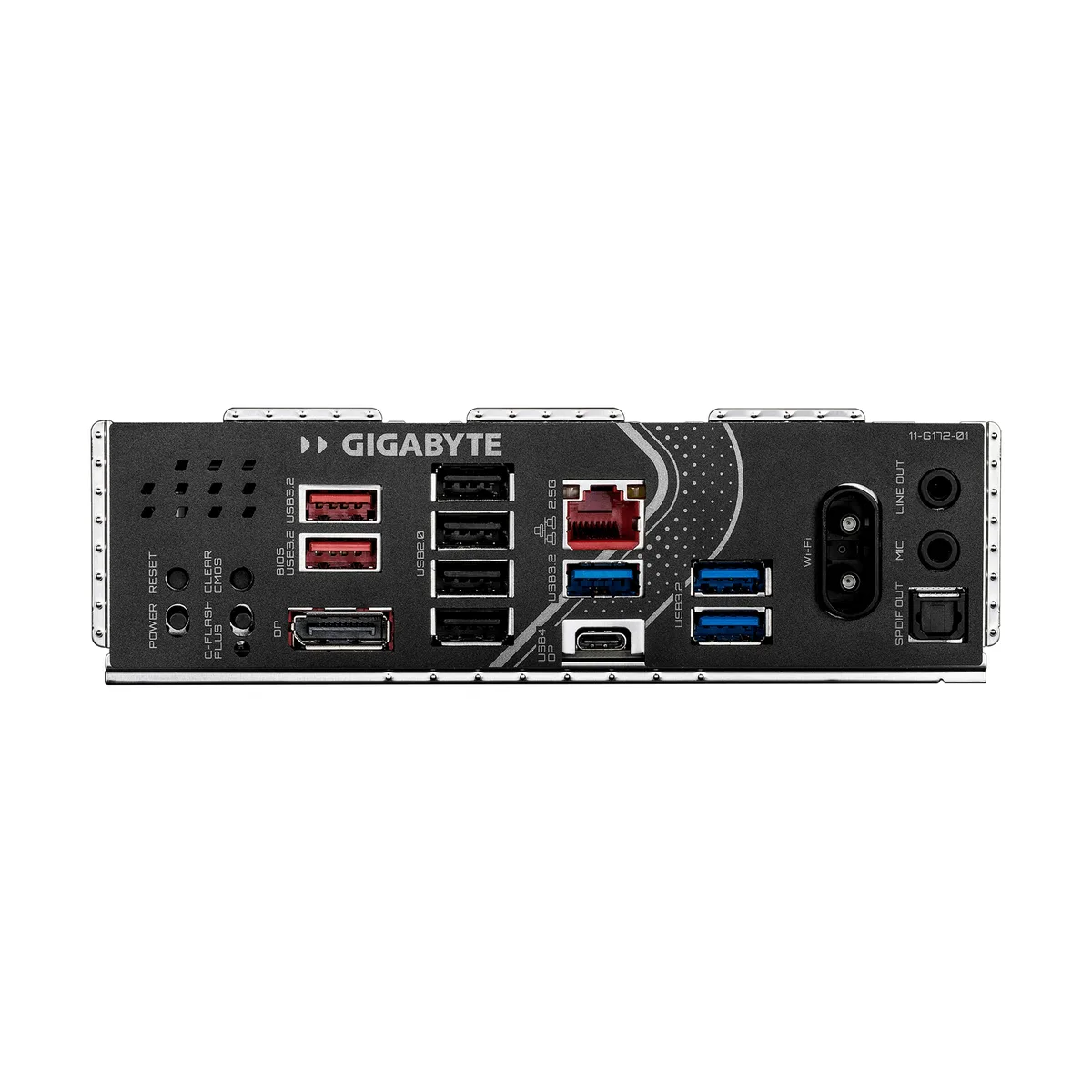

Wireless connectivity uses WiFi 7 with a directional high-gain antenna and Bluetooth 5.4. Wired traffic runs over a 2.5 GbE LAN port. Rear I/O includes one USB4 Type-C port with DisplayPort Alt Mode, two USB 3.2 Gen 2 Type-A ports and three USB 3.2 Gen 1 Type-A ports.
Highlights
- Ready for Intel Core Ultra Series 2 processors with LGA 1851 socket
- Steady power delivery from 14+1+2 twin digital VRM design
- Up to DDR5 9466 MT/s overclocked memory speed supported
- Four M.2 slots including one PCIe 5.0 and three PCIe 4.0 connectors
- WiFi 7 and 2.5 GbE LAN with Bluetooth 5.4 for fast connectivity
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | Z890 EAGLE WIFI7 PLUS |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support up to DDR5 9466+MT/s (OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) |
| PCI Express 5.0 x16 | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| PCI Express x4 | Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | BLUETOOTH 5.4 |
| Back I/O Ports | 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x USB4 USB Type-C port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 2 x audio jacks 1 x optical S/PDIF Out connector |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper |
| BIOS Feature | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Shipping weight | 2.50 kg |
| Package size | 356 × 292 × 83 mm |
Questions about this item
Will the LGA 1851 socket accept my current Intel CPU if it uses a different socket?
The LGA 1851 socket is designed for Intel Core Ultra Series 2 processors only; older CPUs with different sockets will not fit.
How can I verify the WiFi 7 and Bluetooth 5.4 radios are active after assembly?
Check Device Manager for the WiFi 7 adapter and Bluetooth 5.4 controller, then run a speed test on a WiFi 7 router to confirm throughput.
Which cables or modules are included for the four M.2 slots and four SATA 6Gb/s ports?
The box contains the motherboard, I/O shield, WiFi 7 antenna, SATA cables, M.2 screws and heatsinks, and driver media; M.2 SSDs and SATA drives are purchased separately.
