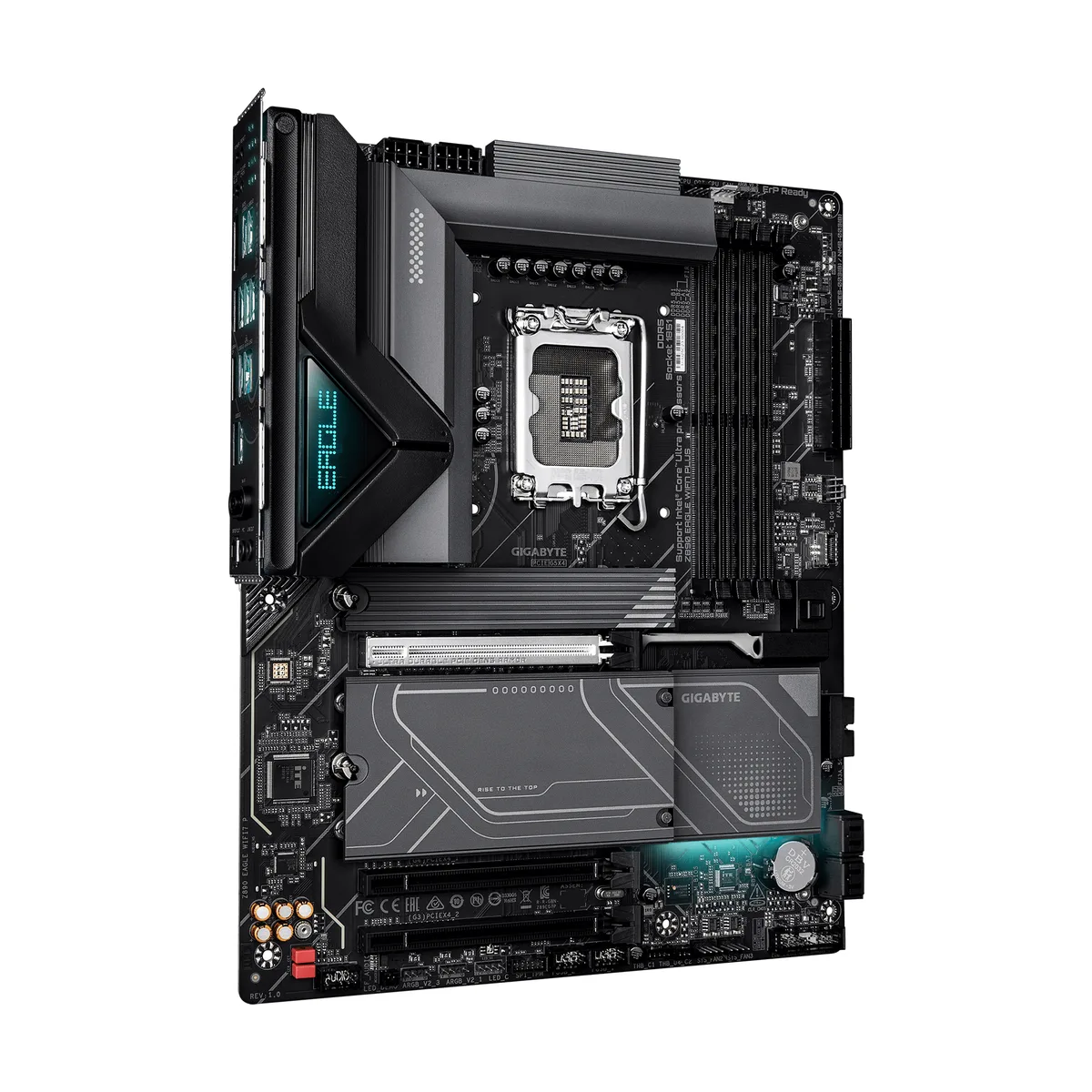

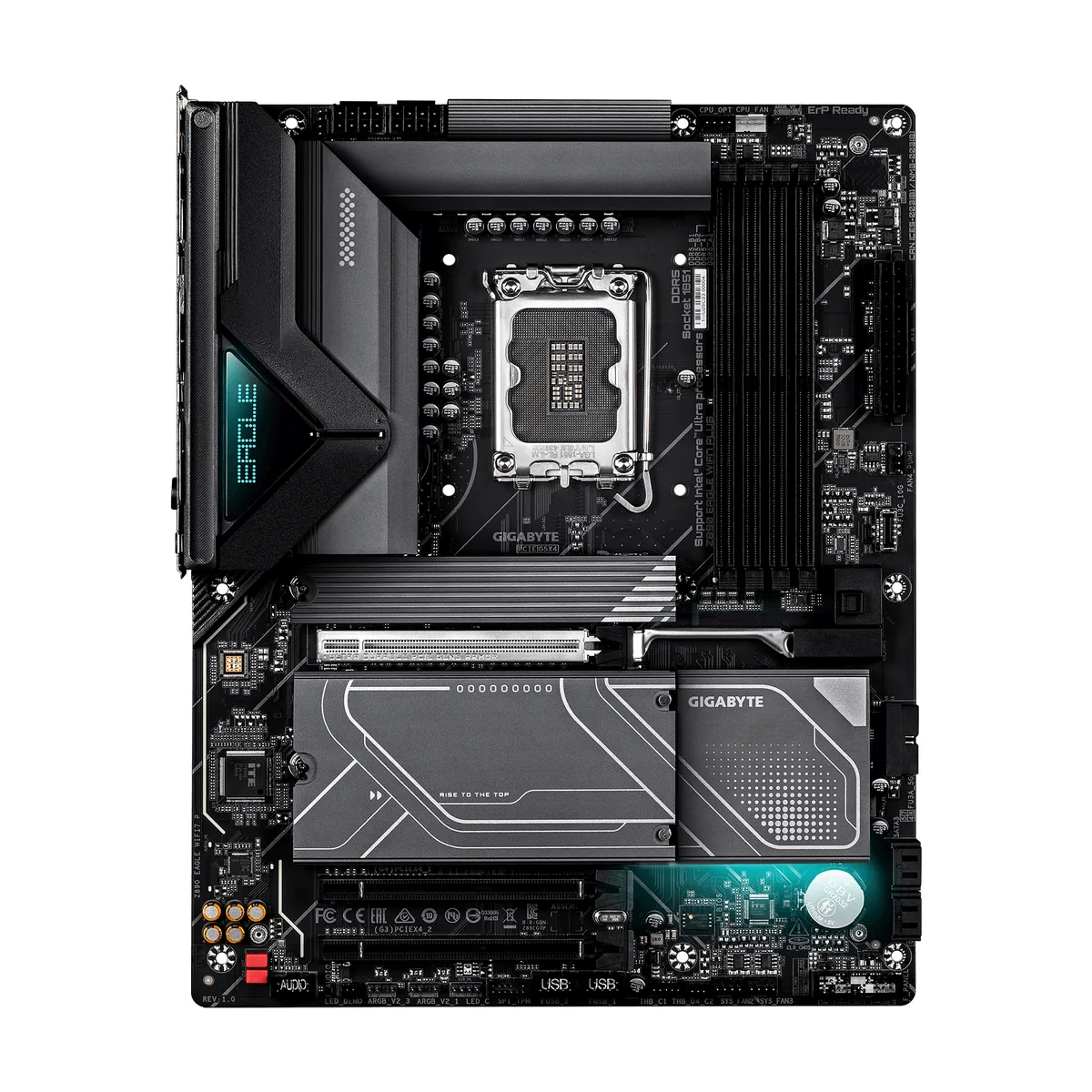

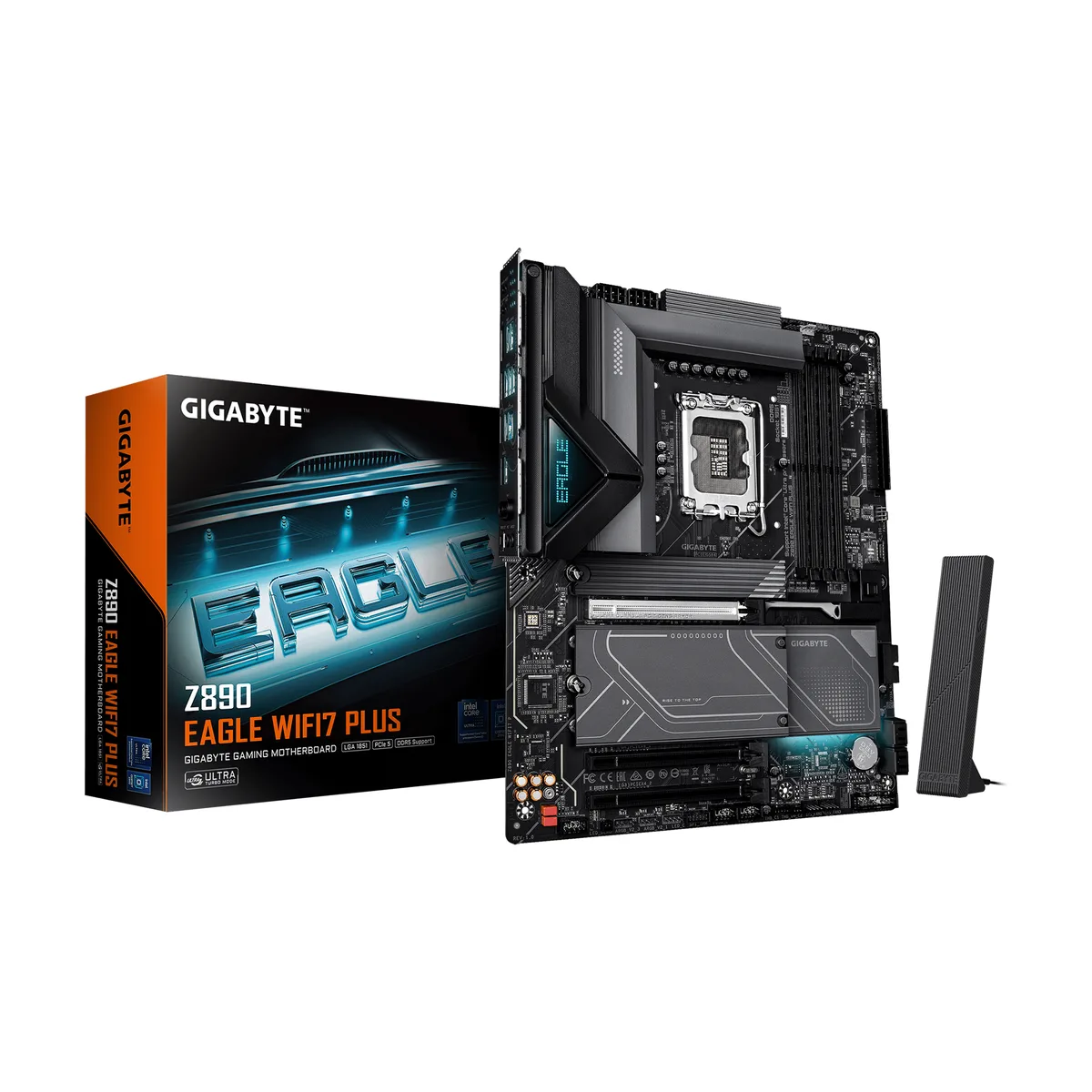

ATX motherboard, dark PCB with silver heatsinks and integrated rear I/O shield

GIGABYTE

GIGABYTE Z890 EAGLE WIFI7 PLUS Intel motherboard

SKU CH-ENDW-R318G MPN Z890 EAGLE WIFI7 PLUS

ATX board for Intel Core Ultra Series 2 processors with DDR5 up to 9466 MT/s, PCIe 5.0 graphics and M.2 slots, four M.2 sockets, USB4, WiFi 7, and 2.5 GbE LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport up to DDR5 9466+MT/s (OC)
  • Maximum Memory Supported256GB
  • LGA 1851 socket readies the board for Intel Core Ultra Series 2 processors
  • 14+1+2 twin digital VRM phases deliver steady power to the CPU
  • DDR5 memory scales to 9466 MT/s with XMP 3.0 support
  • Four M.2 slots include one PCIe 5.0 and three PCIe 4.0 connectors
  • WiFi 7 plus 2.5 GbE LAN and Bluetooth 5.4 provide high-speed connectivity

Ready for Intel Core Ultra Series 2

This ATX motherboard uses the Intel Z890 chipset and LGA 1851 socket to support the latest Intel Core Ultra Series 2 processors. A 14+1+2 twin digital VRM design with premium chokes and capacitors delivers steady power for demanding workloads. Builders who want a modern platform with strong connectivity will find the feature set well matched.

DDR5 up to 9466 MT/s and four M.2 slots

Four DDR5 slots accept up to 256 GB of non-ECC un-buffered memory with Intel XMP 3.0 profiles for high-speed operation. Storage headroom comes from one PCIe 5.0 M.2 socket and three PCIe 4.0 M.2 sockets, all supporting 2280 and longer drives. Four SATA 6 Gb/s ports and RAID 0/1/5/10 add further capacity options.

EZ-Latch, USB4 and WiFi 7 simplify the build

PCIe EZ-Latch Plus gives single-click GPU release, while M.2 EZ-Latch Click and Plus enable screwless SSD and heatsink installation. WiFi EZ-Plug speeds antenna attachment and DriverBIOS pre-loads the WiFi driver. Rear EZ buttons aid troubleshooting. A USB4 Type-C port with DP-Alt, 2.5 GbE LAN and Bluetooth 5.4 complete the I/O.

Highlights

  • LGA 1851 socket readies the board for Intel Core Ultra Series 2 processors
  • 14+1+2 twin digital VRM phases deliver steady power to the CPU
  • DDR5 memory scales to 9466 MT/s with XMP 3.0 support
  • Four M.2 slots include one PCIe 5.0 and three PCIe 4.0 connectors
  • WiFi 7 plus 2.5 GbE LAN and Bluetooth 5.4 provide high-speed connectivity

Specifications

BrandGIGABYTE
ModelZ890 EAGLE WIFI7 PLUS
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport up to DDR5 9466+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
PCI Express 5.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x4Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

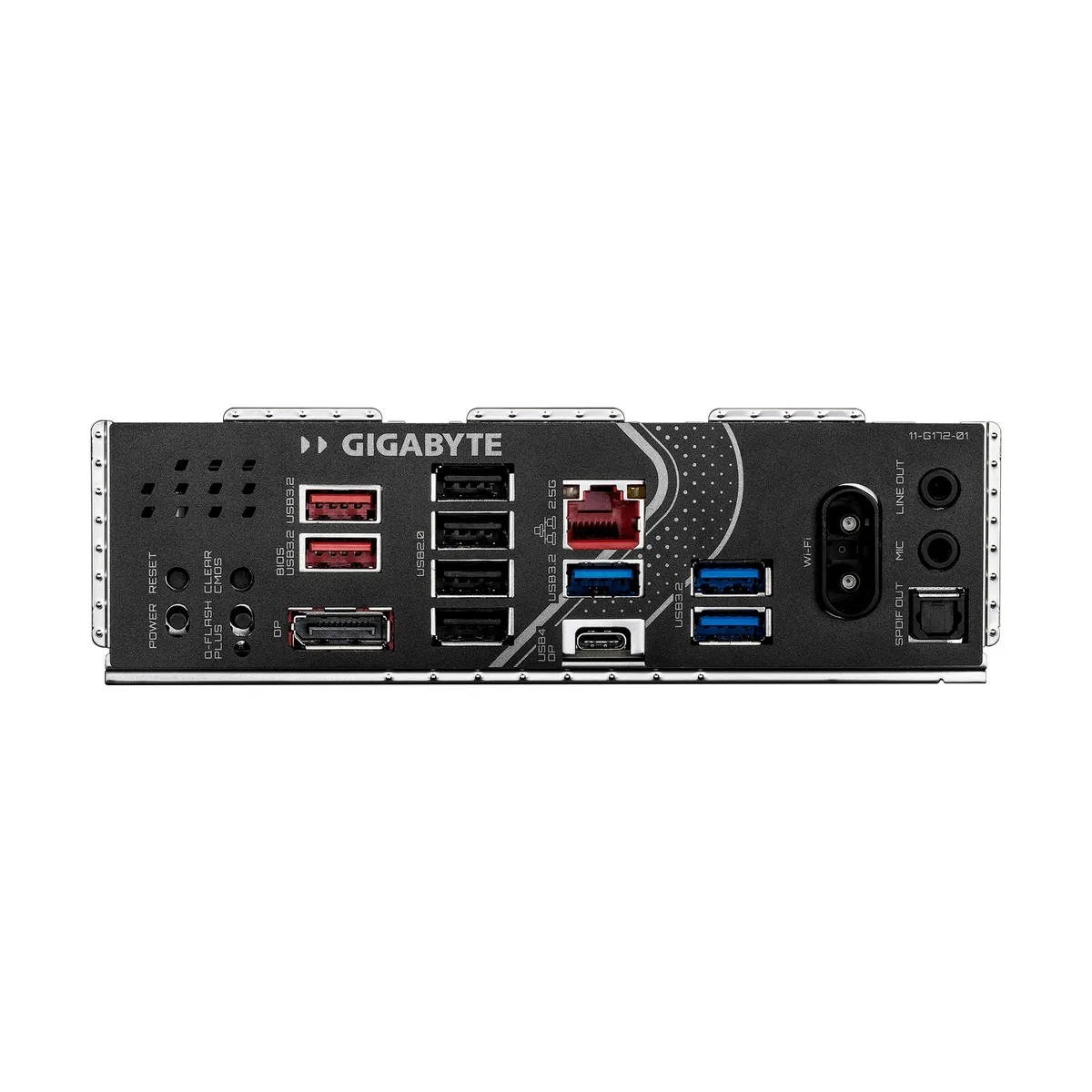

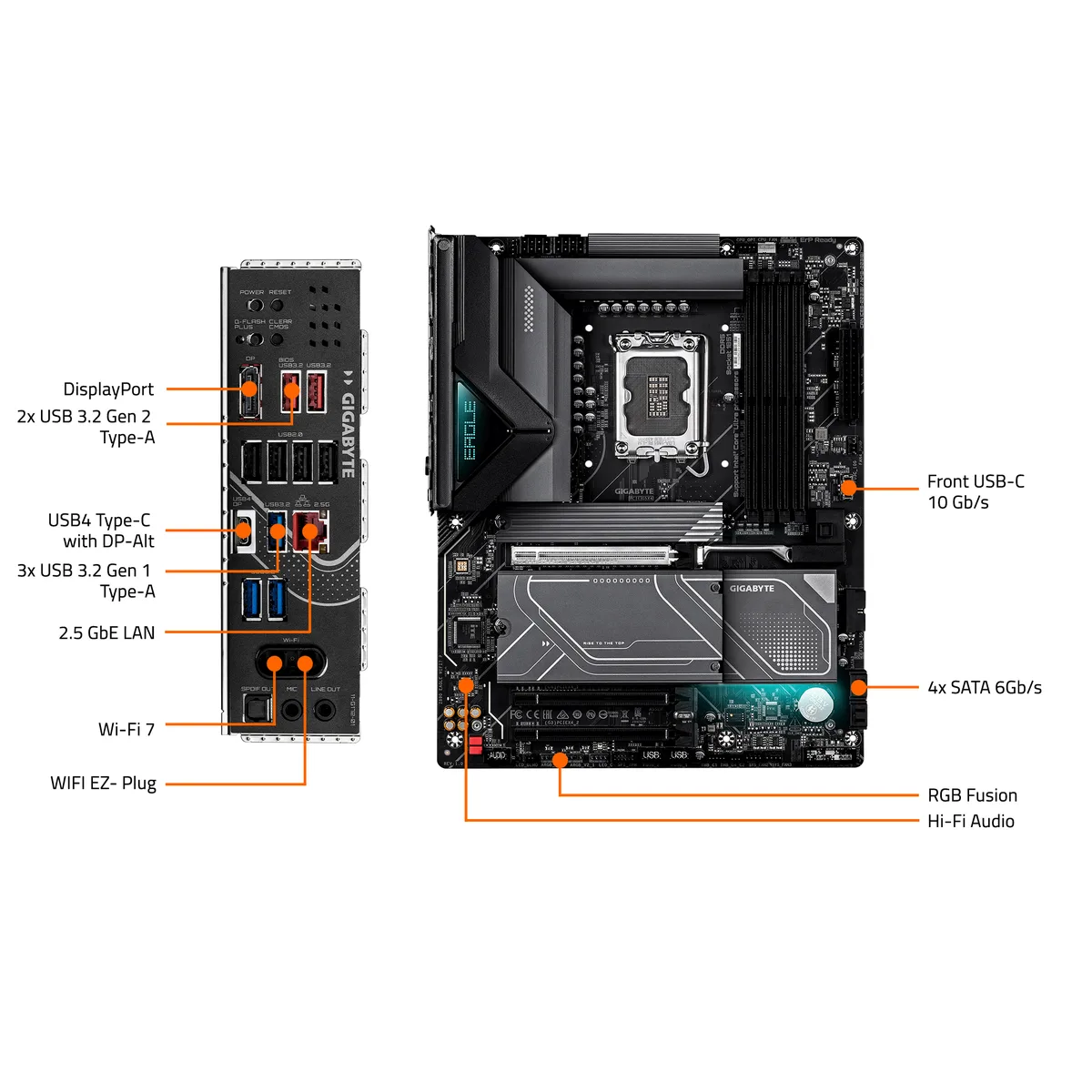

Back I/O Ports1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x USB4 USB Type-C port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
BIOS Feature1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Shipping weight2.50 kg
Package size356 × 292 × 83 mm

Questions about this item

Will my DDR5 modules rated below 9466 MT/s run on the Z890 EAGLE WIFI7 PLUS?

Yes, the board supports DDR5 with Intel XMP 3.0 up to 9466+ MT/s overclocked, so slower DDR5 DIMMs will operate at their rated speeds within the 256 GB maximum capacity across four slots.

How can I confirm the WiFi 7 and Bluetooth 5.4 are active after assembly?

Check Device Manager for the WiFi 7 adapter and Bluetooth 5.4 radio, then verify a 6 GHz connection and Bluetooth device pairing; the pre-installed DriverBIOS WiFi driver helps them appear without extra downloads.

Which M.2 screws or standoffs are included for the four slots?

The EZ-Latch Click and Plus designs provide screwless retention for M.2 heatsinks and SSDs on all four connectors, so no separate M.2 screws or standoffs are required for installation.
