Black cube NAS case with eight front hot-swap 3.5-inch drive trays

Gintol

Gintol 8-bay NAS PC Case MATX 8 Hot-Swap 3.5-inch Bays

SKU CH-VAZQ-PBQ3W

Holds eight hot-swap 3.5-inch drives plus two 2.5-inch bays, supports MATX or ITX boards, four full-height PCIe cards up to 220 mm, and an ATX power supply limited to 170 mm

  • Motherboard CompatibilityMATX /ITX 245*245 170*170
  • ColorBlack
  • Case MaterialSGCC
  • Power SupplyPower Specifications:ATX power supply, with a length limited
  • With Power SupplyNo
  • 120mm FansNo
  • Eight hot-swap 3.5-inch bays for high-capacity storage
  • Two 2.5-inch bays add fast SSD options
  • MATX and ITX motherboard support fits compact builds
  • Four full-height PCIe slots up to 220 mm allow expansion cards
  • Dual 12025 fan mounts cool drives and motherboard area

8-bay NAS case for MATX builds

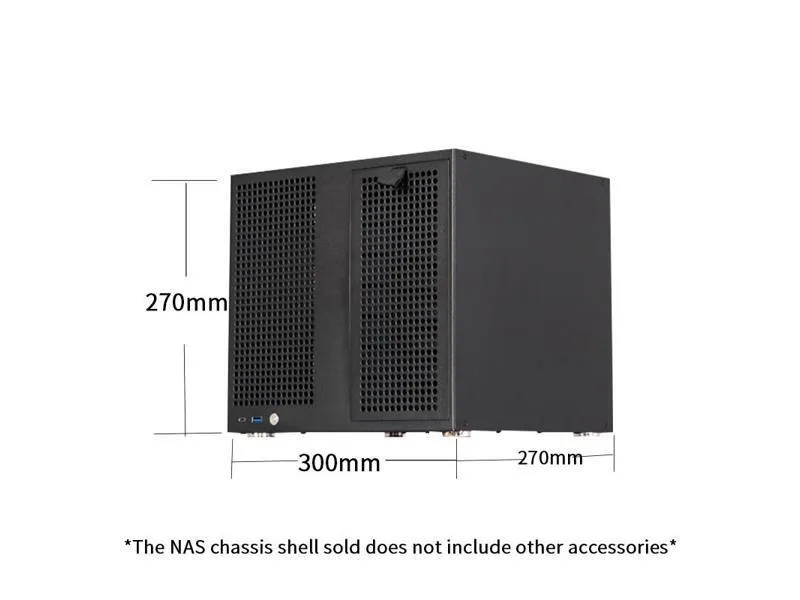

This Gintol enclosure holds eight hot-swappable 3.5-inch drives and two 2.5-inch drives behind a SATA backplane. It accepts MATX or ITX motherboards up to 245 by 245 millimetres. The shell measures 300 by 270 by 270 millimetres and is built from SGCC steel. No fans or power supply are included.

PSU length and cooler height limits

An ATX power supply must not exceed 170 millimetres in length; SFX and FLEX units fit with an adapter plate. CPU coolers are restricted to 55 millimetres or less in height. Four full-height PCIe cards up to 220 millimetres long can be installed.

Fan mounts and backplane cabling

Two 12025 fan positions sit in the drive bay area and two more at the mainboard zone. The dual backplanes each use two large 4D connectors plus four SATA connectors. Verify your motherboard headers and power cables reach these locations before ordering.

Highlights

  • Eight hot-swap 3.5-inch bays for high-capacity storage
  • Two 2.5-inch bays add fast SSD options
  • MATX and ITX motherboard support fits compact builds
  • Four full-height PCIe slots up to 220 mm allow expansion cards
  • Dual 12025 fan mounts cool drives and motherboard area

Specifications

Motherboard CompatibilityMATX /ITX 245*245 170*170
ColorBlack
Case MaterialSGCC
Power SupplyPower Specifications:ATX power supply, with a length limited to 170mm (downward compatible with SFX and FLEX, adapter plate required)
With Power SupplyNo
120mm FansNo
60mm Fans0
70mm Fans0
80mm Fans0

Questions about this item

Should I choose this 8-bay version or a smaller bay-count chassis?

This chassis provides eight hot-swap 3.5-inch bays plus two 2.5-inch bays; select it when you need that many drives in a 300x270x270 mm MATX enclosure.

What does the 55 mm radiator limit mean for my CPU cooler choice?

Any air or liquid cooler must be 55 mm tall or less, so only low-profile coolers or thin radiators with 12025 fans will fit.

How does the SATA backplane connect to my host bus adapter?

Each of the two backplanes uses two large 4D connectors and four SATA ports, giving eight native SATA links for the eight hot-swap bays.
