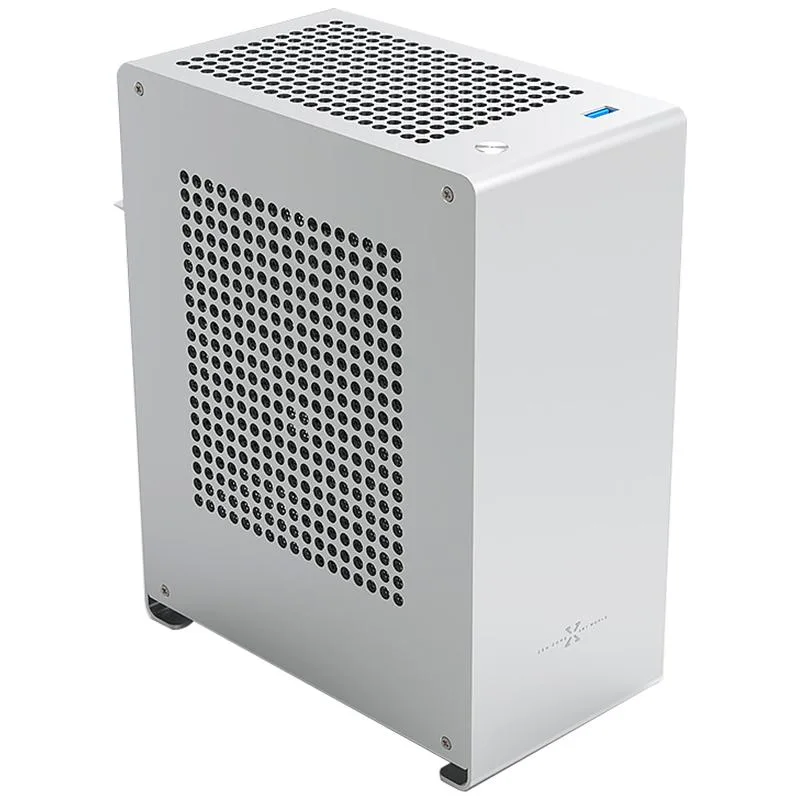

Compact silver aluminium Mini-ITX chassis, 5.8L volume, single front USB 3.0 port

Gintol

Gintol A1P Mini-ITX PC Case 5.8L Silver

SKU CH-7TYY-NRRKJ

A 5.8 L all-aluminium Mini-ITX chassis weighing 1 kg, taking a 195×146×44 mm GPU via riser, 48 mm CPU cooler, FLEX PSU, two 2.5″ SSDs or one 3.5″ drive, one 9015 fan and a front USB 3.0 port

  • ColorSilver
  • With Power SupplyNo
  • Power SupplySupports FLEX (mini 1U)
  • Motherboard Compatibilitymini-ITX
  • With front LCD displayNo
  • Expansion SlotsSupports 2.5 SSD hard drives *2 Supports one 3.5 or 2.5-inch
  • Compact 5.8L footprint saves desk space
  • All-aluminium shell keeps weight at 1KG
  • Fits graphics cards up to 195mm with dual reflex cable
  • Low-profile CPU coolers up to 48mm supported
  • USB 3.0 front port for fast peripheral access

Compact 5.8 Litre Aluminium Chassis

The Gintol A1P is an all-aluminium Mini-ITX enclosure with a 5.8 litre internal volume and a weight of 1 kg. It accepts a single 9015 fan for airflow and provides one front USB 3.0 port for external connectivity. The case shell is sold alone without any included fans or accessories.

Home-Office Builders Seeking Portability

This chassis suits users building a compact home-office or HTPC system who value a lightweight aluminium frame and minimal desk footprint. Builders who require room for multiple 3.5 inch drives, additional expansion cards, or tall CPU coolers exceeding 48 mm should consider a larger enclosure.

GPU Clearance Dictates Graphics Choice

The maximum supported graphics card dimensions are 195 mm by 146 mm by 44 mm and installation requires a dual reflex riser cable with 185 mm recommended length. If your card exceeds any of these measurements it will not fit inside this chassis.

Highlights

  • Compact 5.8L footprint saves desk space
  • All-aluminium shell keeps weight at 1KG
  • Fits graphics cards up to 195mm with dual reflex cable
  • Low-profile CPU coolers up to 48mm supported
  • USB 3.0 front port for fast peripheral access

Specifications

ModelA1P
ColorSilver
With Power SupplyNo
Power SupplySupports FLEX (mini 1U)
Motherboard Compatibilitymini-ITX
With front LCD displayNo
Expansion SlotsSupports 2.5 SSD hard drives *2
Supports one 3.5 or 2.5-inch harddrive without a graphics card
Front PortsUSB3.0*1
Fan OptionsSupports 9015 fans, supports 1 fan
Max GPU LengthSupports 195mm*146mm*44mm
Max CPU Cooler HeightSupport height within 48mm
Max PSU LengthFLEX/1U
Weight1KG

Questions about this item

What clearance does the case give for a CPU cooler?

The chassis allows a cooler up to 48 mm tall, so choose a low-profile model that stays within that limit.

How do I mount a graphics card and what mistake should I avoid?

Insert the card into the PCIe slot, then connect a dual reflex riser cable; the spec calls for a 185 mm cable, so do not try a shorter or longer one.

Which drive bays will I need to replace or add later?

Two 2.5-inch SSD mounts are built in, and a single 3.5-inch or 2.5-inch bay is available when no graphics card is installed.
