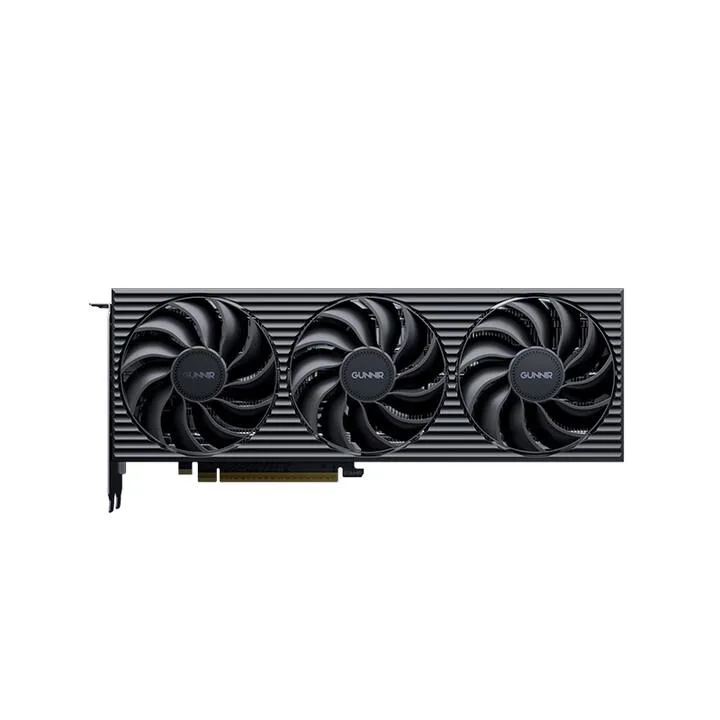

Black triple-fan graphics card with silver accents, 308 mm long

GUNNIR

GUNNIR Intel Arc B570 Tri 10G OC graphics card

SKU CH-896N-4J0H3

Intel Arc B570 GPU with 18 Xe cores at 2600MHz, 10GB GDDR6 on a 160-bit bus, triple-fan cooler, 166W TBP, HDMI 2.1 and three DisplayPort 2.1 outputs for 7680x4320 resolution

  • InterfacePCI Express 4.0
  • Chipset ManufacturerIntel
  • GPU SeriesIntel Arc A-Series
  • Core Clock2600
  • Xe-cores18
  • Memory Size10GB
  • 18 Xe cores deliver strong compute performance for gaming and creative workloads
  • 10 GB GDDR6 at 19 Gbps provides 380 GB/s bandwidth for fast texture streaming
  • PCIe 4.0 interface with 166 W TBP and single 8-pin connector simplifies power delivery
  • HDMI 2.1 plus three DisplayPort 2.1 outputs drive up to four 7680×4320 displays
  • Triple-fan cooler on a 308 mm card keeps temperatures in check under load

Product identity

The GUNNIR Intel Arc B570 Tri 10G OC is a PCI Express 4.0 graphics card built around the Intel Arc B570 GPU with 18 Xe cores running at 2600 MHz. It targets gamers and creators who need modern display outputs and hardware ray tracing via DirectX 12 Ultimate.

Memory capacity and headroom

The card carries 10 GB of GDDR6 memory on a 160-bit bus delivering 380 GB/s bandwidth at 19 Gbps. That frame buffer handles 1440p gaming and multi-monitor productivity well, while 4K titles with heavy texture packs may exhaust the 10 GB limit.

Thermals noise and power

A triple-fan cooler dissipates the 166 W TBP through an 8+4 phase power design fed by a single 8-pin connector. The 308 mm length fits most mid-tower cases, and the cooler keeps temperatures in check during sustained loads without excessive fan speed.

Highlights

  • 18 Xe cores deliver strong compute performance for gaming and creative workloads
  • 10 GB GDDR6 at 19 Gbps provides 380 GB/s bandwidth for fast texture streaming
  • PCIe 4.0 interface with 166 W TBP and single 8-pin connector simplifies power delivery
  • HDMI 2.1 plus three DisplayPort 2.1 outputs drive up to four 7680×4320 displays
  • Triple-fan cooler on a 308 mm card keeps temperatures in check under load

Specifications

BrandGUNNIR
SeriesB570 Tri
ModelB570 Tri 10G OC
InterfacePCI Express 4.0
Chipset ManufacturerIntel
GPU SeriesIntel Arc A-Series
Core Clock2600
Xe-cores18
Memory Size10GB
Memory Interface160-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 2.1
Max Resolution7680 x 4320
CoolerTriple Fans
Thermal Design Power166W
Power Connector8-Pin
Max GPU Length308 mm
Card Dimensions (L x H)308x130x42mm

Questions about this item

Will the 308 mm long card with its 8-pin power connector fit and run on my existing PCIe 4.0 motherboard and power supply?

The card uses a standard PCIe 4.0 x16 slot and draws up to 166 W through a single 8-pin connector, so any motherboard with that slot and a PSU rated for the total system draw will work.

How can I verify the 2600 MHz core clock and 19 Gbps memory are running correctly after installation?

GPU monitoring software will show the core frequency at 2600 MHz and memory at 19 Gbps under load, confirming the OC profile is active.

Does the box include the 8-pin power cable or do I need to buy one separately?

The card ships with the triple-fan cooler and 1 HDMI 2.1 plus 3 DisplayPort 2.1 outputs installed; the 8-pin power cable comes from your power supply, not the graphics card box.
