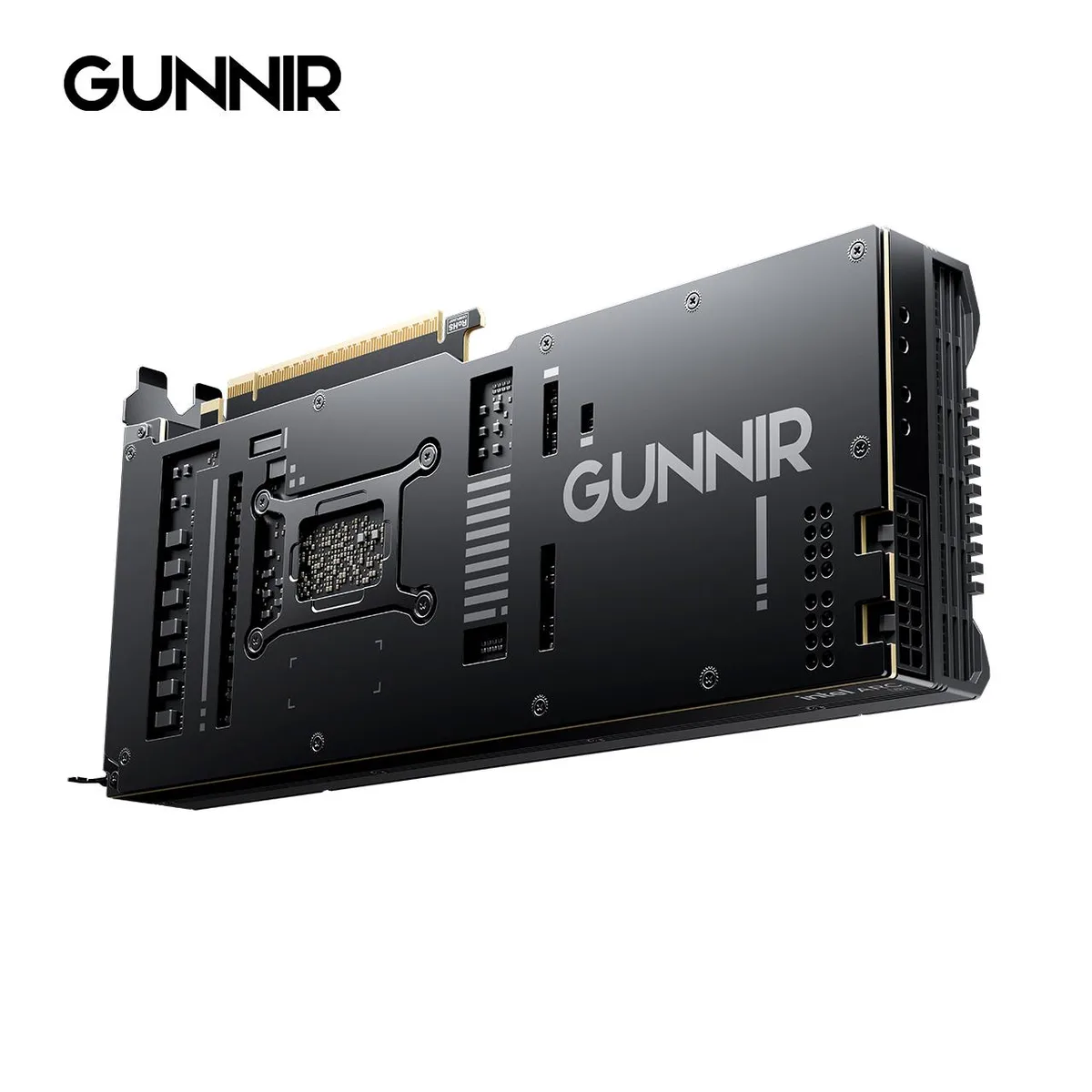

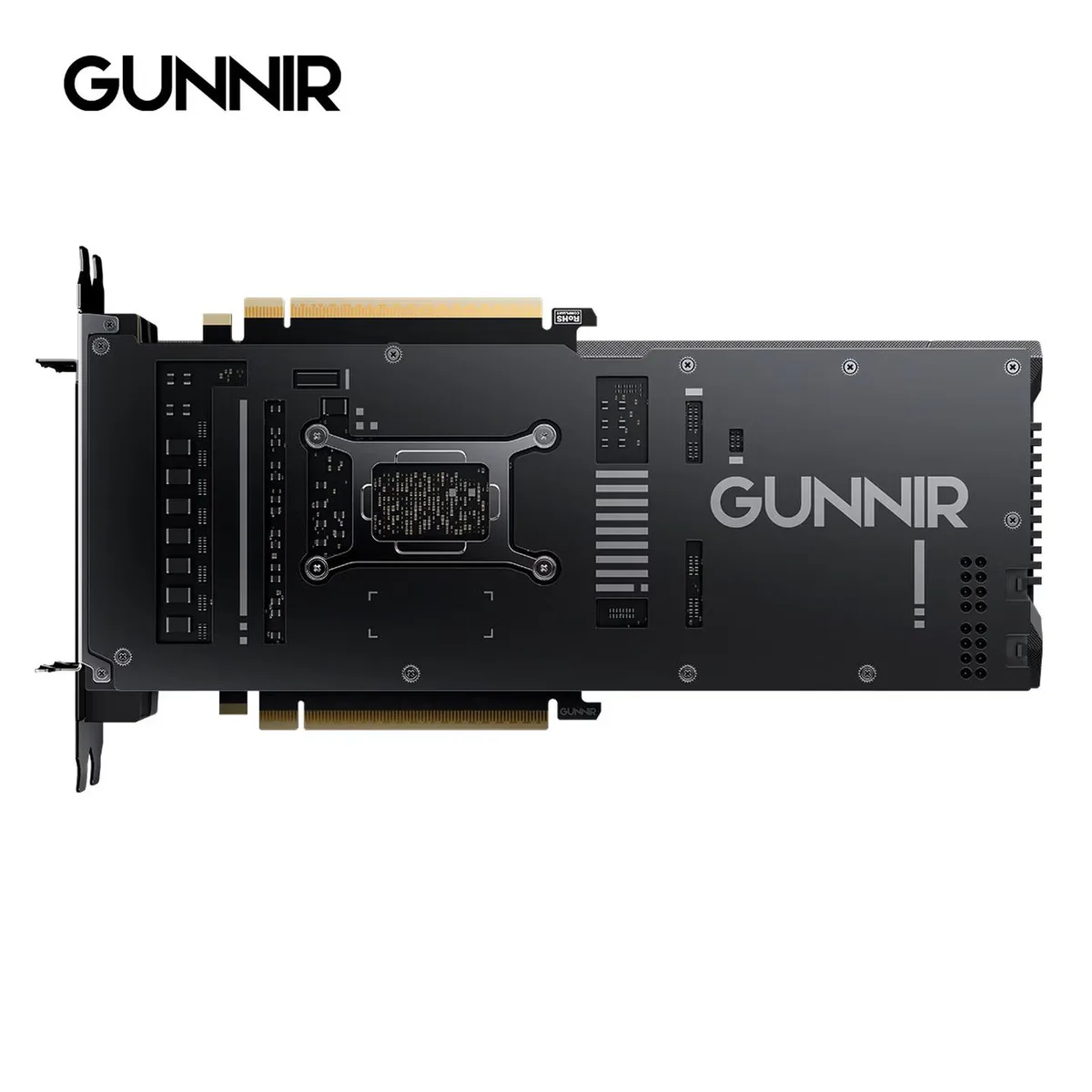

GUNNIR Intel Arc Pro B60 TF 24GB graphics card

24 GB Arc Pro B60 for professional workloads

The GUNNIR Intel Arc Pro B60 TF 24GB graphics card delivers 24 GB of GDDR6 memory on a 192-bit interface for professional visualisation and AI inference. Twenty Xe cores built on TSMC N5 lithography provide 197 TOPS of Int8 compute performance. The PCI Express 5.0 x8 interface supplies high bandwidth to the host system. It targets workstation users who need large frame buffers and media encode or decode acceleration.

Check PCIe slot width and dual 8-pin power

Verify that your motherboard offers a PCI Express 5.0 slot wired for at least x8 electrical lanes to avoid bandwidth limits. The card requires two 8-pin power connectors and a power supply rated for the 200 W board power. Ensure the chassis can accommodate a 267 mm long, 37.3 mm thick dual-slot design. Confirm your monitor cables match the three DisplayPort 2.1 and one HDMI 2.1 outputs for 7680 x 4320 resolution.

Turbo fan cooler at 200 W TBP

The Turbo Fan Cooling System dissipates the 200 W typical board power under sustained professional loads. Expect audible fan ramp when all 2560 stream processors run near the 2400 MHz graphics clock. Idle noise drops when the GPU clocks back to the 2000 MHz base frequency. The 456 GB/s memory bandwidth at 19 Gbps keeps the memory subsystem fed without excessive voltage.
