Black NVR box with sixteen cameras, fifteen bullet and one PTZ dome, matte finish

GW Security Inc.

GW Security GW7816N 16 Channel Surveillance Security System 8TB HDD 15 Bullet 1 PTZ 20x Zoom

SKU CH-QF3A-X1Z9N

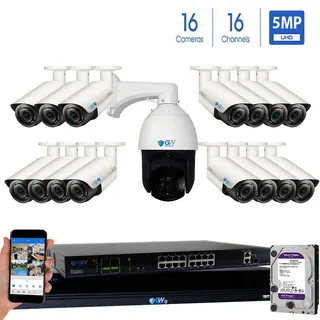

A 16 channel IP PoE surveillance kit with fifteen 5 MP varifocal bullet cameras, one 20× optical zoom PTZ camera, and an 8 TB hard drive pre-installed

  • TypeSurveillance System / Security Camera Kit
  • Camera TypeIP Camera
  • Camera inputs16 Channel
  • Video InputRJ45 (Ethernet Ports) x 16
  • Resolution Recording1920P ; 1536P ; 1080P
  • Recording Frame Rate1920P @ 15fps @ all channels ; 1536P @ real time @ all chann
  • 16-channel IP PoE system simplifies installation with single-cable power and video

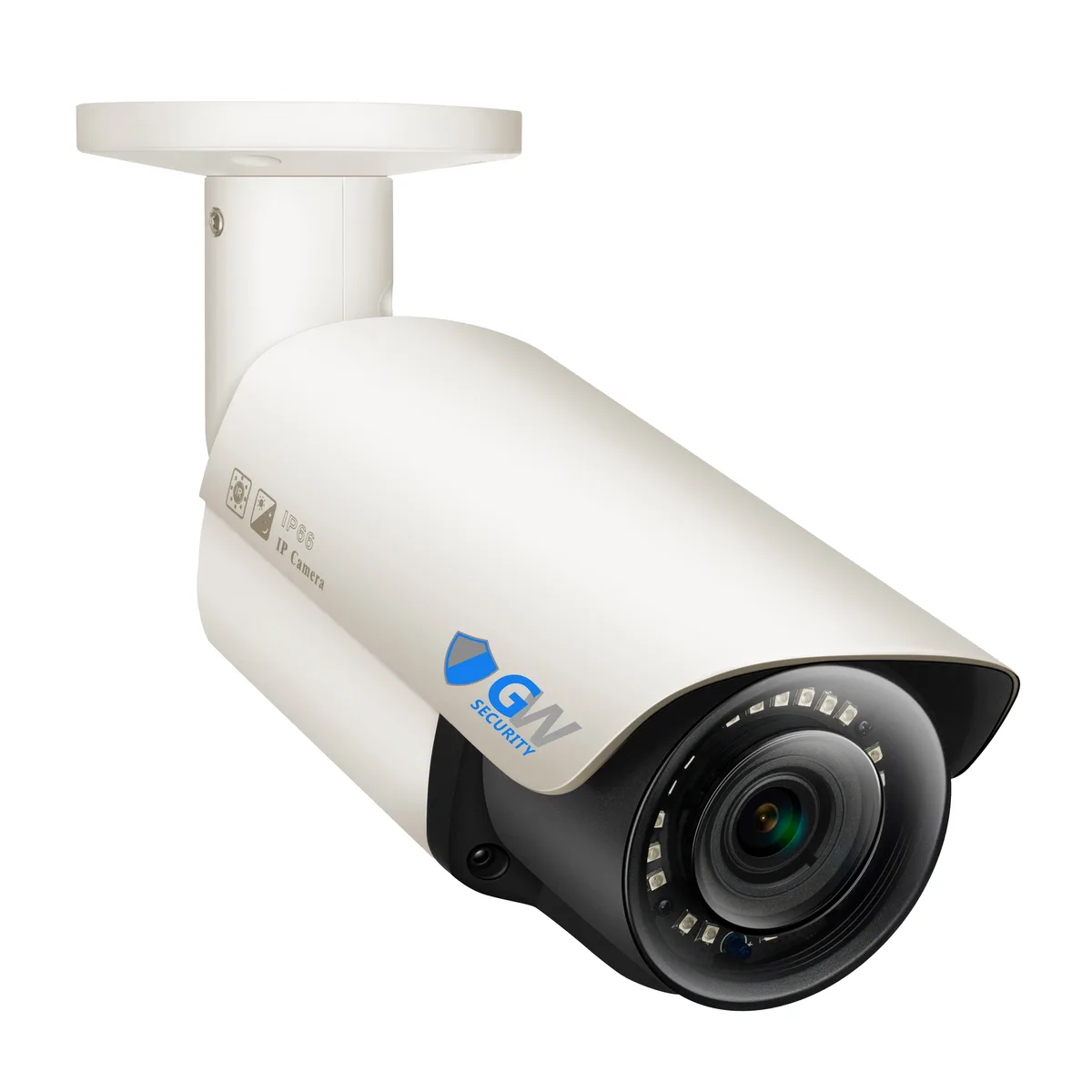

  • 15 bullet cameras feature 2.8-12mm varifocal lenses for adjustable viewing angles

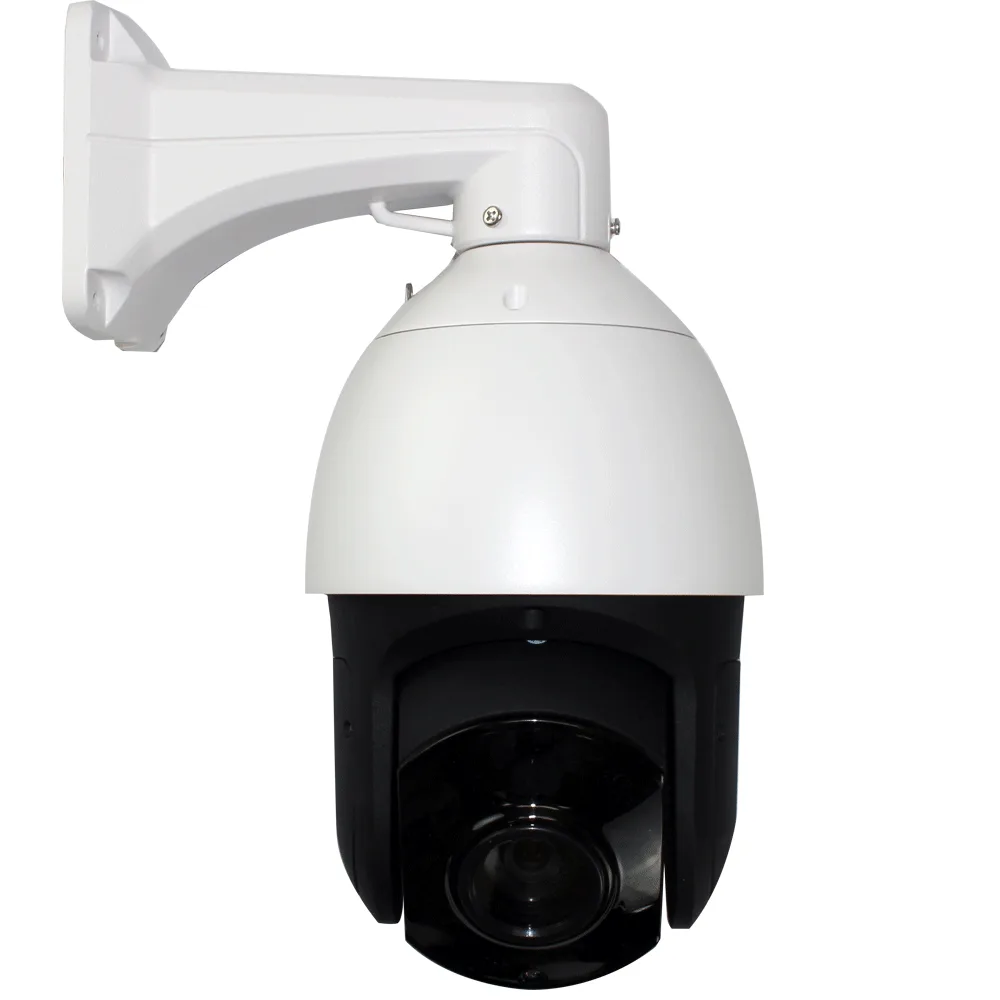

  • PTZ camera provides 20x optical zoom with 360° pan and 90° tilt
  • 8TB pre-installed HDD supports H.265 compression for extended recording time
  • Mobile viewing on iOS, Android, Windows and Mac enables remote monitoring

16 Channel IP POE System

This GW Security GW7816N kit provides a complete 16 channel surveillance solution with an 8TB hard drive pre-installed. Fifteen bullet cameras and one PTZ camera connect via Power over Ethernet for simplified cabling. The NVR handles recording and viewing across all channels simultaneously.

Suits sites needing mixed fixed and movable views

The fifteen varifocal bullet cameras cover fixed angles with adjustable 2.8 to 12mm lenses and infrared reach up to 120ft. The single PTZ unit adds 360 degree pan, 90 degree tilt, 20x optical zoom and infrared up to 500ft. Buyers needing more than one movable camera or more than sixteen total channels should consider a larger system.

H.265 compression with 8TB storage

Video is recorded using H.265 or H.264 compression at 1920P, 1536P or 1080P resolutions. The included 8TB drive capacity determines how many days of footage are retained before overwrite. Expand storage via USB backup or additional internal drives if longer retention is required.

Highlights

  • 16-channel IP PoE system simplifies installation with single-cable power and video
  • 15 bullet cameras feature 2.8-12mm varifocal lenses for adjustable viewing angles
  • PTZ camera provides 20x optical zoom with 360° pan and 90° tilt
  • 8TB pre-installed HDD supports H.265 compression for extended recording time
  • Mobile viewing on iOS, Android, Windows and Mac enables remote monitoring

Specifications

BrandGW Security
ModelGW7816N
TypeSurveillance System / Security Camera Kit
Camera TypeIP Camera
Camera inputs16 Channel
Video InputRJ45 (Ethernet Ports) x 16
Resolution Recording1920P ; 1536P ; 1080P
Recording Frame Rate1920P @ 15fps @ all channels ; 1536P @ real time @ all channels ; 1080P @ real time @ all channels
Recording ModeMotion Detective / Continues / Time Schedule / Alarm (Each individual camera can be setup with its own recording mode)
Recording CompressionH.265 / H.264
Video Output1 x VGA, 1 x HDMI
ONVIFYes
Resolution Display1920P
Max Resolution4MP (2560 x 1440) or Higher
Display Frame Rate1920P @ real time @ all channels
Built-In HDDYes
Storage Capacity8TB HDD
Backup DeviceUSB
Network ConnectionRJ45
Network ProtocolRTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF (UPnP function: NVR will auto detects and assigns IP cameras)
Network RemotePC, iPhone, iPad, and Android Compatiable (Call Our Free Tech Support if You Need Help to Setup Remote Viewing)
Operating SystemLinux (embedded)
Power SupplyPoE Switch & Power adapter (included)
PoE (Power-over-Ethernet)Yes
Bundled Camera Number16
Camera Horizontal Resolution5 MP
Package ContentsNVR with hard drive, PoE switch, bullet cameras, PTZ camera, 1 year warranty

Questions about this item

Will the 16-channel NVR with 8TB HDD and RJ45 PoE ports recognise my older ONVIF cameras?

Yes, the NVR supports ONVIF so it can auto-detect and assign IP addresses to compatible third-party cameras connected to its 16 RJ45 PoE ports.

How do I confirm the 20x optical zoom PTZ and 15 varifocal bullets are recording at 1920P 15fps after setup?

Check the NVR display via HDMI or VGA — each channel shows live 1920P real-time view, and the recording menu lists 1920P @ 15fps for all 16 channels.

Does the kit include the single network cables for all 16 cameras or must I buy them separately?

The kit supplies the 16-channel NVR with 8TB HDD, 15 bullet cameras, 1 PTZ camera, and a USB backup port; Ethernet cables for each camera are not included.
