Silver rectangular 2.5 inch SSD with black label showing HGST Ultrastar branding

HGST

HGST Ultrastar SSD1600MR HUSMR1616ASS200 1.6TB SAS 12Gb/s 2.5" enterprise SSD

SKU CH-BXKX-RSGPV

A 2.5-inch enterprise SSD with 1.6TB capacity, SAS 12Gb/s interface, up to 130,000 random read IOPS, 30,000 random write IOPS, 2.2W active power, and 2,000,000-hour MTBF

  • Form Factor2.5"
  • Capacity1.6TB
  • Memory ComponentsMLC
  • InterfaceSAS 12Gb/s
  • 4KB Random ReadUp to 130,000 IOPS
  • 4KB Random WriteUp to 30,000 IOPS
  • High random read speed up to 130000 IOPS
  • Sustained random write performance up to 30000 IOPS
  • Low active power draw of 2.2W for efficiency
  • High endurance with 2000000 hour MTBF rating
  • Compact 2.5 inch form factor fits dense servers

Ultrastar SSD1600MR 1.6TB SAS drive

The Ultrastar SSD1600MR is a 1.6TB enterprise solid state drive built for 24x7 server and high performance computing environments. It uses MLC NAND flash and a 12Gb/s SAS interface to deliver ultra-high performance tier-0 read endurance.

Capacity and headroom

With 1.6TB of usable capacity the drive sustains up to 130,000 random read IOPS and 30,000 random write IOPS at 4KB. Random write workloads will reach the write IOPS ceiling before the read limit, so plan capacity headroom for write intensive OLTP or cloud workloads.

Build integration

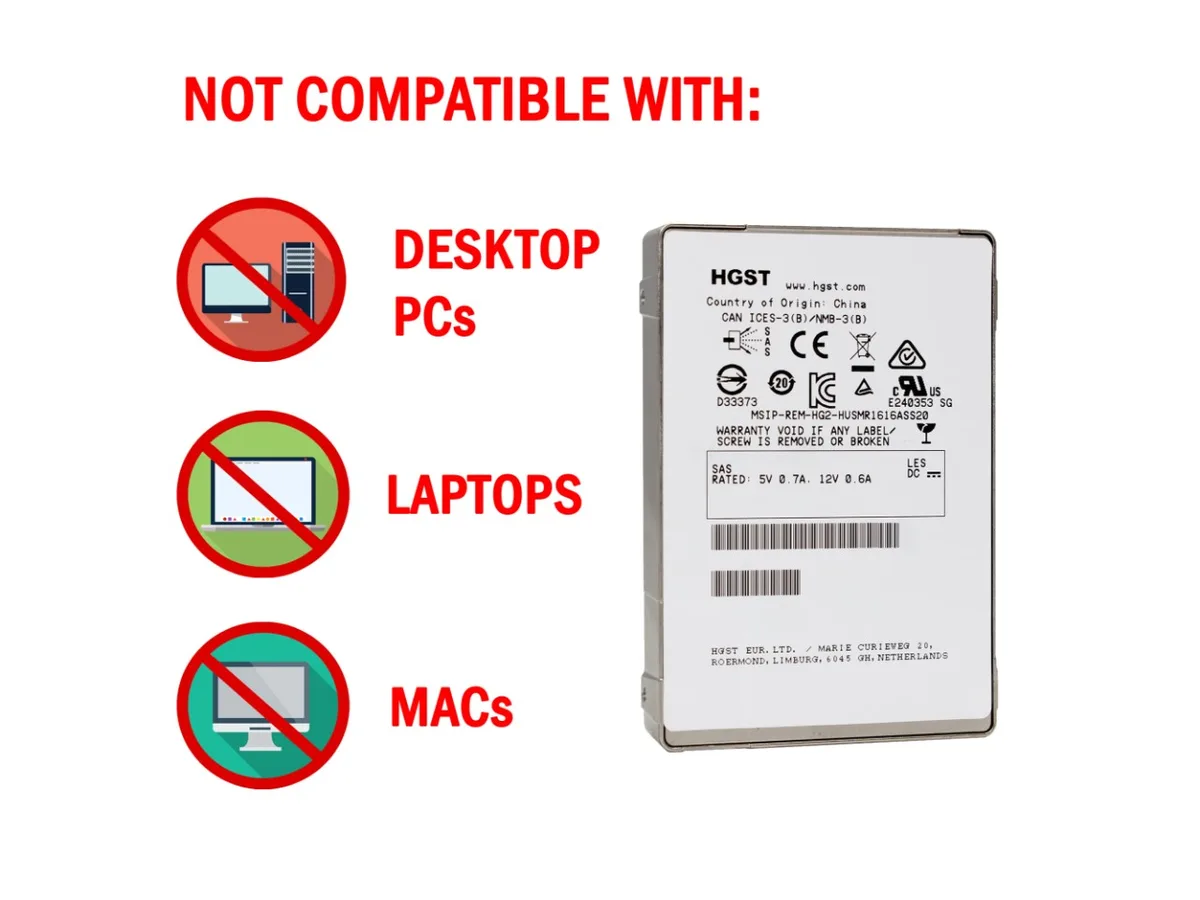

The 2.5 inch 15mm high form factor fits standard drive bays in space and power constrained chassis. Active power draw is 2.2W and the operating range spans 0°C to +60°C. A SAS backplane or controller with 12Gb/s support is required; the drive is not intended for personal PCs.

Highlights

  • High random read speed up to 130000 IOPS
  • Sustained random write performance up to 30000 IOPS
  • Low active power draw of 2.2W for efficiency
  • High endurance with 2000000 hour MTBF rating
  • Compact 2.5 inch form factor fits dense servers

Specifications

BrandHGST
SeriesUltrastar SSD1600MR
ModelHUSMR1616ASS200
Part Number0B31079
Form Factor2.5"
Capacity1.6TB
Memory ComponentsMLC
InterfaceSAS 12Gb/s
4KB Random ReadUp to 130,000 IOPS
4KB Random WriteUp to 30,000 IOPS
MTBF2,000,000 hours
FeaturesMLC NAND flash for ultra-high performance and endurance
Best IOPS/Watt for reduced TCO
12Gb/s SAS interface for maximum throughput
Advanced power loss data management technology
Self-encrypting models conform to TCG's Enterprise specification
Applications/Environments
- Ultra-high performance tier-0 read endurance enterprise storage
- Enterprise-class servers and high performance computing
- Space and/or power constrained environments
- Online Transaction Processing (OLTP)
- Video pre- and post-production
- Cloud computing
Power Consumption (Active)2.2W
Operating Temperature0°C ~ +60°C
Max Shock Resistance1000G (0.5ms) 500G (2ms)
Height15mm
Width70.1mm
Depth100.6mm
Weight187g

Questions about this item

Will the SAS 12Gb/s interface work with my existing 6Gb/s SAS backplane?

Yes, the drive negotiates down to 6Gb/s on older backplanes. You keep the 2.5" form factor and 15mm height, so it fits the same bays.

How can I confirm the 130,000 random read IOPS are being delivered?

Run a 4KB random read test with a tool such as fio or CrystalDiskMark and compare the result to the 130,000 IOPS specification.

Does the HUSMR1616ASS200 ship with a tray or mounting screws?

The drive is supplied as a bare 2.5" unit. Any caddy, tray or screws required for your server or enclosure must be sourced separately.
