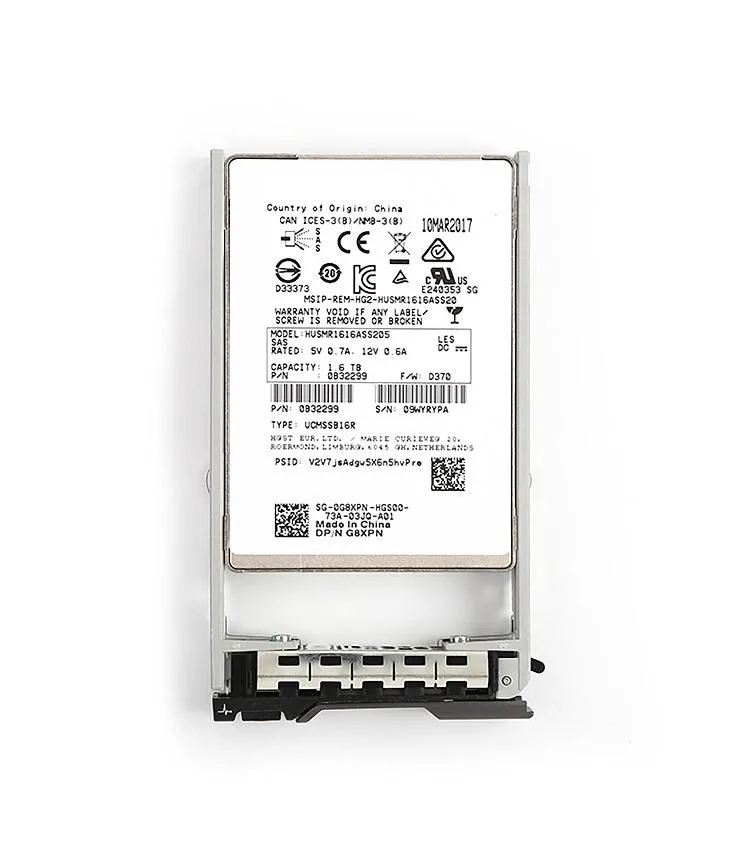

Silver rectangular 2.5 inch enterprise SSD with label showing HGST Ultrastar SSD1600MR 1.6TB SAS 12Gb/s

HGST

HGST Ultrastar SSD1600MR HUSMR1616ASS205 1.6TB SAS 12Gb/s enterprise SSD

SKU CH-8A26-2FG0G

A 2.5-inch SAS enterprise SSD delivering 1.6TB capacity with 130,000 read IOPS and 30,000 write IOPS for tier-zero workloads

  • Form Factor2.5"
  • Capacity1.6TB
  • Memory ComponentsMLC
  • InterfaceSAS 12Gb/s
  • 4KB Random ReadUp to 130,000 IOPS
  • 4KB Random WriteUp to 30,000 IOPS
  • 6TB capacity fits tier-0 read-intensive workloads
  • Up to 130,000 random read IOPS accelerates OLTP and analytics
  • 2W active power lowers operational cost per IOPS
  • 2,000,000-hour MTBF supports continuous enterprise operation
  • Advanced power-loss data management protects in-flight writes

Enterprise SSD for tier‑0 storage

The HGST Ultrastar SSD1600MR HUSMR1616ASS205 is a 2.5 inch enterprise SSD with 1.6TB capacity and a SAS 12Gb/s interface. It uses MLC NAND and targets ultra‑high performance tier‑0 read endurance workloads such as OLTP, video production, cloud computing and high performance computing environments.

Sustained performance and efficiency

Random read reaches up to 130,000 IOPS and random write up to 30,000 IOPS at 4KB block size. Active power draw is 2.2W, delivering best IOPS per watt for reduced total cost of ownership. Advanced power loss data management protects in‑flight data and the drive operates from 0°C to 60°C with shock resistance of 1000G at 0.5ms and 500G at 2ms.

Compatibility and form factor check

Verify that your server or storage array accepts a 2.5 inch SAS drive with a 15mm z‑height and supports the SAS 12Gb/s protocol. The unit measures 70.1mm wide by 100.6mm deep and weighs 187g. Self‑encrypting variants conform to TCG Enterprise specification, so confirm whether your infrastructure requires or supports hardware encryption.

Highlights

  • 6TB capacity fits tier-0 read-intensive workloads
  • Up to 130,000 random read IOPS accelerates OLTP and analytics
  • 2W active power lowers operational cost per IOPS
  • 2,000,000-hour MTBF supports continuous enterprise operation
  • Advanced power-loss data management protects in-flight writes

Specifications

BrandHGST
SeriesUltrastar SSD1600MR
ModelHUSMR1616ASS205
Part Number0B32285
Form Factor2.5"
Capacity1.6TB
Memory ComponentsMLC
InterfaceSAS 12Gb/s
4KB Random ReadUp to 130,000 IOPS
4KB Random WriteUp to 30,000 IOPS
MTBF2,000,000 hours
FeaturesMLC NAND flash for ultra-high performance and endurance
Best IOPS/Watt for reduced TCO
12Gb/s SAS interface for maximum throughput
Advanced power loss data management technology
Self-encrypting models conform to TCG's Enterprise specification
Applications/Environments
- Ultra-high performance tier-0 read endurance enterprise storage
- Enterprise-class servers and high performance computing
- Space and/or power constrained environments
- Online Transaction Processing (OLTP)
- Video pre- and post-production
- Cloud computing
Power Consumption (Active)2.2W
Operating Temperature0°C ~ +60°C
Max Shock Resistance1000G (0.5ms) 500G (2ms)
Height15mm
Width70.1mm
Depth100.6mm
Weight187g

Questions about this item

What is the active power draw and operating temperature range of the HUSMR1616ASS205 under continuous load?

The drive consumes 2.2W active and is rated for 0°C to 60°C operating temperature, with an MTBF of 2,000,000 hours.

Which host interface and connector does the 1.6TB Ultrastar SSD1600MR require to function?

It requires a 12Gb/s SAS backplane or HBA with a standard 2.5-inch SAS connector; the drive is a 15mm z-height unit.

Will the 12Gb/s SAS interface on this SSD negotiate down to work with my existing 6Gb/s SAS controller?

Yes, the 12Gb/s SAS interface is backward compatible with 6Gb/s and 3Gb/s SAS infrastructures, allowing integration with older controllers.
