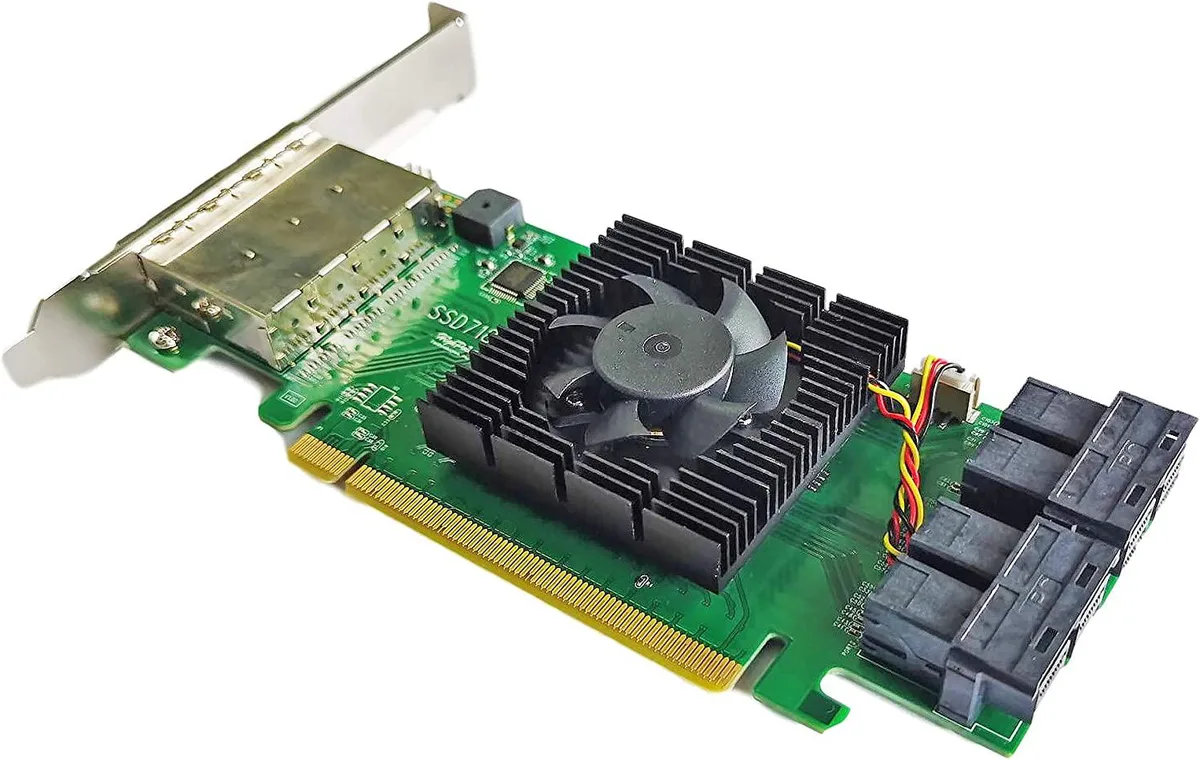

Half-height PCIe add-in card with four internal SFF-8643 and two external SFF-8644 ports

HighPoint Technologies, Inc.

HighPoint Technologies, Inc. SSD7184 NVMe RAID AIC 8-Port

SKU CH-5Z85-49BYZ

Adds eight NVMe ports with RAID 0, 1 and 10 to a PCIe 3.0 x16 slot, supporting up to 120 TB at 14 000 MB/s

  • High-sustained write performance up to 14,000 MB/s
  • Dedicated PCIe 3.0 x16 bandwidth per port
  • Over 120 TB storage capacity supported
  • Four internal plus four external NVMe channels
  • Platform independent RAID for AMD and Intel systems

HighPoint SSD7184 NVMe RAID AIC

The HighPoint SSD7184 is an 8-port NVMe RAID add-in card designed for PCIe 3.0 x16 server and workstation platforms. It targets administrators who need high-density storage on a single controller. The card supports over 100TB and up to 120TB of capacity. It provides RAID 0, 1, 1/0 and single-disk modes for Windows and Linux systems.

Half-height form factor fits standard slots

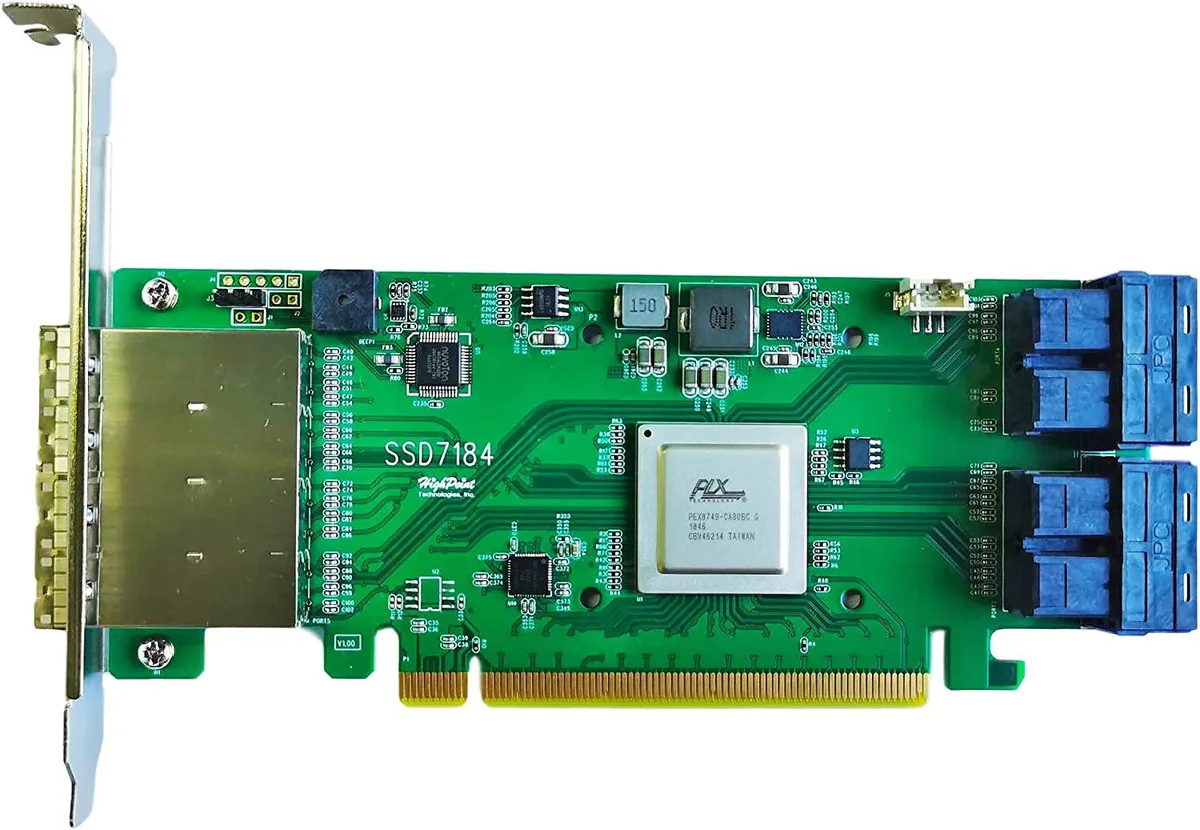

The compact single-width, half-height design installs into standard PCIe 3.0 or 4.0 x16 slots on AMD and Intel motherboards. Four internal SFF-8643 ports and two external SFF-8644 ports enable simultaneous internal and external drive configurations. Cabling accessories are required to connect U.2, U.3 or M.2 SSDs to the internal ports. macOS compatibility requires contacting HighPoint directly.

Sustained write performance at scale

The hardware architecture allocates up to x4 lanes of dedicated PCIe 3.0 bandwidth per NVMe port for maximum throughput. This design delivers speeds up to 14,000MB/s across all eight channels under sustained load. A flexible modular cooling solution maintains thermal stability during continuous operation. Arrays can be created freely between drives hosted on either internal or external ports.

Highlights

  • High-sustained write performance up to 14,000 MB/s
  • Dedicated PCIe 3.0 x16 bandwidth per port
  • Over 120 TB storage capacity supported
  • Four internal plus four external NVMe channels
  • Platform independent RAID for AMD and Intel systems

Specifications

No published specifications for this item yet.

Questions about this item

How do I verify the SSD7184 is delivering the rated 14,000 MB/s after installation?

Run sequential read benchmarks on a RAID 0 array across all eight NVMe drives; sustained throughput near 14,000 MB/s confirms the PCIe 3.0 x16 link and controller are operating at full speed.

Which cables or enclosures must I purchase separately to use the four internal SFF-8643 and two external SFF-8644 ports?

Internal ports need SFF-8643 to U.2, U.3 or M.2 breakout cables for each SSD; external ports require the SSD6540, SSD6540M or RocketStor 6540 4-bay NVMe enclosures with SFF-8644 cables.

Should I choose the SSD7184 for a 100 TB or 120 TB NVMe array on a PCIe 3.0 platform?

The controller supports over 100 TB and up to 120 TB total capacity, so either target fits; select 120 TB if you plan to populate all eight ports with maximum-density drives.
