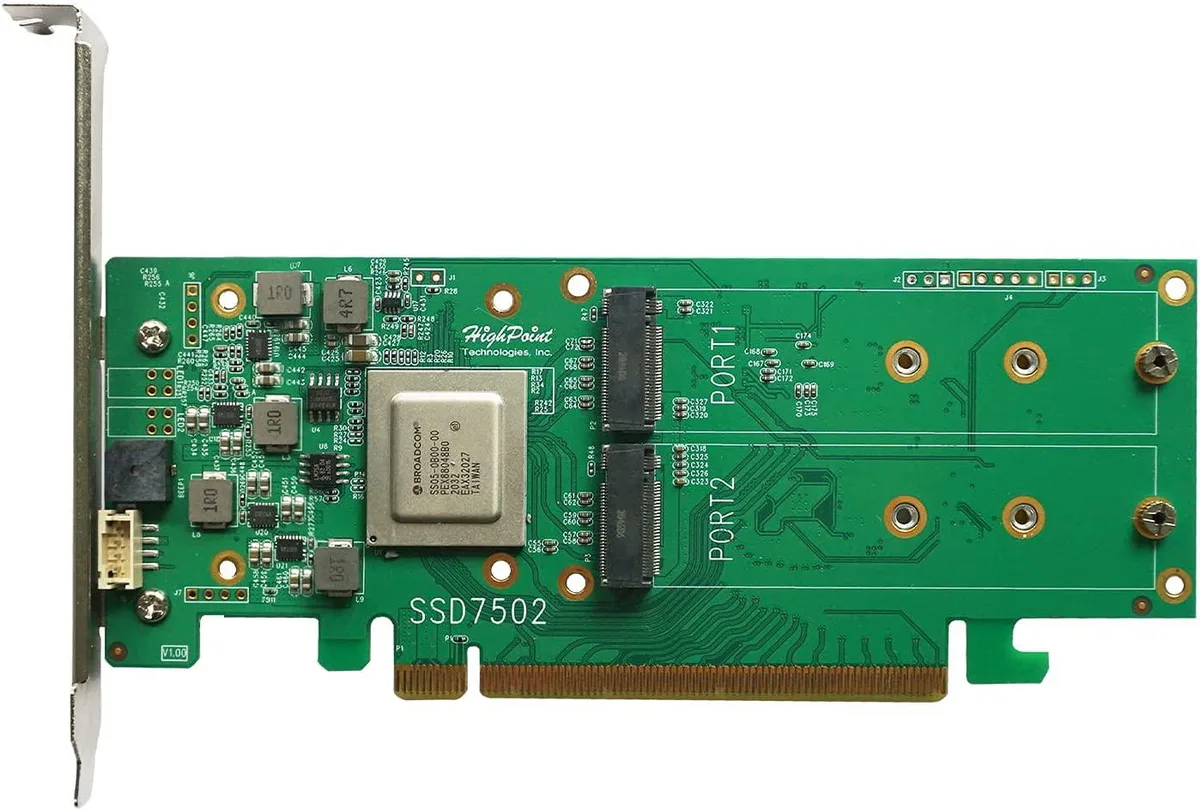

Low-profile PCIe x16 card with two M.2 slots and a metal heatsink

HighPoint Technologies, Inc.

HighPoint Technologies, Inc. SSD7502 2-Port M.2 NVMe RAID Controller

SKU CH-H4QW-8SX3W

Adds two M.2 NVMe drives with bootable RAID 0 or 1 and up to 13,000 MB/s over a PCIe 4.0 x16 slot

  • Bootable RAID 0, 1 and single-disk support for Windows and Linux
  • PCIe 4.0 x16 host interface with PCIe 3.0 compatibility for full bandwidth
  • Dual M.2 NVMe slots deliver up to 13,000 MB/s sustained throughput
  • Integrated TBW and temperature monitoring via WebGUI and CLI
  • Low-profile design with low-noise Gen4 hyper-cooling solution

Dual-Port NVMe RAID Controller

The SSD7502 is a bootable RAID controller that installs two M.2 NVMe SSDs into a single PCIe 4.0 x16 slot. It targets server and workstation builders who need redundant or striped NVMe storage without occupying multiple expansion slots. The card presents both drives to the operating system as a single logical volume for Windows and Linux platforms.

Low-Profile Card with Active Gen4 Cooling

The low-profile bracket fits standard and dense chassis while a dedicated hyper-cooling assembly keeps both Gen4 SSDs at stable temperatures under sustained load. A PCIe 4.0 x16 host interface connects through an onboard switch chipset so each M.2 port receives full bandwidth. The card also operates in PCIe 3.0 x16 slots at reduced throughput.

Adds Bootable RAID to Platforms Lacking Onboard

The controller upgrades systems that have no native M.2 RAID capability or insufficient M.2 slots by providing RAID 0, RAID 1 and single-disk modes with boot support. Management is handled through a WebGUI for newcomers and a CLI for administrators, with TBW and temperature tracking built in. The jump is worthwhile when the platform cannot otherwise boot from a redundant or high-speed NVMe array.

Highlights

  • Bootable RAID 0, 1 and single-disk support for Windows and Linux
  • PCIe 4.0 x16 host interface with PCIe 3.0 compatibility for full bandwidth
  • Dual M.2 NVMe slots deliver up to 13,000 MB/s sustained throughput
  • Integrated TBW and temperature monitoring via WebGUI and CLI
  • Low-profile design with low-noise Gen4 hyper-cooling solution

Specifications

No published specifications for this item yet.

Questions about this item

What PCIe generation and lane width does the SSD7502 use for its host connection, and what throughput does that cap at?

The SSD7502 connects via a PCIe 4.0 x16 link to the CPU, providing up to 16 GT/s per lane and enabling sustained transfer speeds of nearly 13,000 MB/s with two Gen4 NVMe SSDs.

What physical slot and M.2 form factors does the SSD7502 require for installation?

The low-profile card fits any PCIe 4.0 or 3.0 x16 slot and accepts two off-the-shelf M.2 NVMe SSDs mounted directly on the controller.

How do you set up the RAID array on the SSD7502, and which step is commonly missed?

Install the card, seat both M.2 NVMe SSDs, then use the WebGUI or CLI to create a RAID 0, 1, or single-disk array; the step often missed is initializing the array in the management suite before the OS sees a bootable volume.
