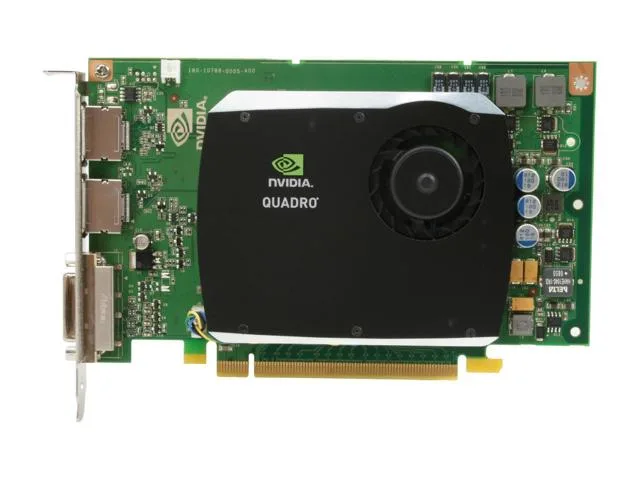

HP Quadro FX 580 graphics card with single-slot cooler and dual DisplayPort outputs

HP

HP 519295-001 Quadro FX 580 512MB graphics card

SKU CH-65PK-9M5XM

A professional graphics card with 512 MB GDDR3 memory on a 128-bit bus, PCI Express 2.0 x16 interface, two DisplayPort outputs and one DVI port supporting 2560 x 1600 resolution

  • InterfacePCI Express 2.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUQuadro FX 580
  • Memory Size512MB
  • Memory Interface128-Bit
  • Memory TypeGDDR3
  • Professional graphics performance with NVIDIA Quadro FX 580 GPU
  • 512MB GDDR3 memory on 128-bit interface for workstation tasks
  • PCI Express 2.0 x16 interface fits standard expansion slots
  • Dual DisplayPort and DVI outputs drive up to 2560 x 1600 resolution
  • Single-slot cooler with fan keeps temperatures controlled

HP 519295-001 Quadro FX 580 512MB

The HP 519295-001 is a workstation graphics card built on the NVIDIA Quadro FX 580 GPU with 512MB of GDDR3 memory on a 128-bit interface. It connects via a PCI Express 2.0 x16 slot and occupies a single slot width with an active fan cooler. The card targets professional users who need certified driver stability for 3D modelling, CAD and DCC applications at a modest cost.

Upgrade from integrated or legacy PCIe graphics

This card replaces integrated graphics or older PCIe workstation cards that lack DirectX 10 and OpenGL 3.0 support. The jump is worthwhile when your workflow requires hardware-accelerated 30-bit colour, dual DisplayPort outputs and a single-link DVI port driving up to 2560 x 1600 resolution. It also adds NVIDIA unified architecture that dynamically balances geometry, shading and compute tasks for smoother viewport performance.

Suits entry-level workstations and multi-monitor

The Quadro FX 580 suits small-form-factor workstations needing two DisplayPort displays plus a DVI screen from a single-slot card with low power draw. It is not suited for modern GPU compute workloads, high-resolution texture work or applications requiring DirectX 11 or later feature levels; users with those needs should consider a newer professional GPU with more memory and updated API support.

Highlights

  • Professional graphics performance with NVIDIA Quadro FX 580 GPU
  • 512MB GDDR3 memory on 128-bit interface for workstation tasks
  • PCI Express 2.0 x16 interface fits standard expansion slots
  • Dual DisplayPort and DVI outputs drive up to 2560 x 1600 resolution
  • Single-slot cooler with fan keeps temperatures controlled

Specifications

BrandHP
Model519295-001
InterfacePCI Express 2.0 x16
Chipset ManufacturerNVIDIA
GPUQuadro FX 580
Memory Size512MB
Memory Interface128-Bit
Memory TypeGDDR3
DirectXDirectX 10
OpenGLOpenGL 3.0
DisplayPort2 x DisplayPort
DVI1 x DVI
Max Resolution2560 x 1600
CoolerWith Fan
Dual-Link DVI SupportedYes
Slot WidthSingle Slot

Questions about this item

Does the card need a full-height bracket and a single PCIe 2.0 x16 slot?

Yes, it occupies one PCI Express 2.0 x16 slot and uses a single-slot cooler with fan, so it fits in a standard full-height expansion bay.

Do I just press it into the PCIe 2.0 x16 slot or are there extra steps?

Insert the card firmly into the PCI Express 2.0 x16 slot until the retention latch clicks; the step often missed is securing the rear bracket screw to prevent the card from sagging over time.

Will the fan on the Quadro FX 580 need cleaning or replacement later?

The onboard fan should be cleared of dust every few months with compressed air; if it becomes noisy or stops spinning, the whole cooler assembly can be swapped for a compatible single-slot replacement.
